SPECjbb2005 SPECjbb2005 bops = 111103, SPECjbb2005 bops/JVM = 111103
SuperMicro, Inc. X7DBE
IBM Corporation IBM J9 VM (build 2.3, J2RE 1.5.0 IBM J9 2.3 Windows Server 2003 x86-32 j9vmwi3223-20060919 (JIT enabled)

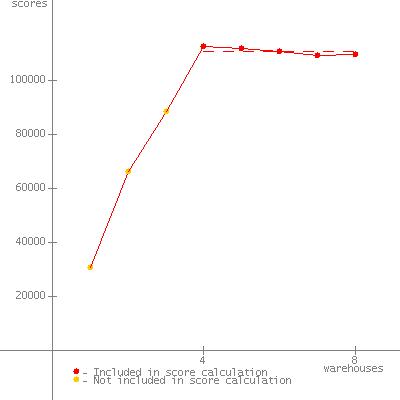

Warehouses SPECjbb2005 bops Incl. in metric
1 30880
2 66450
3 88729
4 112918 *
5 112215 *
6 110766 *
7 109630 *
8 109987 *
SPECjbb2005 (from 4 to 8) 111103 SPECjbb2005 bops
SPEC license # 49 Tested by: Advanced Micro Devices Test date: Oct 11, 2006

Hardware
Hardware Vendor SuperMicro, Inc.
Vendor URL http://www.supermicro.com/
Model X7DBE
Processor Intel Xeon 5160
MHz 3000
# of Chips 2
# of Cores 4
# of Cores/Chip 2
HW Threading Enabled? No
Procs Avail to Java 4
Memory (MB) 8192
Memory Details 8 x 1GB DDR2-667 CL5 FBDIMM
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 4096KB(I+D) on chip, shared
Other cache
Filesystem NTFS
Disks 1 x 250GB SATA
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com/
JVM Version IBM J9 VM (build 2.3, J2RE 1.5.0 IBM J9 2.3 Windows Server 2003 x86-32 j9vmwi3223-20060919 (JIT enabled)
JVM Command Line start /B %JAVA% -Xgcpolicy:gencon -Xjvm:perf -XlockReservation -Xlp -Xmn1000m -Xms1500m -Xmx1500m -Xnoloa -XtlhPrefetch spec.jbb.JBBmain -propfile %PROPFILE%
JVM Initial Heap Memory (MB) 1536
JVM Maximum Heap Memory (MB) 1536
JVM Address bits 32
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\java\IBM32-sdk-50-2.0.2\jre\bin\perf\jclSC150\vm.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\core.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\charsets.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\graphics.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\security.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmpkcs.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmorb.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmcfw.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmorbapi.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmjcefw.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmjgssprovider.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmjsseprovider2.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmjaaslm.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmjaasactivelm.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\ibmcertpathprovider.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\server.jar;
C:\java\IBM32-sdk-50-2.0.2\jre\lib\xml.jar
OS Version Microsoft Windows Server 2003 Enterprise x64 Edition SP1 (64-bit)
Other software
Test Information
Tested by Advanced Micro Devices
SPEC license # 49
Test location Austin, TX
Test date Oct 11, 2006
H/w available Jul-2006
JVM available Oct-2006
OS available Mar-2005
Other s/w available
AOT Compilation

Tuning
BIOS
Hardware Prefetcher : [Disabled]
OS
Using the local Security Settings console, "Lock pages in memory" was enabled for the user running the benchmark.
Notes
SUT requires a SuperMicro X7DBE motherboard (BIOS rev 1.1a), 8GB of PC2-5300 memory (8 x 1GB CL5 FBDIMMs), a Western Digital WD2500 SATA drive, a SSI EEB 3.51 specification compliant form-factor case, and a Zippy/Emacs 700 watt PSL-6701P Power Supply.

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 30880 1500 696 <0.01% <0.01 new_order 407259 12.4 .078
payment 281019 4.62 .063
order_status 28102 .514 .016
delivery 28102 4.76 .078
stock_level 28103 .749 .016
cust_report 154787 5.90 .063
2 66450 1500 649 .491% <0.01 new_order 876936 25.0 .109
payment 604713 9.06 .079
order_status 60471 1.22 .016
delivery 60472 9.99 .078
stock_level 60471 1.56 .079
cust_report 332492 11.1 .078
3 88729 1500 660 6.73% <0.01 new_order 1170521 34.9 .094
payment 807461 13.3 .094
order_status 80745 2.12 .016
delivery 80747 19.4 .094
stock_level 80746 2.53 .094
cust_report 444393 15.5 .094
4 112918 1500 587 2.00% .208 new_order 11932503 356 .156
payment 8229309 137 .094
order_status 822931 20.2 .094
delivery 822930 226 .094
stock_level 822931 26.2 .031
cust_report 4526116 172 .187
5 112215 1500 958 10.8% <0.01 new_order 11834917 449 .422
payment 8161643 170 .391
order_status 816164 24.6 .391
delivery 816165 277 .406
stock_level 816164 35.5 .250
cust_report 4488370 210 .453
6 110766 1500 795 19.4% .176 new_order 11701484 548 .625
payment 8069904 205 .625
order_status 806994 33.4 .391
delivery 806990 338 .625
stock_level 806991 37.4 .500
cust_report 4438316 246 .437
7 109630 1500 829 19.4% <0.01 new_order 11563062 621 .813
payment 7973573 253 .813
order_status 797356 38.9 .625
delivery 797358 381 .828
stock_level 797357 48.2 .781
cust_report 4384087 303 .641
8 109987 1500 496 18.4% .033 new_order 11601071 708 1.24
payment 8001621 283 .813
order_status 800161 38.6 .813
delivery 800162 449 1.00
stock_level 800159 55.4 .797
cust_report 4402171 340 .828

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 08-Nov-2006
