SPECjbb2005 SPECjbb2005 bops = 178201, SPECjbb2005 bops/JVM = 44550
Fujitsu Siemens Computers PRIMERGY TX600 S3, Intel Xeon 7140M processor, 3.40 GHz
BEA Systems, Inc BEA JRockit(R) 5.0 P26.4.1 (build P26.4.1-5-64782-1.5.0_06-20060726-0014-win-x86_64)

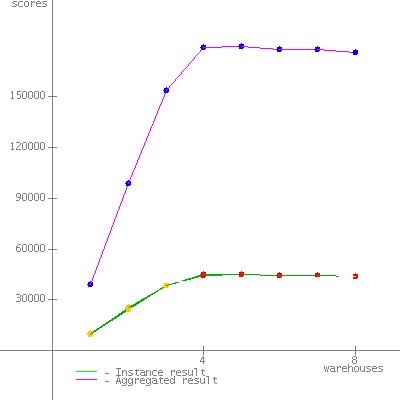

JVM run JVM Scores
144494
244647
344497
444563
SPECjbb2005 bops = 178201, SPECjbb2005 bops/JVM = 44550

Hardware
Hardware Vendor Fujitsu Siemens Computers
Vendor URL http://www.fujitsu-siemens.com
Model PRIMERGY TX600 S3, Intel Xeon 7140M processor, 3.40 GHz
Processor Intel Xeon 7140M processor (3.40 GHz, 2x1MB L2, 16MB L3, 800 MHz system bus)
MHz 3400
# of Chips 4
# of Cores 8
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 16
Memory (MB) 32768
Memory Details 16x2GB DDRII-RAM PC2-3200R (CAS 3-3-3)
Primary cache 12k micro-ops I + 16KBD on chip, per core
Secondary cache 1024KB(I+D) on chip, per core
Other cache 16MB on chip, per chip
Filesystem NTFS
Disks Fujitsu MAS3367NC (SCSI, 15krpm, 36GB)
Other hardware none
Software
Software Vendor BEA Systems, Inc
Vendor URL http://www.bea.com
JVM Version BEA JRockit(R) 5.0 P26.4.1 (build P26.4.1-5-64782-1.5.0_06-20060726-0014-win-x86_64)
JVM Command Line java -Xms3700m -Xmx3700m -XXaggressive -XXthroughputCompaction -XXallocPrefetch -XXallocRedoPrefetch -XXcompressedRefs -XXlazyUnlocking -XXtlasize128k spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3700
JVM Maximum Heap Memory (MB) 3700
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\SPECjbb2005\JVM\jrockit-jdk1.5.0_06\jre\bin\jrockit\jrockit.jar;
C:\SPECjbb2005\JVM\jrockit-jdk1.5.0_06\jre\bin\jrockit\managementapi.jar;
C:\SPECjbb2005\JVM\jrockit-jdk1.5.0_06\jre\lib\managementapi.jar;
C:\SPECjbb2005\JVM\jrockit-jdk1.5.0_06\jre\lib\rt.jar;
C:\SPECjbb2005\JVM\jrockit-jdk1.5.0_06\jre\lib\i18n.jar;
C:\SPECjbb2005\JVM\jrockit-jdk1.5.0_06\jre\lib\sunrsasign.jar;
C:\SPECjbb2005\JVM\jrockit-jdk1.5.0_06\jre\lib\jsse.jar;
C:\SPECjbb2005\JVM\jrockit-jdk1.5.0_06\jre\lib\jce.jar;
C:\SPECjbb2005\JVM\jrockit-jdk1.5.0_06\jre\lib\charsets.jar;
C:\SPECjbb2005\JVM\jrockit-jdk1.5.0_06\jre\classes
OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)
Other software none
Test Information
Tested by Fujitsu Siemens Computers
SPEC license # 22
Test location Paderborn, Germany
Test date Jul 31, 2006
H/w available Aug-2006
JVM available Nov-2006
OS available Mar-2005
Other s/w available n/a
AOT Compilation

Tuning
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Each JVM instance was bound to the CPUs of one node.
Notes
  • turned on 'Adjacent Sector Prefetcher' in BIOS
  • turned off 'Memory Scrubbing' in BIOS
  • Command line options are described at:
    http://edocs.bea.com/jrockit/jrdocs/refman/intro.html
  • This result was measured on the PRIMERGY RX600 S3. The PRIMERGY TX600 S3 and the PRIMERGY RX600 S3 are electronically equivalent.

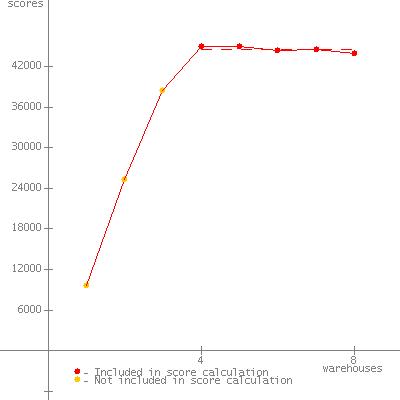

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9551
2 24035
3 38769
4 44783 *
5 44903 *
6 44454 *
7 44315 *
8 44012 *
SPECjbb2005 (from 4 to 8) 44494 SPECjbb2005 bops
SPEC license # 22 Tested by: Fujitsu Siemens Computers Test date: Jul 31, 2006


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 10015
2 25031
3 38366
4 45091 *
5 45064 *
6 44504 *
7 44540 *
8 44038 *
SPECjbb2005 (from 4 to 8) 44647 SPECjbb2005 bops
SPEC license # 22 Tested by: Fujitsu Siemens Computers Test date: Jul 31, 2006


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9589
2 24444
3 38439
4 44581 *
5 44955 *
6 44443 *
7 44494 *
8 44013 *
SPECjbb2005 (from 4 to 8) 44497 SPECjbb2005 bops
SPEC license # 22 Tested by: Fujitsu Siemens Computers Test date: Jul 31, 2006


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9695
2 25361
3 38470
4 45020 *
5 44960 *
6 44438 *
7 44459 *
8 43938 *
SPECjbb2005 (from 4 to 8) 44563 SPECjbb2005 bops
SPEC license # 22 Tested by: Fujitsu Siemens Computers Test date: Jul 31, 2006

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 27-Sep-2006
