SPECjbb

SPECjbb2005		SPECjbb2005 bops = 2003477, SPECjbb2005 bops/JVM = 58926
SGI Altix 4700 (34 Blade/68P DC)
BEA Systems BEA JRockit(R) 5.0 P26.4.0-10 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-linux-ia64

JVM run JVM Scores

1 58681

2 59035

3 59127

4 58824

5 59119

6 59201

7 58727

8 59067

9 58598

10 58783

11 59171

12 58605

13 59067

14 59095

15 59088

16 59150

17 58976

18 58869

19 59120

20 58417

21 59143

22 58837

23 58443

24 58809

25 58727

26 59299

27 58547

28 58998

29 58739

30 59084

31 59077

32 58898

33 59139

34 59017

SPECjbb2005 bops = 2003477, SPECjbb2005 bops/JVM = 58926

Hardware

Hardware Vendor SGI

Vendor URL http://www.sgi.com

Model Altix 4700 (34 Blade/68P DC)

Processor Intel DC Itanium2 Processor 9050 1.6 Ghz

MHz 1600

# of Chips 68

# of Cores 136

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 136

Memory (MB) 278528

Memory Details 1 GB ECC DDR2 DIMMs (PC2-3200R) spread uniformly over 34 compute blades

Primary cache 16kBI + 16kBD on chip per core

Secondary cache 1024kBI + 256kBD on chip per core

Other cache 12MB (I+D) on chip per core

Filesystem xfs

Disks 1 x 146 GB SCSI (classes + OS)

Other hardware

Software

Software Vendor BEA Systems

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P26.4.0-10 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-linux-ia64

JVM Command Line numactl --cpubind=$node --localalloc java -Xms3840m -Xmx3840m -XXaggressive -XXcompressedRefs -XXthroughputCompaction -XXlazyUnlocking -XXtlasize256k -XXgcthreads8 -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id $id

JVM Initial Heap Memory (MB) 3840

JVM Maximum Heap Memory (MB) 3840

JVM Address bits 64

JVM CLASSPATH jbb.jar:
check.jar

JVM BOOTCLASSPATH /tmp/jrockit-jdk1.5.0_06/jre/lib/ia64/jrockit/jrockit.jar:
/tmp/jrockit-jdk1.5.0_06/jre/lib/ia64/jrockit/managementapi.jar:
/tmp/jrockit-jdk1.5.0_06/jre/lib/managementapi.jar:
/tmp/jrockit-jdk1.5.0_06/jre/lib/rt.jar:
/tmp/jrockit-jdk1.5.0_06/jre/lib/i18n.jar:
/tmp/jrockit-jdk1.5.0_06/jre/lib/sunrsasign.jar:
/tmp/jrockit-jdk1.5.0_06/jre/lib/jsse.jar:
/tmp/jrockit-jdk1.5.0_06/jre/lib/jce.jar:
/tmp/jrockit-jdk1.5.0_06/jre/lib/charsets.jar:
/tmp/jrockit-jdk1.5.0_06/jre/classes

OS Version SuSE Linux Enterprise Server 9 SP3 (2.6.5-7.244-sn2)

Other software

Test Information

Tested by SGI

SPEC license # 4

Test location Mountain View, CA

Test date Jul 20, 2006

H/w available July-2006

JVM available June-2006

OS available Jan-2006

Other s/w available

AOT Compilation

Tuning

Operating system tunings
mount -t hugetlbfs nodev /mnt/hugepages
echo 680 > /proc/sys/vm/nr_hugepages

Notes

Command line options are described at http://e-docs.bea.com/jrockit/jrdocs/refman/index.html
System configured to use one JVM per NUMA node (4 cores).

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9937
2	29628
3	43888
4	60188	*
5	58410	*
6	59003	*
7	58332	*
8	57471	*
SPECjbb2005	(from 4 to 8)	58681 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10127
2	30157
3	43706
4	60380	*
5	58574	*
6	59576	*
7	58836	*
8	57809	*
SPECjbb2005	(from 4 to 8)	59035 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8554
2	29978
3	43640
4	60268	*
5	59156	*
6	59680	*
7	58920	*
8	57613	*
SPECjbb2005	(from 4 to 8)	59127 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7582
2	29342
3	43616
4	60066	*
5	58793	*
6	59167	*
7	58387	*
8	57707	*
SPECjbb2005	(from 4 to 8)	58824 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7975
2	29751
3	43588
4	60515	*
5	58880	*
6	59552	*
7	58651	*
8	57997	*
SPECjbb2005	(from 4 to 8)	59119 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	6546
2	29751
3	43682
4	60566	*
5	58738	*
6	59525	*
7	58934	*
8	58243	*
SPECjbb2005	(from 4 to 8)	59201 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

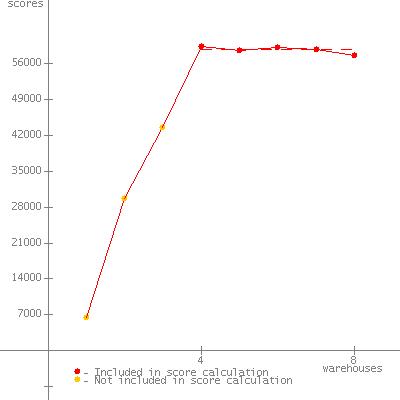

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	6487
2	29662
3	43600
4	59437	*
5	58646	*
6	59094	*
7	58762	*
8	57697	*
SPECjbb2005	(from 4 to 8)	58727 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	6666
2	29571
3	43733
4	60137	*
5	59002	*
6	59617	*
7	58766	*
8	57814	*
SPECjbb2005	(from 4 to 8)	59067 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 9 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	6333
2	29354
3	43436
4	59595	*
5	58496	*
6	59053	*
7	58299	*
8	57547	*
SPECjbb2005	(from 4 to 8)	58598 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 10 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	6824
2	29510
3	42991
4	59928	*
5	58653	*
6	59168	*
7	58384	*
8	57782	*
SPECjbb2005	(from 4 to 8)	58783 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 11 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9876
2	29508
3	43365
4	60315	*
5	59097	*
6	59543	*
7	58901	*
8	57999	*
SPECjbb2005	(from 4 to 8)	59171 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 12 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	6186
2	29624
3	43607
4	59395	*
5	58649	*
6	59193	*
7	58236	*
8	57552	*
SPECjbb2005	(from 4 to 8)	58605 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 13 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8603
2	29536
3	43646
4	60174	*
5	59253	*
6	59483	*
7	58678	*
8	57745	*
SPECjbb2005	(from 4 to 8)	59067 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 14 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7350
2	29639
3	42622
4	60197	*
5	58972	*
6	59577	*
7	58754	*
8	57975	*
SPECjbb2005	(from 4 to 8)	59095 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 15 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	6983
2	29483
3	43100
4	60207	*
5	58945	*
6	59453	*
7	58842	*
8	57994	*
SPECjbb2005	(from 4 to 8)	59088 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 16 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10035
2	29652
3	43878
4	60726	*
5	59128	*
6	59442	*
7	58622	*
8	57833	*
SPECjbb2005	(from 4 to 8)	59150 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 17 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10769
2	29882
3	43999
4	60029	*
5	58919	*
6	59198	*
7	58587	*
8	58145	*
SPECjbb2005	(from 4 to 8)	58976 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 18 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9804
2	29592
3	43958
4	59809	*
5	59023	*
6	59299	*
7	58575	*
8	57639	*
SPECjbb2005	(from 4 to 8)	58869 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 19 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10155
2	29820
3	43016
4	60396	*
5	58949	*
6	59368	*
7	58854	*
8	58033	*
SPECjbb2005	(from 4 to 8)	59120 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 20 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7121
2	29556
3	42616
4	59304	*
5	58212	*
6	58958	*
7	58282	*
8	57331	*
SPECjbb2005	(from 4 to 8)	58417 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 21 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10294
2	29690
3	43534
4	60552	*
5	58828	*
6	59350	*
7	58760	*
8	58223	*
SPECjbb2005	(from 4 to 8)	59143 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 22 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7686
2	29727
3	43660
4	59979	*
5	58439	*
6	59308	*
7	58742	*
8	57716	*
SPECjbb2005	(from 4 to 8)	58837 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 23 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8634
2	29437
3	43200
4	59274	*
5	58600	*
6	59010	*
7	58202	*
8	57127	*
SPECjbb2005	(from 4 to 8)	58443 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

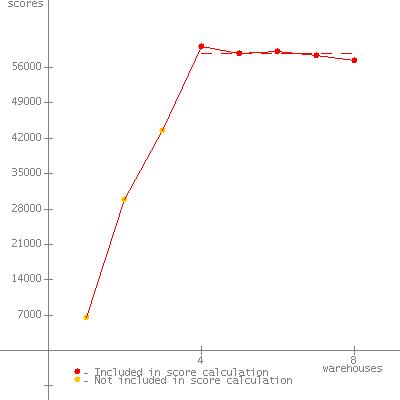

JVM 24 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	6560
2	29853
3	43467
4	60217	*
5	58827	*
6	59169	*
7	58451	*
8	57381	*
SPECjbb2005	(from 4 to 8)	58809 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 25 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10303
2	29325
3	42749
4	59574	*
5	58483	*
6	59173	*
7	58586	*
8	57819	*
SPECjbb2005	(from 4 to 8)	58727 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 26 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8939
2	29981
3	43892
4	60575	*
5	58852	*
6	59751	*
7	59019	*
8	58299	*
SPECjbb2005	(from 4 to 8)	59299 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 27 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9219
2	29636
3	43461
4	59674	*
5	58315	*
6	59042	*
7	58183	*
8	57521	*
SPECjbb2005	(from 4 to 8)	58547 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 28 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8598
2	29862
3	43694
4	59815	*
5	58940	*
6	59486	*
7	58963	*
8	57787	*
SPECjbb2005	(from 4 to 8)	58998 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 29 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9482
2	29560
3	43391
4	59377	*
5	58747	*
6	59275	*
7	58629	*
8	57665	*
SPECjbb2005	(from 4 to 8)	58739 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 30 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7953
2	29461
3	43859
4	60009	*
5	58947	*
6	59338	*
7	58913	*
8	58212	*
SPECjbb2005	(from 4 to 8)	59084 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 31 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8751
2	29311
3	43377
4	60245	*
5	58831	*
6	59640	*
7	58766	*
8	57902	*
SPECjbb2005	(from 4 to 8)	59077 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

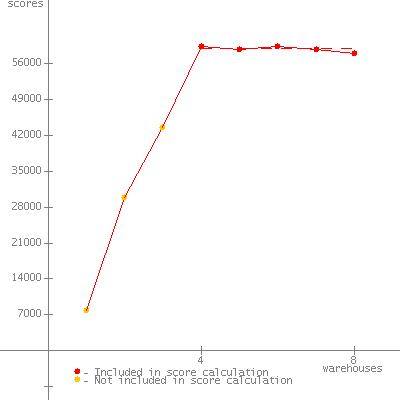

JVM 32 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7780
2	29817
3	43519
4	59432	*
5	58854	*
6	59357	*
7	58872	*
8	57975	*
SPECjbb2005	(from 4 to 8)	58898 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 33 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7022
2	29747
3	43564
4	60130	*
5	59076	*
6	59578	*
7	58744	*
8	58168	*
SPECjbb2005	(from 4 to 8)	59139 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006

JVM 34 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	6106
2	29531
3	43960
4	60072	*
5	58688	*
6	59479	*
7	58736	*
8	58113	*
SPECjbb2005	(from 4 to 8)	59017 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jul 20, 2006
