SPECjbb2005 SPECjbb2005 bops = 127851, SPECjbb2005 bops/JVM = 15981
IBM Corporation IBM System p5 550Q (1650 MHz, 8 Cores)
IBM Corporation J2RE 1.5.0 (32-bit) IBM J9 2.3 AIX ppc-32 j9vmap3223-20060706

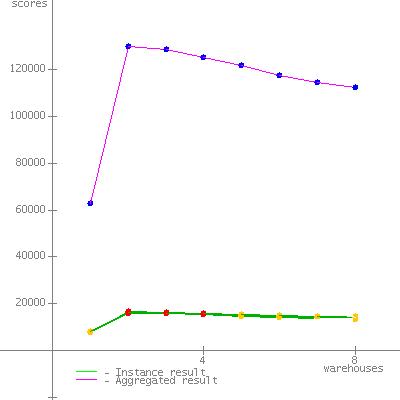

JVM run JVM Scores
116091
215591
316018
415868
516093
616229
715994
815967
SPECjbb2005 bops = 127851, SPECjbb2005 bops/JVM = 15981

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System p5 550Q (1650 MHz, 8 Cores)
Processor POWER5+
MHz 1650
# of Chips 4
# of Cores 8
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 16
Memory (MB) 65536
Memory Details 16x4GB
Primary cache 64KBI+32KBD on chip per core
Secondary cache 1920KB on chip per chip
Other cache 2x36MB off chip per QCM, 2 QCMs per SUT
Filesystem JFS
Disks 1x73GB SCSI, 15K RPM
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version J2RE 1.5.0 (32-bit) IBM J9 2.3 AIX ppc-32 j9vmap3223-20060706
JVM Command Line execrset -c processor_set_number -e java -Xlp -Xgcpolicy:subpool -Xcompactgc -Xms3328m -Xmx3328m spec.jbb.JBBmain -propfile SPECjbb.props -id JVM_number
JVM Initial Heap Memory (MB) 3328
JVM Maximum Heap Memory (MB) 3328
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /java/j9vmap3223-20060706/jre/lib/vm.jar:
/java/j9vmap3223-20060706/jre/lib/core.jar:
/java/j9vmap3223-20060706/jre/lib/charsets.jar:
/java/j9vmap3223-20060706/jre/lib/graphics.jar:
/java/j9vmap3223-20060706/jre/lib/security.jar:
/java/j9vmap3223-20060706/jre/lib/ibmpkcs.jar:
/java/j9vmap3223-20060706/jre/lib/ibmorb.jar:
/java/j9vmap3223-20060706/jre/lib/ibmcfw.jar:
/java/j9vmap3223-20060706/jre/lib/ibmorbapi.jar:
/java/j9vmap3223-20060706/jre/lib/ibmjcefw.jar:
/java/j9vmap3223-20060706/jre/lib/ibmjgssprovider.jar:
/java/j9vmap3223-20060706/jre/lib/ibmjsseprovider2.jar:
/java/j9vmap3223-20060706/jre/lib/ibmjaaslm.jar:
/java/j9vmap3223-20060706/jre/lib/ibmcertpathprovider.jar:
/java/j9vmap3223-20060706/jre/lib/server.jar:
/java/j9vmap3223-20060706/jre/lib/xml.jar
OS Version AIX 5L V5.3
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Jul 9, 2006
H/w available Aug-2006
JVM available Sep-2006
OS available Aug-2006
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • vmo -o lgpg_regions=1872 -o lgpg_size=16777216 -o v_pinshm=1
  • SPINLOOPTIME=1000
  • MEMORY_AFFINITY=MCM
Notes

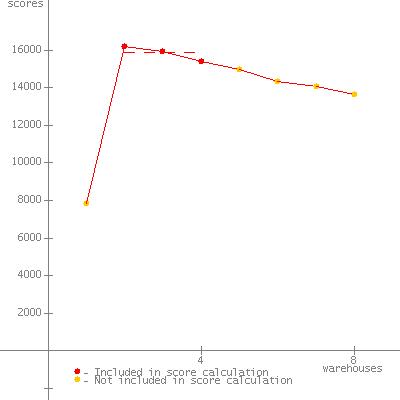

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 7577
2 16286 *
3 16192 *
4 15794 *
5 15469
6 14989
7 14679
8 14404
SPECjbb2005 (from 2 to 4) 16091 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jul 9, 2006

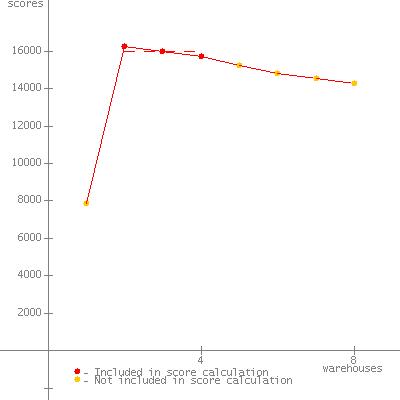

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 7548
2 15929 *
3 15635 *
4 15209 *
5 14724
6 14178
7 13758
8 13491
SPECjbb2005 (from 2 to 4) 15591 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jul 9, 2006


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 7832
2 16295 *
3 16120 *
4 15640 *
5 15176
6 14587
7 14154
8 13941
SPECjbb2005 (from 2 to 4) 16018 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jul 9, 2006


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 7826
2 16225 *
3 15955 *
4 15424 *
5 14994
6 14366
7 14061
8 13633
SPECjbb2005 (from 2 to 4) 15868 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jul 9, 2006


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8063
2 16323 *
3 16144 *
4 15813 *
5 15459
6 14947
7 14654
8 14395
SPECjbb2005 (from 2 to 4) 16093 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jul 9, 2006


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 7945
2 16514 *
3 16315 *
4 15857 *
5 15293
6 14715
7 14309
8 14060
SPECjbb2005 (from 2 to 4) 16229 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jul 9, 2006


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 7861
2 16274 *
3 16012 *
4 15698 *
5 15254
6 14838
7 14524
8 14252
SPECjbb2005 (from 2 to 4) 15994 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jul 9, 2006


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8132
2 16173 *
3 16033 *
4 15695 *
5 15248
6 14816
7 14541
8 14244
SPECjbb2005 (from 2 to 4) 15967 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jul 9, 2006

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 16-Aug-2006
