SPECjbb2005 SPECjbb2005 bops = 100590, SPECjbb2005 bops/JVM = 100590
Fujitsu Siemens Computers PRIMERGY RX300 S3, Intel Xeon 5160 processor, 3.0 GHz
BEA Systems, Inc BEA JRockit(R) 5.0 P26.4.0 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-win-x86_64)

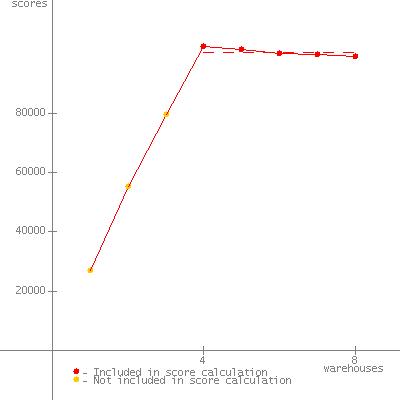

Warehouses SPECjbb2005 bops Incl. in metric
1 26929
2 55174
3 79530
4 102564 *
5 101379 *
6 100110 *
7 99916 *
8 98980 *
SPECjbb2005 (from 4 to 8) 100590 SPECjbb2005 bops
SPEC license # 22 Tested by: Fujitsu Siemens Computers Test date: Jun 23, 2006

Hardware
Hardware Vendor Fujitsu Siemens Computers
Vendor URL http://www.fujitsu-siemens.com
Model PRIMERGY RX300 S3, Intel Xeon 5160 processor, 3.0 GHz
Processor Intel Xeon 5160 processor (3.0 GHz, 4MB L2, 1333 MHz system bus)
MHz 3000
# of Chips 2
# of Cores 4
# of Cores/Chip 2
HW Threading Enabled? N/A
Procs Avail to Java 4
Memory (MB) 8192
Memory Details 8x1GB DDRII-RAM PC2-5300F (CAS 5-5-5)
Primary cache 32KBI + 32KBD on chip, per core
Secondary cache 4MB(I+D) on chip, shared
Other cache n/a
Filesystem NTFS
Disks Seagate ST373454SS (SAS, 15krpm, 73GB)
Other hardware none
Software
Software Vendor BEA Systems, Inc
Vendor URL http://www.bea.com
JVM Version BEA JRockit(R) 5.0 P26.4.0 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-win-x86_64)
JVM Command Line java -Xms3700m -Xmx3700m -XXaggressive -XXthroughputCompaction -XXallocPrefetch -XXallocRedoPrefetch -XXcompressedRefs -XXlazyUnlocking -XXtlasize128k spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3700
JVM Maximum Heap Memory (MB) 3700
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\bin\jrockit\jrockit.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\bin\jrockit\managementapi.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\managementapi.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\rt.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\i18n.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\sunrsasign.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\jsse.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\jce.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\lib\charsets.jar;
C:\Program Files\JVM\jrockit-jdk1.5.0_06\jre\classes
OS Version Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit)
Other software none
Test Information
Tested by Fujitsu Siemens Computers
SPEC license # 22
Test location Paderborn, Germany
Test date Jun 23, 2006
H/w available Jul-2006
JVM available Jun-2006
OS available Mar-2005
Other s/w available n/a
AOT Compilation

Tuning
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Notes
  • This result was measured on the PRIMERGY TX300 S3. The PRIMERGY TX300 S3 and the PRIMERGY RX300 S3 are electronically equivalent.
  • turned off 'Hardware Prefetching' in BIOS
  • turned off 'Adjacent Sector Prefetching' in BIOS
  • Command line options are described at:
    http://edocs.bea.com/jrockit/jrdocs/refman/intro.html

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 26929 3700 902 <0.01% <0.01 new_order 355126 14.2 .078
payment 244941 4.83 .016
order_status 24494 .560 .016
delivery 24494 4.41 .016
stock_level 24494 .692 .016
cust_report 134755 4.68 .063
2 55174 3700 2698 1.90% <0.01 new_order 727258 26.8 .265
payment 501830 9.52 .047
order_status 50183 .828 .016
delivery 50183 11.2 .016
stock_level 50183 1.22 .078
cust_report 276402 9.32 .265
3 79530 3700 966 5.89% <0.01 new_order 1048504 39.3 .219
payment 723382 13.0 .203
order_status 72338 1.23 .016
delivery 72337 20.0 .109
stock_level 72338 1.71 .016
cust_report 398261 13.0 .219
4 102564 3700 1222 4.24% .059 new_order 10822377 393 .531
payment 7463614 135 .500
order_status 746361 16.5 .156
delivery 746361 231 .203
stock_level 746362 21.7 .187
cust_report 4104846 141 .281
5 101379 3700 1264 25.6% .078 new_order 10699367 496 .671
payment 7378739 172 .750
order_status 737874 19.1 .562
delivery 737875 284 .938
stock_level 737875 27.3 .422
cust_report 4058116 178 .391
6 100110 3700 1333 33.0% .091 new_order 10566847 570 .937
payment 7287395 220 .750
order_status 728741 26.5 .922
delivery 728738 341 1.45
stock_level 728742 37.3 .922
cust_report 4007949 213 .750
7 99916 3700 1370 26.3% .033 new_order 10539472 666 1.16
payment 7269001 267 1.13
order_status 726901 26.3 .750
delivery 726898 405 2.95
stock_level 726901 33.9 .765
cust_report 3998551 250 1.59
8 98980 3700 3639 12.4% .033 new_order 10440560 775 1.27
payment 7200868 323 1.49
order_status 720087 28.8 1.13
delivery 720086 434 1.81
stock_level 720083 41.4 1.17
cust_report 3961178 274 2.64

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 19-Jul-2006
