SPECjbb

SPECjbb2005		SPECjbb2005 bops = 1887226, SPECjbb2005 bops/JVM = 58976
SGI Altix 4700 (32 Blade/64P DC)
BEA Systems BEA JRockit(R) 5.0 P26.4.0-10 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-linux-ia64)

JVM run JVM Scores

1 59033

2 58943

3 59121

4 59310

5 59110

6 59242

7 58723

8 58700

9 59179

10 59036

11 58880

12 59100

13 59325

14 59040

15 59204

16 59082

17 58705

18 58481

19 58797

20 58614

21 58944

22 59243

23 59042

24 58892

25 58968

26 59088

27 58566

28 58595

29 59152

30 59013

31 59143

32 58955

SPECjbb2005 bops = 1887226, SPECjbb2005 bops/JVM = 58976

Hardware

Hardware Vendor SGI

Vendor URL http://www.sgi.com

Model Altix 4700 (32 Blade/64P DC)

Processor Intel DC Itanium2 Processor 9050 1.6 Ghz

MHz 1600

# of Chips 64

# of Cores 128

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 128

Memory (MB) 262144

Memory Details 1GB ECC DDR2 DIMMs (PC2-3200R) spread uniformly over 32 compute blades

Primary cache 16KBI + 16KBD on chip per core

Secondary cache 1024kB(I) + 256kB(D) on chip per core

Other cache 12MB (I+D) on chip per core

Filesystem xfs

Disks 1 x 146 GB SCSI (classes + OS)

Other hardware

Software

Software Vendor BEA Systems

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P26.4.0-10 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-linux-ia64)

JVM Command Line numactl --cpunodebind=$node --localalloc java -Xms3840m -Xmx3840m -XXaggressive -XXcompressedRefs -XXthroughputCompaction -XXlazyUnlocking -XXtlasize256k -XXgcthreads8 -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id $id

JVM Initial Heap Memory (MB) 3840

JVM Maximum Heap Memory (MB) 3840

JVM Address bits 64

JVM CLASSPATH jbb.jar:
check.jar

JVM BOOTCLASSPATH /tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/ia64/jrockit/jrockit.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/ia64/jrockit/managementapi.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/managementapi.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/rt.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/i18n.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/sunrsasign.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/jsse.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/jce.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/charsets.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/classes

OS Version SuSE Linux Enterprise Server 9 SP3 (2.6.5-7.252.PTF-sn2)

Other software

Test Information

Tested by SGI

SPEC license # 4

Test location Mountain View, CA

Test date Jun 20, 2006

H/w available July-2006

JVM available Jun-2006

OS available June-2006

Other s/w available

AOT Compilation

Tuning

Operating system tunings
mount -t hugetlbfs nodev /mnt/hugepages
echo 640 > /proc/sys/vm/nr_hugepages

Notes

Command line options are described at http://e-docs.bea.com/jrockit/jrdocs/refman/index.html
System configured to use one JVM per NUMA node (4 cores).

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	11381
2	29845
3	44167
4	60141	*
5	58776	*
6	59520	*
7	58748	*
8	57979	*
SPECjbb2005	(from 4 to 8)	59033 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9794
2	29826
3	43336
4	59504	*
5	58965	*
6	59530	*
7	58856	*
8	57858	*
SPECjbb2005	(from 4 to 8)	58943 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10791
2	29969
3	44026
4	60135	*
5	58843	*
6	59807	*
7	58695	*
8	58125	*
SPECjbb2005	(from 4 to 8)	59121 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9040
2	30077
3	43915
4	60080	*
5	59390	*
6	59761	*
7	59019	*
8	58297	*
SPECjbb2005	(from 4 to 8)	59310 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8479
2	29849
3	43572
4	60018	*
5	58856	*
6	59586	*
7	58786	*
8	58306	*
SPECjbb2005	(from 4 to 8)	59110 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10069
2	29952
3	43623
4	60223	*
5	59485	*
6	59579	*
7	58701	*
8	58224	*
SPECjbb2005	(from 4 to 8)	59242 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9259
2	29948
3	43225
4	59579	*
5	58810	*
6	59035	*
7	58474	*
8	57718	*
SPECjbb2005	(from 4 to 8)	58723 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9570
2	29586
3	43578
4	59477	*
5	58790	*
6	59252	*
7	58411	*
8	57571	*
SPECjbb2005	(from 4 to 8)	58700 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 9 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10173
2	29658
3	43351
4	59973	*
5	59231	*
6	59652	*
7	58776	*
8	58262	*
SPECjbb2005	(from 4 to 8)	59179 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 10 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9617
2	29929
3	43991
4	59909	*
5	59356	*
6	59600	*
7	58540	*
8	57776	*
SPECjbb2005	(from 4 to 8)	59036 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 11 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9872
2	29480
3	43983
4	60036	*
5	58836	*
6	59361	*
7	58504	*
8	57665	*
SPECjbb2005	(from 4 to 8)	58880 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 12 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9956
2	29468
3	44109
4	59966	*
5	59133	*
6	59697	*
7	58592	*
8	58111	*
SPECjbb2005	(from 4 to 8)	59100 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 13 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10250
2	29687
3	44159
4	60110	*
5	59440	*
6	59751	*
7	59093	*
8	58228	*
SPECjbb2005	(from 4 to 8)	59325 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 14 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9437
2	29799
3	42949
4	60049	*
5	58433	*
6	59510	*
7	59089	*
8	58120	*
SPECjbb2005	(from 4 to 8)	59040 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 15 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9547
2	29819
3	44023
4	60139	*
5	59085	*
6	59674	*
7	58993	*
8	58130	*
SPECjbb2005	(from 4 to 8)	59204 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 16 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8622
2	29946
3	43584
4	59808	*
5	58929	*
6	59520	*
7	58820	*
8	58333	*
SPECjbb2005	(from 4 to 8)	59082 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 17 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10348
2	29684
3	43787
4	59763	*
5	58731	*
6	59005	*
7	58325	*
8	57699	*
SPECjbb2005	(from 4 to 8)	58705 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 18 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8397
2	29633
3	43259
4	59297	*
5	58778	*
6	58839	*
7	58061	*
8	57432	*
SPECjbb2005	(from 4 to 8)	58481 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 19 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10556
2	29876
3	43688
4	59650	*
5	58560	*
6	59315	*
7	58740	*
8	57724	*
SPECjbb2005	(from 4 to 8)	58797 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 20 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8835
2	29658
3	43653
4	59551	*
5	58672	*
6	59118	*
7	58158	*
8	57569	*
SPECjbb2005	(from 4 to 8)	58614 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 21 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9748
2	29669
3	43189
4	60226	*
5	58705	*
6	59566	*
7	58371	*
8	57854	*
SPECjbb2005	(from 4 to 8)	58944 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 22 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9368
2	29492
3	44505
4	59996	*
5	59313	*
6	59608	*
7	59021	*
8	58279	*
SPECjbb2005	(from 4 to 8)	59243 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 23 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10800
2	29871
3	43582
4	60062	*
5	58883	*
6	59402	*
7	58726	*
8	58135	*
SPECjbb2005	(from 4 to 8)	59042 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 24 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10539
2	29799
3	44195
4	60109	*
5	58844	*
6	59205	*
7	58512	*
8	57791	*
SPECjbb2005	(from 4 to 8)	58892 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 25 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10315
2	29730
3	44302
4	60039	*
5	59287	*
6	59387	*
7	58436	*
8	57693	*
SPECjbb2005	(from 4 to 8)	58968 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 26 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10291
2	29706
3	44292
4	60012	*
5	59294	*
6	59601	*
7	58707	*
8	57827	*
SPECjbb2005	(from 4 to 8)	59088 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 27 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10763
2	29611
3	43621
4	59340	*
5	58736	*
6	59164	*
7	58089	*
8	57501	*
SPECjbb2005	(from 4 to 8)	58566 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 28 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8745
2	29468
3	43597
4	59661	*
5	58274	*
6	58945	*
7	58518	*
8	57576	*
SPECjbb2005	(from 4 to 8)	58595 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 29 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10381
2	29770
3	44263
4	60078	*
5	58913	*
6	59545	*
7	58874	*
8	58353	*
SPECjbb2005	(from 4 to 8)	59152 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 30 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10190
2	29774
3	44086
4	59837	*
5	58899	*
6	59409	*
7	58843	*
8	58077	*
SPECjbb2005	(from 4 to 8)	59013 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 31 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7874
2	29933
3	44471
4	59978	*
5	59144	*
6	59578	*
7	58910	*
8	58104	*
SPECjbb2005	(from 4 to 8)	59143 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006

JVM 32 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric

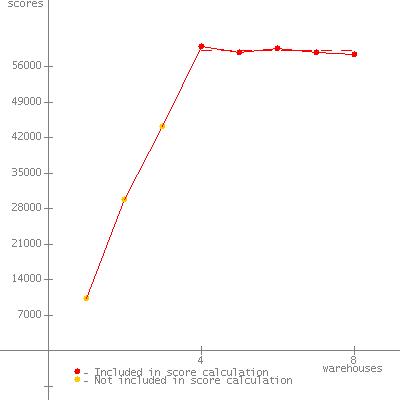

1	9090
2	29912
3	43656
4	59521	*
5	59253	*
6	59502	*
7	58699	*
8	57803	*
SPECjbb2005	(from 4 to 8)	58955 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 20, 2006
