SPECjbb

SPECjbb2005		SPECjbb2005 bops = 942831, SPECjbb2005 bops/JVM = 58927
SGI Altix 4700 (16 Blade/32P DC)
BEA Systems BEA JRockit(R) 5.0 P26.4.0-10 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-linux-ia64)

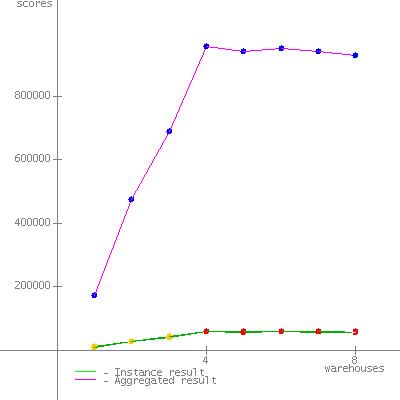

JVM run JVM Scores

1 58574

2 59133

3 58747

4 58438

5 58903

6 58673

7 59245

8 58688

9 59248

10 59238

11 58421

12 59429

13 59280

14 58844

15 59097

16 58873

SPECjbb2005 bops = 942831, SPECjbb2005 bops/JVM = 58927

Hardware

Hardware Vendor SGI

Vendor URL http://www.sgi.com

Model Altix 4700 (16 Blade/32P DC)

Processor Intel DC Itanium2 Processor 9050 1.6 Ghz

MHz 1600

# of Chips 32

# of Cores 64

# of Cores/Chip 2

HW Threading Enabled? No

Procs Avail to Java 64

Memory (MB) 131072

Memory Details 1GB ECC DDR2 DIMMs (PC2-3200R) spread uniformly over 16 compute blades

Primary cache 16KBI + 16KBD on chip per core

Secondary cache 1024kB(I) + 256kB(D) on chip per core

Other cache 12MB (I+D) on chip per core

Filesystem xfs

Disks 1 x 146 GB SCSI (classes + OS)

Other hardware

Software

Software Vendor BEA Systems

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P26.4.0-10 (build P26.4.0-10-62459-1.5.0_06-20060529-2101-linux-ia64)

JVM Command Line numactl --cpunodebind=$node --localalloc java -Xms3840m -Xmx3840m -XXaggressive -XXcompressedRefs -XXthroughputCompaction -XXlazyUnlocking -XXtlasize256k -XXgcthreads8 -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id $id

JVM Initial Heap Memory (MB) 3840

JVM Maximum Heap Memory (MB) 3840

JVM Address bits 64

JVM CLASSPATH jbb.jar:
check.jar

JVM BOOTCLASSPATH /tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/ia64/jrockit/jrockit.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/ia64/jrockit/managementapi.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/managementapi.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/rt.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/i18n.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/sunrsasign.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/jsse.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/jce.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/lib/charsets.jar:
/tmp/SPECjbb2005/jrockit-jdk1.5.0_06-P-10/jre/classes

OS Version SuSE Linux Enterprise Server 9 SP3 (2.6.5-7.252.PTF-sn2)

Other software

Test Information

Tested by SGI

SPEC license # 4

Test location Mountain View, CA

Test date Jun 18, 2006

H/w available July-2006

JVM available Jun-2006

OS available June-2006

Other s/w available

AOT Compilation

Tuning

Operating system tunings
mount -t hugetlbfs nodev /mnt/hugepages
echo 320 > /proc/sys/vm/nr_hugepages

Notes

Command line options are described at http://e-docs.bea.com/jrockit/jrdocs/refman/index.html
System configured to use one JVM per NUMA node (4 cores).

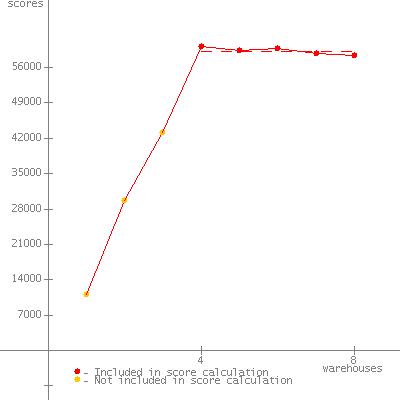

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10630
2	29583
3	42727
4	59429	*
5	58209	*
6	59351	*
7	58505	*
8	57376	*
SPECjbb2005	(from 4 to 8)	58574 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	11413
2	29701
3	42875
4	59998	*
5	59328	*
6	59528	*
7	58720	*
8	58089	*
SPECjbb2005	(from 4 to 8)	59133 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	11107
2	29599
3	43028
4	59411	*
5	58556	*
6	59197	*
7	58690	*
8	57881	*
SPECjbb2005	(from 4 to 8)	58747 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10805
2	29659
3	42602
4	59321	*
5	58358	*
6	58970	*
7	58288	*
8	57251	*
SPECjbb2005	(from 4 to 8)	58438 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	11043
2	29704
3	42951
4	59967	*
5	58694	*
6	59176	*
7	58755	*
8	57922	*
SPECjbb2005	(from 4 to 8)	58903 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10770
2	29377
3	43010
4	59291	*
5	58564	*
6	59199	*
7	58641	*
8	57671	*
SPECjbb2005	(from 4 to 8)	58673 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	11040
2	29654
3	43113
4	60217	*
5	59314	*
6	59676	*
7	58719	*
8	58301	*
SPECjbb2005	(from 4 to 8)	59245 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10805
2	29569
3	42752
4	59571	*
5	58476	*
6	59021	*
7	58713	*
8	57659	*
SPECjbb2005	(from 4 to 8)	58688 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 9 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	11318
2	29811
3	43065
4	60156	*
5	59187	*
6	59606	*
7	58772	*
8	58520	*
SPECjbb2005	(from 4 to 8)	59248 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 10 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10554
2	29797
3	43531
4	60222	*
5	59169	*
6	59558	*
7	58994	*
8	58248	*
SPECjbb2005	(from 4 to 8)	59238 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 11 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10673
2	29352
3	43024
4	59340	*
5	58200	*
6	58657	*
7	58373	*
8	57534	*
SPECjbb2005	(from 4 to 8)	58421 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 12 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	11202
2	29804
3	43225
4	60212	*
5	59299	*
6	59964	*
7	59255	*
8	58417	*
SPECjbb2005	(from 4 to 8)	59429 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 13 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10154
2	29926
3	43141
4	60222	*
5	59248	*
6	59703	*
7	59139	*
8	58087	*
SPECjbb2005	(from 4 to 8)	59280 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 14 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10478
2	29543
3	43777
4	59629	*
5	58938	*
6	59257	*
7	58492	*
8	57903	*
SPECjbb2005	(from 4 to 8)	58844 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 15 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	11274
2	29579
3	43877
4	59742	*
5	58840	*
6	59694	*
7	59075	*
8	58137	*
SPECjbb2005	(from 4 to 8)	59097 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006

JVM 16 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10596
2	29710
3	43017
4	59940	*
5	58513	*
6	59398	*
7	58563	*
8	57950	*
SPECjbb2005	(from 4 to 8)	58873 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Jun 18, 2006
