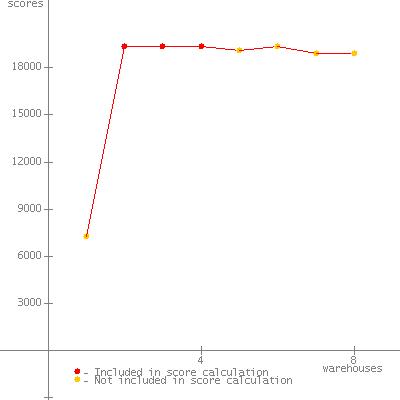

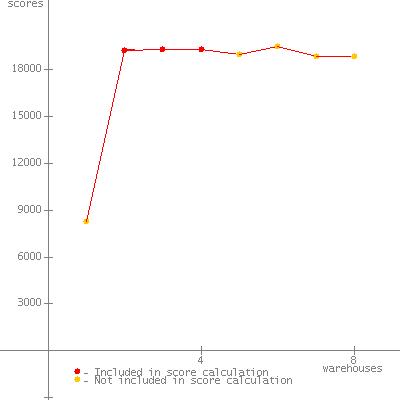

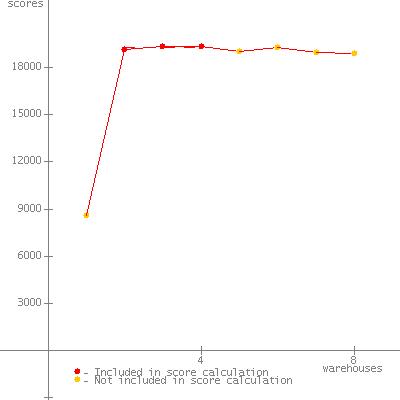

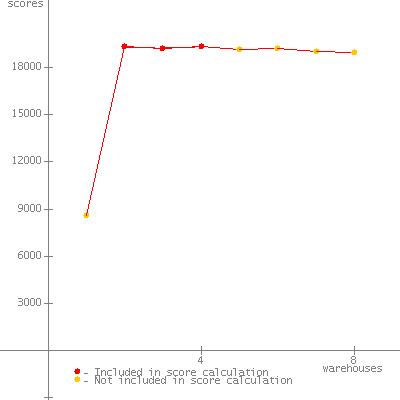

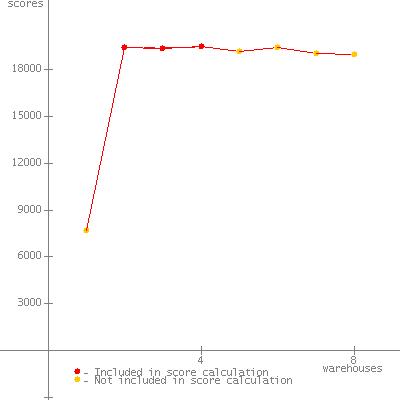

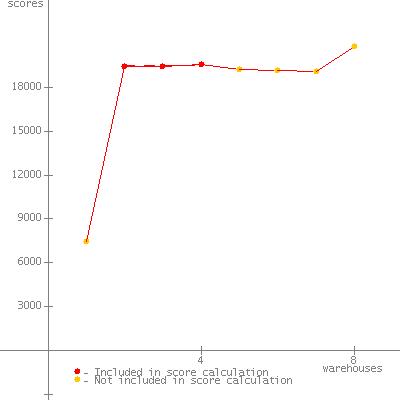

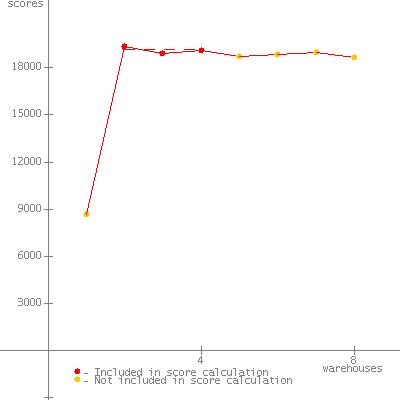

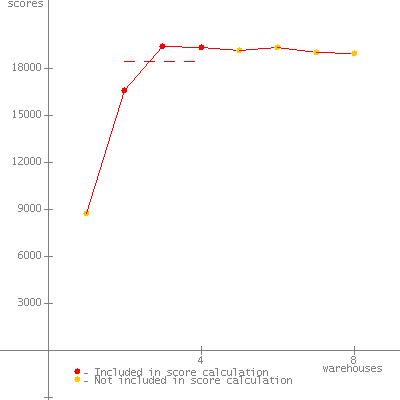

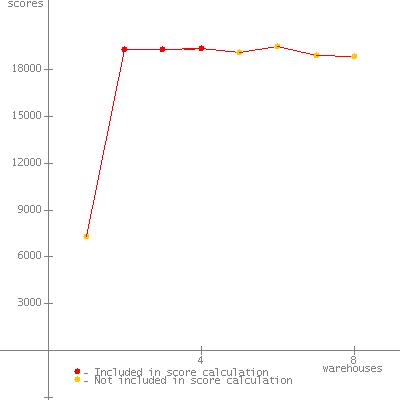

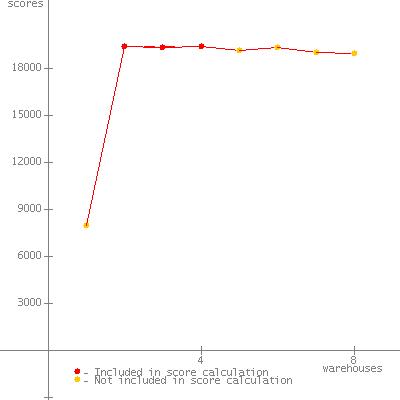

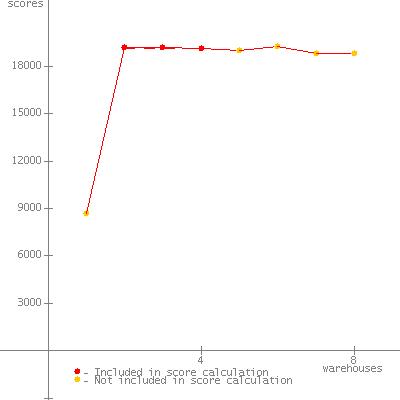

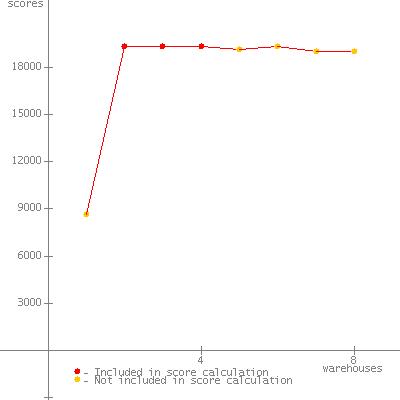

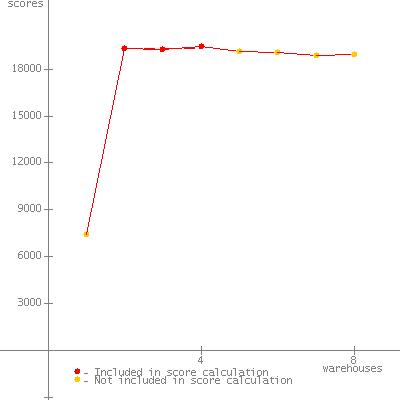

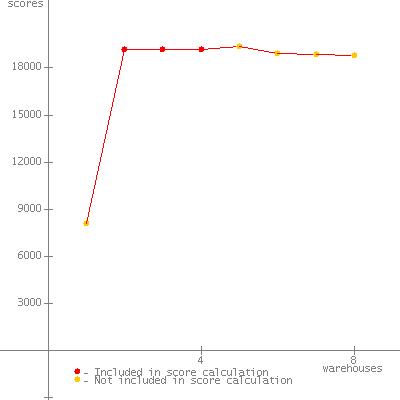

JVM run JVM Scores 1 18056 2 19284 3 19464 4 19317 5 19219 6 19186 7 19387 8 19462 9 19155 10 19319 11 19348 12 19449 13 19338 14 18969 15 19298 16 19334 17 19243 18 19241 19 19382 20 19377 21 19345 22 19270 23 19372 24 18445 25 19154 26 19198 27 19338 28 19415 29 19266 30 19272 31 19430 32 19367 33 19207 34 19269 35 19491 36 19362 37 19217 38 19186 39 19348 40 19430 41 19250 42 19219 43 19391 44 19470 45 19317 46 19243 47 19304 48 19425 49 19123 50 19198 51 19409 52 19346 53 19265 54 19323 55 19401 56 19397 57 19344 58 19296 59 19344 60 19356 61 19216 62 18906 63 19392 64 19135 65 19293 66 19274 67 19366 68 19460 69 18854 70 19178 71 19353 72 19379 SPECjbb2005 bops = 1387437, SPECjbb2005 bops/JVM = 19270

Hardware Hardware Vendor Sun Microsystems, Inc. Vendor URL http://www.sun.com Model Sun Fire E25K Processor UltraSPARC(TM) IV+ MHz 1500 # of Chips 72 # of Cores 144 # of Cores/Chip 2 HW Threading Enabled? N/A Procs Avail to Java 144 Memory (MB) 294912 Memory Details 576 512MB SDRAM DIMMs Primary cache 64KBI+64KBD Secondary cache 2MB(I+D) Other cache 32MB(I+D) off chip Filesystem UFS Disks Sun StorageTek 3510 FC Array (5 x 73GB 10000 RPM Fibre Channel Disk Drives) Other hardware

Software Software Vendor Sun Microsystems, Inc. Vendor URL http://www.sun.com JVM Version Java HotSpot(TM) 32-Bit Server VM on Solaris, version 1.5.0_08 JVM Command Line psrset -e processor set number java -d32 -Xms3296m -Xmx3296m -Xmn1248m -Xss128k -XX:+AggressiveOpts -XX:+UseBiasedLocking -XX:+UseParallelGC -classpath jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id JVM number JVM Initial Heap Memory (MB) 3296 JVM Maximum Heap Memory (MB) 3296 JVM Address bits 32 JVM CLASSPATH jbb.jar: check.jar JVM BOOTCLASSPATH /export/ptk/jdk1.5.0_08/jre/lib/rt.jar: /export/ptk/jdk1.5.0_08/jre/lib/i18n.jar: /export/ptk/jdk1.5.0_08/jre/lib/sunrsasign.jar: /export/ptk/jdk1.5.0_08/jre/lib/jsse.jar: /export/ptk/jdk1.5.0_08/jre/lib/jce.jar: /export/ptk/jdk1.5.0_08/jre/lib/charsets.jar: /export/ptk/jdk1.5.0_08/jre/classes OS Version Solaris 10 1/06 (64-bit) Other software

Test Information Tested by Sun Microsystems, Inc. SPEC license # 6 Test location Hillsboro, OR Test date May 17, 2006 H/w available Oct-2005 JVM available Aug-2006 OS available Jan-2006 Other s/w available

AOT Compilation   Tuning /etc/system parameters: autoup=345600 tune_t_fsflushr=345600 The frequency of file system sync operations. disable_memscrub=1 Turn off the memscrubber daemon. lgrp_mem_pset_aware=1 default random policy applies only to lgroups with a process' processor set. Each JVM was run in its own processor set containing two cores (one whole chip). Each JVM was given 32 Mbyte pages with the ppgsz command. Each JVM was placed in the FX priority class with the priocntl command. Notes
