SPECjbb

SPECjbb2005		SPECjbb2005 bops = 913848, SPECjbb2005 bops/JVM = 28558
SGI Altix 3700 BX2 (64P 1600 MHz Itanium 2)
BEA Systems BEA JRockit(R) 5.0 P26.0.0-34 (build P26.0.0-34-59024-1.5.0_04-20060315-1002-linux-ia64)

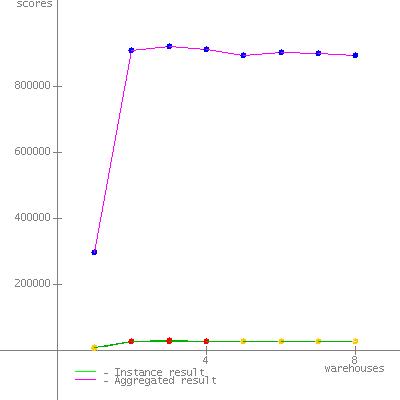

JVM run JVM Scores

1 28422

2 28433

3 28549

4 28070

5 28241

6 28663

7 28697

8 28508

9 28628

10 28568

11 28606

12 28782

13 28486

14 28539

15 28806

16 28340

17 28562

18 28495

19 28711

20 28522

21 28485

22 28541

23 28633

24 28749

25 28542

26 28500

27 28787

28 28563

29 28552

30 28684

31 28569

32 28615

SPECjbb2005 bops = 913848, SPECjbb2005 bops/JVM = 28558

Hardware

Hardware Vendor SGI

Vendor URL http://www.sgi.com

Model Altix 3700 BX2 (64P 1600 MHz Itanium 2)

Processor Intel Itanium 2

MHz 1600

# of Chips 64

# of Cores 64

# of Cores/Chip 1

HW Threading Enabled? N/A

Procs Avail to Java 64

Memory (MB) 262144

Memory Details 256GB 166 MHz ECC DDR spread over 8 CX-bricks

Primary cache 16KBI + 16KBD on chip per core

Secondary cache 256KB(I+D) on chip per core

Other cache 9MB (I+D) on chip per core

Filesystem xfs

Disks 1 x 73 GB SCSI (classes + OS)

Other hardware

Software

Software Vendor BEA Systems

Vendor URL http://www.bea.com

JVM Version BEA JRockit(R) 5.0 P26.0.0-34 (build P26.0.0-34-59024-1.5.0_04-20060315-1002-linux-ia64)

JVM Command Line numactl --cpubind=$node --localalloc java -Xms3840m -Xmx3840m -XXaggressive -XXcompressedRefs -XXthroughputCompaction -XXlazyUnlocking -XXtlasize512k -XXgcthreads2 -XXoptthreads2 -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id $id

JVM Initial Heap Memory (MB) 3840

JVM Maximum Heap Memory (MB) 3840

JVM Address bits 64

JVM CLASSPATH jbb.jar:
check.jar

JVM BOOTCLASSPATH /tmp/jrockit-1.5.0_04/jre/lib/ia64/jrockit/jrockit.jar:
/tmp/jrockit-1.5.0_04/jre/lib/ia64/jrockit/managementapi.jar:
/tmp/jrockit-1.5.0_04/jre/lib/managementapi.jar:
/tmp/jrockit-1.5.0_04/jre/lib/rt.jar:
/tmp/jrockit-1.5.0_04/jre/lib/i18n.jar:
/tmp/jrockit-1.5.0_04/jre/lib/sunrsasign.jar:
/tmp/jrockit-1.5.0_04/jre/lib/jsse.jar:
/tmp/jrockit-1.5.0_04/jre/lib/jce.jar:
/tmp/jrockit-1.5.0_04/jre/lib/charsets.jar:
/tmp/jrockit-1.5.0_04/jre/classes

OS Version SuSE Linux Enterprise Server 9 SP3 (2.6.5-7.252-sn2)

Other software

Test Information

Tested by SGI

SPEC license # 4

Test location Mountain View, CA

Test date Mar 24, 2006

H/w available Nov-2004

JVM available Jun-2006

OS available Jan-2006

Other s/w available

AOT Compilation

Tuning

Operating system tunings
mount -t hugetlbfs nodev /mnt/hugepages
echo 800 > /proc/sys/vm/nr_hugepages

Notes

Command line options are described at http://e-docs.bea.com/jrockit/jrdocs/refman/index.html
System configured to use one JVM per NUMA node (2 CPUs).

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8282
2	28069	*
3	28766	*
4	28431	*
5	27870
6	28269
7	28105
8	27748
SPECjbb2005	(from 2 to 4)	28422 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10712
2	28303	*
3	28627	*
4	28370	*
5	27661
6	28238
7	27999
8	27743
SPECjbb2005	(from 2 to 4)	28433 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

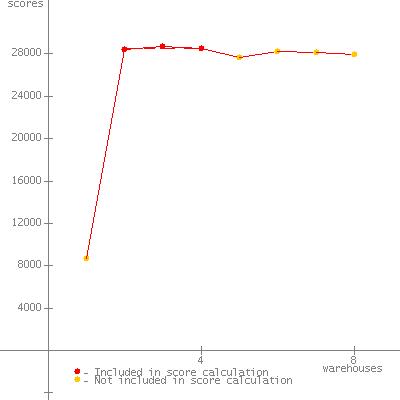

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8668
2	28410	*
3	28738	*
4	28498	*
5	27689
6	28212
7	28110
8	27938
SPECjbb2005	(from 2 to 4)	28549 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7656
2	27971	*
3	28275	*
4	27964	*
5	27472
6	27869
7	27617
8	27373
SPECjbb2005	(from 2 to 4)	28070 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8616
2	28263	*
3	28288	*
4	28172	*
5	27478
6	27924
7	27730
8	27696
SPECjbb2005	(from 2 to 4)	28241 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

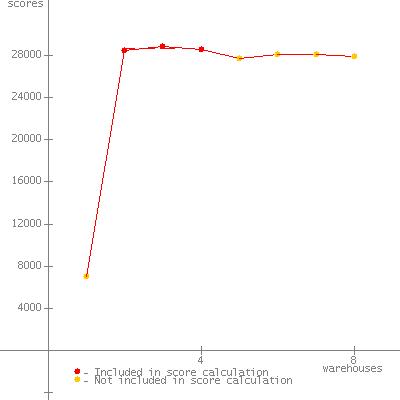

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	7045
2	28495	*
3	28882	*
4	28612	*
5	27742
6	28101
7	28107
8	27871
SPECjbb2005	(from 2 to 4)	28663 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9354
2	28645	*
3	29017	*
4	28428	*
5	28175
6	28389
7	28032
8	27969
SPECjbb2005	(from 2 to 4)	28697 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

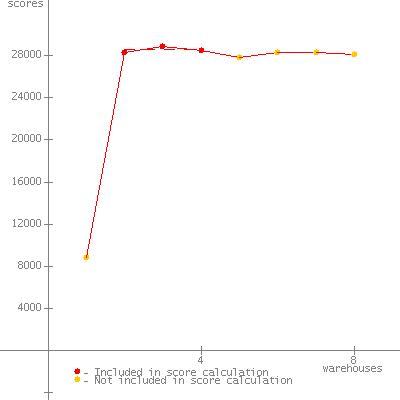

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8866
2	28158	*
3	28842	*
4	28523	*
5	27973
6	28215
7	28146
8	27846
SPECjbb2005	(from 2 to 4)	28508 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 9 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	5777
2	28507	*
3	28799	*
4	28580	*
5	27825
6	28352
7	28164
8	28034
SPECjbb2005	(from 2 to 4)	28628 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 10 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10611
2	28192	*
3	28855	*
4	28657	*
5	28212
6	28325
7	28147
8	27978
SPECjbb2005	(from 2 to 4)	28568 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 11 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9647
2	28450	*
3	28909	*
4	28459	*
5	27962
6	28144
7	28188
8	27970
SPECjbb2005	(from 2 to 4)	28606 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

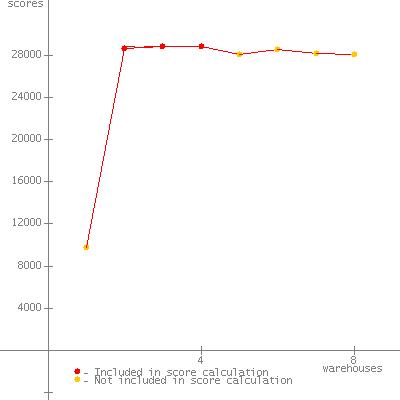

JVM 12 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9776
2	28675	*
3	28853	*
4	28820	*
5	28034
6	28502
7	28122
8	28051
SPECjbb2005	(from 2 to 4)	28782 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 13 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9538
2	28213	*
3	28702	*
4	28543	*
5	27954
6	28277
7	28041
8	27938
SPECjbb2005	(from 2 to 4)	28486 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 14 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8500
2	28206	*
3	28990	*
4	28420	*
5	27935
6	28273
7	28331
8	28041
SPECjbb2005	(from 2 to 4)	28539 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 15 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10320
2	28673	*
3	29135	*
4	28611	*
5	27974
6	28517
7	28346
8	27936
SPECjbb2005	(from 2 to 4)	28806 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

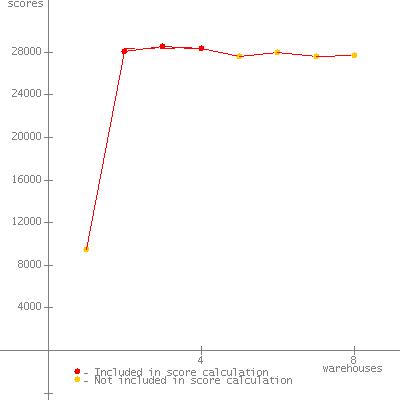

JVM 16 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9465
2	28099	*
3	28557	*
4	28364	*
5	27557
6	27967
7	27631
8	27721
SPECjbb2005	(from 2 to 4)	28340 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 17 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10098
2	28259	*
3	28904	*
4	28521	*
5	28140
6	28280
7	28022
8	27999
SPECjbb2005	(from 2 to 4)	28562 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 18 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8865
2	28295	*
3	28814	*
4	28375	*
5	27835
6	28084
7	28029
8	27787
SPECjbb2005	(from 2 to 4)	28495 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 19 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9827
2	28411	*
3	29095	*
4	28628	*
5	27957
6	28371
7	28119
8	28129
SPECjbb2005	(from 2 to 4)	28711 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 20 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9906
2	28407	*
3	28662	*
4	28496	*
5	27709
6	28174
7	27941
8	27963
SPECjbb2005	(from 2 to 4)	28522 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 21 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9634
2	28268	*
3	28794	*
4	28393	*
5	27956
6	28301
7	28060
8	28063
SPECjbb2005	(from 2 to 4)	28485 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 22 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9252
2	28608	*
3	28496	*
4	28519	*
5	28085
6	28377
7	28220
8	27938
SPECjbb2005	(from 2 to 4)	28541 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 23 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8748
2	28554	*
3	28762	*
4	28582	*
5	27836
6	28381
7	28291
8	27947
SPECjbb2005	(from 2 to 4)	28633 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

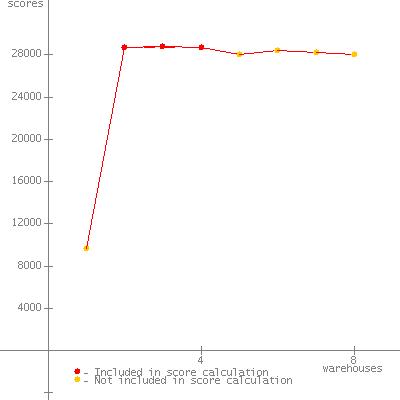

JVM 24 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9675
2	28716	*
3	28836	*
4	28696	*
5	28073
6	28409
7	28240
8	28082
SPECjbb2005	(from 2 to 4)	28749 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

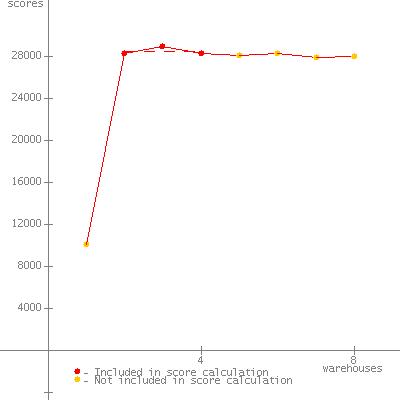

JVM 25 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10111
2	28273	*
3	29004	*
4	28348	*
5	28091
6	28324
7	27931
8	28054
SPECjbb2005	(from 2 to 4)	28542 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

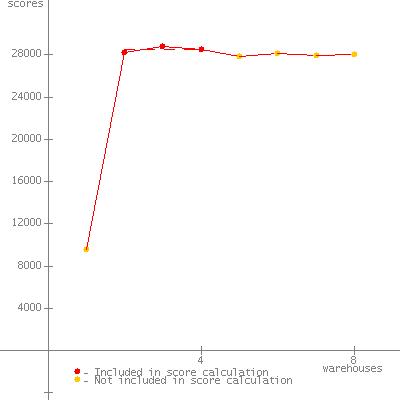

JVM 26 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9541
2	28172	*
3	28813	*
4	28514	*
5	27840
6	28094
7	27928
8	28002
SPECjbb2005	(from 2 to 4)	28500 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 27 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10087
2	28654	*
3	28855	*
4	28852	*
5	28092
6	28402
7	28169
8	27954
SPECjbb2005	(from 2 to 4)	28787 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 28 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9584
2	28443	*
3	28853	*
4	28394	*
5	28064
6	28106
7	28168
8	27812
SPECjbb2005	(from 2 to 4)	28563 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

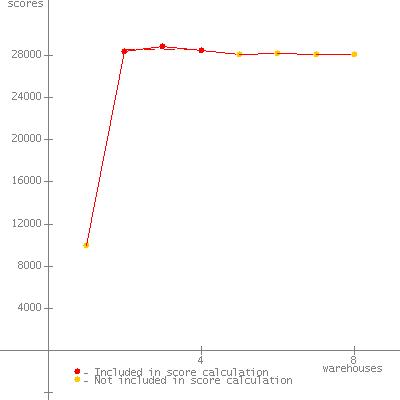

JVM 29 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9977
2	28351	*
3	28861	*
4	28444	*
5	28055
6	28187
7	28037
8	28106
SPECjbb2005	(from 2 to 4)	28552 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 30 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	10081
2	28521	*
3	29073	*
4	28457	*
5	27797
6	28190
7	27956
8	27888
SPECjbb2005	(from 2 to 4)	28684 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 31 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	8856
2	28302	*
3	28906	*
4	28498	*
5	27825
6	28291
7	28292
8	28157
SPECjbb2005	(from 2 to 4)	28569 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006

JVM 32 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	9710
2	28469	*
3	28863	*
4	28513	*
5	28071
6	28242
7	28287
8	28101
SPECjbb2005	(from 2 to 4)	28615 SPECjbb2005 bops

SPEC license # 4

Tested by: SGI

Test date: Mar 24, 2006
