SPECjbb

SPECjbb2005		SPECjbb2005 bops = 54820, SPECjbb2005 bops/JVM = 54820
IBM Corporation IBM System p5 510Q (1500 MHz, 4 Cores)
IBM Corporation J2RE 1.5.0 (32-bit) IBM J9 2.3 AIX ppc-32 j9vmap3223-20060114

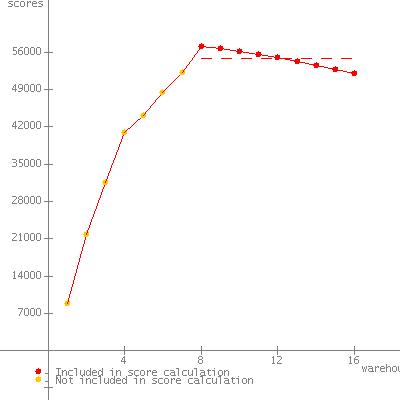

Warehouses	SPECjbb2005 bops	Incl. in metric
1	8785
2	21725
3	31662
4	40904
5	44060
6	48439
7	52258
8	57174	*
9	56784	*
10	56222	*
11	55564	*
12	55004	*
13	54266	*
14	53512	*
15	52811	*
16	52041	*
SPECjbb2005	(from 8 to 16)	54820 SPECjbb2005 bops

SPEC license # 11

Tested by: IBM Corporation

Test date: Mar 10, 2006

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM System p5 510Q (1500 MHz, 4 Cores)

Processor POWER5+

MHz 1500

# of Chips 2

# of Cores 4

# of Cores/Chip 2

HW Threading Enabled? Yes

Procs Avail to Java 8

Memory (MB) 8192

Memory Details

Primary cache 64KBI+32KBD (on chip)/core

Secondary cache 1920KB unified (on chip)/chip

Other cache 2x36MB unified (off chip)/QCM, 1 QCM in SUT

Filesystem JFS

Disks 1 x 73GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

JVM Version J2RE 1.5.0 (32-bit) IBM J9 2.3 AIX ppc-32 j9vmap3223-20060114

JVM Command Line java -Xlp -Xcompactgc -Xgcpolicy:subpool -Xms3g -Xmx3g spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3072

JVM Maximum Heap Memory (MB) 3072

JVM Address bits 32

JVM CLASSPATH ./jbb.jar:
./check.jar:

JVM BOOTCLASSPATH /java/pap32dev-20060114/jre/lib/vm.jar:
/java/pap32dev-20060114/jre/lib/core.jar:
/java/pap32dev-20060114/jre/lib/charsets.jar:
/java/pap32dev-20060114/jre/lib/graphics.jar:
/java/pap32dev-20060114/jre/lib/security.jar:
/java/pap32dev-20060114/jre/lib/ibmpkcs.jar:
/java/pap32dev-20060114/jre/lib/ibmorb.jar:
/java/pap32dev-20060114/jre/lib/ibmcfw.jar:
/java/pap32dev-20060114/jre/lib/ibmorbapi.jar:
/java/pap32dev-20060114/jre/lib/ibmjcefw.jar:
/java/pap32dev-20060114/jre/lib/ibmjgssprovider.jar:
/java/pap32dev-20060114/jre/lib/ibmjsseprovider2.jar:
/java/pap32dev-20060114/jre/lib/ibmjaaslm.jar:
/java/pap32dev-20060114/jre/lib/ibmcertpathprovider.jar:
/java/pap32dev-20060114/jre/lib/server.jar:
/java/pap32dev-20060114/jre/lib/xml.jar

OS Version AIX 5L V5.3

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Mar 10, 2006

H/w available Feb-2006

JVM available Mar-2006

OS available Feb-2006

Other s/w available

AOT Compilation

Tuning

Operating system tunings
vmo -o lgpg_regions=192 -o lgpg_size=16777216
vmo -o v_pinshm=1
setsched -S rr -P 30 -p $$
schedo -o timeslice=600
SPINLOOPTIME=1000

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	8785	3072	.519	<0.01%	<0.01	new_order	115792	9.81	<0.01
						payment	79868	4.31	<0.01
						order_status	7987	.533	<0.01
						delivery	7987	7.70	<0.01
						stock_level	7987	1.02	<0.01
						cust_report	43942	5.69	<0.01
2	21725	3072	64.9	.168%	<0.01	new_order	286444	18.9	.225
						payment	197527	8.65	.298
						order_status	19753	1.02	<0.01
						delivery	19752	16.9	.299
						stock_level	19752	1.65	<0.01
						cust_report	108609	11.6	.225
3	31662	3072	93.4	2.12%	<0.01	new_order	417454	28.0	.295
						payment	287865	12.2	.295
						order_status	28788	1.43	<0.01
						delivery	28786	25.6	.244
						stock_level	28786	2.53	<0.01
						cust_report	158281	17.6	.206
4	40904	3072	122	.501%	<0.01	new_order	539310	37.3	.326
						payment	371971	16.4	.326
						order_status	37196	1.87	<0.01
						delivery	37195	35.5	.327
						stock_level	37196	3.52	.255
						cust_report	204623	23.0	.252
5	44060	3072	150	21.4%	<0.01	new_order	581314	48.2	.370
						payment	400636	19.5	.292
						order_status	40063	2.38	<0.01
						delivery	40063	41.7	.372
						stock_level	40064	3.90	<0.01
						cust_report	219964	31.2	.370
6	48439	3072	179	20.1%	<0.01	new_order	638687	59.0	.400
						payment	440402	23.1	<0.01
						order_status	44041	3.25	.400
						delivery	44038	49.0	.365
						stock_level	44039	4.75	<0.01
						cust_report	242116	37.5	.400
7	52258	3072	207	19.3%	<0.01	new_order	689355	66.3	.432
						payment	475105	29.2	.432
						order_status	47509	3.69	.383
						delivery	47509	55.1	.433
						stock_level	47510	6.65	.407
						cust_report	260848	44.8	.432
8	57174	3072	235	.486%	<0.01	new_order	6029545	590	.491
						payment	4158276	254	.491
						order_status	415830	30.0	.426
						delivery	415827	525	.493
						stock_level	415826	52.1	.491
						cust_report	2286993	431	.492
9	56784	3072	264	13.2%	<0.01	new_order	5987623	667	.994
						payment	4129915	280	1.01
						order_status	412988	37.6	.492
						delivery	412990	600	1.03
						stock_level	412991	58.0	.895
						cust_report	2272205	476	.924
10	56222	3072	293	25.6%	<0.01	new_order	5929060	729	1.02
						payment	4089023	313	1.03
						order_status	408903	38.7	.522
						delivery	408902	663	1.05
						stock_level	408902	67.3	1.06
						cust_report	2248991	543	1.06
11	55564	3072	321	29.0%	<0.01	new_order	5859197	816	1.09
						payment	4041076	335	.952
						order_status	404109	45.4	.985
						delivery	404108	734	1.13
						stock_level	404104	75.7	1.10
						cust_report	2222971	584	1.09
12	55004	3072	349	15.7%	<0.01	new_order	5800191	884	1.11
						payment	4000396	373	1.07
						order_status	400039	49.5	1.01
						delivery	400037	800	1.10
						stock_level	400043	82.1	.850
						cust_report	2200604	637	1.11
13	54266	3072	378	21.7%	<0.01	new_order	5722491	952	1.23
						payment	3946671	412	1.23
						order_status	394666	51.7	.685
						delivery	394663	867	1.48
						stock_level	394665	86.4	.669
						cust_report	2170856	694	1.37
14	53512	3072	406	21.0%	<0.01	new_order	5643285	1033	1.31
						payment	3891930	437	1.25
						order_status	389192	57.1	1.07
						delivery	389191	930	1.44
						stock_level	389193	96.1	1.21
						cust_report	2140586	739	1.31
15	52811	3072	435	19.4%	<0.01	new_order	5569718	1117	1.67
						payment	3840857	459	1.32
						order_status	384085	63.4	1.32
						delivery	384083	1001	1.50
						stock_level	384087	98.5	.772
						cust_report	2112001	789	1.67
16	52041	3072	463	12.0%	<0.01	new_order	5488032	1164	1.26
						payment	3784868	501	1.63
						order_status	378487	63.3	.860
						delivery	378481	1078	1.42
						stock_level	378487	105	1.32
						cust_report	2081682	855	1.70
