SPECjbb2005 SPECjbb2005 bops = 226291, SPECjbb2005 bops/JVM = 28286
IBM Corporation IBM System p5 560Q (1500 MHz, 16 Cores)
IBM Corporation J2RE 1.5.0 (32-bit) IBM J9 2.3 AIX ppc-32 j9vmap3223-20060120

JVM run JVM Scores
128064
228169
328147
428979
528857
628006
728706
827363
SPECjbb2005 bops = 226291, SPECjbb2005 bops/JVM = 28286

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System p5 560Q (1500 MHz, 16 Cores)
Processor POWER5+
MHz 1500
# of Chips 8
# of Cores 16
# of Cores/Chip 2
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 65536
Memory Details
Primary cache 64KBI+32KBD (on chip)/core
Secondary cache 1920KB unified (on chip)/chip
Other cache 2x36MB unified (off chip)/QCM, 2 QCMs in SUT
Filesystem JFS
Disks 1 x 36GB SCSI
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version J2RE 1.5.0 (32-bit) IBM J9 2.3 AIX ppc-32 j9vmap3223-20060120
JVM Command Line execrset -c processor_set_number -e java -cp jbb.jar:check.jar -Xlp -Xcompactgc -Xgcpolicy:subpool -Xms3g -Xmx3g spec.jbb.JBBmain -propfile SPECjbb.props -id JVM_number
JVM Initial Heap Memory (MB) 3072
JVM Maximum Heap Memory (MB) 3072
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /java/pap32dev-20060120/jre/lib/vm.jar:
/java/pap32dev-20060120/jre/lib/core.jar:
/java/pap32dev-20060120/jre/lib/charsets.jar:
/java/pap32dev-20060120/jre/lib/graphics.jar:
/java/pap32dev-20060120/jre/lib/security.jar:
/java/pap32dev-20060120/jre/lib/ibmpkcs.jar:
/java/pap32dev-20060120/jre/lib/ibmorb.jar:
/java/pap32dev-20060120/jre/lib/ibmcfw.jar:
/java/pap32dev-20060120/jre/lib/ibmorbapi.jar:
/java/pap32dev-20060120/jre/lib/ibmjcefw.jar:
/java/pap32dev-20060120/jre/lib/ibmjgssprovider.jar:
/java/pap32dev-20060120/jre/lib/ibmjsseprovider2.jar:
/java/pap32dev-20060120/jre/lib/ibmjaaslm.jar:
/java/pap32dev-20060120/jre/lib/ibmcertpathprovider.jar:
/java/pap32dev-20060120/jre/lib/server.jar:
/java/pap32dev-20060120/jre/lib/xml.jar
OS Version AIX 5L V5.3
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Jan 21, 2006
H/w available Feb-2006
JVM available Mar-2006
OS available Feb-2006
Other s/w available
AOT Compilation

Tuning
Operating system tunings<UL><LI>vmo -o lgpg_regions=6400 -o lggp_size=16777216</LI><LI>vmo -o v_pinshm=1</LI><LI>SPINLOOPTIME=1000</LI><LI>MEMORY_AFFINITY=MCM</LI></UL>
Notes
Each JVM was run in its own processor set containing 2 cores


JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9134
2 16001
3 23900
4 28817 *
5 28436 *
6 28162 *
7 27582 *
8 27324 *
SPECjbb2005 (from 4 to 8) 28064 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 21, 2006

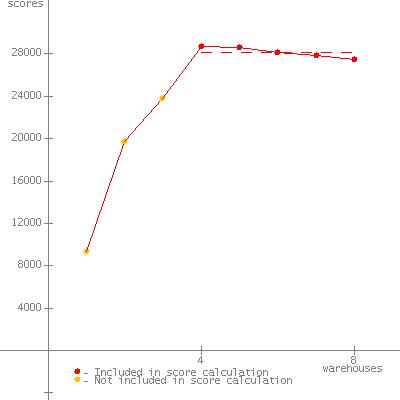

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9361
2 19773
3 23770
4 28735 *
5 28584 *
6 28169 *
7 27895 *
8 27465 *
SPECjbb2005 (from 4 to 8) 28169 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 21, 2006


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9724
2 18171
3 23707
4 28722 *
5 28738 *
6 28236 *
7 27728 *
8 27313 *
SPECjbb2005 (from 4 to 8) 28147 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 21, 2006


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9484
2 20005
3 24533
4 29697 *
5 29416 *
6 29084 *
7 28520 *
8 28179 *
SPECjbb2005 (from 4 to 8) 28979 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 21, 2006


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9379
2 19503
3 24397
4 29359 *
5 29265 *
6 28923 *
7 28608 *
8 28128 *
SPECjbb2005 (from 4 to 8) 28857 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 21, 2006

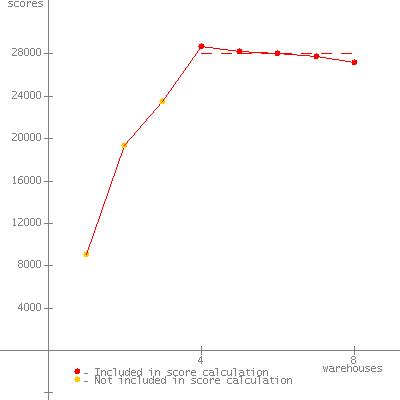

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9067
2 19378
3 23483
4 28737 *
5 28255 *
6 28043 *
7 27775 *
8 27220 *
SPECjbb2005 (from 4 to 8) 28006 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 21, 2006


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9431
2 19185
3 23682
4 29323 *
5 28997 *
6 28971 *
7 28332 *
8 27905 *
SPECjbb2005 (from 4 to 8) 28706 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 21, 2006


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 9040
2 17706
3 23129
4 28030 *
5 27840 *
6 27355 *
7 27045 *
8 26545 *
SPECjbb2005 (from 4 to 8) 27363 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jan 21, 2006

SPECjbb2005 Version: [SPECjbb2005 1.06, January 5, 2006]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 02-Mar-2006
