SPECjbb

SPECjbb2005		SPECjbb2005 bops = 36039, SPECjbb2005 bops/JVM = 36039
IBM Corporation IBM System p5 510 (1900 MHz, 2 Cores)
IBM Corporation J2RE 1.5.0 (32-bit) IBM J9 2.3 AIX ppc-32 j9vmap3223-20060114

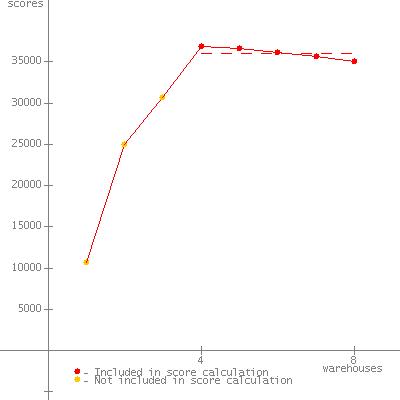

Warehouses	SPECjbb2005 bops	Incl. in metric
1	10677
2	24978
3	30729
4	36890	*
5	36560	*
6	36066	*
7	35672	*
8	35006	*
SPECjbb2005	(from 4 to 8)	36039 SPECjbb2005 bops

SPEC license # 11

Tested by: IBM Corporation

Test date: Jan 14, 2006

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM System p5 510 (1900 MHz, 2 Cores)

Processor POWER5+

MHz 1900

# of Chips 1

# of Cores 2

# of Cores/Chip 2

HW Threading Enabled? Yes

Procs Avail to Java 4

Memory (MB) 16384

Memory Details 8x2GB

Primary cache 64KBI+32KBD (on chip)/core

Secondary cache 1920KB unified (on chip)/chip

Other cache 36MB unified (off chip)/DCM, 1 DCM in SUT

Filesystem JFS

Disks 1 x 36GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

JVM Version J2RE 1.5.0 (32-bit) IBM J9 2.3 AIX ppc-32 j9vmap3223-20060114

JVM Command Line java -Xlp -Xgcpolicy:subpool -Xcompactgc -Xms3g -Xmx3g spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3072

JVM Maximum Heap Memory (MB) 3072

JVM Address bits 32

JVM CLASSPATH ./jbb.jar:
./check.jar:

JVM BOOTCLASSPATH /java/pap32dev-20060114/jre/lib/vm.jar:
/java/pap32dev-20060114/jre/lib/core.jar:
/java/pap32dev-20060114/jre/lib/charsets.jar:
/java/pap32dev-20060114/jre/lib/graphics.jar:
/java/pap32dev-20060114/jre/lib/security.jar:
/java/pap32dev-20060114/jre/lib/ibmpkcs.jar:
/java/pap32dev-20060114/jre/lib/ibmorb.jar:
/java/pap32dev-20060114/jre/lib/ibmcfw.jar:
/java/pap32dev-20060114/jre/lib/ibmorbapi.jar:
/java/pap32dev-20060114/jre/lib/ibmjcefw.jar:
/java/pap32dev-20060114/jre/lib/ibmjgssprovider.jar:
/java/pap32dev-20060114/jre/lib/ibmjsseprovider2.jar:
/java/pap32dev-20060114/jre/lib/ibmjaaslm.jar:
/java/pap32dev-20060114/jre/lib/ibmcertpathprovider.jar:
/java/pap32dev-20060114/jre/lib/server.jar:
/java/pap32dev-20060114/jre/lib/xml.jar

OS Version AIX 5L V5.3

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Jan 14, 2006

H/w available Feb-2006

JVM available Mar-2006

OS available Feb-2006

Other s/w available

AOT Compilation

Tuning

Operating system tunings<UL><LI>vmo -o lgpg_regions=192 -o lgpg_size=16777216 -o v_pinshm=1</LI><LI>setsched -S rr -P 30 -p $$</LI><LI>schedo -o timeslice=600</LI><LI>SPINLOOPTIME=1000</LI></UL>

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	10677	3072	.517	<0.01%	<0.01	new_order	140726	9.77	<0.01
						payment	97071	4.10	<0.01
						order_status	9707	.526	<0.01
						delivery	9707	7.40	.017
						stock_level	9707	1.11	<0.01
						cust_report	53414	5.93	<0.01
2	24978	3072	64.9	.133%	<0.01	new_order	329276	18.8	.314
						payment	227085	7.52	<0.01
						order_status	22708	.988	<0.01
						delivery	22708	17.1	.229
						stock_level	22709	1.71	<0.01
						cust_report	124895	12.6	.314
3	30729	3072	93.3	15.6%	<0.01	new_order	405646	28.9	.365
						payment	279782	11.1	<0.01
						order_status	27978	1.90	.365
						delivery	27977	23.8	<0.01
						stock_level	27978	2.64	.288
						cust_report	153909	19.2	.365
4	36890	3072	122	.225%	<0.01	new_order	3889791	301	.447
						payment	2683010	125	.447
						order_status	268301	17.4	.392
						delivery	268300	259	.449
						stock_level	268301	24.3	.359
						cust_report	1476238	213	.392
5	36560	3072	150	13.7%	<0.01	new_order	3855186	381	1.02
						payment	2658912	152	.690
						order_status	265891	20.0	.428
						delivery	265891	322	.667
						stock_level	265891	30.1	.475
						cust_report	1462637	269	.948
6	36066	3072	179	21.9%	<0.01	new_order	3803318	458	1.05
						payment	2623077	183	.939
						order_status	262311	23.7	.550
						delivery	262307	396	1.00
						stock_level	262309	37.0	1.00
						cust_report	1442839	315	.850
7	35672	3072	207	16.8%	<0.01	new_order	3763325	530	1.37
						payment	2594458	214	1.05
						order_status	259445	27.2	.637
						delivery	259445	461	1.24
						stock_level	259446	43.3	.591
						cust_report	1425580	372	1.06
8	35006	3072	236	9.38%	<0.01	new_order	3691640	594	1.18
						payment	2545984	248	.732
						order_status	254598	33.6	1.19
						delivery	254598	528	1.30
						stock_level	254597	49.8	.630
						cust_report	1400324	430	.851
