SPECjbb2005 SPECjbb2005 bops = 148210, SPECjbb2005 bops/JVM = 18526
Fabric7 Systems, Inc. Q160 Release 1.01
BEA Systems BEA JRockit(R) 5.0 R26.0.0 (build R26.0.0-189-53463-1.5.0_04-20051122-2040-linux-ia32)

JVM run JVM Scores
118295
218766
318221
418746
518975
618929
718108
818170
SPECjbb2005 bops = 148210, SPECjbb2005 bops/JVM = 18526

Hardware
Hardware Vendor Fabric7 Systems, Inc.
Vendor URL http://www.fabric7.com
Model Q160 Release 1.01
Processor AMD Opteron 880
MHz 2400
# of Chips 8
# of Cores 16
# of Cores/Chip 2
HW Threading Enabled? No
Procs Avail to Java 16
Memory (MB) 65536
Memory Details 32 of 64 DIMMs filled with 2GB of PC3200 Memory
Primary cache 64KBI+64KBD
Secondary cache 1MB per core on chip
Other cache
Filesystem ext3
Disks 1 x 36GB Fibre Channel (OS+Data+Paging+classes)
Other hardware
Software
Software Vendor BEA Systems
Vendor URL http://www.bea.com
JVM Version BEA JRockit(R) 5.0 R26.0.0 (build R26.0.0-189-53463-1.5.0_04-20051122-2040-linux-ia32)
JVM Command Line numactl --cpubind=$node_num --membind=$node_num $JAVA -cp jbb.jar:check.jar -XXaggressive -XXlargeObjectLimit=4k -XXcompactratio7 -XXtlasize=8k -Xms2432m -Xmx2432m spec.jbb.JBBmain -propfile SPECjbb.props -id $jvm_num > multi.$jvm_num &
JVM Initial Heap Memory (MB) 2432
JVM Maximum Heap Memory (MB) 2432
JVM Address bits 32
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /opt/java/jrockit-jdk1.5.0_04_32bit/jre/lib/i386/jrockit/jrockit.jar:
/opt/java/jrockit-jdk1.5.0_04_32bit/jre/lib/i386/jrockit/managementapi.jar:
/opt/java/jrockit-jdk1.5.0_04_32bit/jre/lib/managementapi.jar:
/opt/java/jrockit-jdk1.5.0_04_32bit/jre/lib/rt.jar:
/opt/java/jrockit-jdk1.5.0_04_32bit/jre/lib/i18n.jar:
/opt/java/jrockit-jdk1.5.0_04_32bit/jre/lib/sunrsasign.jar:
/opt/java/jrockit-jdk1.5.0_04_32bit/jre/lib/jsse.jar:
/opt/java/jrockit-jdk1.5.0_04_32bit/jre/lib/jce.jar:
/opt/java/jrockit-jdk1.5.0_04_32bit/jre/lib/charsets.jar:
/opt/java/jrockit-jdk1.5.0_04_32bit/jre/classes
OS Version SuSE Linux Enterprise Server 9 SP2 (64 bit)
Other software Fabric7 SLES9 SP2 Patch #1
Test Information
Tested by Fabric7 Systems, Inc.
SPEC license # 99
Test location Hillsboro, OR
Test date Dec 14, 2005
H/w available Dec-2005
JVM available Dec-2005
OS available Aug-2005
Other s/w available Oct-2005
AOT Compilation

Tuning
Operating system tunings
  • Added "numa=on" to kernel boot string
  • Set vm.nr_hugepages=20000 in /etc/sysctl.conf
Notes
Patch description: Use physical flat APIC mode for >8 core AMD64 systems and workaround 4-bit APICID limitations on AMD 8131 bridge (both included in SLES9 SP3)

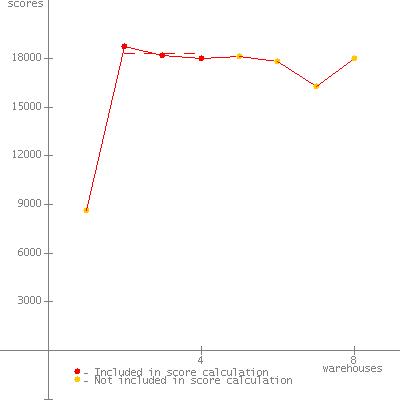

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8601
2 18746 *
3 18163 *
4 17976 *
5 18096
6 17780
7 16258
8 18000
SPECjbb2005 (from 2 to 4) 18295 SPECjbb2005 bops
SPEC license # 99 Tested by: Fabric7 Systems, Inc. Test date: Dec 14, 2005


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8757
2 18982 *
3 18750 *
4 18565 *
5 18615
6 18389
7 18235
8 16436
SPECjbb2005 (from 2 to 4) 18766 SPECjbb2005 bops
SPEC license # 99 Tested by: Fabric7 Systems, Inc. Test date: Dec 14, 2005


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8465
2 18431 *
3 18152 *
4 18080 *
5 17788
6 17710
7 17915
8 17233
SPECjbb2005 (from 2 to 4) 18221 SPECjbb2005 bops
SPEC license # 99 Tested by: Fabric7 Systems, Inc. Test date: Dec 14, 2005


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8785
2 18884 *
3 18850 *
4 18506 *
5 18470
6 18215
7 16768
8 16755
SPECjbb2005 (from 2 to 4) 18746 SPECjbb2005 bops
SPEC license # 99 Tested by: Fabric7 Systems, Inc. Test date: Dec 14, 2005


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8799
2 19238 *
3 18944 *
4 18744 *
5 18727
6 18539
7 17373
8 16500
SPECjbb2005 (from 2 to 4) 18975 SPECjbb2005 bops
SPEC license # 99 Tested by: Fabric7 Systems, Inc. Test date: Dec 14, 2005


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8753
2 19137 *
3 18897 *
4 18753 *
5 18683
6 18375
7 17587
8 18075
SPECjbb2005 (from 2 to 4) 18929 SPECjbb2005 bops
SPEC license # 99 Tested by: Fabric7 Systems, Inc. Test date: Dec 14, 2005


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8486
2 18369 *
3 18039 *
4 17916 *
5 17781
6 17649
7 16077
8 16177
SPECjbb2005 (from 2 to 4) 18108 SPECjbb2005 bops
SPEC license # 99 Tested by: Fabric7 Systems, Inc. Test date: Dec 14, 2005


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 8451
2 18372 *
3 18122 *
4 18017 *
5 17937
6 17724
7 17653
8 16386
SPECjbb2005 (from 2 to 4) 18170 SPECjbb2005 bops
SPEC license # 99 Tested by: Fabric7 Systems, Inc. Test date: Dec 14, 2005

SPECjbb2005 Version: [SPECjbb2005 1.05, July 6, 2005]
Reporting page, Copyright © 2005 SPEC. All rights reserved

First published at SPEC.org on 04-Jan-2006
