SPEC Seal of Reviewal SPECjAppServer2002 Result
Copyright © 2002 Standard Performance Evaluation Corporation
BEA Weblogic Server 8.1 SP3 on Unisys ES3020L SERVER
2,587.74 TOPS@MultipleNode
139.84 US$/TOPS@MultipleNode
Submitter:
Unisys Corporation		 SPEC license # 15 Test date:
Jun-2004		 EJB Container Avail: Jul-2004
EJB Container JVM Avail: Jul-2004
Software
EJB Container
Supplier Domain Container
Emulator Container
Database
JDBC
Other Software 		Hardware
J2EE Application Server
Database Server
Load Driver 		Benchmark
Modifications
Configuration
Other Info
General Notes 		Links

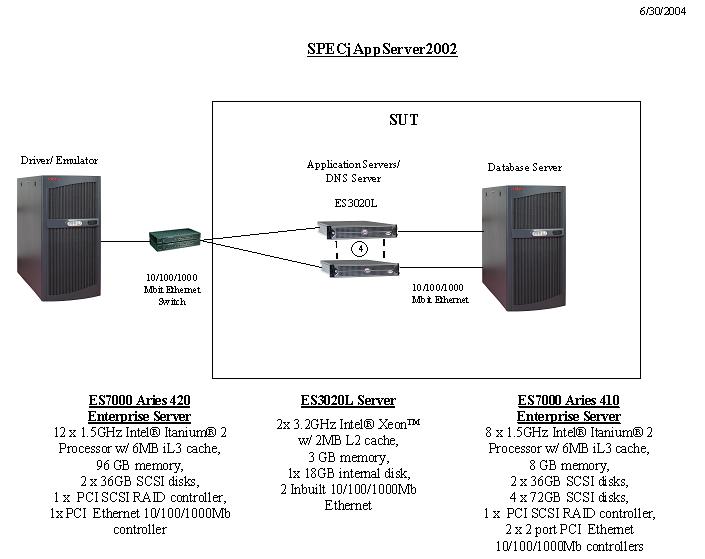

System Configuration Diagram

Full Disclosure Archive


Benchmark Settings
Orders Injection Rate: 1500 Ramp Up Time: 600 seconds
# of Order Agents: 4 Ramp Down Time: 300 seconds
# of Manufacturing Agents: 4 Steady State Time: 1800 seconds
DB Load Injection Rate: 1500 Trigger Time: 1530 seconds
Total System Cost: US$361,867

Detailed Results
Order Transaction Mix Count Tx. Mix
New Order 1,347,141 50.00%
Change Order 539,002 20.00%
Order Status 538,702 19.99%
Customer Status 269,555 10.00%
Total # Order Transactions 2,694,400
Total # Manufacturing Transactions 1,963,531
Response Times Average Maximum 90th% Reqd
New Order 0.56 10.53 1.50 2.00
Change Order 0.29 5.18 0.70 2.00
Order Status 0.14 4.25 0.40 2.00
Customer Status 0.14 4.21 0.40 2.00
Manufacturing 2.80 8.78 4.75 5.00
Reproducibility Run (TOPS) 2,588.97

EJB Container
Name: BEA WebLogic Server 8.1 SP3, Workgroup Edition JVM Name: BEA Weblogic JRockit 1.4.2_04 JVM
Vendor: BEA Systems, Inc. JVM Vendor: BEA Systems, Inc.
Available: Jul-2004 Available: Jul-2004
Instances: 4
Passed CTS: Apr-2003
Protocol: RMI/T3
Tuning Information
-Dweblogic.management.discover=false
-Dweblogic.SocketReaders=1
JVM Tuning Information
-Xms1536m -Xmx1536m
-XXcompactratio5 -XXminblocksize4k
-showversion -Xnoopt -Xverbose:gc

Supplier Domain Container
Name: BEA WebLogic Server 8.1 SP3, Workgroup Edition JVM Name: BEA Weblogic JRockit 1.4.2_04 JVM
Vendor: BEA Systems, Inc. JVM Vendor: BEA Systems, Inc.
Available: Jul-2004 Available: Jul-2004
Tuning Information
-Dweblogic.management.discover=false
-Dweblogic.SocketReaders=1
JVM Tuning Information
-Xms1536m -Xmx1536m
-XXcompactratio5 -XXminblocksize4k
-showversion -Xnoopt -Xverbose:gc

Emulator Container
Name: BEA WebLogic Server 8.1 SP3, Workgroup Edition JVM Name: Java(TM) 2 Runtime Environment, Standard Edition, Version 1.4.2_04 (64-bit)
Vendor: BEA Systems, Inc. JVM Vendor: Sun Microsystems, Inc
Available: Jul-2004 Available: Mar-2004
Tuning Information
-Dweblogic.management.discover=false
JVM Tuning Information
-server -Xms1024m -Xmx1024m -XX:-UseAdaptiveSizePolicy

Database
Name: Microsoft SQL Server 2000 Enterprise Edition (64-bit)
Vendor: Microsoft Corporation
Available: Aug-2004
Tuning Information
The specdb.sql script included in the FDA was used to create and configure the DB.
The sp_config.txt file included in the FDA shows the settings for tunables db options.

Microsoft SQL Server Startup Parameters
sqlservr -x -T888 -T825
-x    Disable the keeping of CPU time and cache hit ratio statistics.
-T888 Use locked pages for buffers.
-T825 Enable NUMA support.

JDBC
Name: BEA WebLogic Type 4 JDBC MS SQL Server Driver
Vendor: BEA Systems. Inc
Available: Apr-2004
Tuning Information
StatementCacheSize=300,SelectMethod=direct

Other Software
Name:
Vendor:
Available:
Tuning Information
  No tuning information provided.

J2EE Application Server (4 systems)
Hardware Vendor: Unisys Corporation OS Vendor: Microsoft Corporation
Model Name: ES3020L OS Name: Microsoft Windows Server 2003 Standard Edition (32-bit)
Processor: Intel Xeon DP Filesystem: NTFS
MHz: 3200 Disks: 1X18GB 15K RPM U320 Internal DISK
# of CPUs: 2 cores, 2 chips, 1 core/chip (HT Technology enabled) Network Interface: (2) 1000BaseT Ethernet
Memory (MB): 3072 Other Hardware:
L1 Cache: 12Kuops(I)+8KB(D) # of Systems: 4
L2 Cache: 512KB H/W Available: Jan-2004
Other Cache: 2MB OS Available: Oct-2003
Notes / Tuning Information
The WebLogic patch for CR185550_81sp3.2.jar was applied.

Database Server (1 system)
Hardware Vendor: Unisys Corporation OS Vendor: Microsoft Corporation
Model Name: ES7000 Aries 410 OS Name: Microsoft Windows Server 2003 Enterprise Edition (64-bit)
Processor: Itanium 2 Filesystem: NTFS
MHz: 1500 Disks: 2x36GB 15K RPM SCSI DISKs
# of CPUs: 8 cores, 8 chips, 1 core/chip Network Interface: (4) 1000BaseT Ethernet
Memory (MB): 8192 Other Hardware: 4X72GB 15K RPM SCSI Disks and 1 PCI SCSI RAID Controller
L1 Cache: 16KB(I)+16KB(D) on chip # of Systems: 1
L2 Cache: 256KB(I+D) on chip H/W Available: Aug-2003
Other Cache: 6MB(I+D) on chip (L3 Cache) OS Available: Aug-2003
Notes / Tuning Information
Enabled SRAT via BIOS
RAID CONTROLLER Write Back Cache Enabled

Load Driver (1 system)
Hardware Vendor: Unisys Corporation OS Vendor: Microsoft Corporation
Model Name: ES7000 Aries 410 OS Name: Microsoft Windows Server 2003 Datacenter Edition (64-bit)
Processor: Itanium 2 Filesystem: NTFS
MHz: 1500 Disks: 2x36GB 15K RPM U320 HDD
# of CPUs: 12 cores, 12 chips, 1 core/chip Network Interface: (1) 1000BaseT Ethernet
Memory (MB): 98304 Other Hardware:
L1 Cache: 16KB(I)+16KB(D) on chip # of Systems: 1
L2 Cache: 256KB(I+D) on chip H/W Available: Aug-2003
Other Cache: 6MB(I+D) on chip (L3 Cache) OS Available: Aug-2003
Notes / Tuning Information
JVM Version used:
Java(TM) 2 Runtime Environment, Standard Edition, Version 1.4.2_04 (64-bit)
JVM arguments used:
-server -Xms2300m -Xmx2300m -Xmn400m -XX:+DisableExplicitGC

Benchmark Modifications
Schema Modifications:
  Two indexes were created in the M_largeorder table:
  CREATE UNIQUE INDEX [M_lo_idx] ON M_largeorder ([lo_id])
  CREATE UNIQUE INDEX [m_ol_o_idx] ON M_largeorder ([lo_o_id], [lo_ol_id])

  The field width of pol_balance was changed from numeric(9,2) to (11,2).
Load Program Modifications:
  To make the load program work with or without an optimistic concurrency
  column, the database load program was changed to load specific columns.
  The modified source code is included in the FDA.
Reference Bean Modifications:
  No modifications were made to the reference beans.

Benchmark Configuration Information
Persistence Mode Used:
  All beans were deployed using CMP.
Isolation Requirement Info:
  Isolation Requirement Info:
  SPEC_REQUIREMENT Deployment
  CORP:
  RuleEnt          Read_Committed   RC
  DiscountEnt      Read_Committed   RC
  CustomerEnt      Read_Committed   RC
  MFG:
  AssemblyEnt      Read_Committed   RC
  BomEnt           Read_Committed   Sel-4-Upd
  ComponentEnt     Read_Committed   RC
  PartEnt          Read_Committed   RC
  WorkOrderEnt     Repeatable_Read  Sel-4-Upd
  LargeOrderEnt    Read_Committed   RC
  InventoryEnt     Repeatable_Read  Sel-4-Upd
  ORDERS:
  OrderLineEnt     Repeatable_Read  Sel-4-Upd
  OrderCustomerEnt Read_Committed   RC
  ItemEnt          Read_Committed   RC
  OrderEnt         Repeatable_Read  Sel-4-Upd
  SUPPLIER:
  SupplierEnt      Read_Committed   RC
  SupplierCompEnt  Read_Committed   RC
  SComponentEnt    Repeatable_Read  Sel-4-Upd
  POEnt            Repeatable_Read  Sel-4-Upd
  POLineEnt        Repeatable_Read  Sel-4-Upd
  Transaction consistency for those beans specifying field
  groups was proven by manual analysis of the source code.
Durability Requirement Info:
  RAID10 disk mirroring was used to ensure durability
Storage Requirement Info:
  A 45 minute run at an injection rate of 1500 required 12.27 GB of storage.
  This extrapolates to 130.88 GB of storage growth for an 8-hour run.
  The database system is configured with 167.74 GB of storage.
Argument Passing Semantics:
  BEA WebLogic 8.1 uses pass-by-value as required by the EJB Specification.

Other Benchmark Information
  This submission used the xerces.jar version 1.4.3 provided with the SPECjAppServer2002 kit.

General Notes
No errors were reported during the final or reproducibility run

For questions about this result, please contact the submitter: Unisys Corporation
For other inquiries, please contact webmaster@spec.org

Benchmark run on Wed Jun 30 03:48:32 PDT 2004 by SPECjAppServer2002 v1.14
Result submitted on Wed Jul 7 03:03:00 EDT 2004
Report generated by SPECjAppServer2002 Reporter v1.01

Copyright © 2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 21-Jul-2004
