Installing SPEC CPU2017 on Microsoft Windows Systems

$Id$ Latest: www.spec.org/cpu2017/Docs/

Summary

Verify the ISO
Mount it
install.bat X:\somedir

Contents

Prepare for the installation

1. Review Prerequisites

2. Open a Command Prompt Window

3. Verify the download (optional, recommended)

4. Mount the ISO image

Install it

5. Run install.bat

5.a. Confirm Source and Destination

5.b. The files are unpacked and tested

6. Edit shrc.bat

Test your installed copy

7. Use your shrc.bat

8. Select a config file and try to build one benchmark

9. Try compiling an entire suite, and run the test workload

10. Try a full (reportable) run

Appendix 1: Uninstalling SPEC CPU2017

Appendix 2: Useful Tips and Techniques

a. About Temporary Space (%temp%)

b. About Text Files and Windows/Unix Compatibility

Prepare for the Installation

The SPEC CPU2017 benchmark suite has been tested under many operating systems. If you are installing under Microsoft Windows, this guide is for you. (If you want to install under AIX, Linux, Mac OS X, Solaris, or a similar system, you need the other install guide.)

Reminder: SPEC benchmarks are licensed software.

Please follow these steps:

1. Review Prerequisites

Review the System Requirements. Please particularly notice the requirements for:

  • Physical memory
  • Disk space
  • Familiarity with basic commands (such as cd, dir, mkdir, findstr) and with the Command Prompt (aka "Windows Command Processor", "cmd.exe", "MSDOS Window").

2. Open a Command Prompt Window

If you haven't already done so, start a Command Prompt Window now.

  • For Windows 7 and earlier versions, use the search bar by clicking Start and typing "Command". The option for Command Prompt will appear. Click on it.
  • For Windows 8.x and Windows 10, from the desktop, right click on the start button and click on Command Prompt from the pop-up menu.

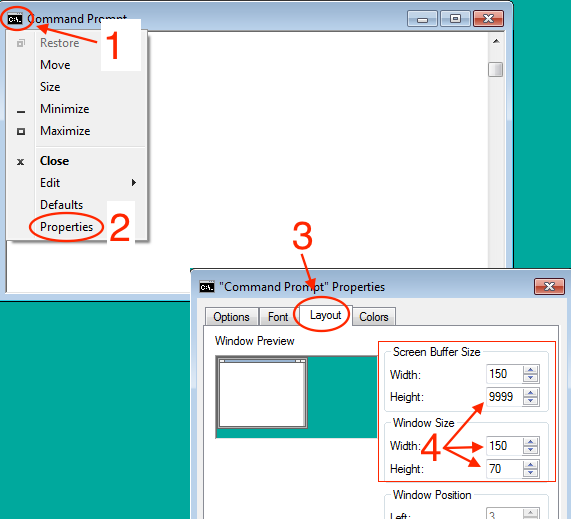

Tip: you will probably find that the window is easier to use if you enlarge it.

  1. Click the upper left corner of the Command Prompt window.
  2. Select "Properties"
  3. Select "Layout" tab
  4. Increase the sizes. For example, you could use the values shown in the screen shot on the right, if you wish.
adjust-window-size

3. Verify the download (optional, recommended)

SPEC CPU is distributed as an ISO image. The file is large; therefore it is recommended (though not required) that you verify that the download is correct before continuing.

If you have the sha512sum utility, use that to calculate a checksum for your download. If you do not have that utility, check whether your system has an MD5 utility, perhaps under one of these names: md5sum, md5, digest, FCIV. Use whichever utility you found to compute a checksum, and compare it to the posted values at www.spec.org/cpu2017/releases.

q. Is it ok to skip doing this verification? I trust my network and I don't feel like hunting for a SHA-512 tool just now.
a Um. Well, it's always safer to verify downloads.
However, if you skip this step, you will probably be ok, because the installation procedure will verify the individual files within the distribution.

4. Mount the ISO image

There are two options:

  1. Attach the ISO file
  2. Or, Burn a DVD
    (optical device and blank DVD are required)
    Windows 7 and later has built-in software to burn a DVD. Right click on the ISO image and select "Burn disk image". (Older versions of Windows are not supported by SPEC CPU2017.)

Regardless of the method you choose, note the drive letter where the ISO image or the DVD is attached.

Install it

5. Run install.bat

The following tasks must be done from the Command Prompt. Do not attempt to run install.bat from Windows Explorer.

Change your directory to the mounted image. The following examples assume that the ISO image is mounted as drive D:, so entering just the letter and a colon changes to the right location:

C:\> D:
D:\>

You're now ready to run the installer. The format for this command is

install.bat   destination_drive:\destination_directory

For example, if your ISO image is drive D:, and you want to install CPU2017 on drive C: in a folder named cpu2017, you could type:

D:\> install.bat  C:\cpu2017

5.a. Confirm Source and Destination

You should see a message similar to the following:

D:\>install.bat  c:\cpu2017
Installing FROM source: E:\
Installing TO destination: c:\CPU2017

 If the above is NOT correct, hit Control-C and run install.bat from
 the correct benchmark tree with an argument designating the desired
 destination directory.

Press any key to continue . . .

If you see a message similar to the above, just press return. If you see error messages, check to be sure that you are in the correct directory and that %temp% is defined.

Next, the install procedure will ask you to confirm the destination folder.

You should see a message similar to the following:

Installing TO destination: "c:\cpu2017"

   If the destination is NOT correct, hit Control-C and
   specify the desired installation path as a parameter.
   For example:

   D:\install.bat  D:\SPEC\cpu2017

Press any key to continue . . .

If you see a message similar to the above, and if it looks like what you want, then just press return, and the installation begins.

5.b. The files are unpacked and tested

No more questions are asked. As it proceeds, the install procedure tells you what benchmarks are being unpacked.

 Depending on the speed of the source and destination devices, this
 may take several minutes.
 Please be patient.

Unpacking CPU2017 base files (17.4 MB)
Unpacking 500.perlbench_r benchmark and data files (102.1 MB)
Unpacking 502.gcc_r benchmark and data files (256.3 MB)
Unpacking 503.bwaves_r benchmark and data files (0.2 MB)
.
.     (lines omitted)
.
Unpacking 999.specrand_ir benchmark and data files (6.4 MB)

Checking the integrity of your source tree...

Depending on the amount of memory in the system and the speed of
the destination device, this may take several minutes.
Please be patient.

Unpacking tools binaries
Setting SPEC environment variable to c:\CPU2017\
Checking the integrity of your binary tools...
Testing the tools installation (this may take a minute)

Runspec tests completed successfully!
Installation completed!
c:\cpu2017>

Note that the testing phase (just above) may take more time than it does to do the unpacking. This is normal.

At this point, the CPU2017 installation will be using about 2.2 GB of disk space on the destination drive.

6. Edit shrc.bat

Change your directory to the destination that has just been created, for example:

D:\> C:
C:\> cd cpu2017
C:\cpu2017\>

Read the comments in the file

shrc.bat

and make the appropriate edits for your compiler paths.

q. When I try to edit shrc.bat, it looks like the lines are not correctly formatted. The text appears to be all run together. For example, this can happen when using notepad.
a Try wordpad. For more information, see the section below: About Text Files and Windows/Unix Compatibility.

You must uncomment one of two lines:

rem set SHRC_PRECOMPILED=yes

or

rem set SHRC_COMPILER_PATH_SET=yes

by removing "rem" from the beginning of the desired line.

If you uncomment the first line, you must have pre-compiled binaries for the benchmarks

If you uncomment the second line, you will have to follow the instructions (a few lines below further along in shrc.bat) to set up the environment for your compiler, either (A) by calling a vendor-supplied batch setup file or (B) by entering the path yourself:

  1. It is usually better to call a vendor-supplied batch setup file, because the file may set additional needed variables, such as INCLUDE and LIB. Examples of vendor files, such as iclvars, vcvars, and vsvars, are in the comments within shrc.bat. Do not assume that any of those examples will work on your system: you need to check first. The names and locations of these files change from compiler to compiler, from version to version, and even from system to system (if you choose a non-default installation directory).

  2. If you enter a path directly:

No matter how your path gets set, in general it is a good idea to understand what is in your path, and that you have only what you truly need. If you have non-standard versions of commonly used utilities in your path, you may avoid unpleasant surprises by taking them out. By default, shrc.bat will print the path after it is done. If you would prefer that it not do so, you can set SHRC_QUIET=yes in your environment.

Test your installed copy

From this point forward, we are testing basic capabilities of the installed version of SPEC CPU2017, including compiling benchmarks and running them.

If you prefer to skip this part, perhaps because someone else has given you pre-compiled binaries, please note that you remain responsible for compliance with SPEC's Fair Use rule and the CPU2017 run rules.

7. Use your shrc.bat

Set the environment, using your edited shrc. For example:

C:\cpu2017> shrc.bat

8. Select a config file and try to build one benchmark

Find a Config File: You will need to select a config file. Config files contain details such as portability and optimization options. If you are a beginner, you will probably start with an existing config file. You can find one:

  1. On your installed copy of SPEC CPU2017:

    $SPEC/config/Example*        (Unix) or
    %SPEC%\config\Example*       (Windows)
  2. At www.spec.org/cpu2017/results. Look for a system similar to yours, click the 'config' link.
  3. Or, write your own.

Name it:   Copy your selection to a new file the config file to the config directory. Give it a name that does not use blanks. Hint: make the name something useful to *you*, for example:

%SPEC%\config\Rahuls_first_test.cfg

Edit the label:    Usually it is a good idea to edit the file and change the line that says:

label = something

or if there is no such line, then add one at the top. The label is an arbitrary tag that is added to your binaries and directories, which can come in very handy when you need to (for example) find your run directories, analyze a problem, and clean disk space. As with the config file name, make it something meaningful to *you*. No blanks are allowed.

Other Edits:

  1. Look for any locations marked EDIT and make changes as needed.
  2. Look for paths and adjust if needed. Example: the config file mentions a path for
    .../Lib/10.0.14393.0 but your system uses
    .../Lib/10.0.14394.1
  3. Look for any commands in the config file, and verify that they will not cause surprises.

    Warning: SPEC CPU config files can execute arbitrary shell commands.
    Read a config file before using it.
    Don't be root. Don't run as Administrator. Turn privileges off.

Select a benchmark to try first. Begin with a benchmark that compiles quickly, such as 505.mcf_r or 508.namd_r for SPECrate; or 619.lbm_s for SPECspeed.

Example: Here, the user starts with a config file for Intel C/C++ and Fortran 17.0 Update 1 Compilers for Windows, edits it, and tries 508.namd_r.

C:\cpu2017> cd %SPEC%\config
C:\cpu2017> copy Example-ic17.0u1-win-rate.cfg try.cfg
   .
   . [edit try.cfg for compiler path]
   .

c:\CPU2017> runcpu -c try.cfg --action build 508.namd_r
runcpu v4547 - Copyright 1999-2016 Standard Performance Evaluation Corporation
Using 'windows-x64 ' tools
Reading file manifests... read 31964 entries from 2 files in 0.26s (120682 files/s)
Loading runcpu modules................
Locating benchmarks...found 47 benchmarks in 58 benchsets.
Reading config file 'c:/CPU2017/config/try.cfg'
Running "specperl c:/CPU2017/Docs/sysinfo" to gather system information.


1 configuration selected:

Action   Benchmarks
------   ----------------------------------------------------------------------
build    508.namd_r
-------------------------------------------------------------------------------

Benchmarks selected: 508.namd_r
Compiling Binaries
  Building 508.namd_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 22:10:43]

Build successes for fprate: 508.namd_r(base)
Build errors for fprate: None

Build Complete

The log for this run is in c:/CPU2017/result/CPU2017.002.log

runcpu finished at 2016-07-14 22:11:59; 112 total seconds elapsed

c:\CPU2017>
If
the
above
succeeds

You have established that SPEC CPU2017 is installed and the tools can use your config file to find a "C" compiler.

Let us take a brief look at what the above command did:


C:\cpu2017> cd %SPEC%\benchspec\CPU\508.namd_r\exe
C:\cpu2017\benchspec\CPU\508.namd_r\exe>dir
namd_r_base.Example-ic17.0u1-win-rate
C:\cpu2017\benchspec\CPU\508.namd_r\exe>cd %SPEC%\result
C:\cpu2017\result> dir
CPU2017.001.log  lock.CPU2017


Note that:

  • An executable file has been created, using a label that was specified by the config file (Example-ic17.0u1-win-rate) The label is just an arbitrary tag that you can use to help you keep track of your builds.
  • A log file is available: CPU2017.001.log
If
the
above
fails

Usually, failures happen if you start with a config file that is not intended for your operating system and compiler (About Config Files),
or if you have not installed the compiler,
or have not edited the config file to point to the compiler location.

If a file is mentioned with more information, please carefully examine that file (e.g. benchspec\CPU2017\nnn.mumble\build_base_mumble.0000\mumble.err)

You can use locate the log file and the build directory, and useful files within the build, using commands similar to these:


C:\cpu2017> cd %SPEC%\result
C:\cpu2017\result> dir *log
CPU2017.001.log
C:\cpu2017\result> cd %SPEC%\benchspec\CPU\505.mcf_r\build
C:\cpu2017\benchspec\CPU\505.mcf_r\build> dir
build_base_Example-ic17.0u1-win-rate.0000 list
C:\cpu2017\benchspec\CPU\505.mcf_r\build> cd build_base_Example-ic17.0u1-win-rate.0000
C:\cpu2017\benchspec\CPU\505.mcf_r\build\build_base_Example-ic17.0u1-win-rate> dir *err *out
make.clean.out  make.out  options.err  options.out


9. Try compiling an entire suite, and run the test workload

SPEC CPU2017 contains 43 benchmarks which are divided into 4 suites:

Let's pick a suite and build all the benchmarks in that suite. The command below,

c:\CPU2017>runcpu -c try.cfg --size test --iterations 1 -noreportable fprate
runcpu v4547 - Copyright 1999-2016 Standard Performance Evaluation Corporation
Using 'windows-x64 ' tools
Reading file manifests... read 31964 entries from 2 files in 0.20s (162599 files/s)
Loading runcpu modules................
Locating benchmarks...found 47 benchmarks in 58 benchsets.
Reading config file 'c:/CPU2017/config/try.cfg'
Running "specperl c:/CPU2017/Docs/sysinfo" to gather system information.


1 configuration selected:

Action   Benchmarks
------   ----------------------------------------------------------------------
build    fprate
-------------------------------------------------------------------------------

Benchmarks selected: 503.bwaves_r, 507.cactuBSSN_r, 508.namd_r, 510.parest_r, 511.povray_r, 519.lbm_r,
    521.wrf_r, 526.blender_r, 527.cam4_r, 538.imagick_r, 544.nab_r, 549.fotonik3d_r, 554.roms_r, 997.specrand_fr
Compiling Binaries
  Building 503.bwaves_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 12:26:14]
  Building 507.cactuBSSN_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 12:26:20]
  Building 508.namd_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 12:31:10]
  Building 510.parest_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 12:32:07]
  Building 511.povray_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 12:42:33]
  Building 519.lbm_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 12:44:19]
  Building 521.wrf_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 12:44:32]
  Building 526.blender_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 14:44:53]
  Building 527.cam4_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 15:02:00]
  Building 538.imagick_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 15:09:04]
  Building 544.nab_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 15:13:05]
  Building 549.fotonik3d_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 15:13:14]
  Building 554.roms_r base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 15:14:23]
  Building 997.specrand_fr base Example-ic17.0u1-win-rate: (build_base_Example-ic17.0u1-win-rate.0000) [2016-07-14 15:19:02]

Build successes for fprate: 503.bwaves_r(base), 507.cactuBSSN_r(base), 508.namd_r(base), 510.parest_r(base),
    511.povray_r(base), 519.lbm_r(base), 521.wrf_r(base), 526.blender_r(base), 527.cam4_r(base), 538.imagick_r(base),
    544.nab_r(base), 549.fotonik3d_r(base), 554.roms_r(base), 997.specrand_fr(base)
Build errors for fprate: None

Setting Up Run Directories
  Setting up 503.bwaves_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 507.cactuBSSN_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 508.namd_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 510.parest_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 511.povray_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 519.lbm_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 521.wrf_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 526.blender_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 527.cam4_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 538.imagick_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 544.nab_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 549.fotonik3d_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 554.roms_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 997.specrand_fr test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
Running Benchmarks
  Running 503.bwaves_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:23:35]
  Running 507.cactuBSSN_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:23:42]
  Running 508.namd_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:23:47]
  Running 510.parest_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:23:55]
  Running 511.povray_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:24:03]
  Running 519.lbm_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:24:04]
  Running 521.wrf_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:24:07]
  Running 526.blender_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:24:17]
  Running 527.cam4_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:24:19]
  Running 538.imagick_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:24:42]
  Running 544.nab_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:24:43]
  Running 549.fotonik3d_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:24:45]
  Running 554.roms_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:24:51]
  Running 997.specrand_fr test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:24:56]
Success: 1x503.bwaves_r 1x507.cactuBSSN_r 1x508.namd_r 1x510.parest_r 1x511.povray_r 1x519.lbm_r 1x521.wrf_r
    1x526.blender_r 1x527.cam4_r 1x538.imagick_r 1x544.nab_r 1x549.fotonik3d_r 1x554.roms_r 1x997.specrand_fr
Producing Raw Reports
 label: Example-ic17.0u1-win-rate
  workload: test
NOTICE: sw_compiler003 is longer than 50 characters and will be split
   metric: SPECrate2017_fp_base
    format: raw -> c:/CPU2017/result/CPU2017.004.fprate.test.rsf
Parsing flags for 503.bwaves_r base: done
Parsing flags for 507.cactuBSSN_r base: done
Parsing flags for 508.namd_r base: done
Parsing flags for 510.parest_r base: done
Parsing flags for 511.povray_r base: done
Parsing flags for 519.lbm_r base: done
Parsing flags for 521.wrf_r base: done
Parsing flags for 526.blender_r base: done
Parsing flags for 527.cam4_r base: done
Parsing flags for 538.imagick_r base: done
Parsing flags for 544.nab_r base: done
Parsing flags for 549.fotonik3d_r base: done
Parsing flags for 554.roms_r base: done
Doing flag reduction: done
    format: flags -> c:/CPU2017/result/CPU2017.004.fprate.test.flags.html
    format: HTML -> c:/CPU2017/result/CPU2017.004.fprate.test.html
    format: Text -> c:/CPU2017/result/CPU2017.004.fprate.test.txt

The log for this run is in c:/CPU2017/result/CPU2017.004.log

runcpu finished at 2016-07-14 22:25:37; 10532 total seconds elapsed

c:\CPU2017>

Note above that compiling the SPECrate2017 Floating Point benchmarks and running the brief test workload took about 3 hours (10532 seconds). Your time may be considerably different (faster or slower), for example when using other compilers or building other suites (recall that there are 4 suites in CPU2017: intrate, fprate, intspeed, fpspeed). The time required to do a build also depends directly upon the config file optimization selections.

10. Try a full (reportable) run

If everything has worked up to this point, you may wish to start a full run, perhaps leaving your computer to run overnight. The extended test will demand significant hardware resources from your machine (System Requirements)

In the example below, a reportable run is requested, using 10 copies of the benchmarks:

c:\CPU2017>runcpu --config=try --reportable --copies=10 fprate
runcpu v4547 - Copyright 1999-2016 Standard Performance Evaluation Corporation
Using 'windows-x64 ' tools
Reading file manifests... read 31964 entries from 2 files in 0.25s (125458 files/s)
Loading runcpu modules................
Locating benchmarks...found 47 benchmarks in 58 benchsets.
Reading config file 'c:/CPU2017/config/try.cfg'
Running "specperl c:/CPU2017/Docs/sysinfo" to gather system information.


1 configuration selected:

 Action    Run Mode   Workload     Report Type      Benchmarks
--------   --------   --------   ----------------   ---------------------------
validate   rate       test       SPECrate2017_fp   fprate
Loading "http://www.spec.org/auto/cpu2017/devel_version" for version check...
...Version check failed.

NOTICE: Suite version checking failed; got
  Internal Exception

          A connection to the internet is useful, but is NOT required
          in order to run CPU2017.  If one is available, several
          components will be checked to see if they are current.  If
          you need to use an HTTP proxy to access the Internet, please
          see the 'http_proxy' entry in config.html.

                       ----------------------------------
                       The run will continue in 5 seconds
                       ----------------------------------

Reportable runs must include a 'test' run; adding to run list
Reportable runs must include a 'train' run; adding to run list

For a reportable run, all three workload sizes are run. For test and train, the only requirement is that they generate valid output. They are not timed.
In the next section, the test workloads are run.

-------------------------------------------------------------------------------

Benchmarks selected: 503.bwaves_r, 507.cactuBSSN_r, 508.namd_r, 510.parest_r, 511.povray_r, 519.lbm_r, 521.wrf_r,
   526.blender_r, 527.cam4_r, 538.imagick_r, 544.nab_r, 549.fotonik3d_r, 554.roms_r, 997.specrand_fr
Compiling Binaries
  Up to date 503.bwaves_r base Example-ic17.0u1-win-rate
  Up to date 507.cactuBSSN_r base Example-ic17.0u1-win-rate
  Up to date 508.namd_r base Example-ic17.0u1-win-rate
  Up to date 510.parest_r base Example-ic17.0u1-win-rate
  Up to date 511.povray_r base Example-ic17.0u1-win-rate
  Up to date 519.lbm_r base Example-ic17.0u1-win-rate
  Up to date 521.wrf_r base Example-ic17.0u1-win-rate
  Up to date 526.blender_r base Example-ic17.0u1-win-rate
  Up to date 527.cam4_r base Example-ic17.0u1-win-rate
  Up to date 538.imagick_r base Example-ic17.0u1-win-rate
  Up to date 544.nab_r base Example-ic17.0u1-win-rate
  Up to date 549.fotonik3d_r base Example-ic17.0u1-win-rate
  Up to date 554.roms_r base Example-ic17.0u1-win-rate
  Up to date 997.specrand_fr base Example-ic17.0u1-win-rate


Setting Up Run Directories
  Setting up 503.bwaves_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 507.cactuBSSN_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 508.namd_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 510.parest_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 511.povray_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 519.lbm_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 521.wrf_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 526.blender_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 527.cam4_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 538.imagick_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 544.nab_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 549.fotonik3d_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 554.roms_r test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
  Setting up 997.specrand_fr test base Example-ic17.0u1-win-rate (1 copy): run_base_test_Example-ic17.0u1-win-rate.0001
Running Benchmarks
  Running 503.bwaves_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:35:21]
  Running 507.cactuBSSN_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:35:28]
  Running 508.namd_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:35:34]
  Running 510.parest_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:35:41]
  Running 511.povray_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:35:49]
  Running 519.lbm_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:35:51]
  Running 521.wrf_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:35:54]
  Running 526.blender_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:36:03]
  Running 527.cam4_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:36:05]
  Running 538.imagick_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:36:29]
  Running 544.nab_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:36:30]
  Running 549.fotonik3d_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:36:32]
  Running 554.roms_r test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:36:38]
  Running 997.specrand_fr test base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:36:43]
Success: 1x503.bwaves_r 1x507.cactuBSSN_r 1x508.namd_r 1x510.parest_r 1x511.povray_r 1x519.lbm_r 1x521.wrf_r
   1x526.blender_r 1x527.cam4_r 1x538.imagick_r 1x544.nab_r 1x549.fotonik3d_r 1x554.roms_r 1x997.specrand_fr
Benchmarks selected: 503.bwaves_r, 507.cactuBSSN_r, 508.namd_r, 510.parest_r, 511.povray_r, 519.lbm_r, 521.wrf_r,
   526.blender_r, 527.cam4_r, 538.imagick_r, 544.nab_r, 549.fotonik3d_r, 554.roms_r, 997.specrand_fr

The test workload is not timed.
After all the test workloads are done, the train workloads are started:

Benchmarks selected: 503.bwaves_r, 507.cactuBSSN_r, 508.namd_r, 510.parest_r, 511.povray_r, 519.lbm_r, 521.wrf_r,
     526.blender_r, 527.cam4_r, 538.imagick_r, 544.nab_r, 549.fotonik3d_r, 554.roms_r, 997.specrand_fr
Compiling Binaries
  Up to date 503.bwaves_r base Example-ic17.0u1-win-rate
  Up to date 507.cactuBSSN_r base Example-ic17.0u1-win-rate
  Up to date 508.namd_r base Example-ic17.0u1-win-rate
  Up to date 510.parest_r base Example-ic17.0u1-win-rate
  Up to date 511.povray_r base Example-ic17.0u1-win-rate
  Up to date 519.lbm_r base Example-ic17.0u1-win-rate
  Up to date 521.wrf_r base Example-ic17.0u1-win-rate
  Up to date 526.blender_r base Example-ic17.0u1-win-rate
  Up to date 527.cam4_r base Example-ic17.0u1-win-rate
  Up to date 538.imagick_r base Example-ic17.0u1-win-rate
  Up to date 544.nab_r base Example-ic17.0u1-win-rate
  Up to date 549.fotonik3d_r base Example-ic17.0u1-win-rate
  Up to date 554.roms_r base Example-ic17.0u1-win-rate
  Up to date 997.specrand_fr base Example-ic17.0u1-win-rate


Setting Up Run Directories
  Setting up 503.bwaves_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 507.cactuBSSN_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 508.namd_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 510.parest_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 511.povray_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 519.lbm_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 521.wrf_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 526.blender_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 527.cam4_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 538.imagick_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 544.nab_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 549.fotonik3d_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 554.roms_r train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
  Setting up 997.specrand_fr train base Example-ic17.0u1-win-rate (1 copy): run_base_train_Example-ic17.0u1-win-rate.0000
Running Benchmarks
  Running 503.bwaves_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:37:02]
  Running 507.cactuBSSN_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:37:30]
  Running 508.namd_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:38:04]
  Running 510.parest_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:38:46]
  Running 511.povray_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:39:35]
  Running 519.lbm_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:39:41]
  Running 521.wrf_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:40:05]
  Running 526.blender_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:40:54]
  Running 527.cam4_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:43:52]
  Running 538.imagick_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:44:21]
  Running 544.nab_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:45:04]
  Running 549.fotonik3d_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:46:42]
  Running 554.roms_r train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:47:41]
  Running 997.specrand_fr train base Example-ic17.0u1-win-rate (1 copy) [2016-07-14 22:50:07]
Success: 1x503.bwaves_r 1x507.cactuBSSN_r 1x508.namd_r 1x510.parest_r 1x511.povray_r 1x519.lbm_r 1x521.wrf_r
    1x526.blender_r 1x527.cam4_r 1x538.imagick_r 1x544.nab_r 1x549.fotonik3d_r 1x554.roms_r 1x997.specrand_fr

After the train workloads are done, the timed, "refrate", workloads begin.

Benchmarks selected: 503.bwaves_r, 507.cactuBSSN_r, 508.namd_r, 510.parest_r, 511.povray_r, 519.lbm_r, 521.wrf_r,
   526.blender_r, 527.cam4_r, 538.imagick_r, 544.nab_r, 549.fotonik3d_r, 554.roms_r, 997.specrand_fr
Compiling Binaries
  Up to date 503.bwaves_r base Example-ic17.0u1-win-rate
  Up to date 507.cactuBSSN_r base Example-ic17.0u1-win-rate
  Up to date 508.namd_r base Example-ic17.0u1-win-rate
  Up to date 510.parest_r base Example-ic17.0u1-win-rate
  Up to date 511.povray_r base Example-ic17.0u1-win-rate
  Up to date 519.lbm_r base Example-ic17.0u1-win-rate
  Up to date 521.wrf_r base Example-ic17.0u1-win-rate
  Up to date 526.blender_r base Example-ic17.0u1-win-rate
  Up to date 527.cam4_r base Example-ic17.0u1-win-rate
  Up to date 538.imagick_r base Example-ic17.0u1-win-rate
  Up to date 544.nab_r base Example-ic17.0u1-win-rate
  Up to date 549.fotonik3d_r base Example-ic17.0u1-win-rate
  Up to date 554.roms_r base Example-ic17.0u1-win-rate
  Up to date 997.specrand_fr base Example-ic17.0u1-win-rate


Setting Up Run Directories
  Setting up 503.bwaves_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 507.cactuBSSN_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 508.namd_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 510.parest_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 511.povray_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 519.lbm_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 521.wrf_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 526.blender_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 527.cam4_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 538.imagick_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 544.nab_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 549.fotonik3d_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 554.roms_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
  Setting up 997.specrand_fr refrate (ref) base Example-ic17.0u1-win-rate (10 copies): run_base_refrate_Example-ic17.0u1-win-rate.0000-0009
Running Benchmarks
  Running (#1) 503.bwaves_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-14 22:50:27]
  Running (#1) 507.cactuBSSN_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-14 23:05:19]
  Running (#1) 508.namd_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-14 23:17:35]
  Running (#1) 510.parest_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-14 23:28:46]
  Running (#1) 511.povray_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-14 23:49:17]
  Running (#1) 519.lbm_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 00:07:11]
  Running (#1) 521.wrf_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 00:16:42]
  Running (#1) 526.blender_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 00:27:37]
  Running (#1) 527.cam4_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 00:39:56]
  Running (#1) 538.imagick_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 00:51:31]
  Running (#1) 544.nab_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 01:10:54]
  Running (#1) 549.fotonik3d_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 01:22:47]
  Running (#1) 554.roms_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 01:47:30]
  Running (#1) 997.specrand_fr refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 02:01:32]
  Running (#2) 503.bwaves_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 02:01:38]
  Running (#2) 507.cactuBSSN_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 02:16:09]
  Running (#2) 508.namd_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 02:28:37]
  Running (#2) 510.parest_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 02:39:46]
  Running (#2) 511.povray_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 03:00:13]
  Running (#2) 519.lbm_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 03:18:23]
  Running (#2) 521.wrf_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 03:27:54]
  Running (#2) 526.blender_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 03:39:37]
  Running (#2) 527.cam4_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 03:51:56]
  Running (#2) 538.imagick_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 04:03:57]
  Running (#2) 544.nab_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 04:23:25]
  Running (#2) 549.fotonik3d_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 04:35:18]
  Running (#2) 554.roms_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 05:00:03]
  Running (#2) 997.specrand_fr refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 05:14:13]
  Running (#3) 503.bwaves_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 05:14:18]
  Running (#3) 507.cactuBSSN_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 05:28:53]
  Running (#3) 508.namd_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 05:41:07]
  Running (#3) 510.parest_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 05:52:15]
  Running (#3) 511.povray_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 06:12:40]
  Running (#3) 519.lbm_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 06:30:27]
  Running (#3) 521.wrf_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 06:39:57]
  Running (#3) 526.blender_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 06:51:28]
  Running (#3) 527.cam4_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 07:03:48]
  Running (#3) 538.imagick_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 07:15:23]
  Running (#3) 544.nab_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 07:34:46]
  Running (#3) 549.fotonik3d_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 07:46:39]
  Running (#3) 554.roms_r refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 08:11:20]
  Running (#3) 997.specrand_fr refrate (ref) base Example-ic17.0u1-win-rate (10 copies) [2016-07-15 08:25:55]
Success: 3x503.bwaves_r 3x507.cactuBSSN_r 3x508.namd_r 3x510.parest_r 3x511.povray_r 3x519.lbm_r 3x521.wrf_r
   3x526.blender_r 3x527.cam4_r 3x538.imagick_r 3x544.nab_r 3x549.fotonik3d_r 3x554.roms_r 3x997.specrand_fr
Producing Raw Reports
 label: Example-ic17.0u1-win-rate
  workload: refrate (ref)
NOTICE: sw_compiler003 is longer than 50 characters and will be split
   metric: SPECrate2017_int_base
    format: raw -> c:/CPU2017/result/CPU017.005.fprate.refrate.rsf
Parsing flags for 503.bwaves_r base: done
Parsing flags for 507.cactuBSSN_r base: done
Parsing flags for 508.namd_r base: done
Parsing flags for 510.parest_r base: done
Parsing flags for 511.povray_r base: done
Parsing flags for 519.lbm_r base: done
Parsing flags for 521.wrf_r base: done
Parsing flags for 526.blender_r base: done
Parsing flags for 527.cam4_r base: done
Parsing flags for 538.imagick_r base: done
Parsing flags for 544.nab_r base: done
Parsing flags for 549.fotonik3d_r base: done
Parsing flags for 554.roms_r base: done
Doing flag reduction: done
    format: flags -> c:/CPU2017/result/CPU2017.005.fprate.refrate.flags.html
    format: HTML -> c:/CPU2017/result/CPU2017.005.fprate.refrate.html
    format: Text -> c:/CPU2017/result/CPU2017.005.fprate.refrate.txt

The log for this run is in c:/CPU2017/result/CPU2017.005.log

runcpu finished at 2016-07-15 08:26:39; 35529 total seconds elapsed

c:\CPU2017>

The run completed successfully. On this particular (year 2016) hardware system, a 10-copy reportable fprate run, using base-only tuning, required about 10 hours (35529 seconds). Much more time would be needed if the run used both base and peak tuning, or used more copies, or asked for additional suites (intrate, intspeed, or fpspeed).

Appendix 1: Uninstalling SPEC CPU2017

At this time, SPEC does not provide an uninstall utility for SPEC CPU2017. Confusingly, there is a file named uninstall.sh in the top directory, but it does not remove the whole product; it only removes the SPEC tool set, and does not affect the benchmarks (which consume the bulk of the disk space).

To remove SPEC CPU2017 on Windows systems, select the top directory in Windows Explorer and delete it.

To remove SPEC CPU2017 on Unix systems, use rm -Rf on the directory where you installed the suite, for example:

  rm -Rf /home/cs3000/saturos/spec/cpu2017

If you have been using the output_root feature, you will have to track those down separately. Therefore, prior to removing the tree, you might want to look for mentions of output root, for example:

Windows:
    cd %SPEC%\config
    findstr output_root *cfg

Unix:
    cd $SPEC/config
    grep output_root *cfg

Note: instead of deleting the entire directory tree, some users find it useful to keep the config and result subdirectories, while deleting everything else.

Appendix 2: Useful Tips and Techniques

Appendix 2.a. About Temporary Space (%temp)

It has occasionally been reported that installation attempts fail if there is not a directory that can be used to hold temporary files. To check this point, print the %temp% environment variable, and try writing a small file to it, like this:

C:\Users\kumar> echo %temp%
C:\Users\kumar\AppData\Local\Temp

C:\Users\kumar> echo "hi" > %temp%\test-hi.txt

C:\Users\kumar> type %temp%\test-hi.txt
"hi"

C:\Users\kumar> del %temp%\test-hi.txt

If %temp% is not set, the first echo command above will just print:
    %temp%
If %temp% is set to a directory that is not writeable, the second command will print:
    Access is denied
If either of these happen, you should set it to the full path (with drive letter) of a directory that can be used as scratch space. For example, if Kumaran would like to use a temporary directory underneath his directory on drive K:, he could type:

C:\> set temp=K:\KUMARAN\TEMP

Appendix 2.b. About Text Files and Windows/Unix Compatibility

There are many files in the SPEC CPU2017 distribution that contain text. Unfortunately, Unix systems and Windows systems have different conventions for storing text files. Sometimes, a text file formatted for Windows will appear on Unix as if it has extra Control-M characters. Sometimes, a text file formatted for Unix will appear on Windows as if all the lines were joined together.

There are at least three ways for Windows users to correctly view and edit text files that originated on a Unix system:

  1. Use WordPad. WordPad can commonly be found by
    Start-->All Programs-->Accessories-->WordPad

  2. Use the MS-DOS Editor. Open a Command Prompt and type "Edit". This alternative does not work on 64-bit Windows systems. The program only recognizes files with 8 characters or fewer, a dot, and then 3 characters or fewer. If you are trying to use it with a longer file name, you can discover that there is an "8 dot 3" synonym for it by typing: "dir /x".

  3. Use the editor "vi". Although vi originated on Unix systems, there are also Windows versions. "UNIX Compatibility" products for Windows often include a version of vi, and there are independently-distributed versions, such as "Vi IMproved" (at http://www.vim.org/).

Note that SPEC does not "endorse" any of these solutions, although it is hoped that at least one of them will be useful for you.

Installing SPEC CPU®2017 on Microsoft Windows Systems: Copyright © 2017 Standard Performance Evaluation Corporation (SPEC)
