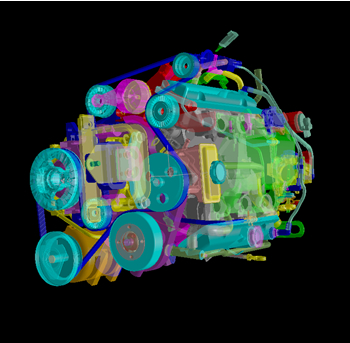

The engine model used was taken from the SPECapc for Unigraphics application benchmark. Three rendering modes are measured -- shaded, shaded with transparency, and wireframe. The wireframe workloads are measured both in normal and antialised mode. All tests are repeated twice, once rotating in the center of the screen and then moving about the frame to measure clipping performance.

The viewset is based on a trace of the running application and includes all the state changes found during normal Unigraphics operation. As with the application, OpenGL display lists are used to transfer data to the graphics subsystem. Thousands of display lists of varying sizes go into generating each frame of the model.

Tests are weighted 1/3 wireframe and 2/3 shaded.



Test	Weight	Description
1	16.5	Shaded engine
2	16.5	Shaded engine – clipped
3	16.5	Transparent engine
4	16.5	Transparent engine – clipped
5	8.5	Wireframe engine
6	8.5	Wireframe engine – clipped
7	8.5	Wireframe engine antialised
8	8.5	Wireframe engine antialised - clipped
