SPECviewperf 13 Results

http://www.spec.org/gwpg

Scores Configuration catia-05creo-02energy-02maya-05medical-02snx-03sw-04

Composite Scores

SPECviewperf measures the frame rate, or frames per second (FPS), at which your graphics card can render scenes across a wide variety of applications and usage models. Each viewset represents an application or a usage model, and each composite score below is based on a weighted geometric mean of many different scenes and rendering modes.

Composites by Viewset

To explore a viewset in more detail, including the measured frame rate for each test of which the composite score is comprised, click on the viewset name in the menu to the left.

Viewset	Composite Score	Window
catia-05	104.93	3800 x 2120
creo-02	106.75	3800 x 2120
energy-02	8.31	3800 x 2120
maya-05	90.2	3800 x 2120
medical-02	11.37	3800 x 2120
snx-03	158.32	3800 x 2120
sw-04	84.28	3800 x 2120

Benchmark Information

Benchmark
Name	SPECgpc SPECviewperf 13 Benchmark
Version	13.0.0
Submission
Test Date	Wed Aug 08 2018 14:11:41 GMT-0500 (Central Daylight Time)
Submission Candidate	Yes
Submitting Company	Dell Technologies
Comments	Vysnc Disabled. Driver link is https://downloads.dell.com/FOLDER05073282M/1/Nvidia-Quadro-P5200-P4200-P3200-P2000-P1000_920JX_WIN_24.21.13.9826_A01.EXE

System Configuration

Workstation
Manufacturer	Dell Inc.
Model	Precision 7730
BIOS Name	1.1.7
Manufacturer	Dell Inc.
Serial Number	DZ5XPQ2
Version	DELL - 1072009
SMBIOS Version	1.1.7
OS Name	Microsoft Windows 10 Pro
Build Number	17134
Graphics
Name	NVIDIA Quadro P5200
Driver Version	24.21.13.9826
Name	Intel(R) UHD Graphics 630
Driver Version	23.20.16.5037
Resolution	3840 x 2160
DPI	96 (Scale Factor: 100%)
Processor
Name	Intel(R) Core(TM) i9-8950HK CPU @ 2.90GHz
Address Width	64-bit
Nominal Clock Speed	2904 MHz
Number Of Cores	6
Number Of Logical Processors	12
Memory
DIMM B	8 GB 2667 MHz
DIMM A	8 GB 2667 MHz
DIMM D	8 GB 2667 MHz
DIMM C	8 GB 2667 MHz
Disk Drives
Drive Model	Intel Raid 0 Volume
Drive Capacity	953.87 GB
Drive Model	SanDisk Ultra Fit USB Device
Drive Capacity	14.48 GB
Display
Default Monitor
Generic PnP Monitor	3840 x 2160

catia-05

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

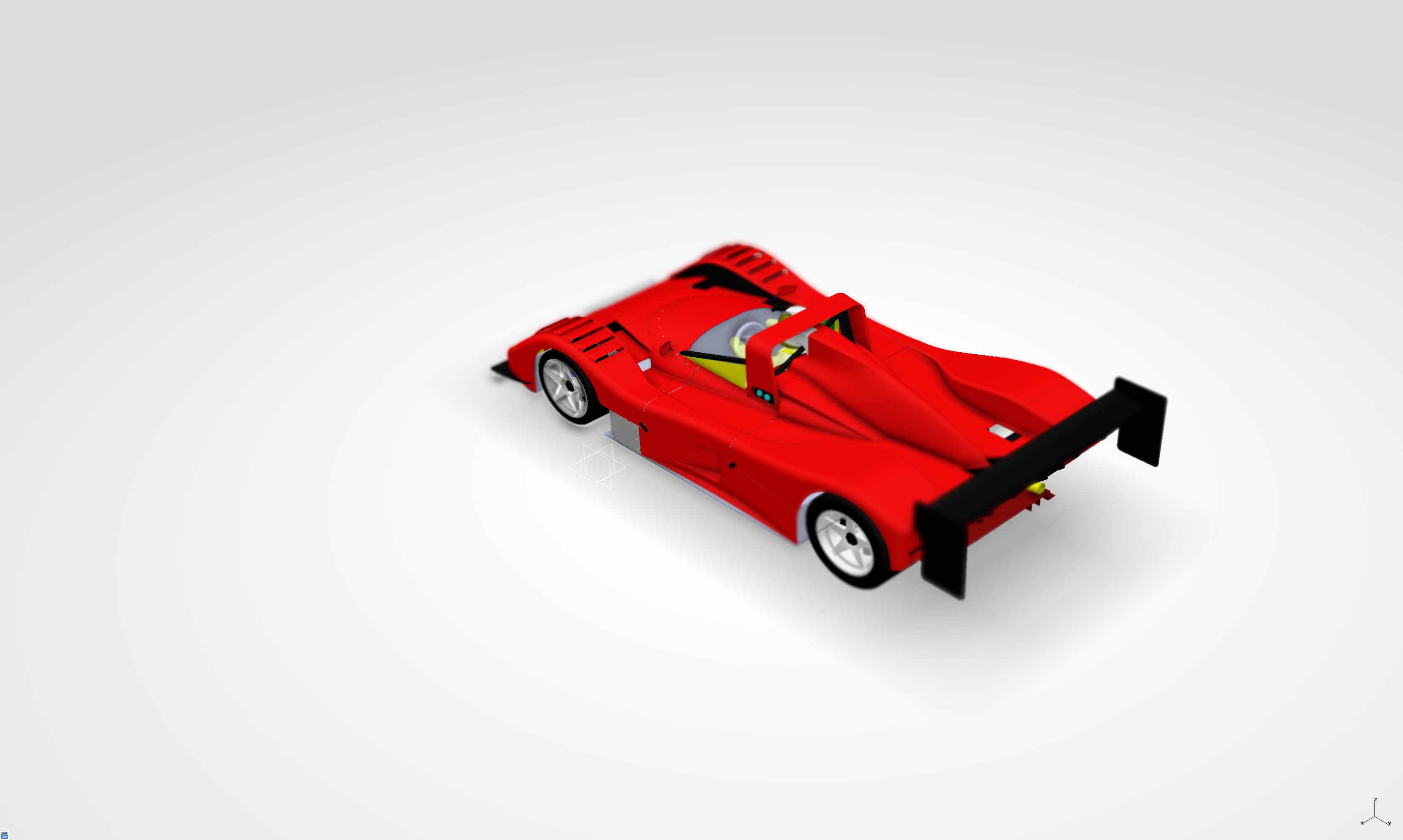

1	CATIA_car_dof	81.2	2.75	1440	17.73	08/08/18 14:12:13
2	CATIA_car_pencil	84.09	2.75	1440	17.13	08/08/18 14:12:33
3	CATIA_car_ssao	110.86	9.89	2160	19.48	08/08/18 14:12:54

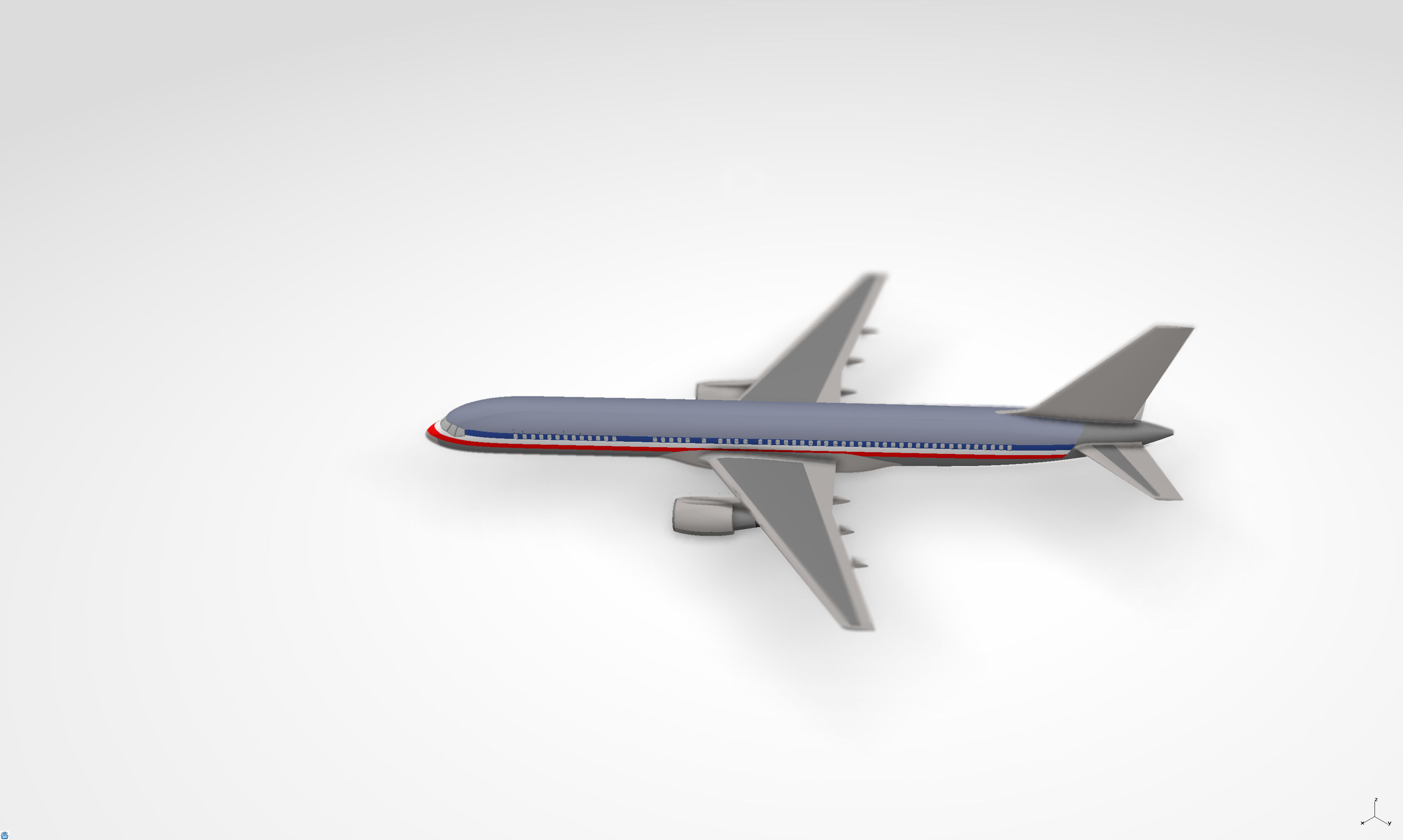

4	CATIA_plane_dof	83.56	2.75	1440	17.23	08/08/18 14:13:12

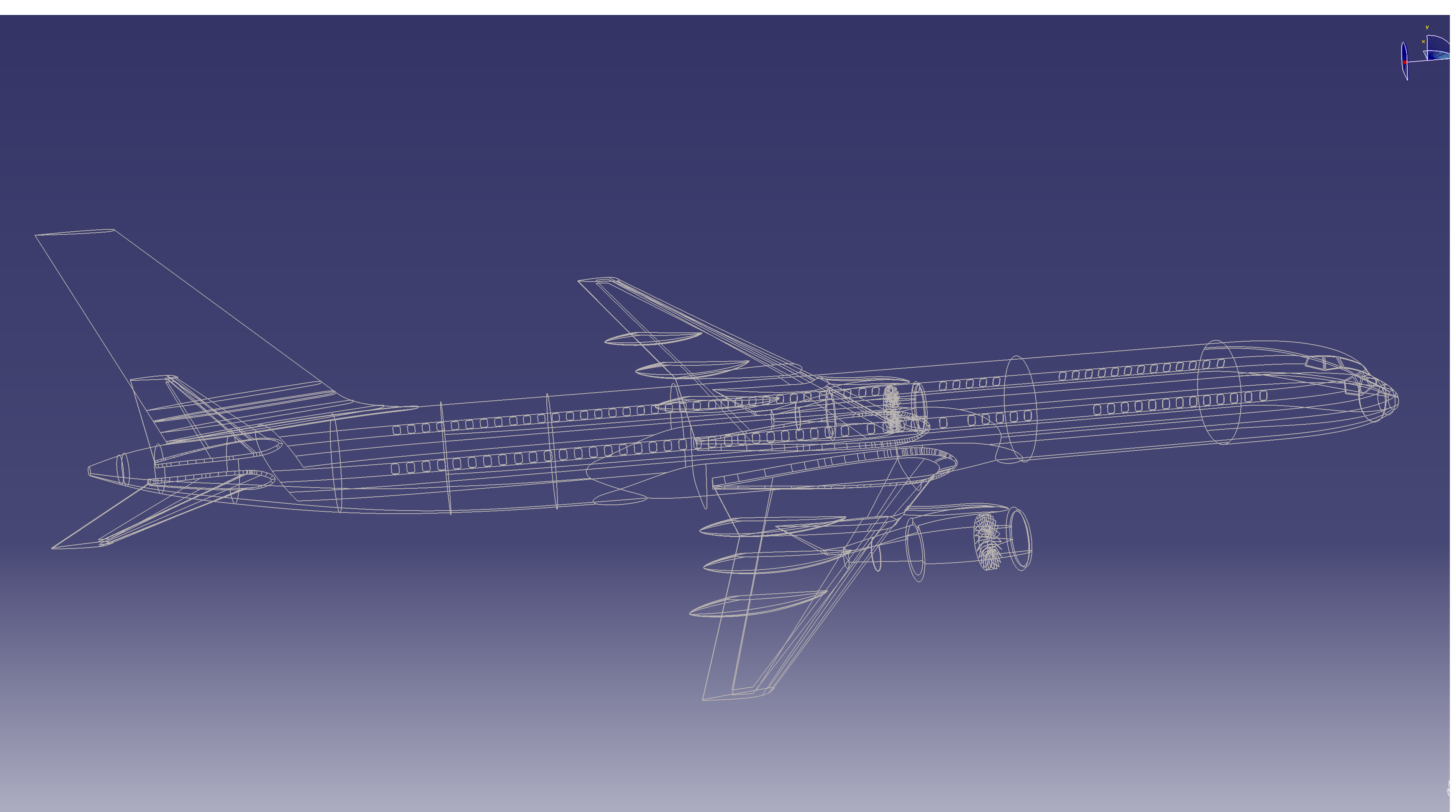

5	CATIA_plane_edges	168.75	0	10080	59.73	08/08/18 14:14:13

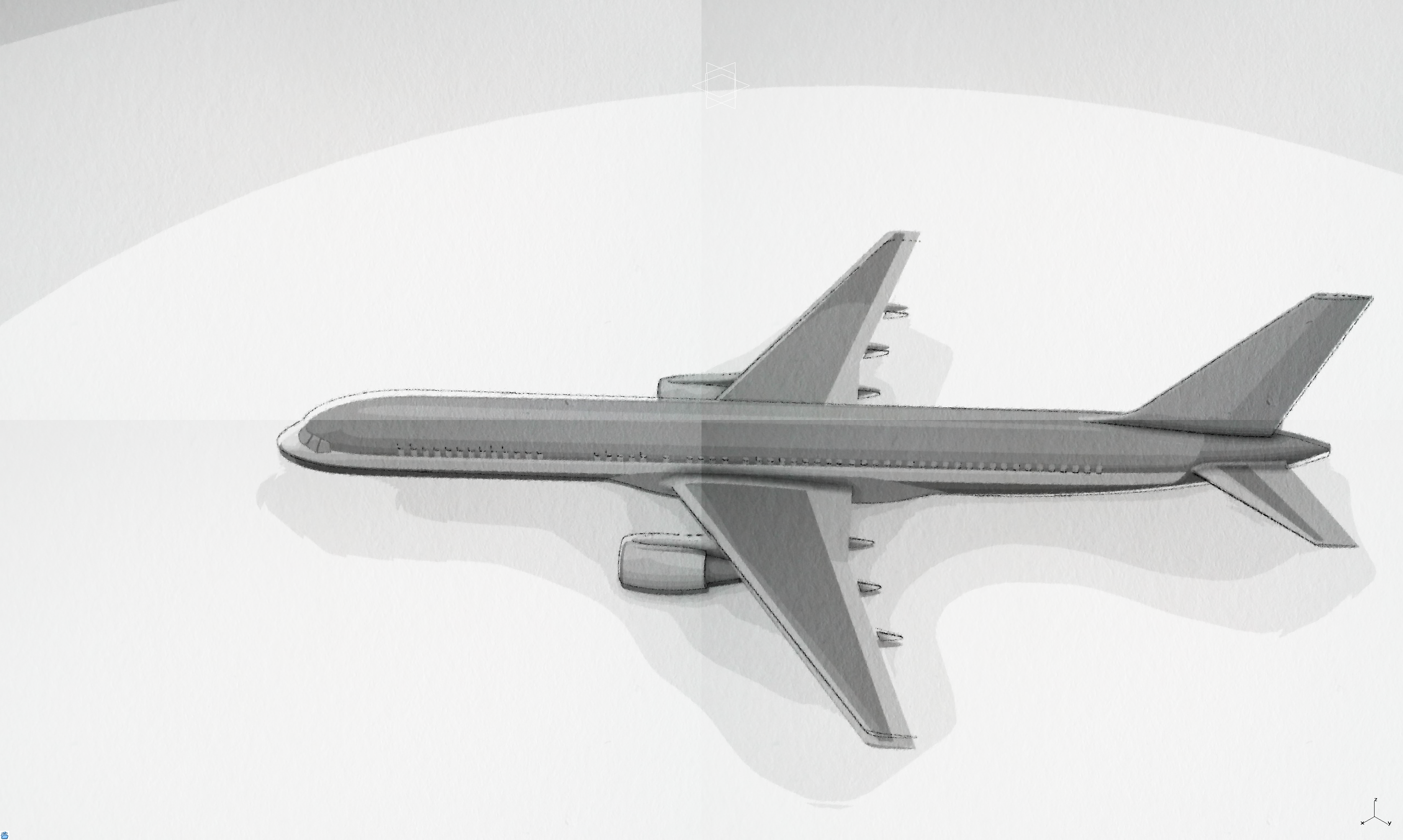

6	CATIA_plane_pencil	83.48	2.75	1440	17.25	08/08/18 14:14:32
7	CATIA_plane_shaded	167.26	9.89	2880	17.22	08/08/18 14:14:51

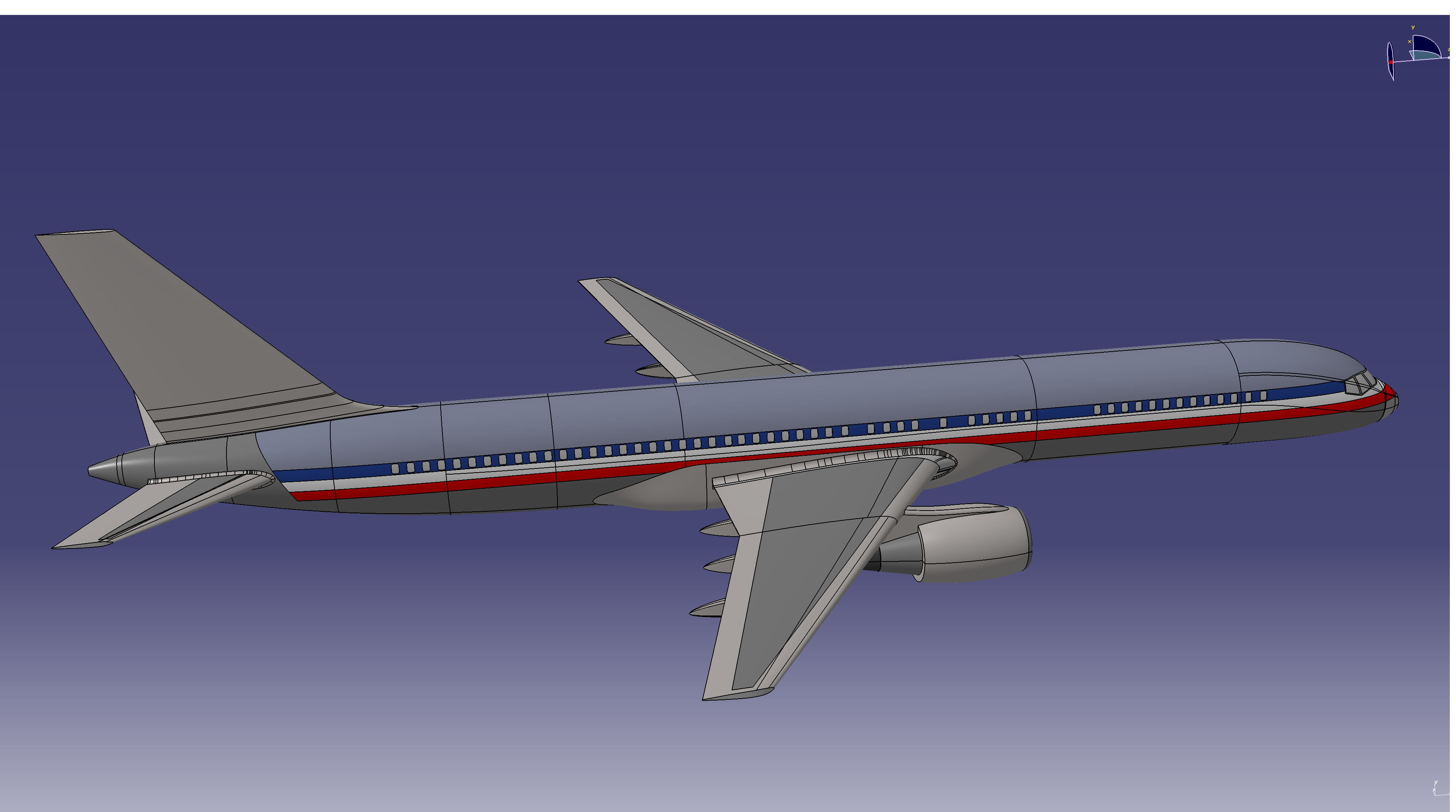

8	CATIA_plane_shadedEdges	166.35	9.89	2880	17.31	08/08/18 14:15:10
9	CATIA_plane_ssao	116.46	9.89	2160	18.55	08/08/18 14:15:30

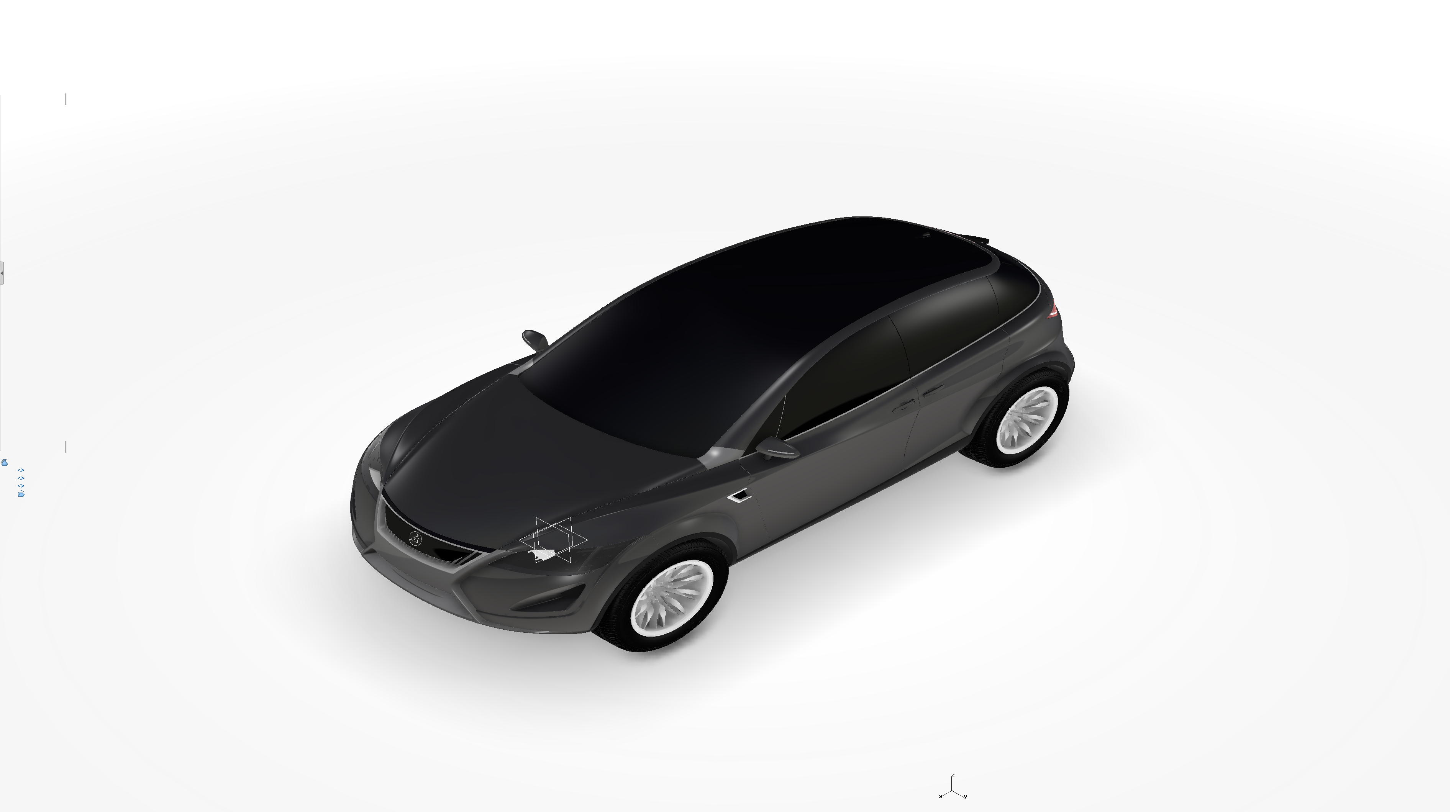

10	CATIA_car_01	92.16	9.89	1440	15.63	08/08/18 14:15:48
11	CATIA_car_02	114.74	9.89	1800	15.69	08/08/18 14:16:06
12	CATIA_car_04	102.95	9.88	1800	17.48	08/08/18 14:16:26

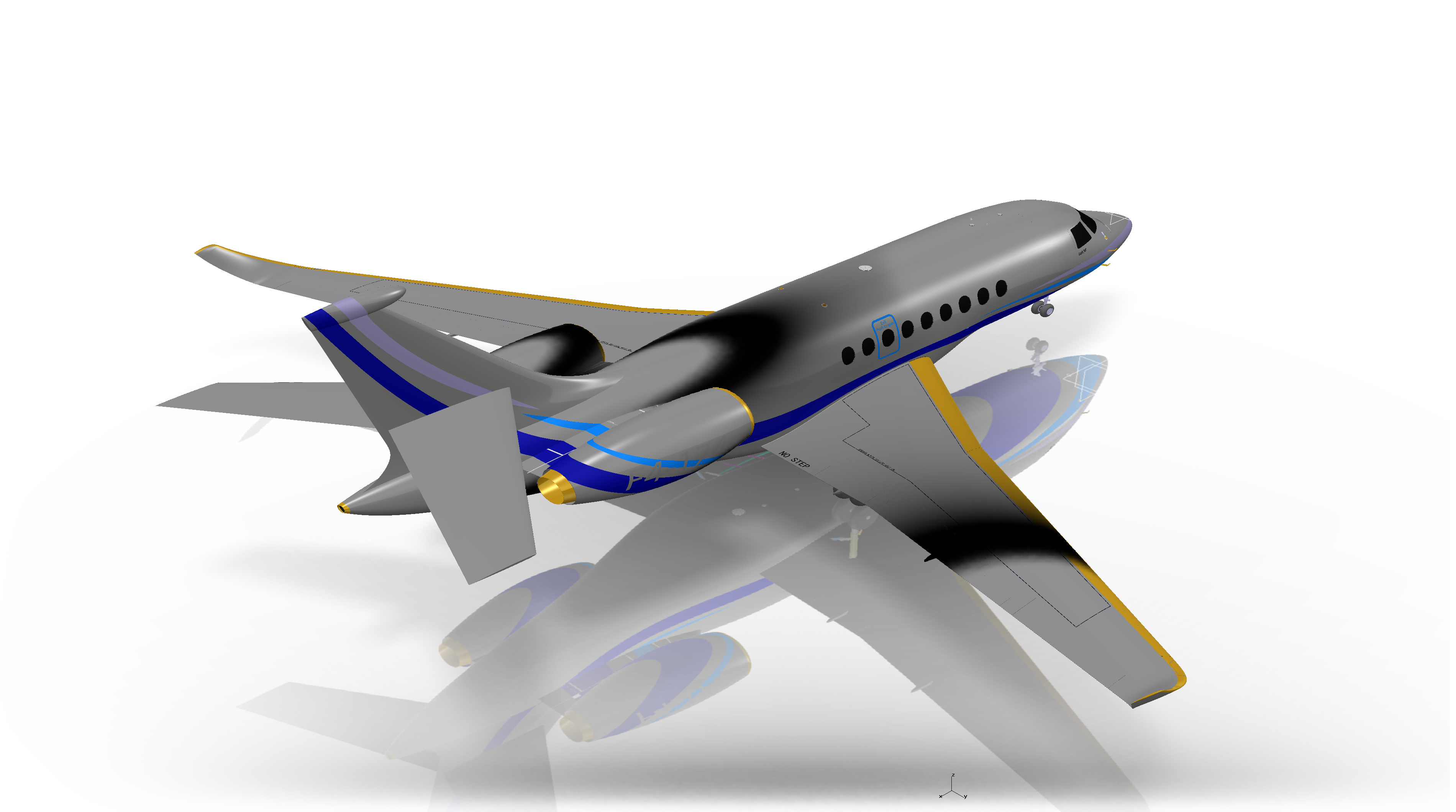

13	CATIA_plane_01	78.1	9.89	1440	18.44	08/08/18 14:16:47

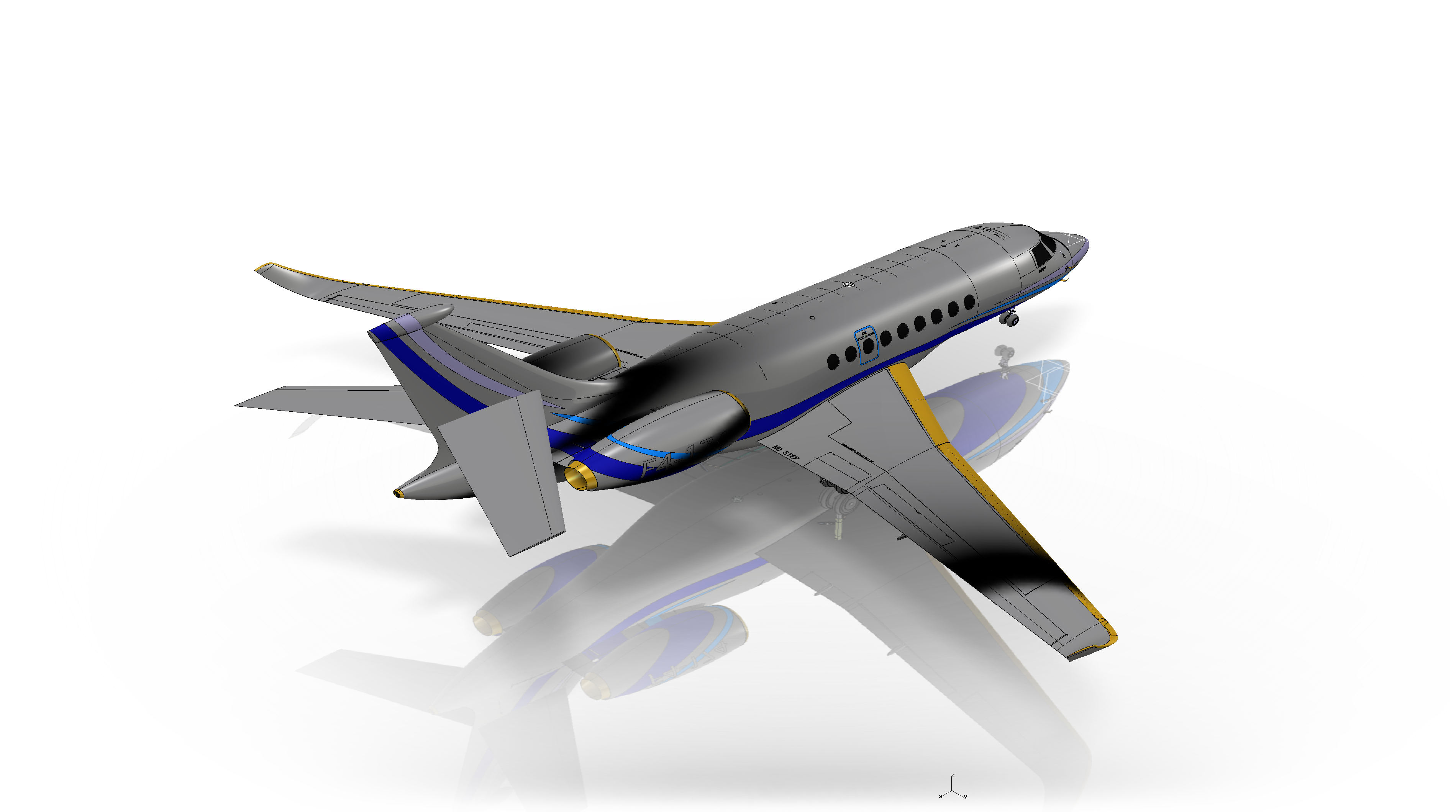

14	CATIA_plane_02	65.45	9.89	1080	16.5	08/08/18 14:17:07

Screen Grabs Folder
Text Log File
XML Result File

creo-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

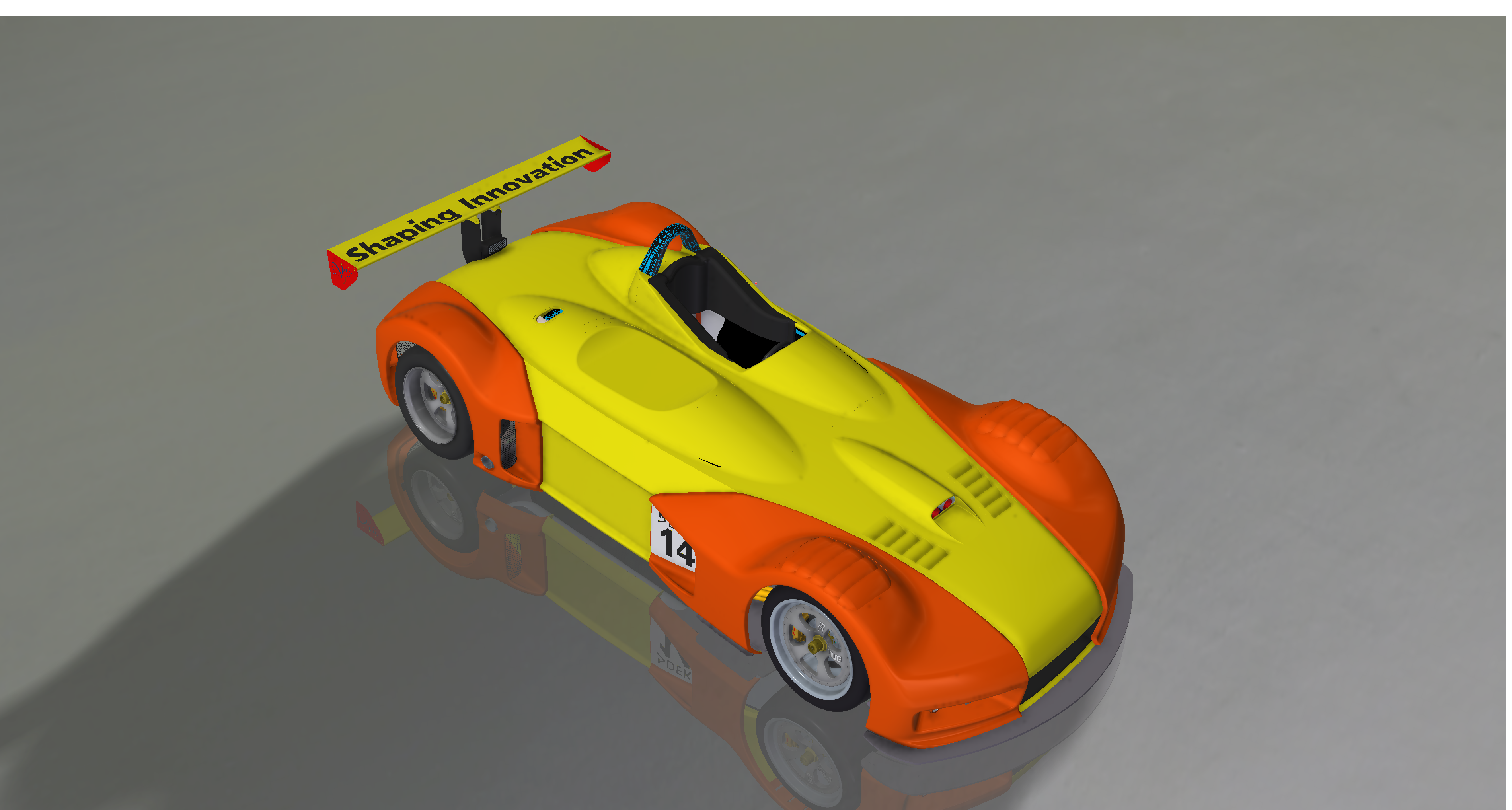

1	Creo_02_test_01	30.32	6.66	522	17.22	08/08/18 14:17:32
2	Creo_02_test_02	25.23	6.67	522	20.69	08/08/18 14:18:00
3	Creo_02_test_03	21.9	6.67	348	15.89	08/08/18 14:18:21

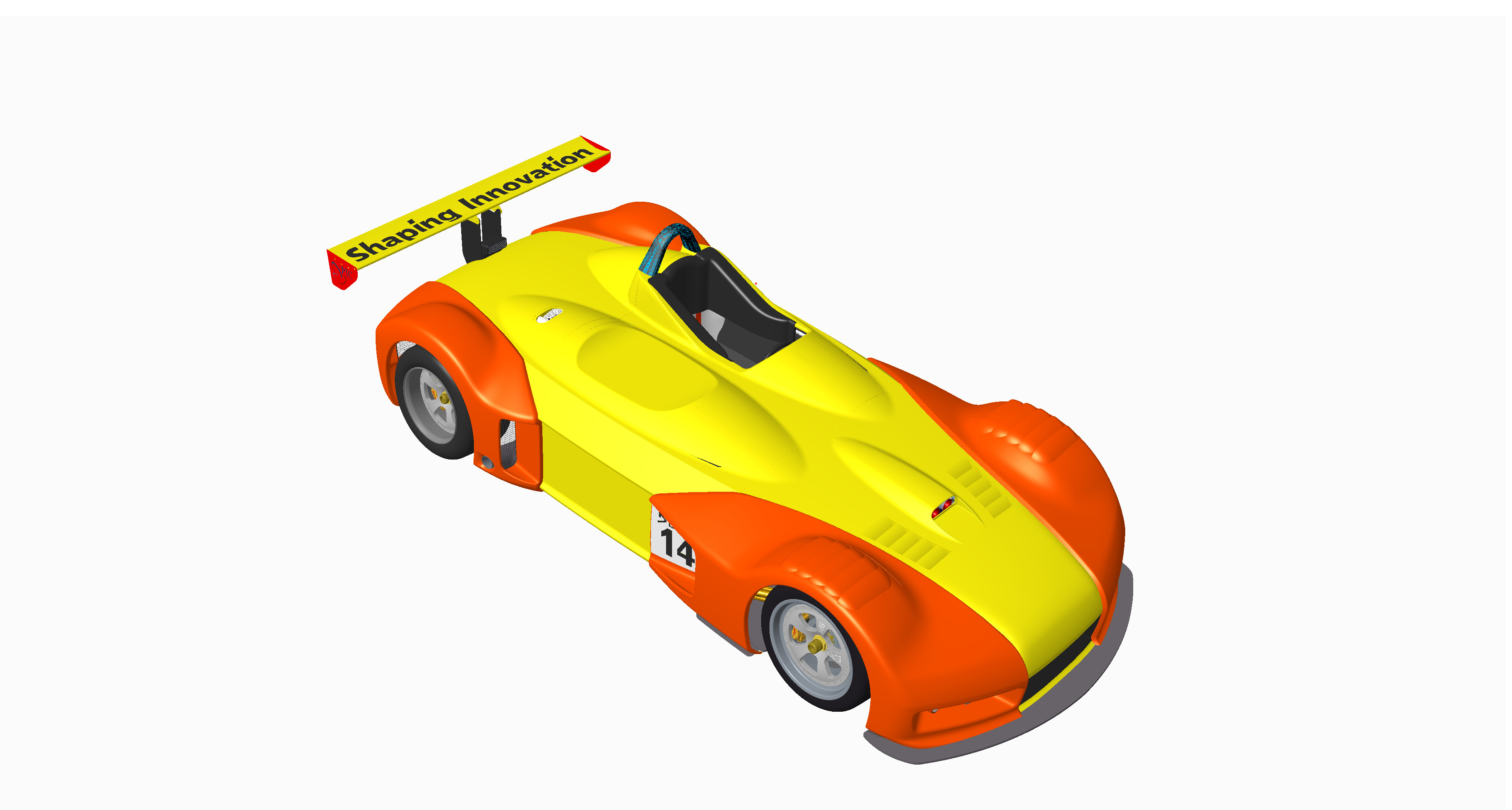

4	Creo_02_test_04	150.72	10	2275	15.09	08/08/18 14:18:41

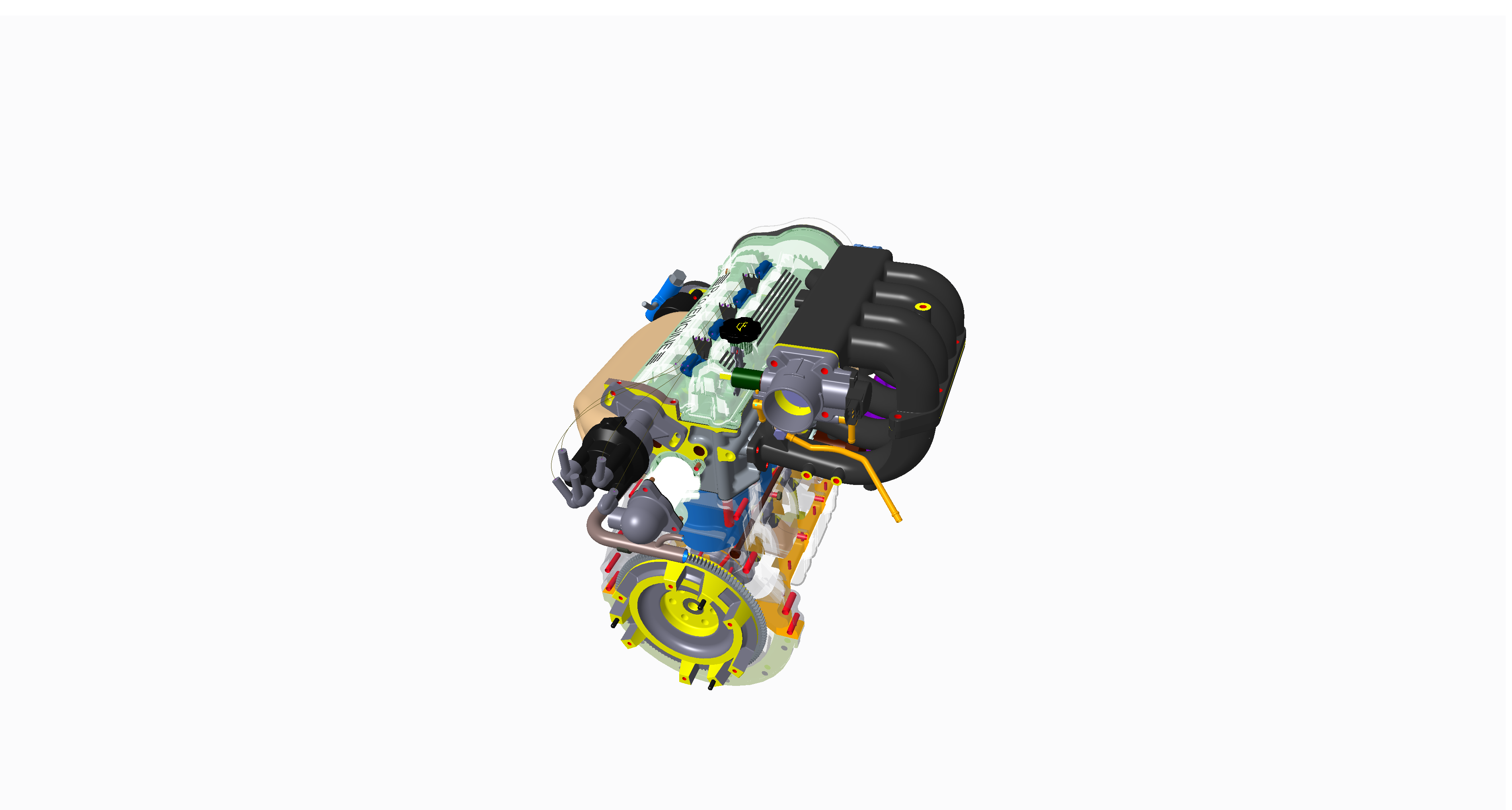

5	Creo_02_test_05	146.18	10	2268	15.52	08/08/18 14:19:00

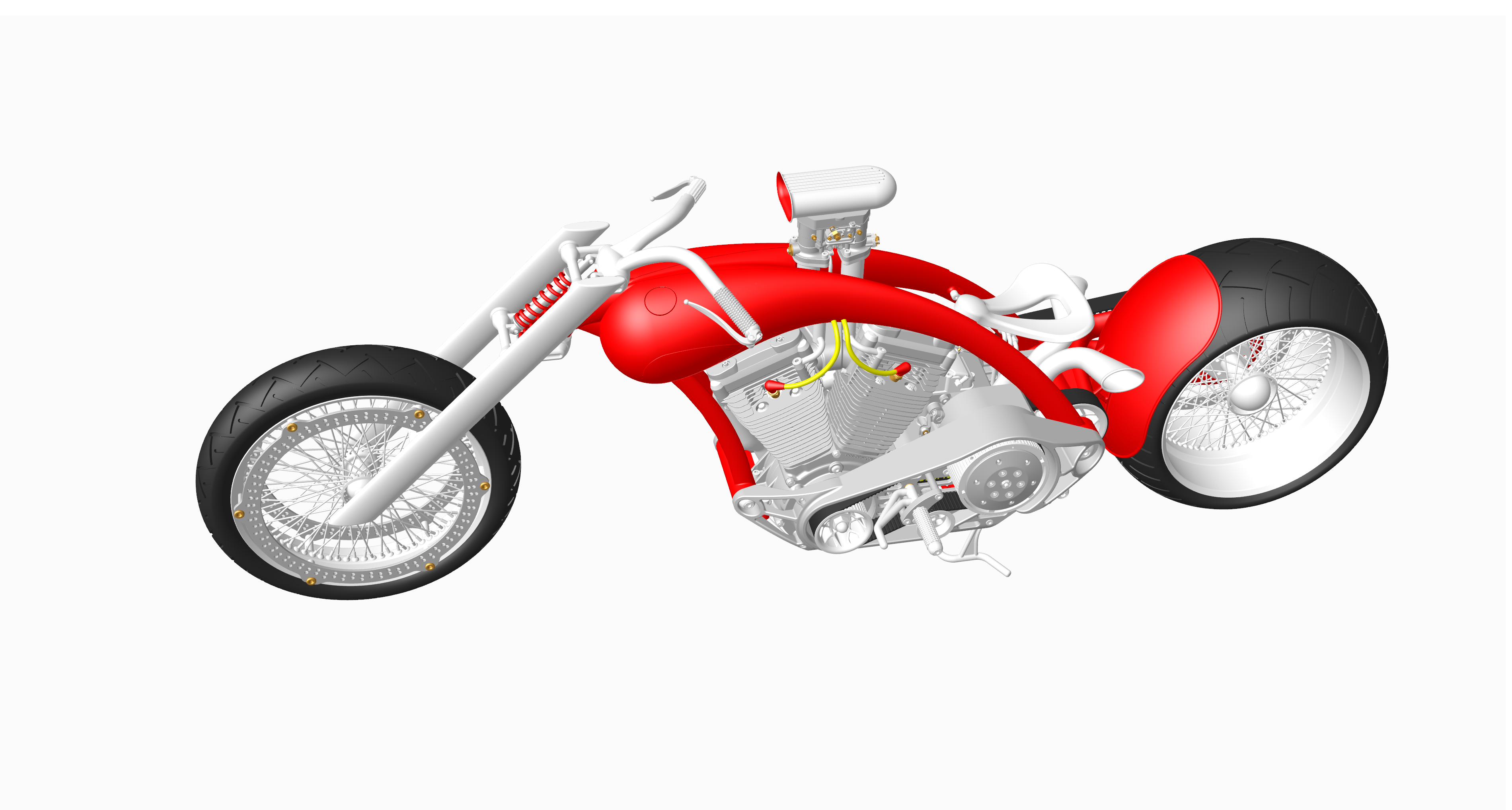

6	Creo_02_test_06	196.69	10	2975	15.13	08/08/18 14:19:17

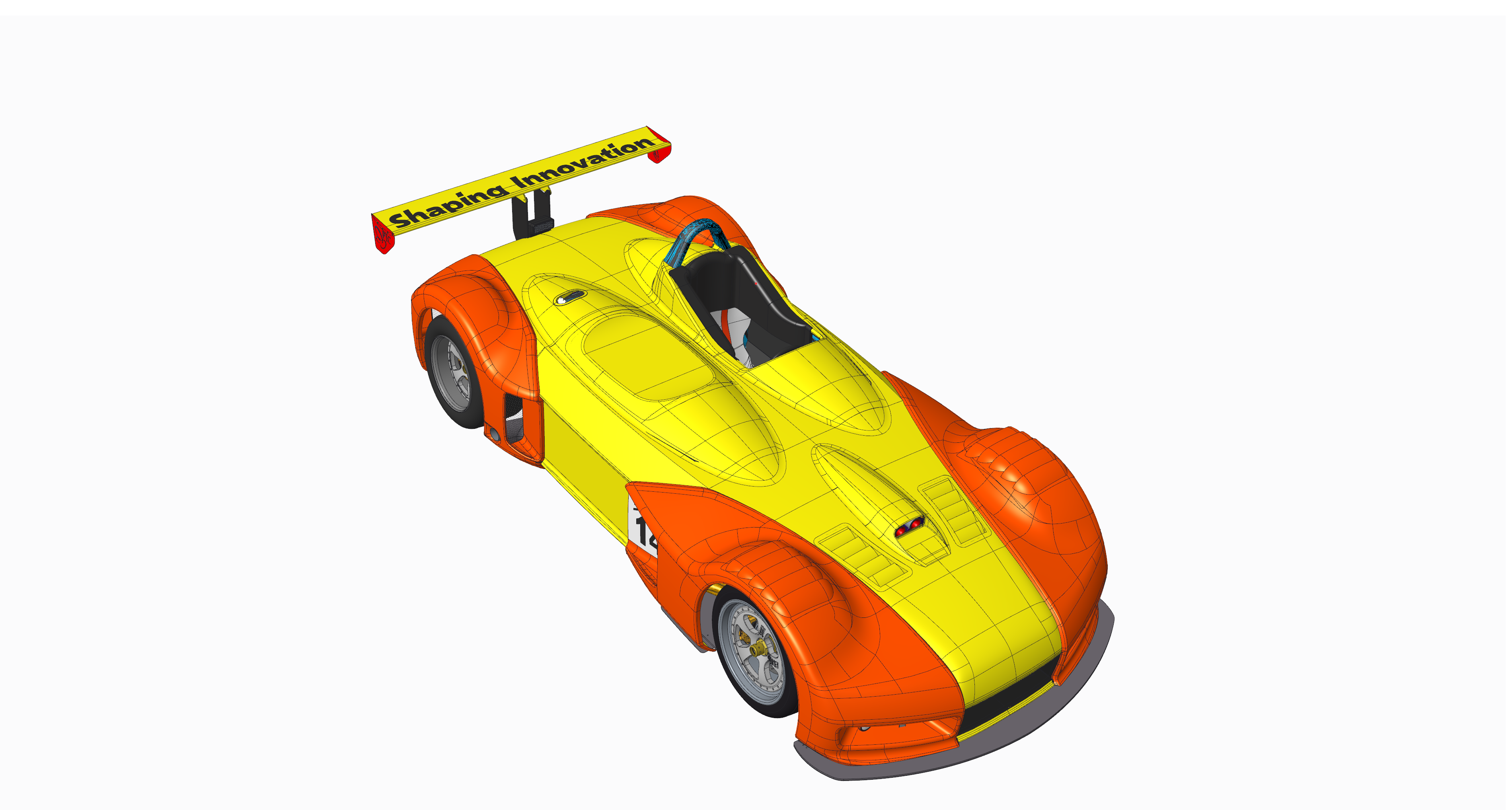

7	Creo_02_test_07	83.04	7.5	1400	16.86	08/08/18 14:19:40

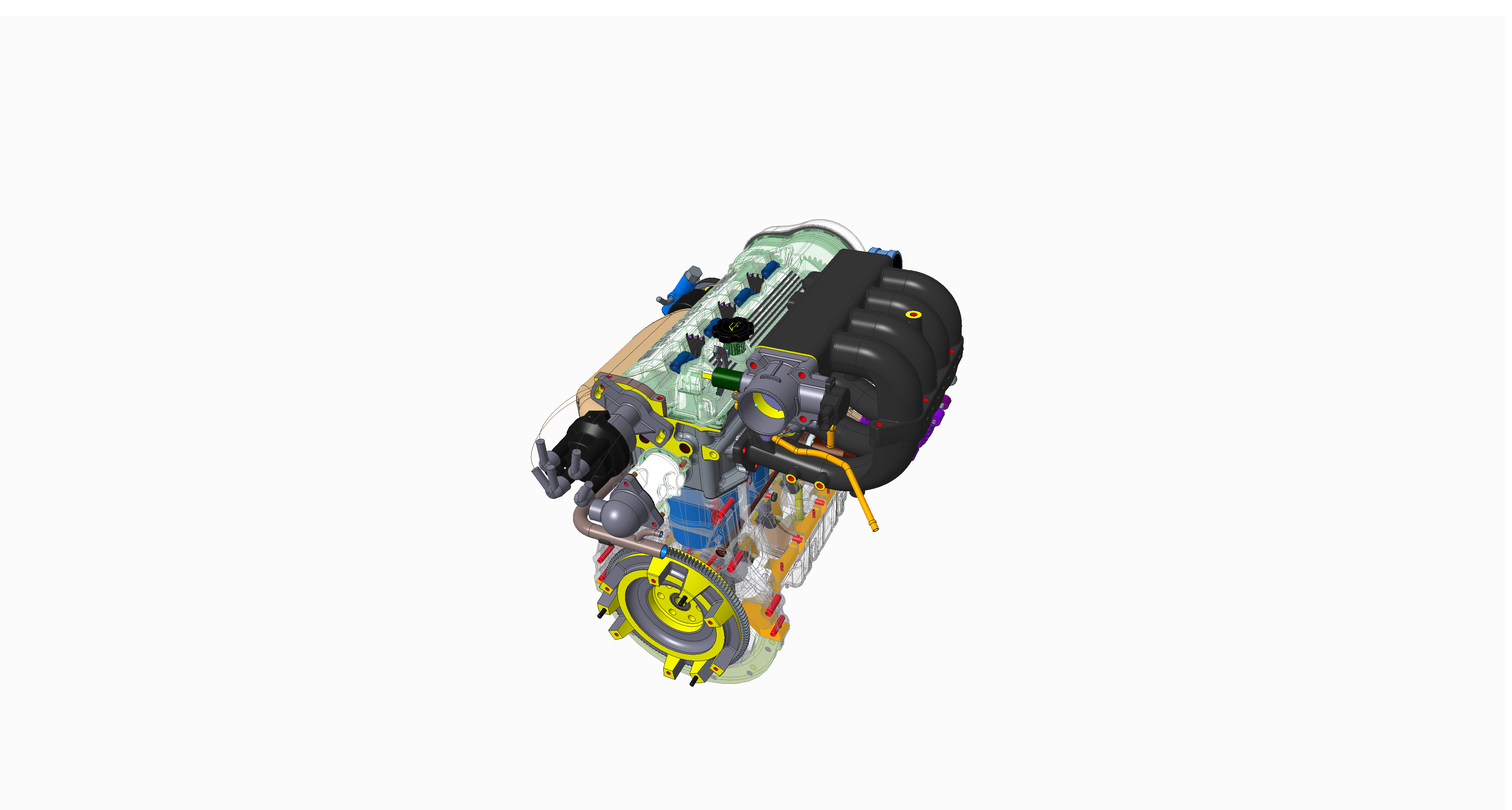

8	Creo_02_test_08	140.24	7.5	2268	16.17	08/08/18 14:19:59
9	Creo_02_test_09	195.69	7.5	2975	15.2	08/08/18 14:20:16

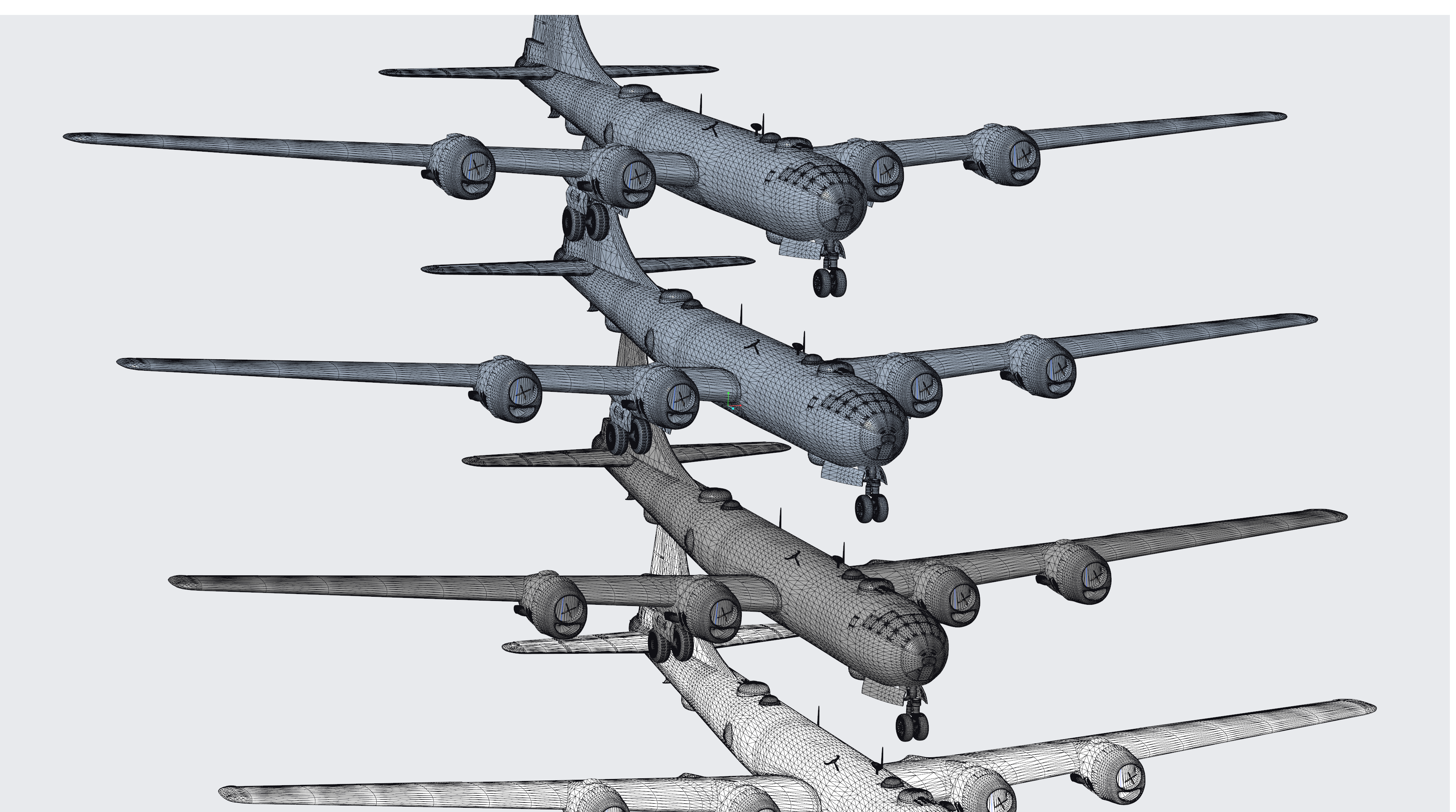

10	Creo_059_10	151.27	7.5	2269	15	08/08/18 14:20:34

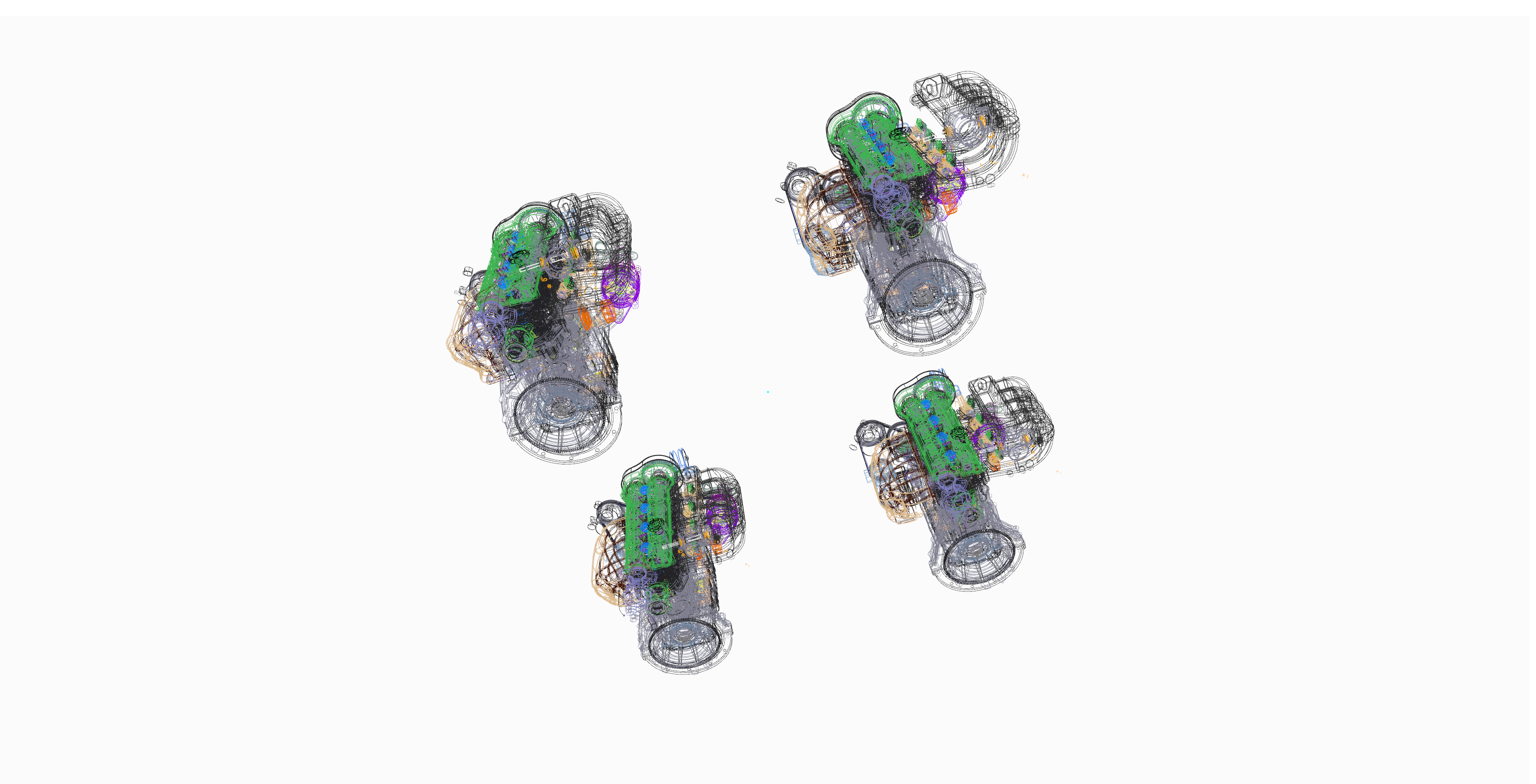

11	Creo_02_test_11	198.52	3.33	3040	15.31	08/08/18 14:20:52
12	Creo_057_12	168.93	3.34	2534	15	08/08/18 14:21:10

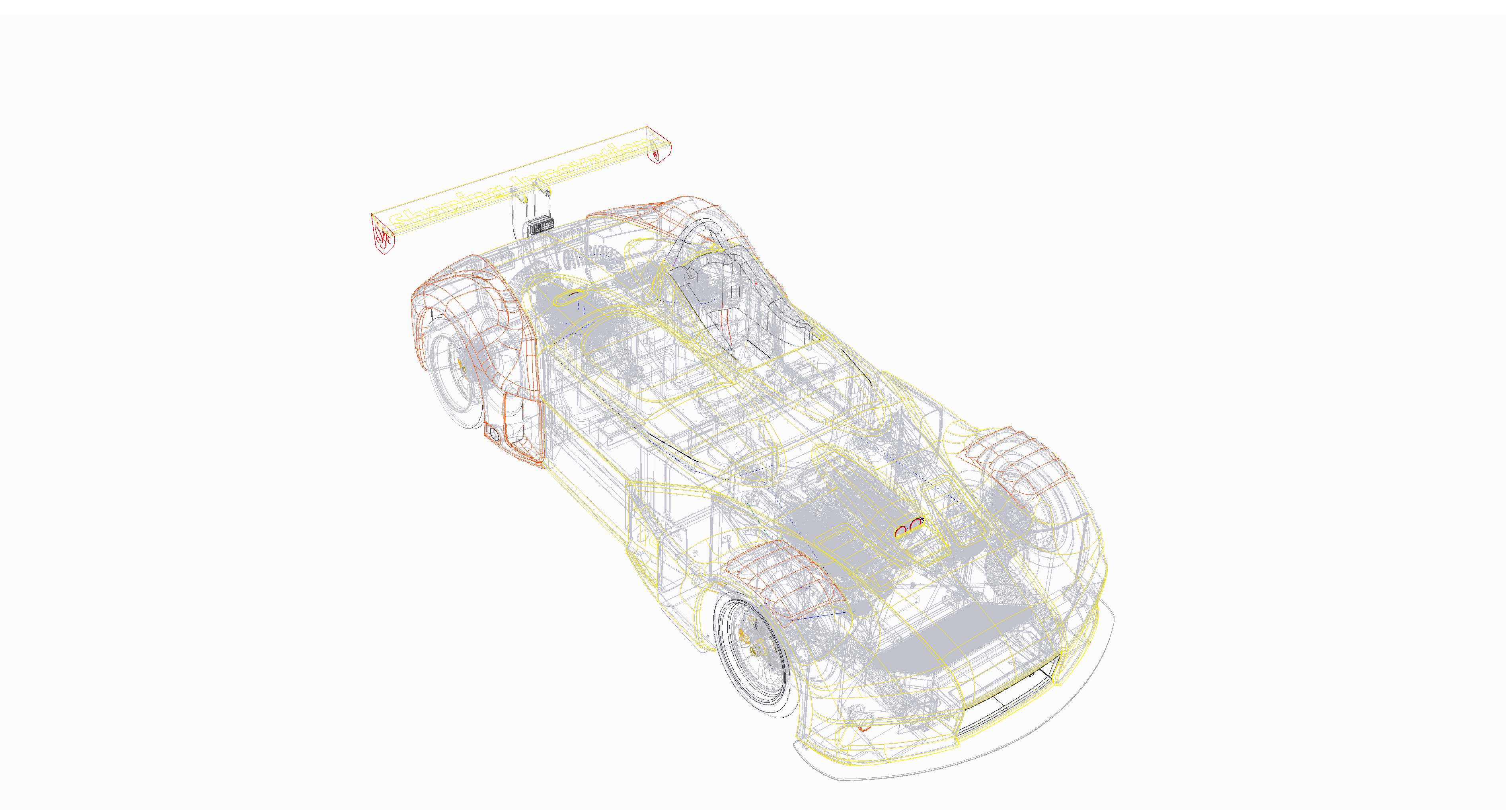

13	Creo_02_test_13	118.24	3.33	1925	16.28	08/08/18 14:21:32

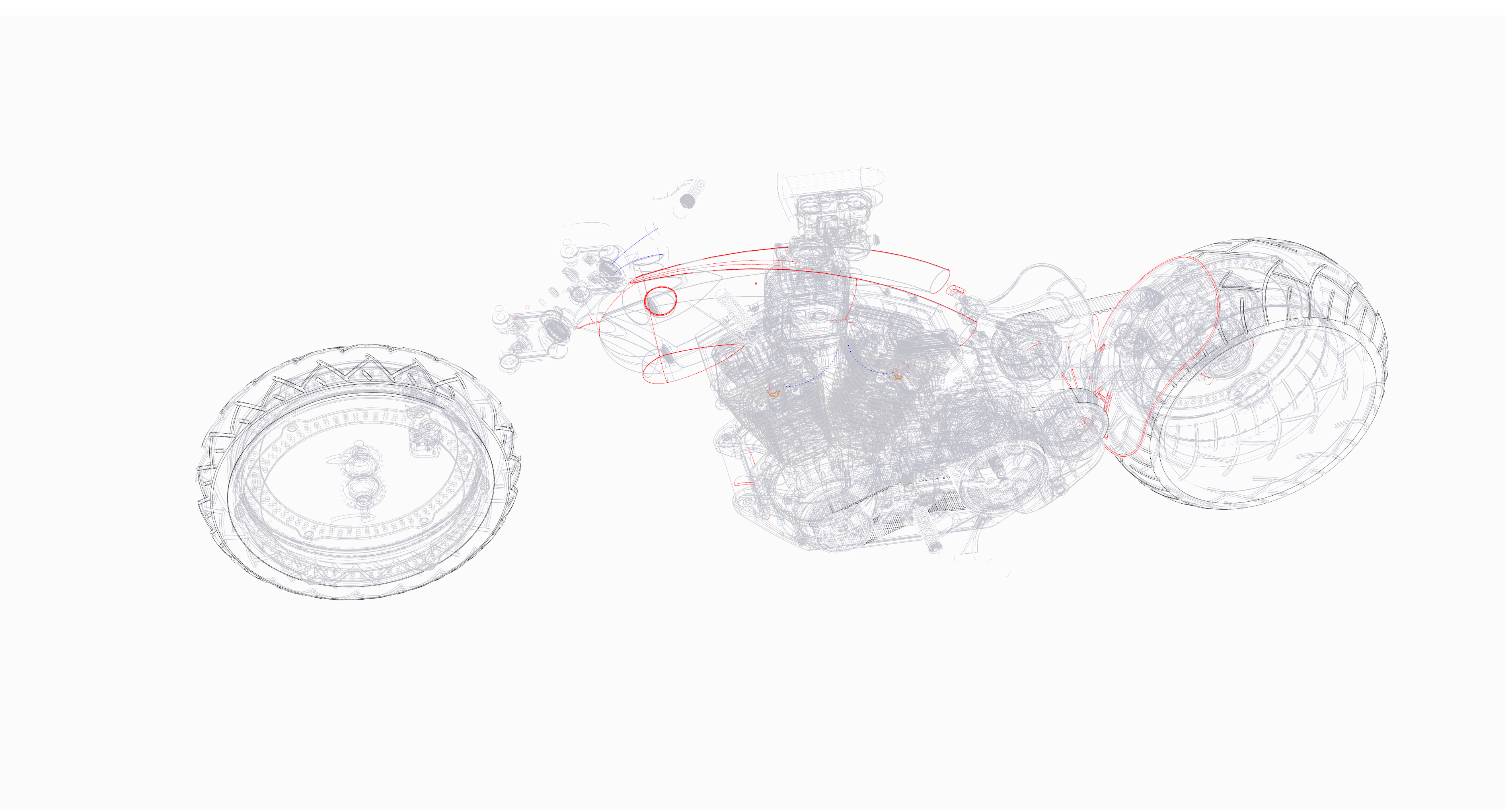

14	Creo_02_test_14	155.4	3.34	2450	15.77	08/08/18 14:21:50
15	Creo_02_test_15	191.43	3.33	3024	15.8	08/08/18 14:22:09
16	Creo_060_16	162.8	3.33	2442	15	08/08/18 14:22:26

Screen Grabs Folder
Text Log File
XML Result File

energy-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Test1	8.51	16.67	180	21.16	08/08/18 14:22:49
2	Test2	6.62	16.67	180	27.17	08/08/18 14:23:21
3	Test3	6.62	16.67	180	27.2	08/08/18 14:23:52
4	Test4	11.86	16.67	180	15.17	08/08/18 14:24:08
5	Test5	8.48	16.66	180	21.22	08/08/18 14:24:33
6	Test6	8.77	16.66	180	20.51	08/08/18 14:24:56

Screen Grabs Folder
Text Log File
XML Result File

maya-05

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Maya_01	42.51	8.33	708	16.66	08/08/18 14:25:19

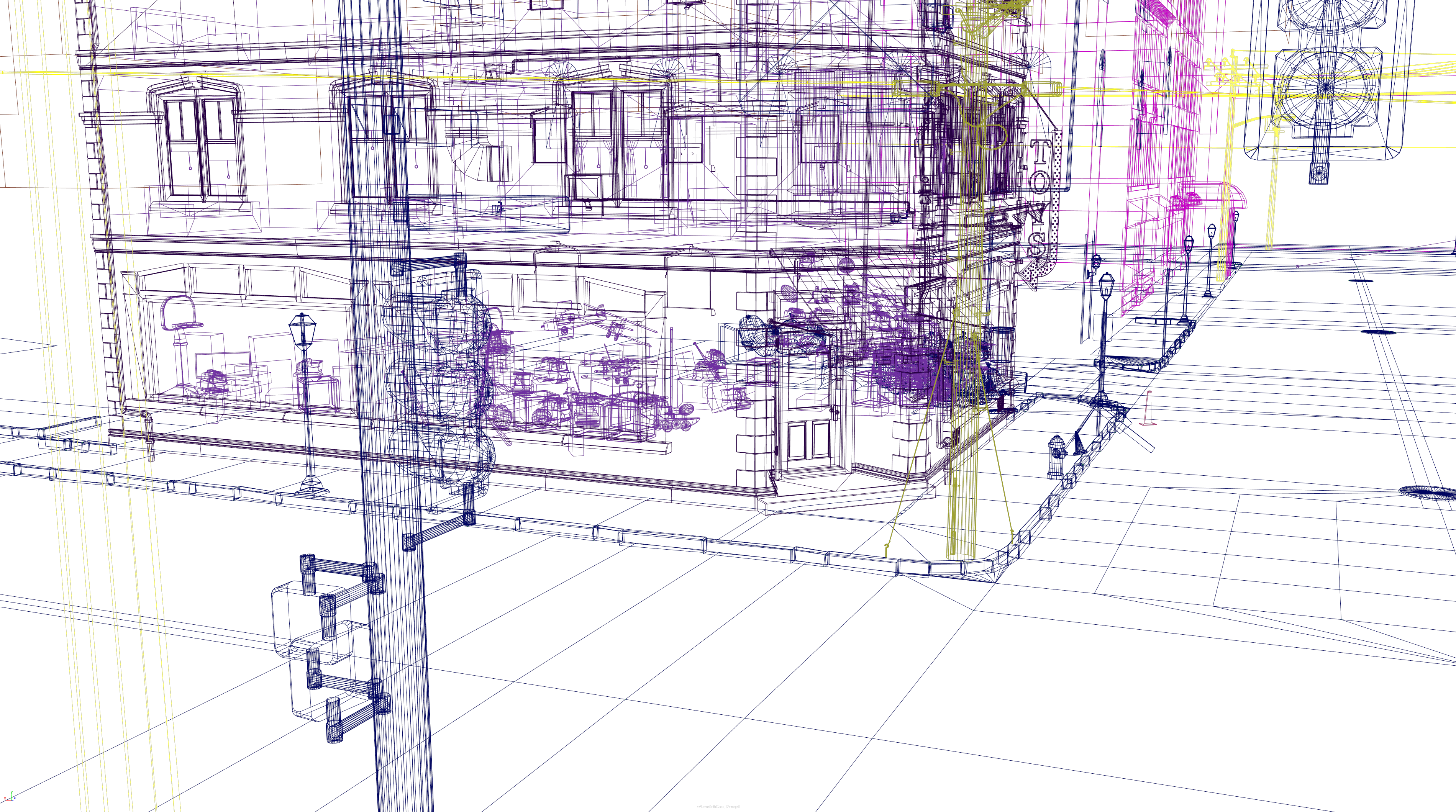

2	Maya_02	167.48	8.33	2528	15.09	08/08/18 14:25:37
3	Maya_03	32.94	12.5	632	19.19	08/08/18 14:26:08
4	Maya_04	154.77	12.5	2370	15.31	08/08/18 14:26:28
5	Maya_07	147.99	12.5	2370	16.01	08/08/18 14:26:47
6	Maya_08	109.05	8.33	1738	15.94	08/08/18 14:27:06
7	Maya_09	165.6	8.33	2528	15.27	08/08/18 14:27:24
8	Maya_10	81.67	12.5	1225	15	08/08/18 14:27:43

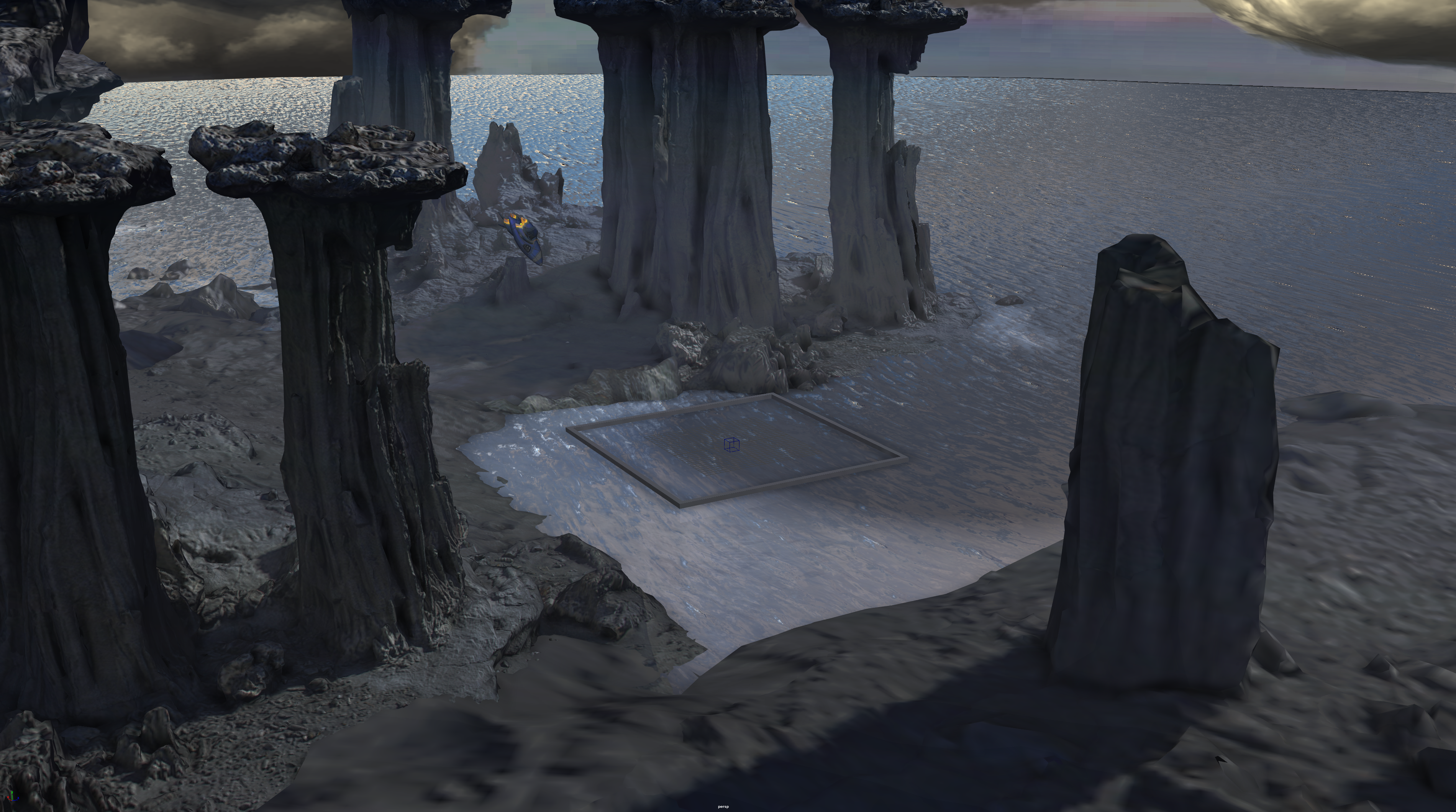

9	Maya_11	24.15	8.34	474	19.63	08/08/18 14:28:08

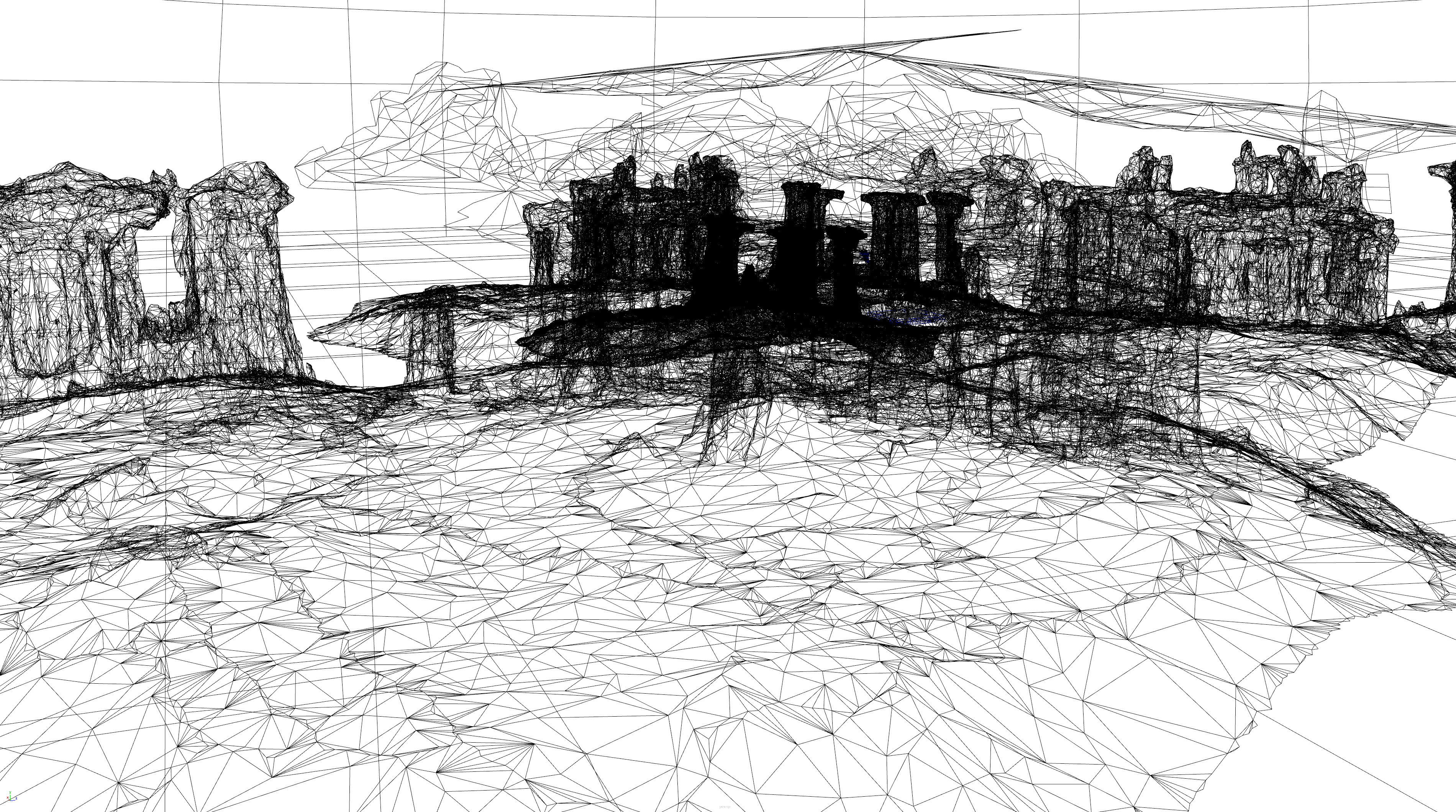

10	Maya_12	193.29	8.34	3002	15.53	08/08/18 14:28:26

Screen Grabs Folder
Text Log File
XML Result File

medical-02

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	Test1	21.65	12.5	271	12.52	08/08/18 14:28:43
2	Test2	25.36	12.5	542	21.38	08/08/18 14:29:06
3	Test3	10.15	12.5	224	22.08	08/08/18 14:29:31
4	Test4	6.95	12.5	116	16.69	08/08/18 14:29:52
5	Test5	10.89	12.5	224	20.58	08/08/18 14:30:15
6	Test6	16.16	12.5	224	13.86	08/08/18 14:30:30
7	Test7	4.94	12.5	92	18.64	08/08/18 14:30:53

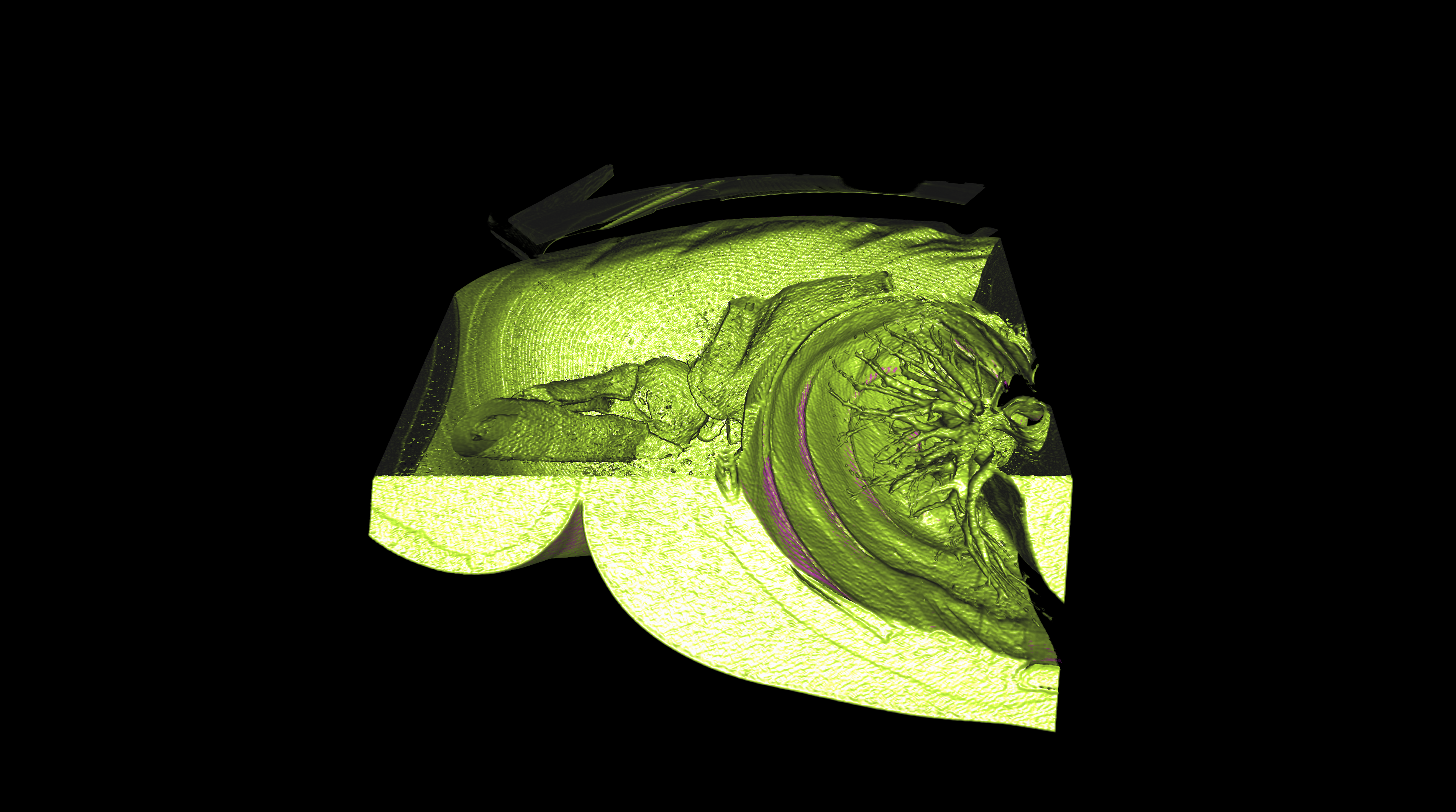

8	Test8	8.31	12.5	140	16.84	08/08/18 14:31:13

Screen Grabs Folder
Text Log File
XML Result File

snx-03

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp

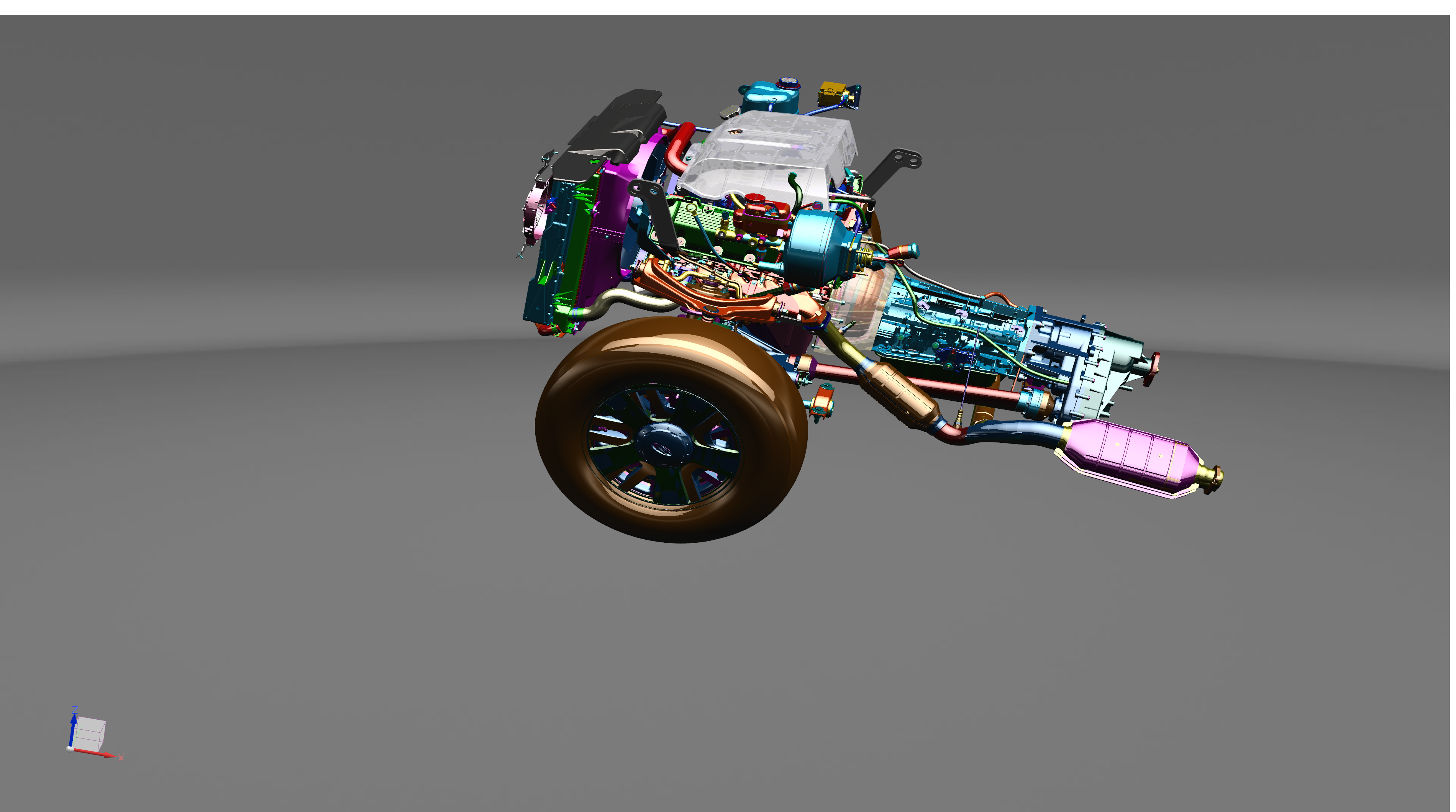

1	NX8_AdvancedStudioAA	102.78	7.5	2160	21.01	08/08/18 14:31:39
2	NX8_ShadedAA	165.17	10	2880	17.44	08/08/18 14:32:00

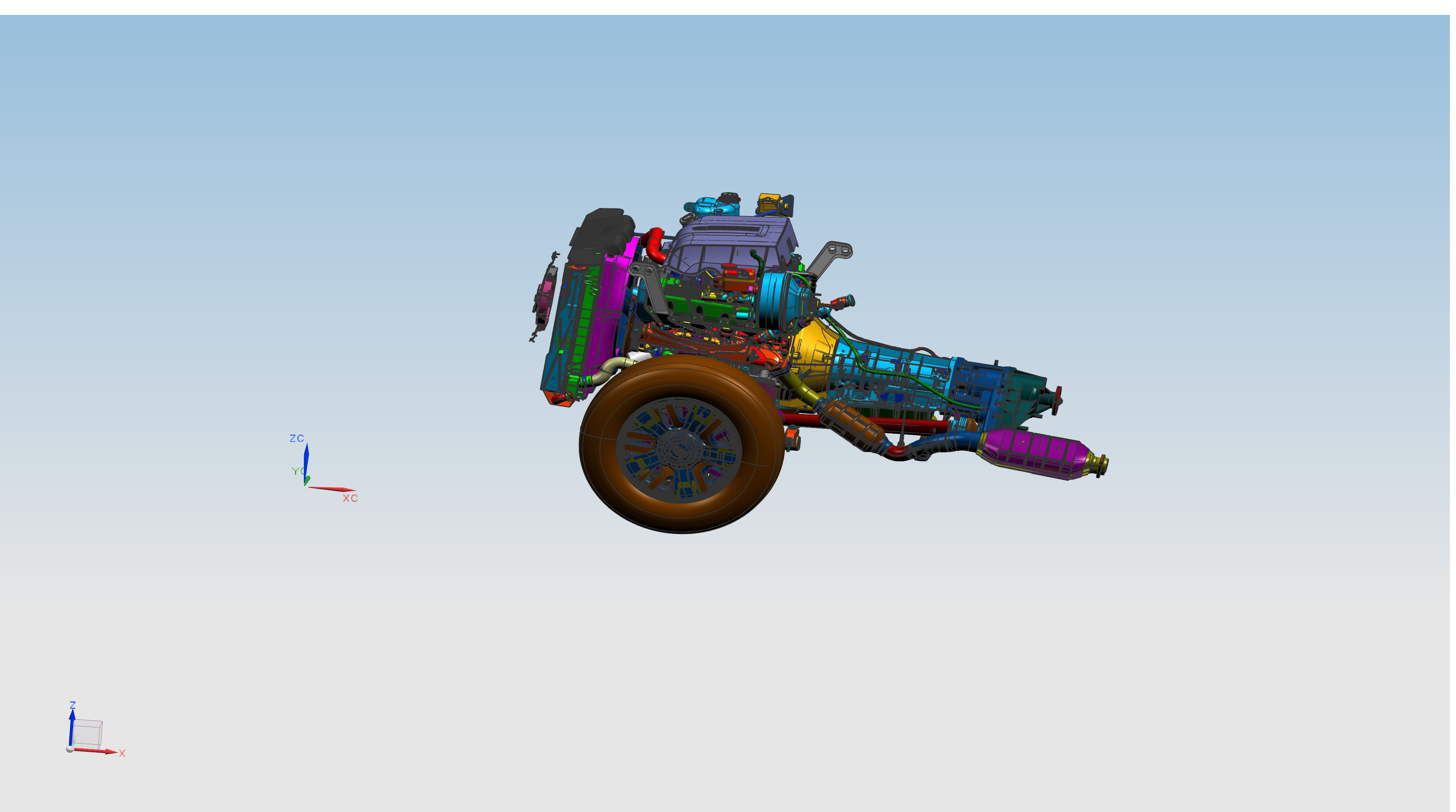

3	NX8_ShadedWithEdgeAA	162.12	20	2880	17.76	08/08/18 14:32:22

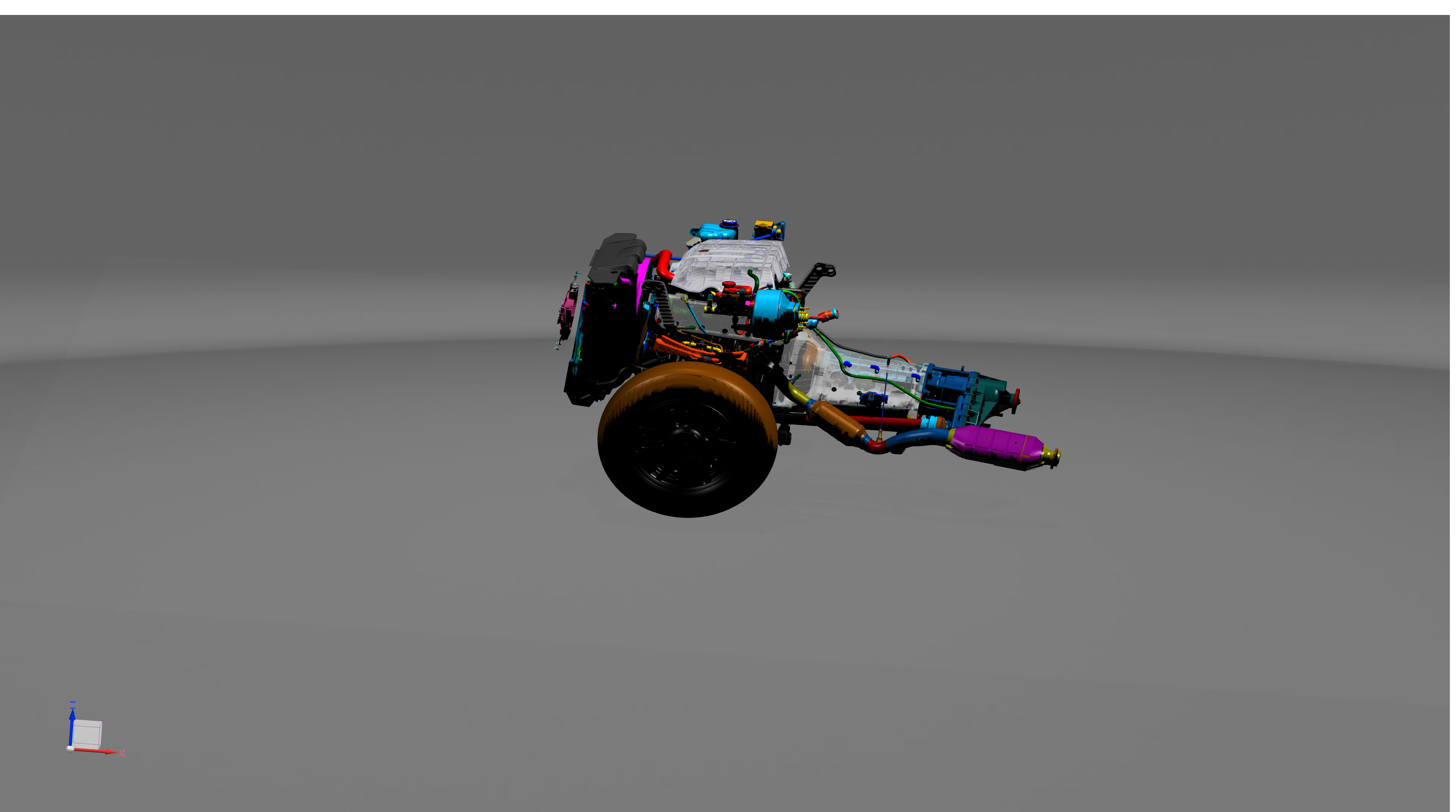

4	NX8_StudioAA	157.94	5	2880	18.24	08/08/18 14:32:44

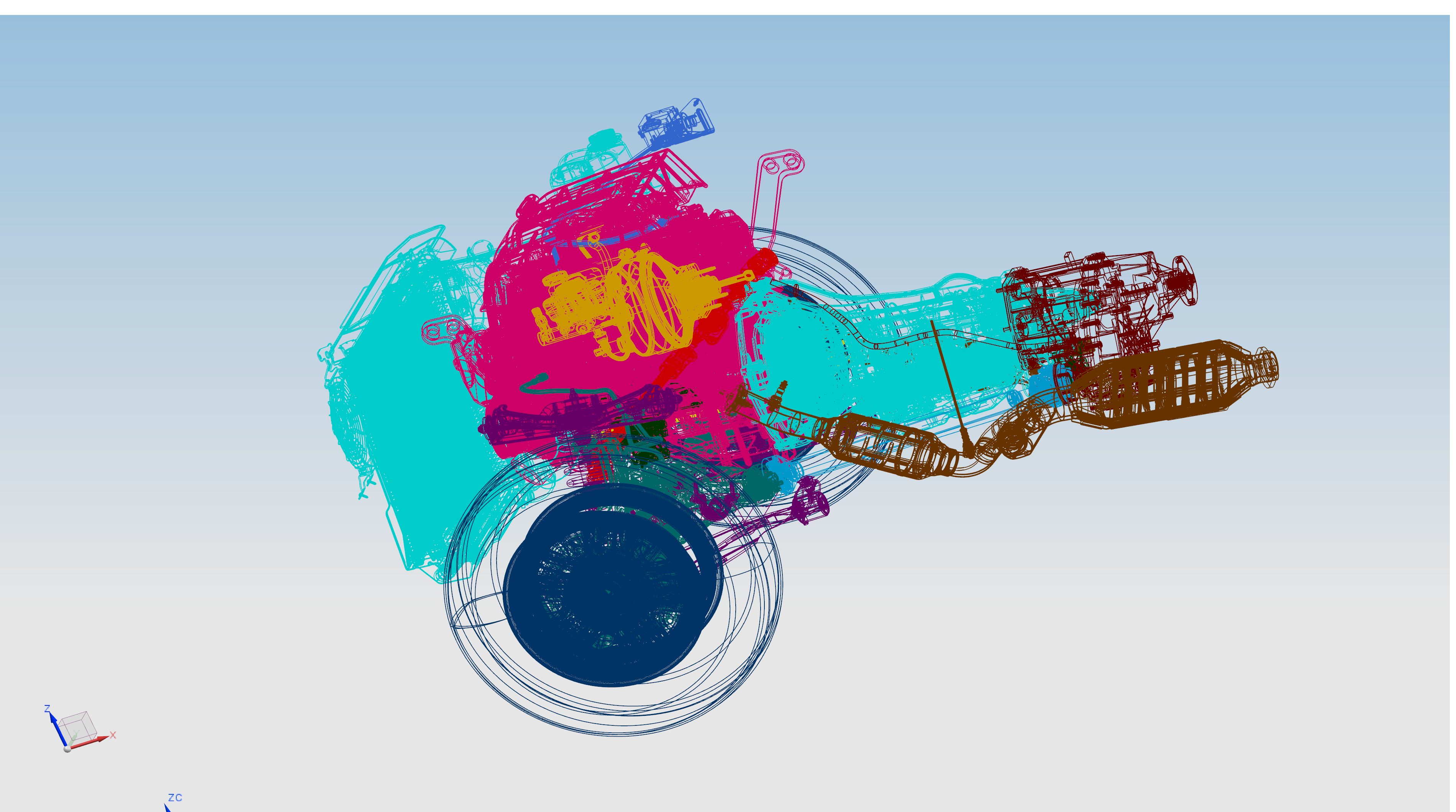

5	NX8_powerTrain_Wireframe	165.42	7.5	2520	15.23	08/08/18 14:33:04

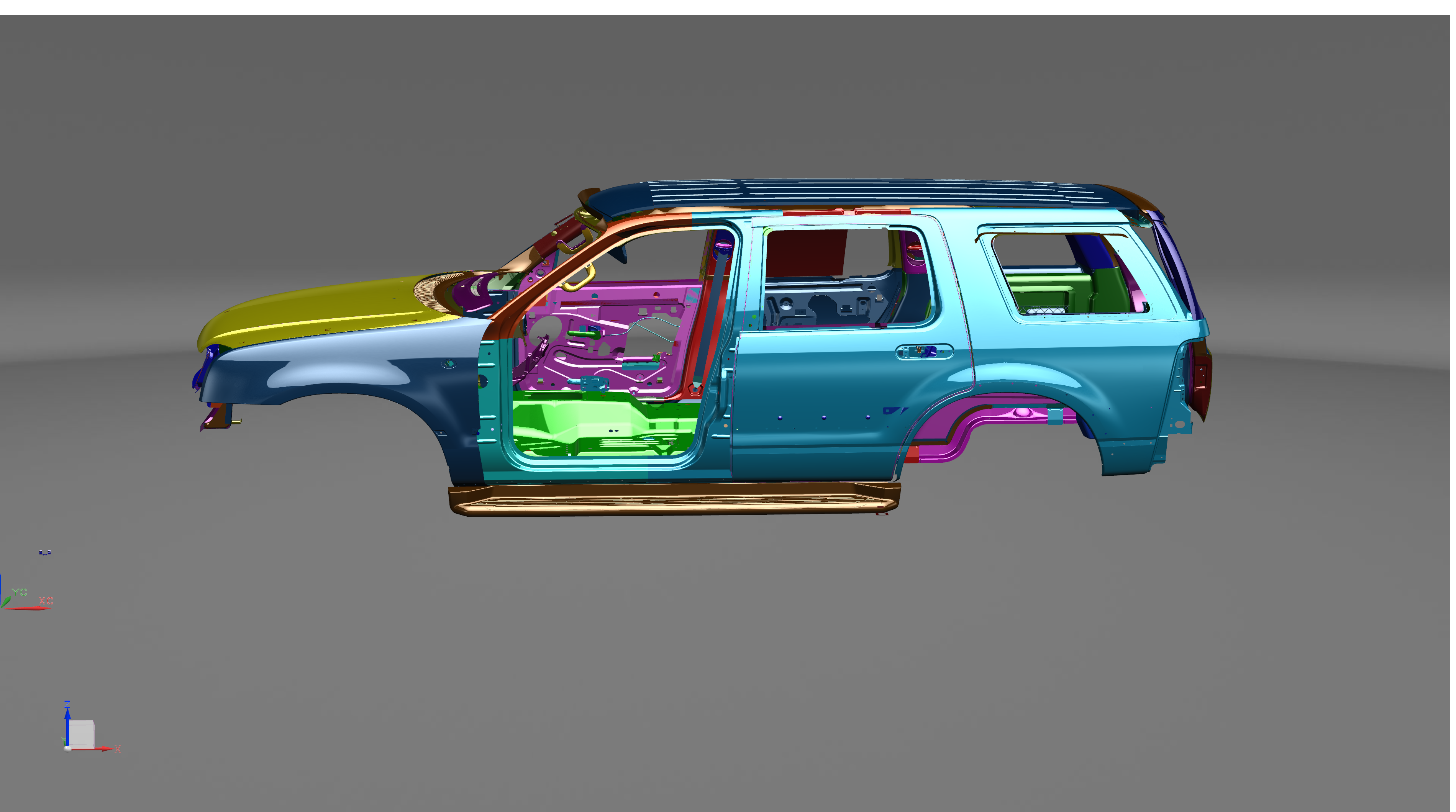

6	NX8_suvAdvancedStudio	163.7	7.5	2880	17.59	08/08/18 14:33:26
7	NX8_suvShaded	164.43	10	2880	17.51	08/08/18 14:33:46

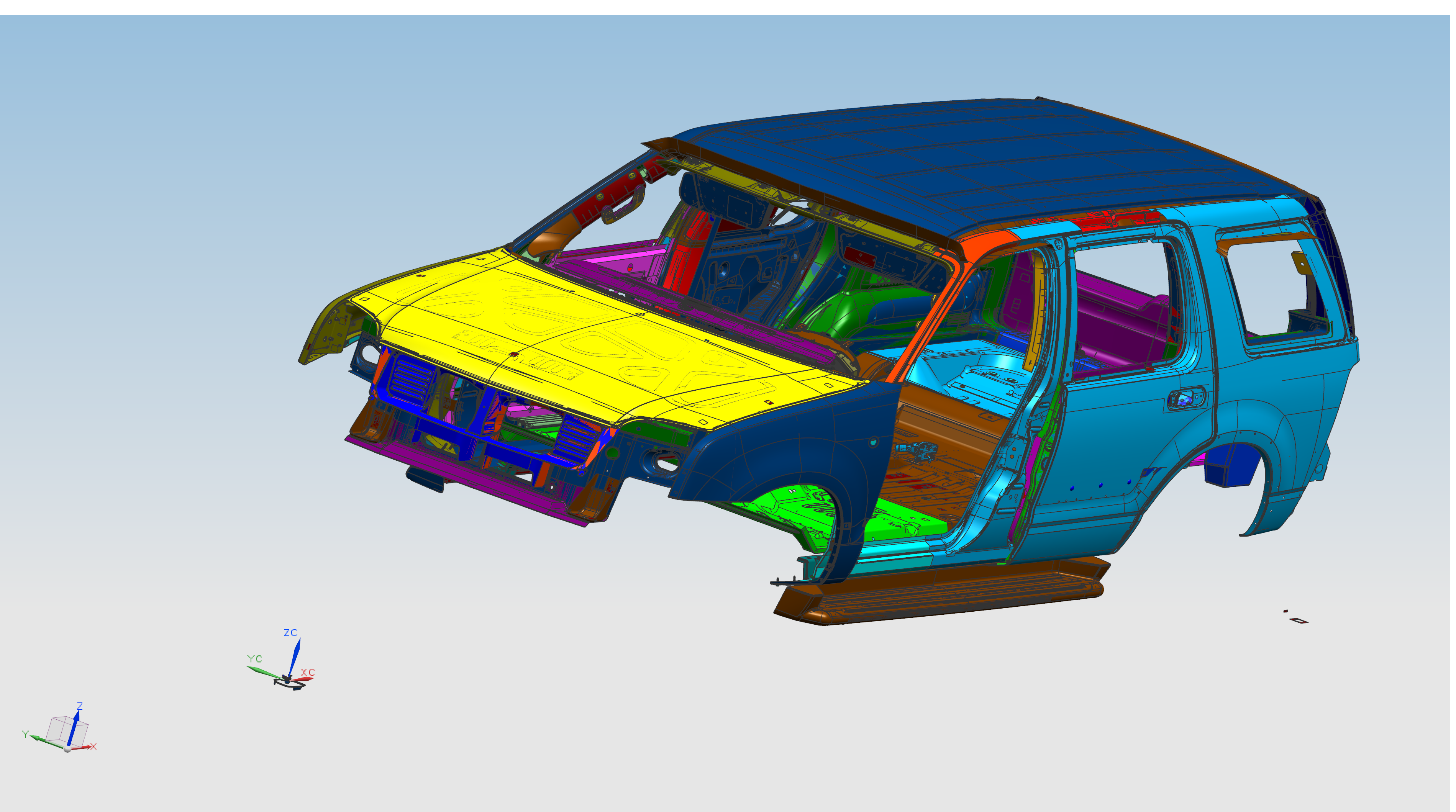

8	NX8_suvShadedWithEdge	164.72	20	2880	17.48	08/08/18 14:34:07
9	NX8_suvStudio2	162.39	5	2880	17.74	08/08/18 14:34:31

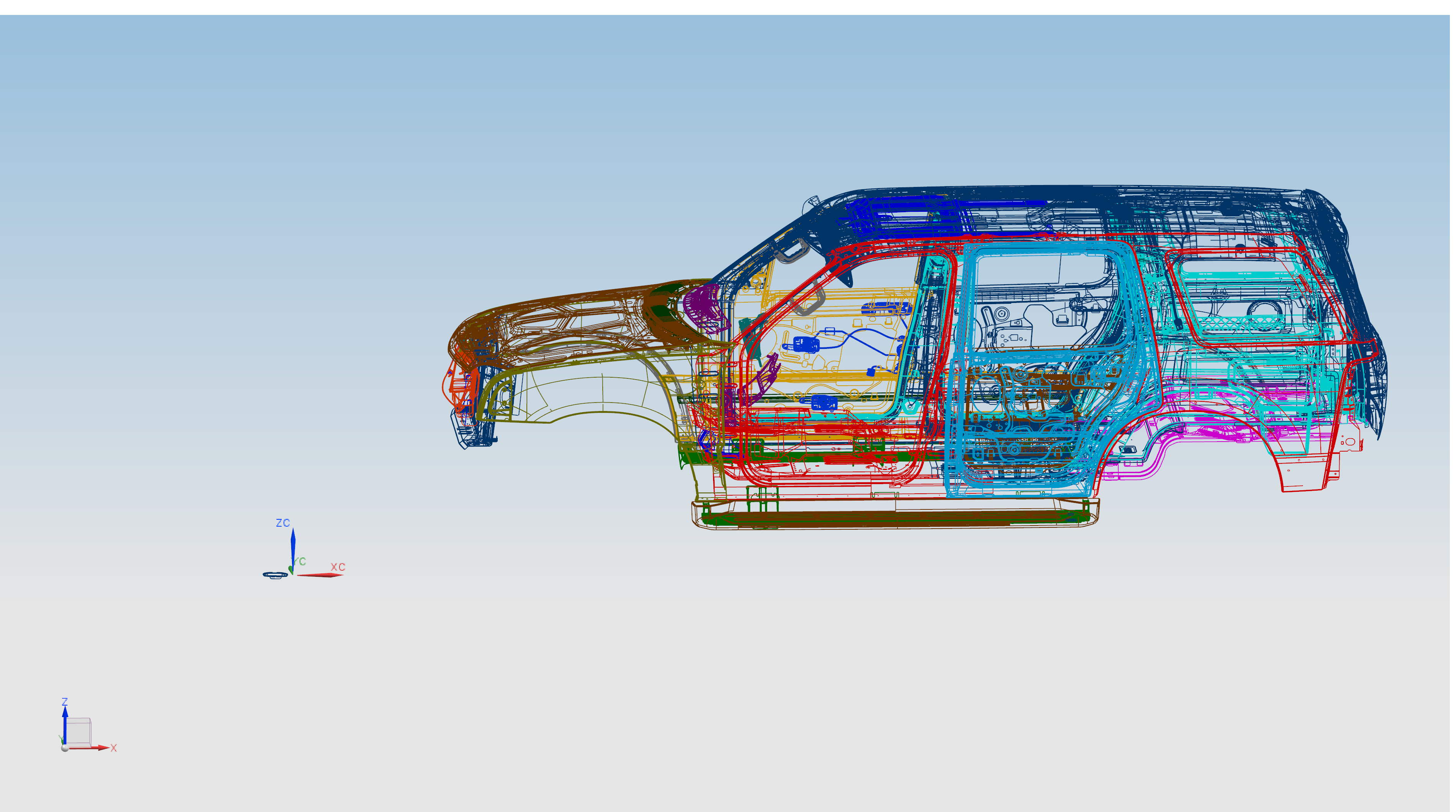

10	NX8_suvWireframe	168.64	7.5	2880	17.08	08/08/18 14:34:52

Screen Grabs Folder
Text Log File
XML Result File

sw-04

The results table below includes the details about each test within a viewset. Viewsets are often comprised of many tests which produce a frame rate. Frame rate is computed as the average Frames Per Second (FPS), or the total number of frames rendered divided by the time in seconds to render those frames. These FPS values are then used to compute the composite score using the weights for each test.

Results

Click on the viewset test name below to display its screen grab.

Index	Name	FPS	Weight	Frames	Seconds	Timestamp
1	SW2012_shaded	168.33	12	2880	17.11	08/08/18 14:35:12

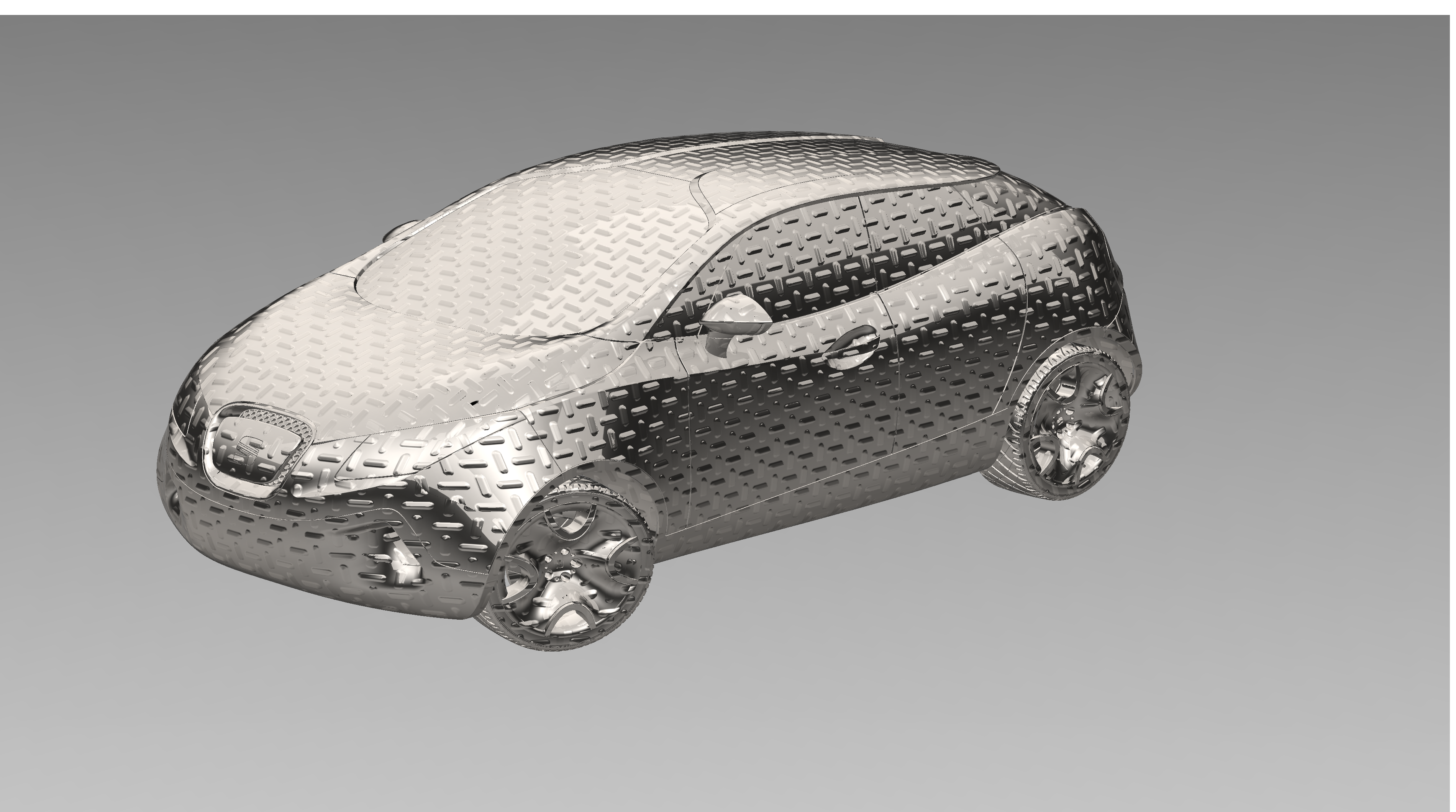

2	SW2012_plax	167.48	8	2520	15.05	08/08/18 14:35:29
3	SW2012_ssao	80.49	10	1440	17.89	08/08/18 14:35:49

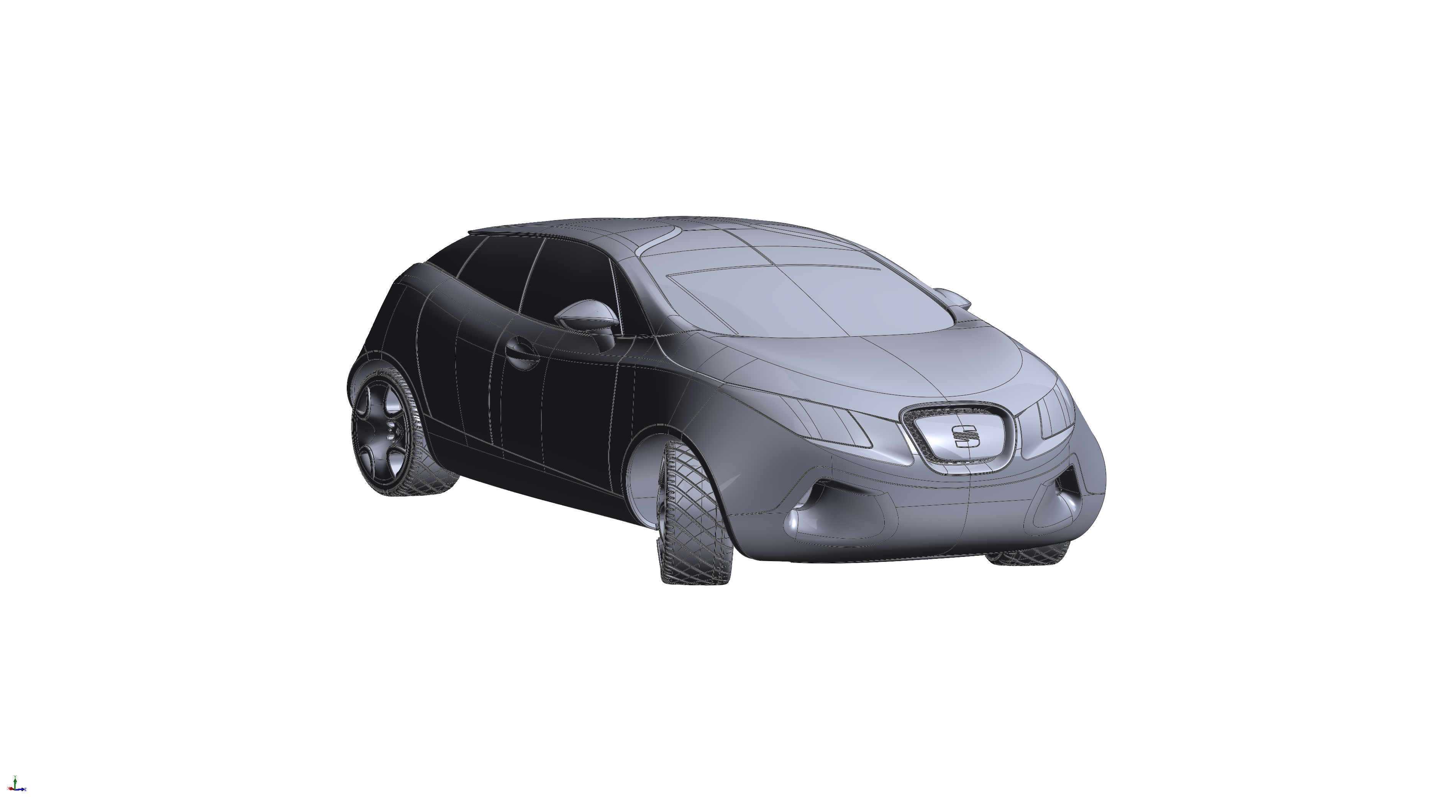

4	SW2012_edges	170.04	15	2880	16.94	08/08/18 14:36:08
5	SW2012_wireframe	42.99	8	720	16.75	08/08/18 14:36:27

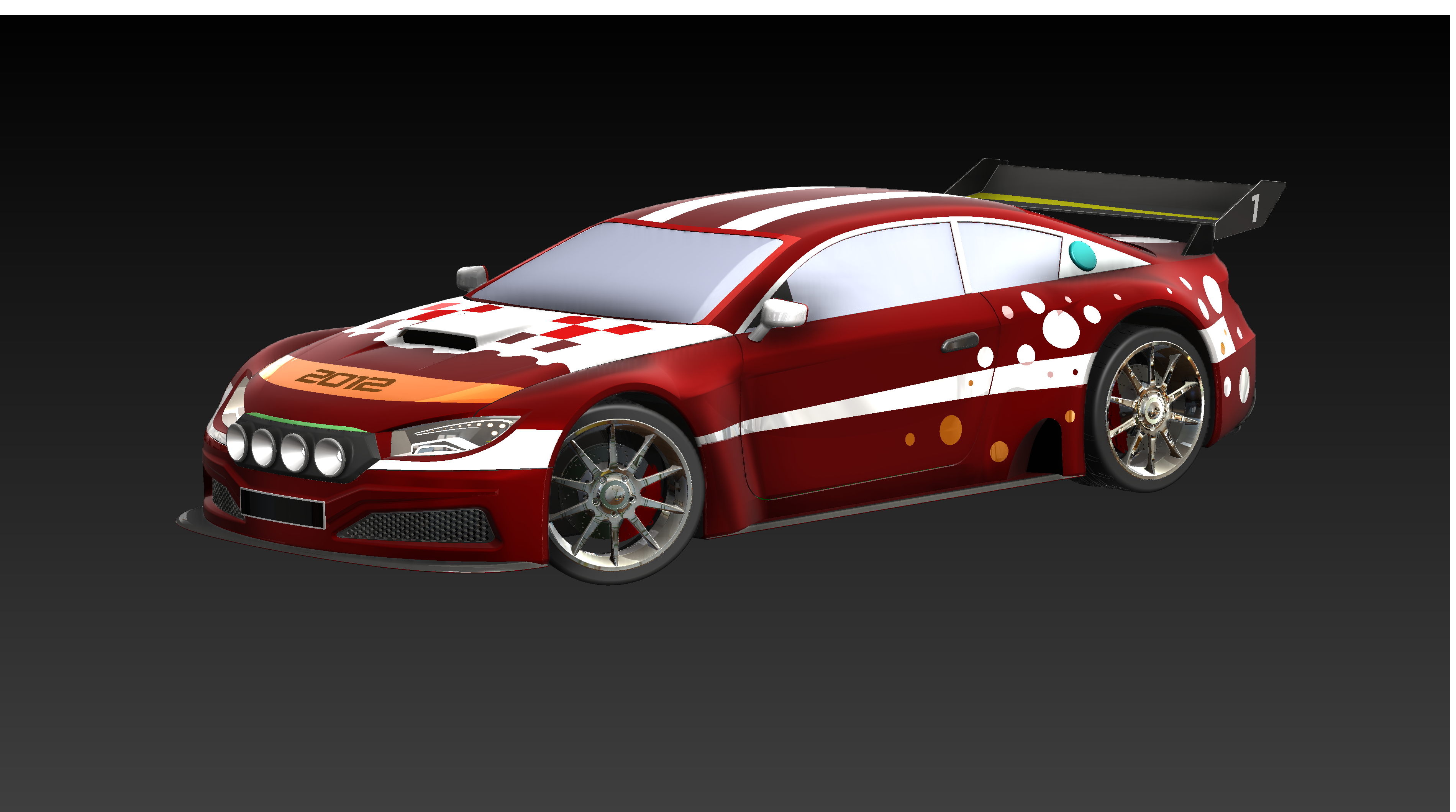

6	SW2012_rallyCar_AO	41.55	10	720	17.33	08/08/18 14:36:47

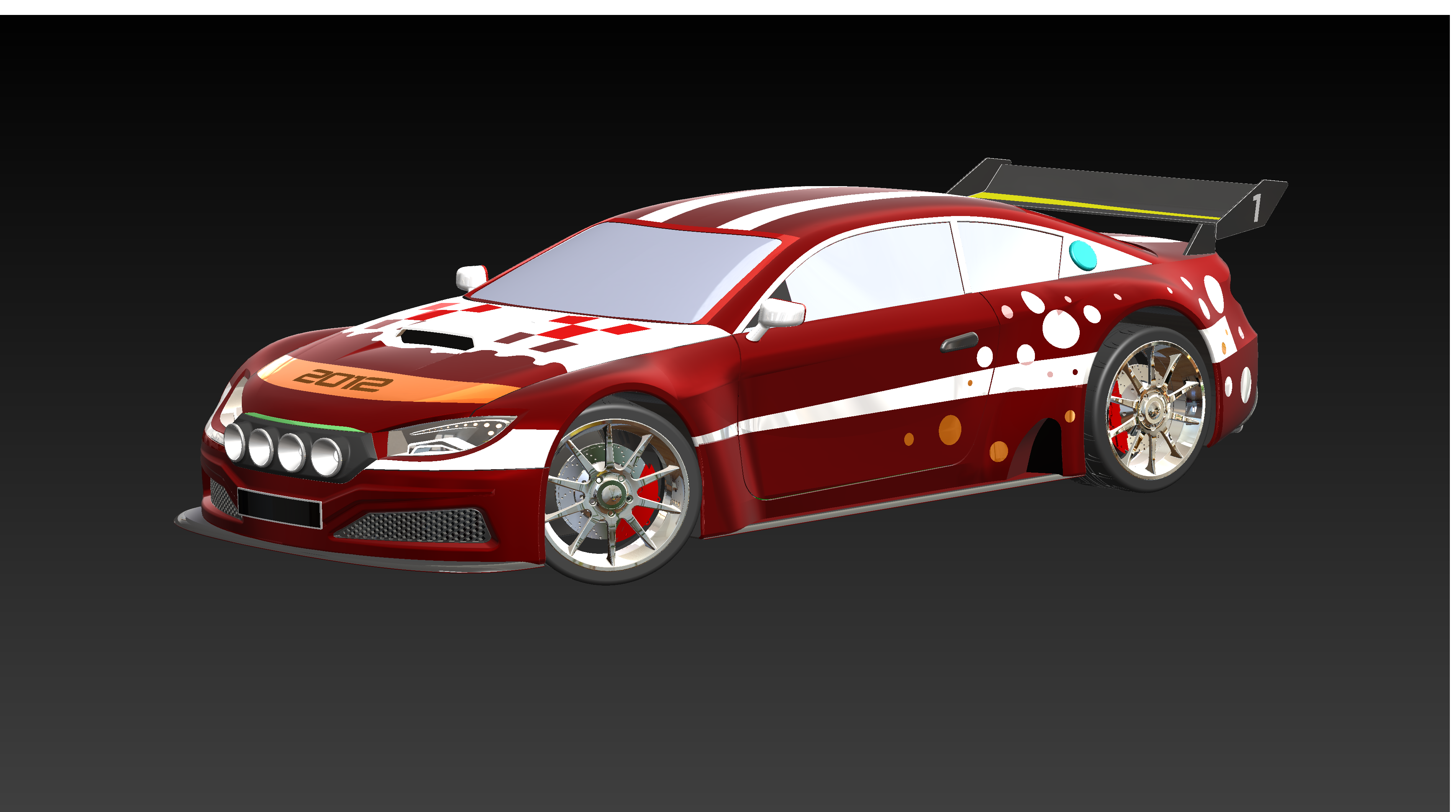

7	SW2012_rallyCar_shaded	48.23	12	1080	22.39	08/08/18 14:37:11

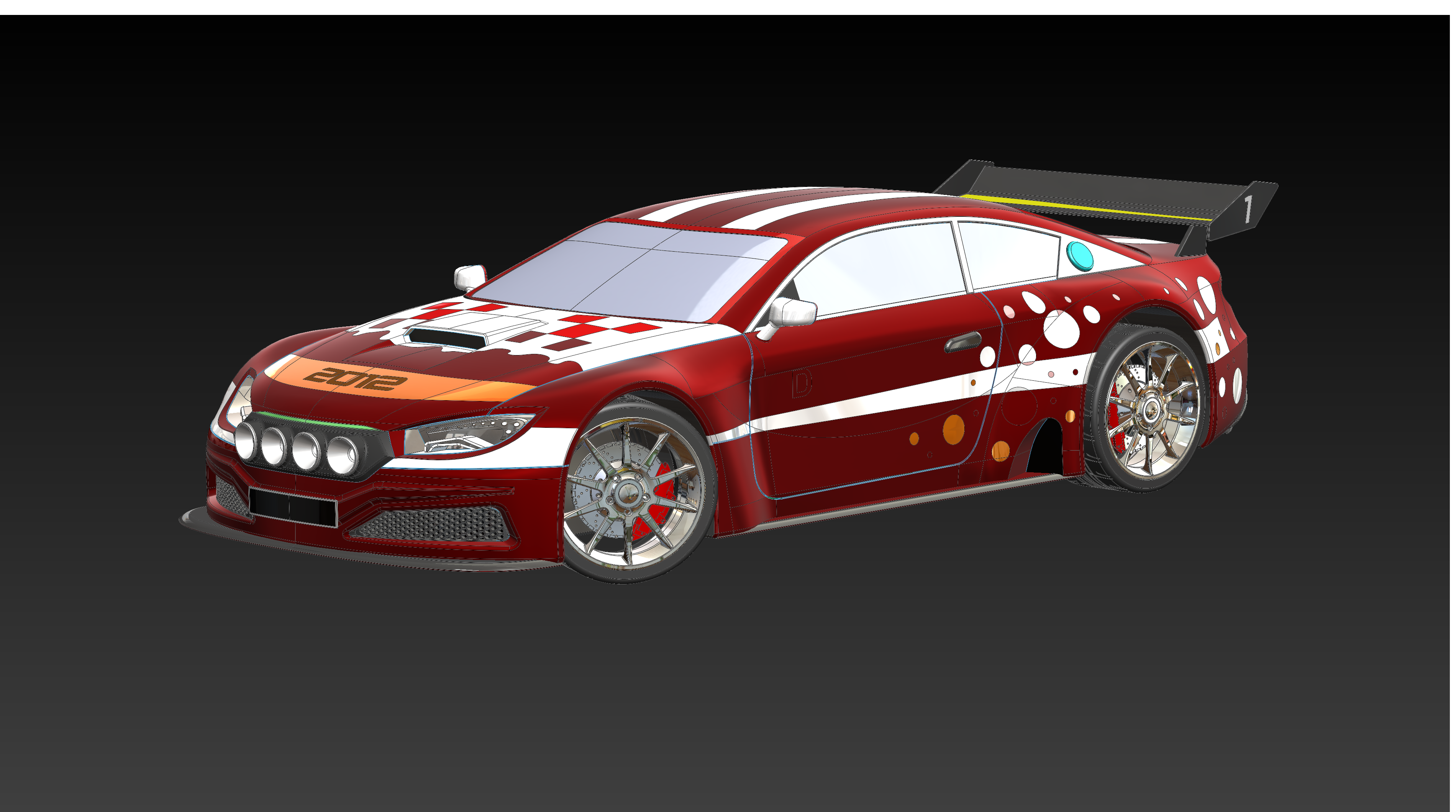

8	SW2012_rallyCar_ShadedEdges	40.6	15	720	17.73	08/08/18 14:37:31
9	SW2012_teslaTower_AO	157.5	10	2520	16	08/08/18 14:37:49

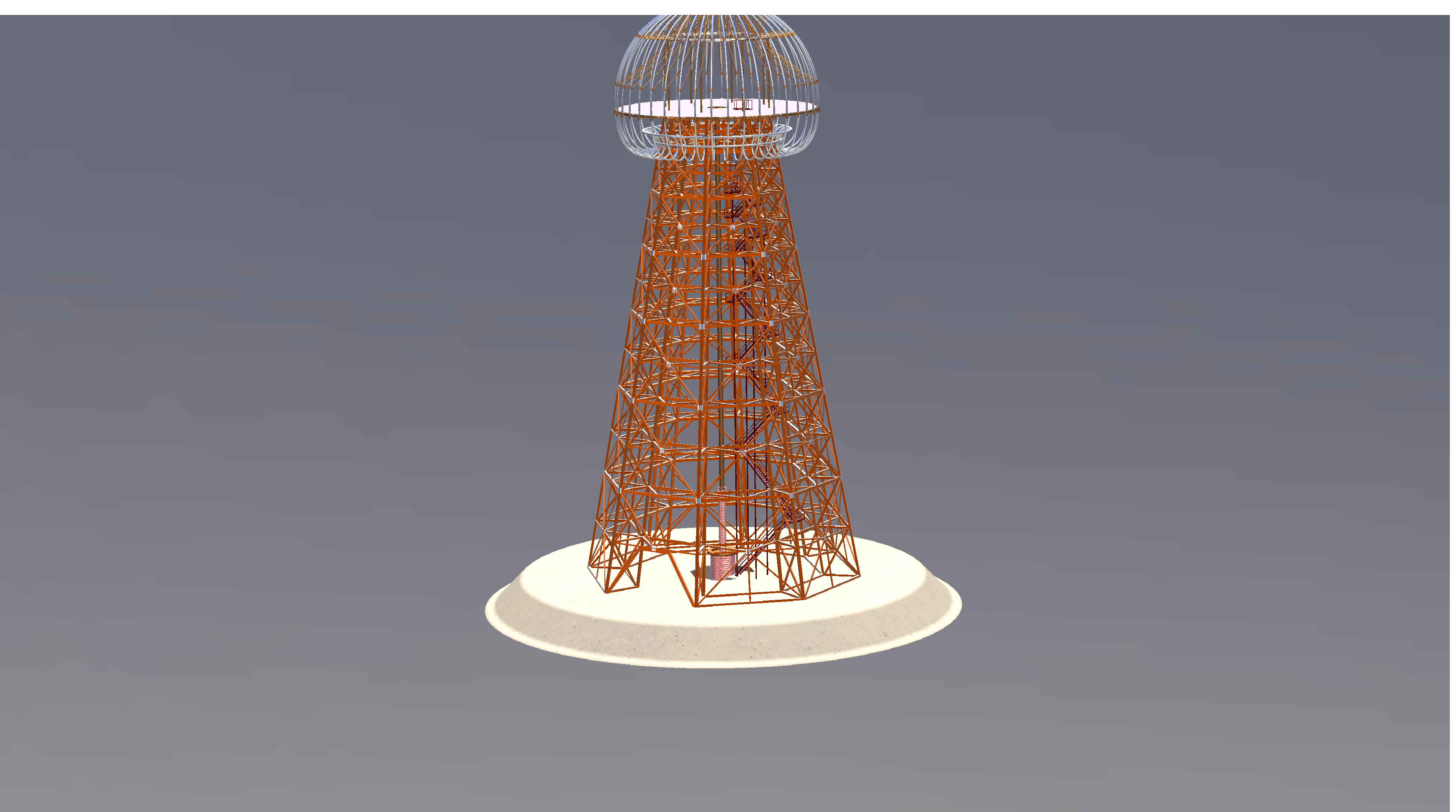

10	SW2012_teslaTower_shaded	164.74	0	2520	15.3	08/08/18 14:38:05
11	SW2012_teslaTower_ShadedEdges	162.75	0	2520	15.48	08/08/18 14:38:22

Screen Grabs Folder
Text Log File
XML Result File
