Composite Scores
SPECapc for Solidworks measures how long it takes for your system to render and manipulate a variety of scenes. Each test represents a usage model, and each composite score below is based on a weighted geometric mean of all scenes and rendering modes.
Composites
| Composite | Resolution | Score - No AA |
|---|---|---|
| CPU Composite Score | 1920x1080 | 3.29 |
| GPU Composite Score | 1920x1080 | 5.98 |
| SubTests | Resolution | Score - No AA |
| GPU Shaded | 1920x1080 | 3.64 |
| GPU Shaded With Edges | 1920x1080 | 5.09 |
| GPU Hidden Line Removal | 1920x1080 | 8.55 |
| GPU Shaded RealView | 1920x1080 | 7.70 |
| GPU Shaded RealView With Edges | 1920x1080 | 9.88 |
| GPU Drawing | 1920x1080 | 2.92 |
| CPU Raytrace | 1920x1080 | 7.84 |
| CPU Rebuild | 1920x1080 | 2.59 |
| CPU Convert | 1920x1080 | 2.55 |
| CPU Simulate | 1920x1080 | 1.92 |
| CPU Mass Properties | 1920x1080 | 2.61 |
| CPU Boolean | 1920x1080 | 2.29 |
Benchmark Information
| Benchmark | ||
|---|---|---|
| Name | SPECapc for Solidworks 2024 Benchmark | |
| Version | 2024.1.13 | |
| Application Name | SOLIDWORKS 2024 | |
| Application Version | SP1.0 | |
| Submission | ||
| Test Date | Tue Nov 05 2024 15:58:59 GMT-0600 (Central Standard Time) | |
| Submission Candidate | Yes | |
| Submitting Company | BOXX Technologies | |
| Comments | Power Scheme: Balanced; Power Mode: Best Performance; Vsync disabled; graphics driver: https://www.nvidia.com/en-us/drivers/details/233142/ | |
System Configuration
| Workstation | ||
|---|---|---|
| Manufacturer | BOXX Technologies | |
| Model | APEXX A3_06 | |
| BIOS Name | 3.10 | |
| Manufacturer | American Megatrends International, LLC. | |
| Serial Number | Default string | |
| Version | ALASKA - 1 | |
| SMBIOS Version | 3.10 | |
| OS Name | Microsoft Windows 11 Pro for Workstations | |
| Build Number | 26100 | |
| Graphics | ||
| Name | NVIDIA RTX 5000 Ada Generation | |
| Driver Version | 31.0.15.5324 | |
| Screen Resolution | 3440 x 1440 | |
| Name | AMD Radeon(TM) Graphics | |
| Driver Version | 32.0.11024.2 | |
| Screen Resolution | 3440 x 1440 | |
| Screen Scaling | 100% | |
| Processor | ||
| Name | AMD Ryzen 9 9950X 16-Core Processor | |
| Address Width | 64-bit | |
| Nominal Clock Speed | 4300 MHz | |
| Number Of Cores | 16 | |
| Number Of Logical Processors | 32 | |
| Memory | ||
| DIMM Name | Physical Memory | |
| Memory Speed | 5600 MHz | |
| Memory Capacity | 48 GB | |
| DIMM Name | Physical Memory | |
| Memory Speed | 5600 MHz | |
| Memory Capacity | 48 GB | |
| DIMM Name | Physical Memory | |
| Memory Speed | 5600 MHz | |
| Memory Capacity | 48 GB | |
| DIMM Name | Physical Memory | |
| Memory Speed | 5600 MHz | |
| Memory Capacity | 48 GB | |
| Disk Drives | ||
| Drive Model | CT2000T705SSD3 | |
| Drive Capacity | 1.82 GB | |
| Display | ||
| Generic PnP Monitor | 3440 x 1440 | |
| Default Monitor | 3440 x 1440 | |
Test List
The table below lists the subtests used to compute the composite results shown under the SCORES tab. The TestType column indicates which composite the test contribues to.
Tests
| TestType | Name | Time | Weight |
|---|---|---|---|
| Shaded |  Voiture assomblee | 1.1 | 1 |

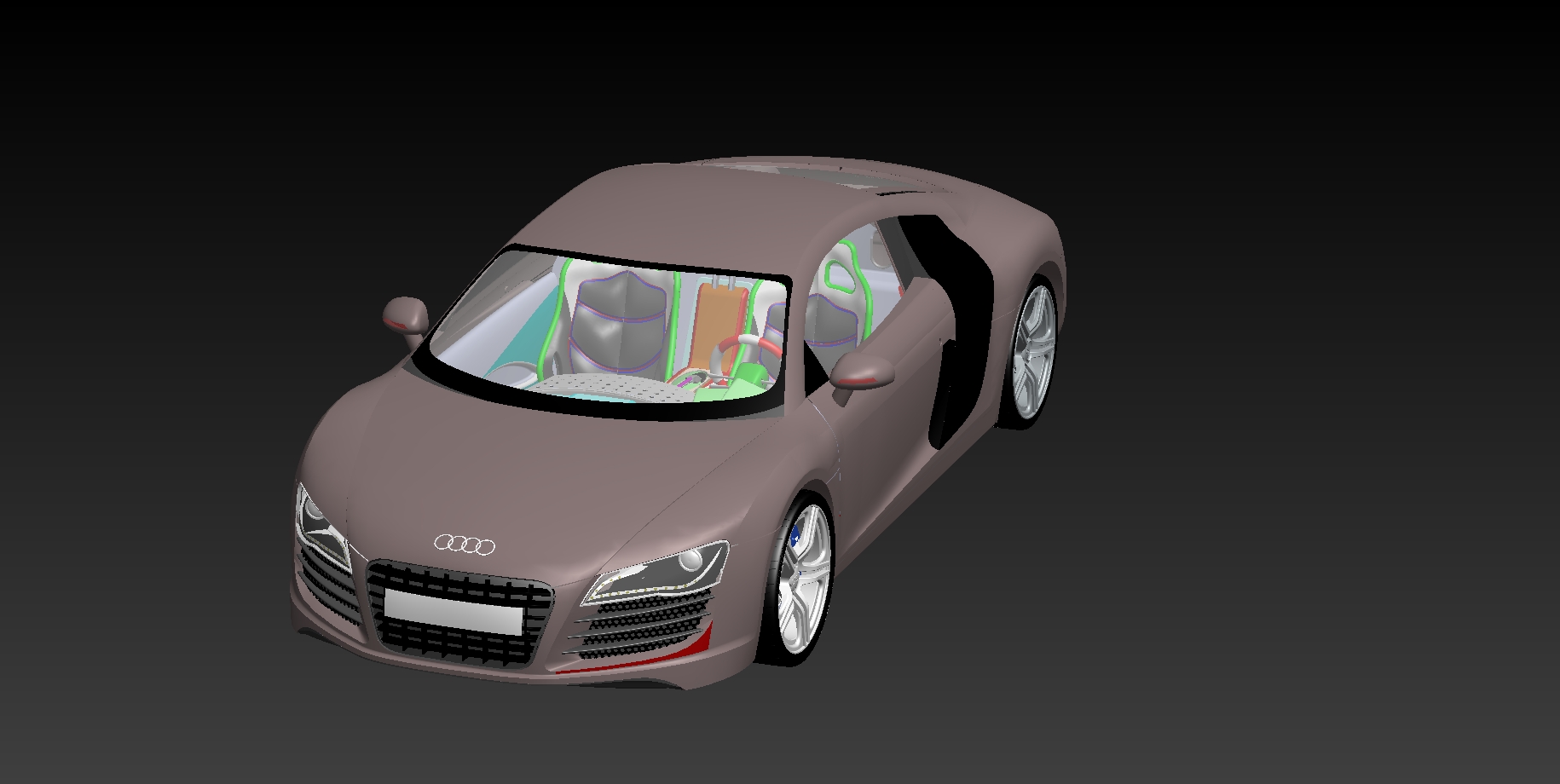

| Shaded |  Audi R8 S | 1.06 | 1 |

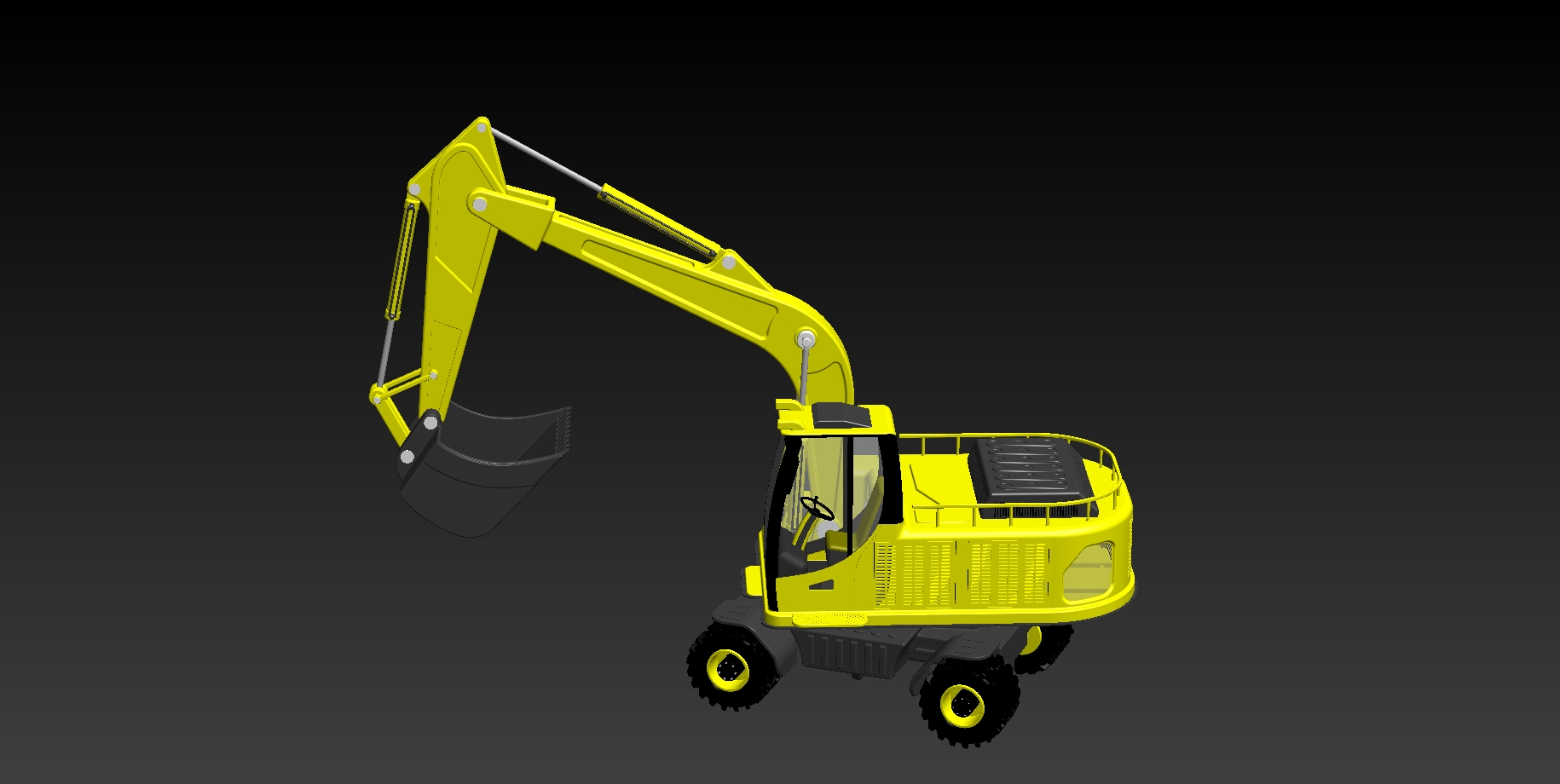

| Shaded |  Digger | 0.92 | 1 |

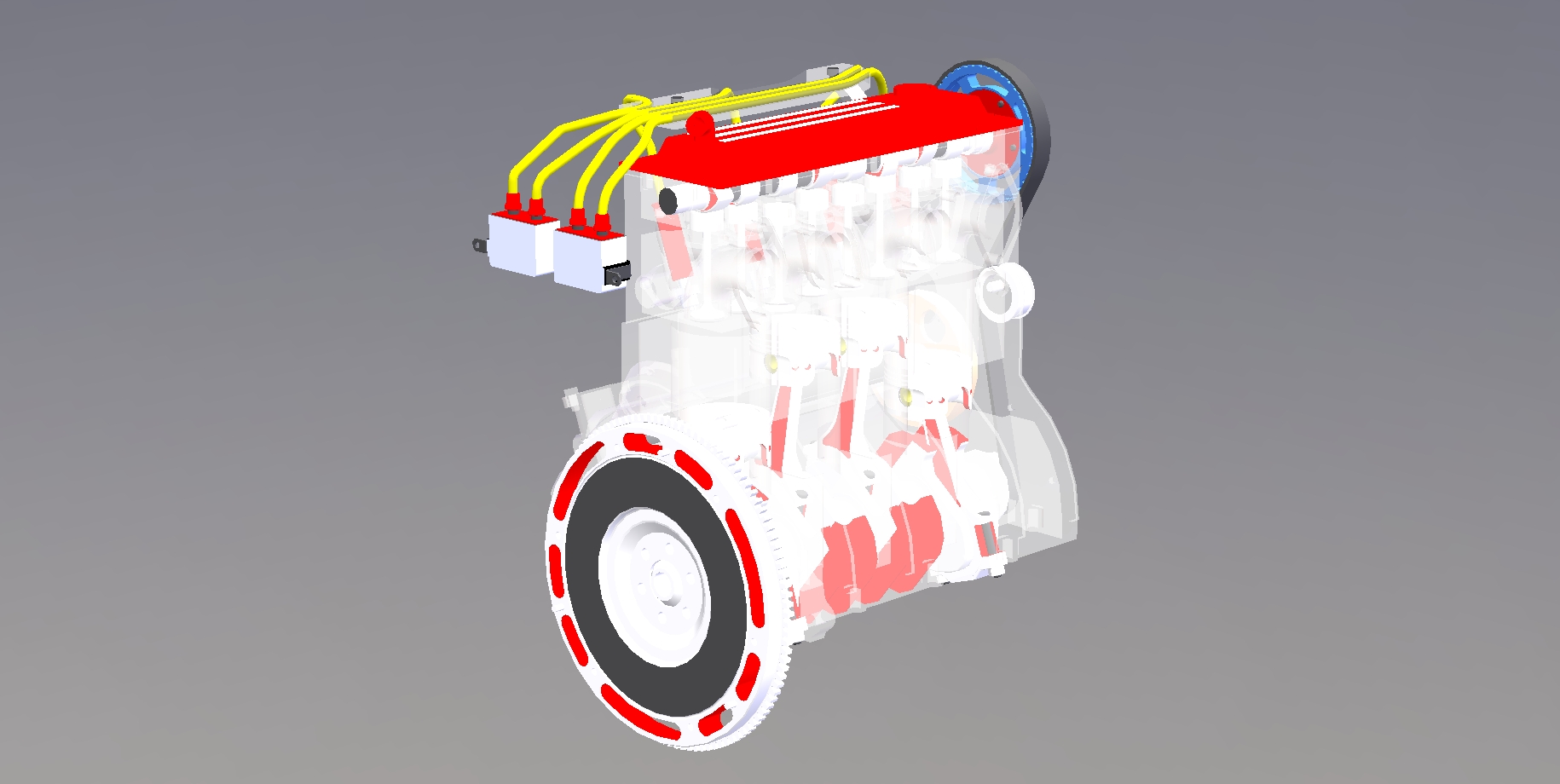

| Shaded |  Montagem1 | 0.94 | 1 |
| Shaded |  tower Assembly 02 | 0.95 | 1 |

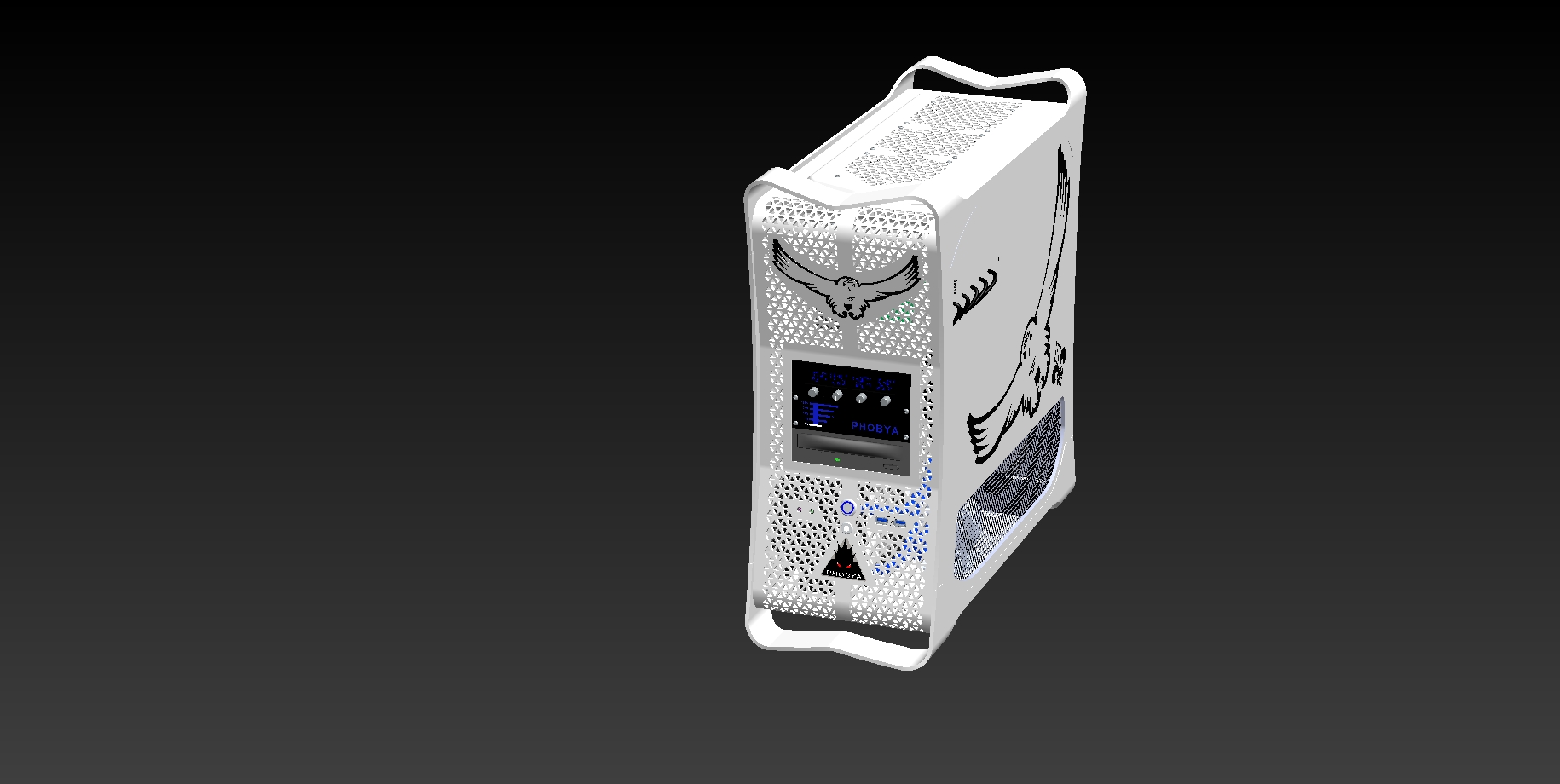

| Shaded |  GrCadBlack_Owl_S2 | 1.18 | 1 |
| Shaded |  main | 0.94 | 1 |

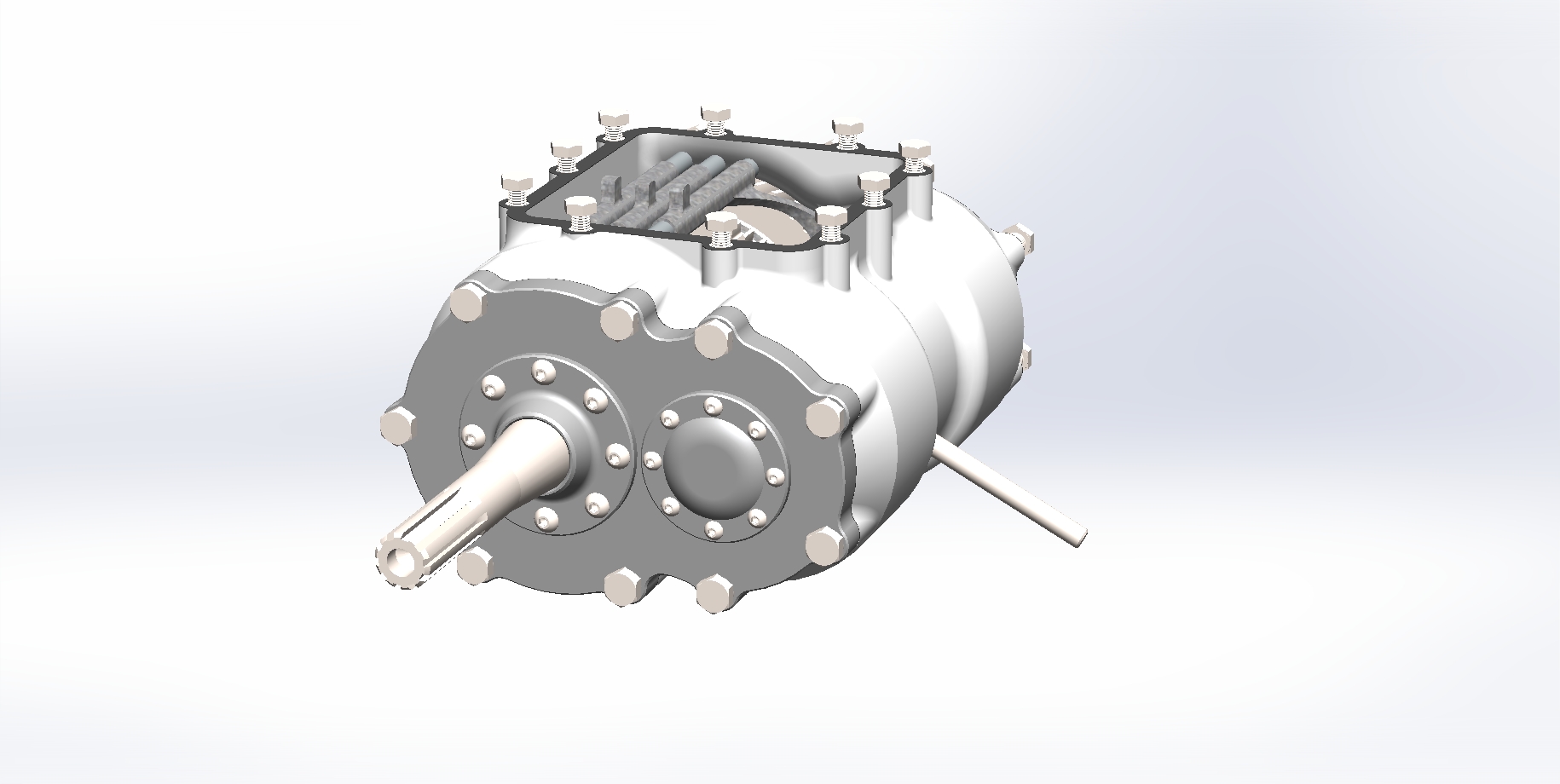

| Shaded |  menjac sklop | 0.95 | 1 |
| Shaded |  Supercar | 1.05 | 1 |
| Shaded |  CT_TA | 0.51 | 1 |

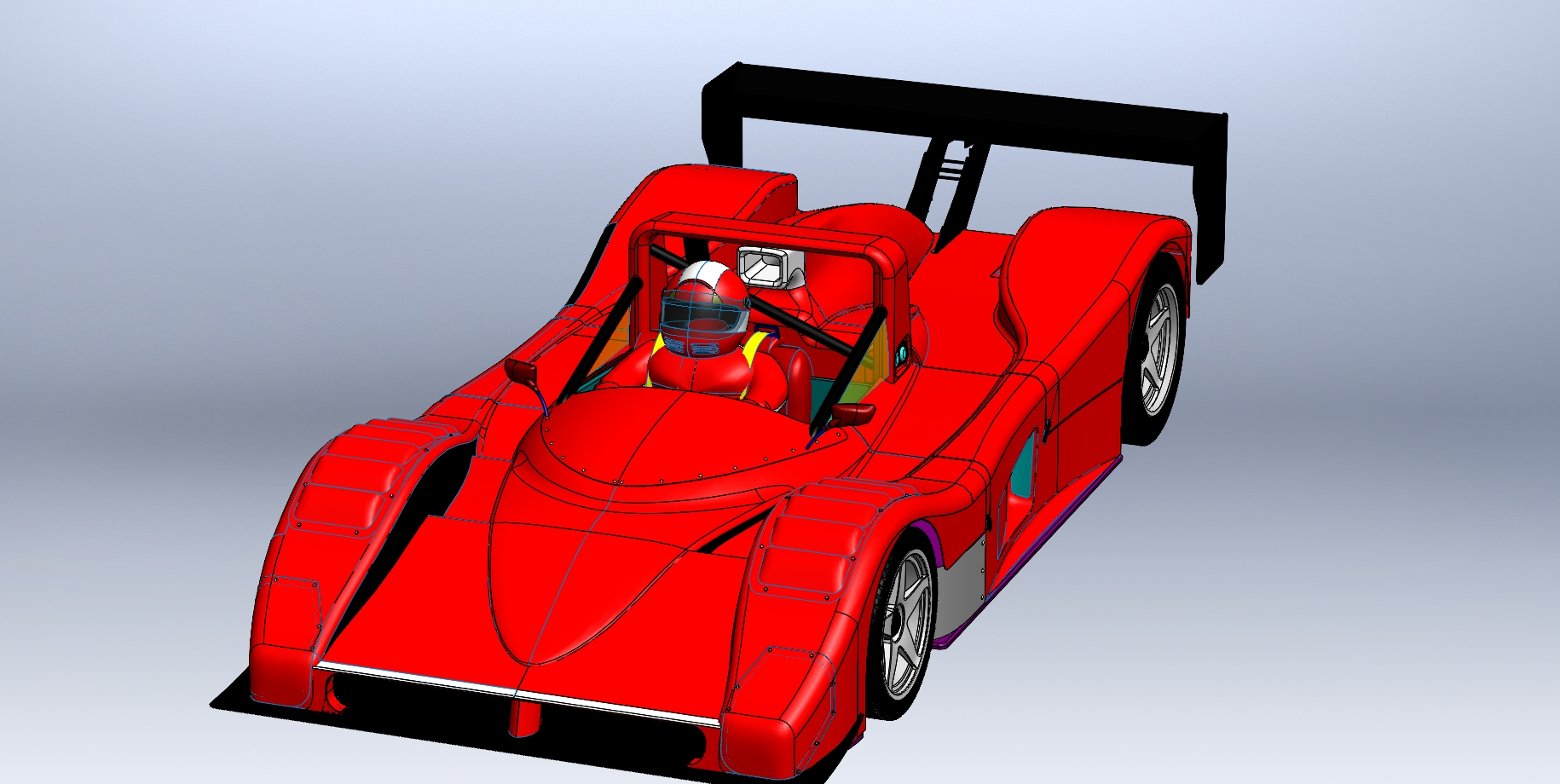

| ShadedWithEdges |  Voiture assomblee | 1.11 | 1 |
| ShadedWithEdges |  Audi R8 S | 1.07 | 1 |

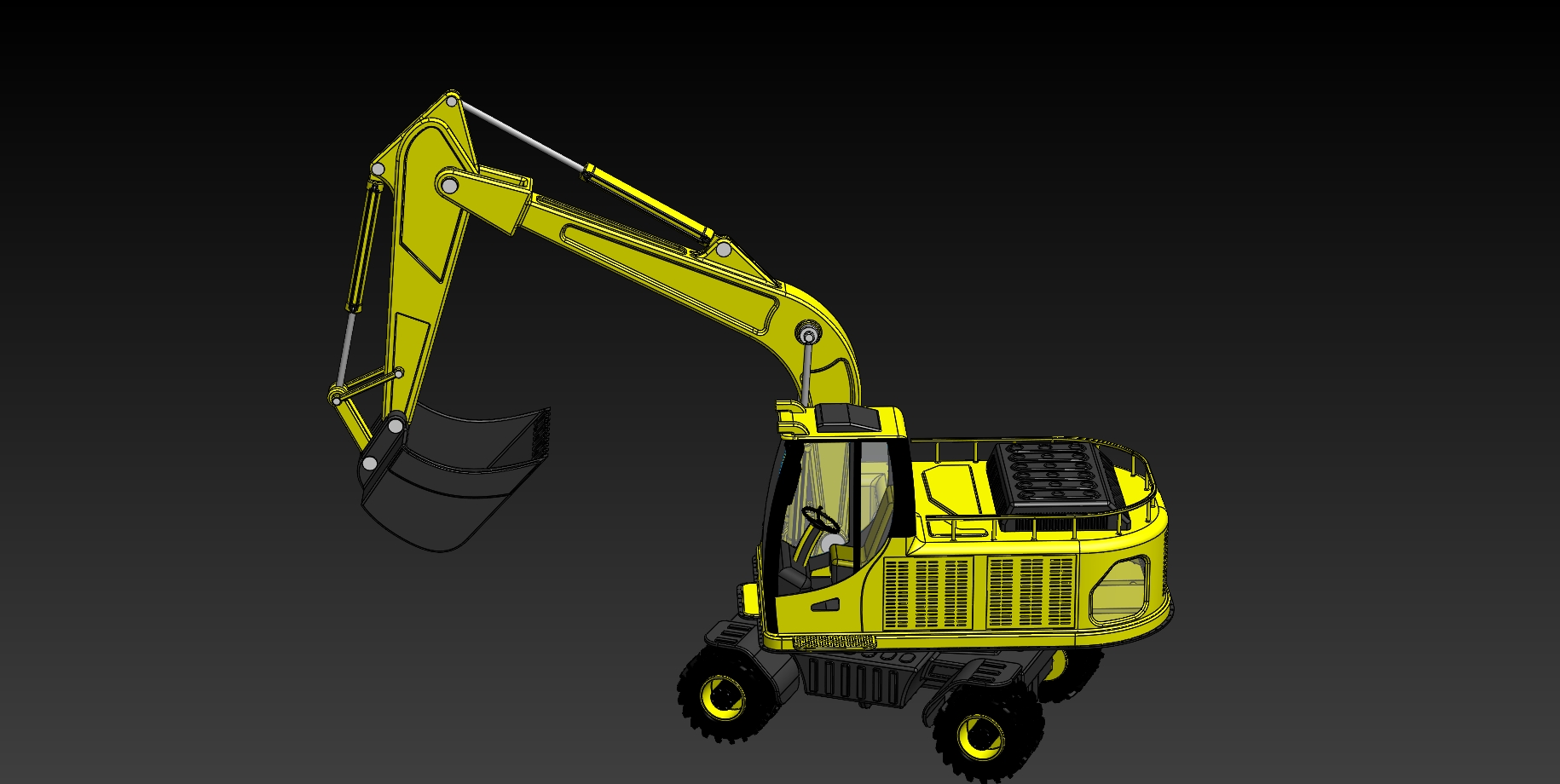

| ShadedWithEdges |  Digger | 0.92 | 1 |

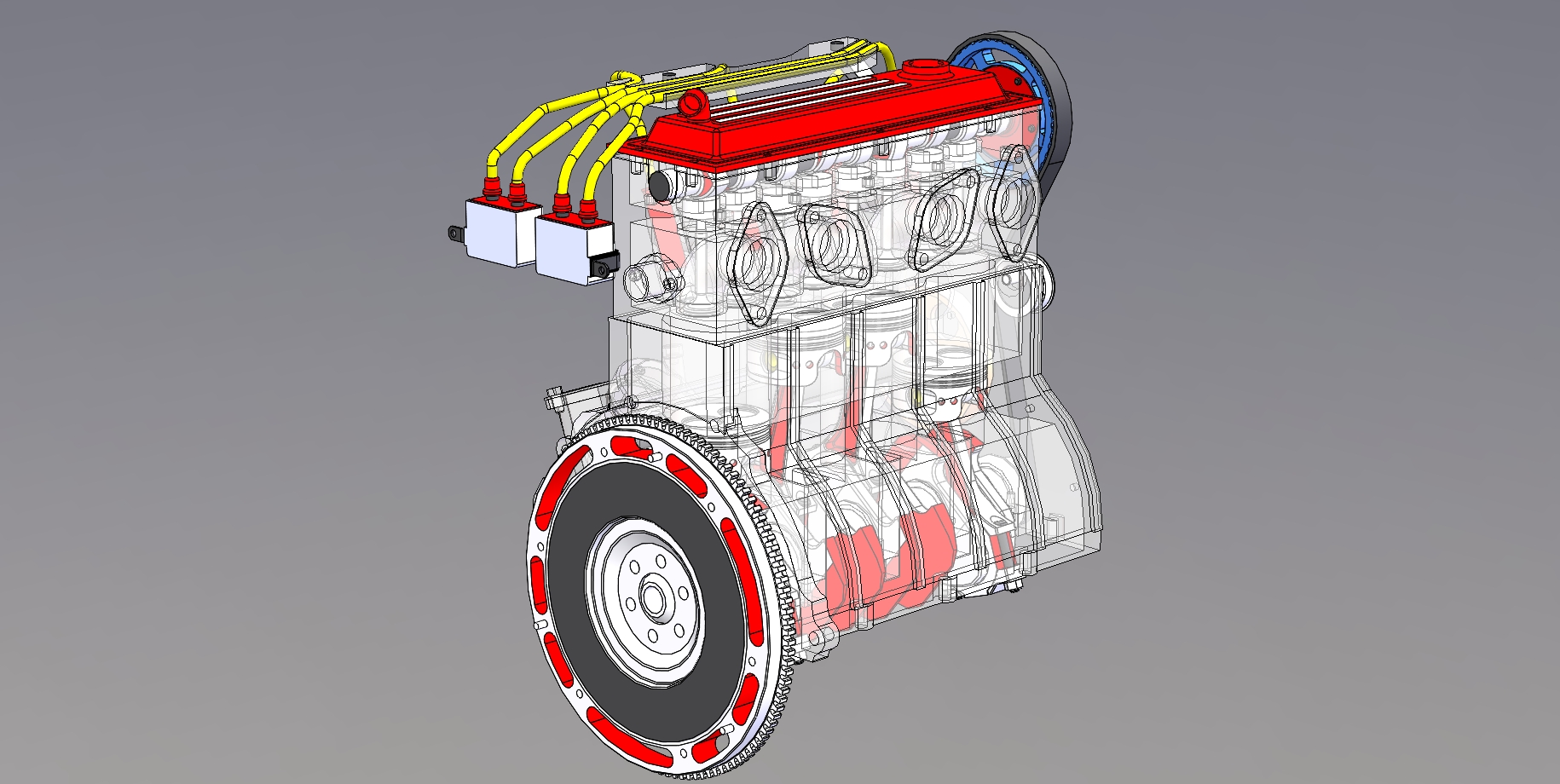

| ShadedWithEdges |  Montagem1 | 0.91 | 1 |
| ShadedWithEdges |  tower Assembly 02 | 0.94 | 1 |
| ShadedWithEdges |  GrCadBlack_Owl_S2 | 1.18 | 1 |

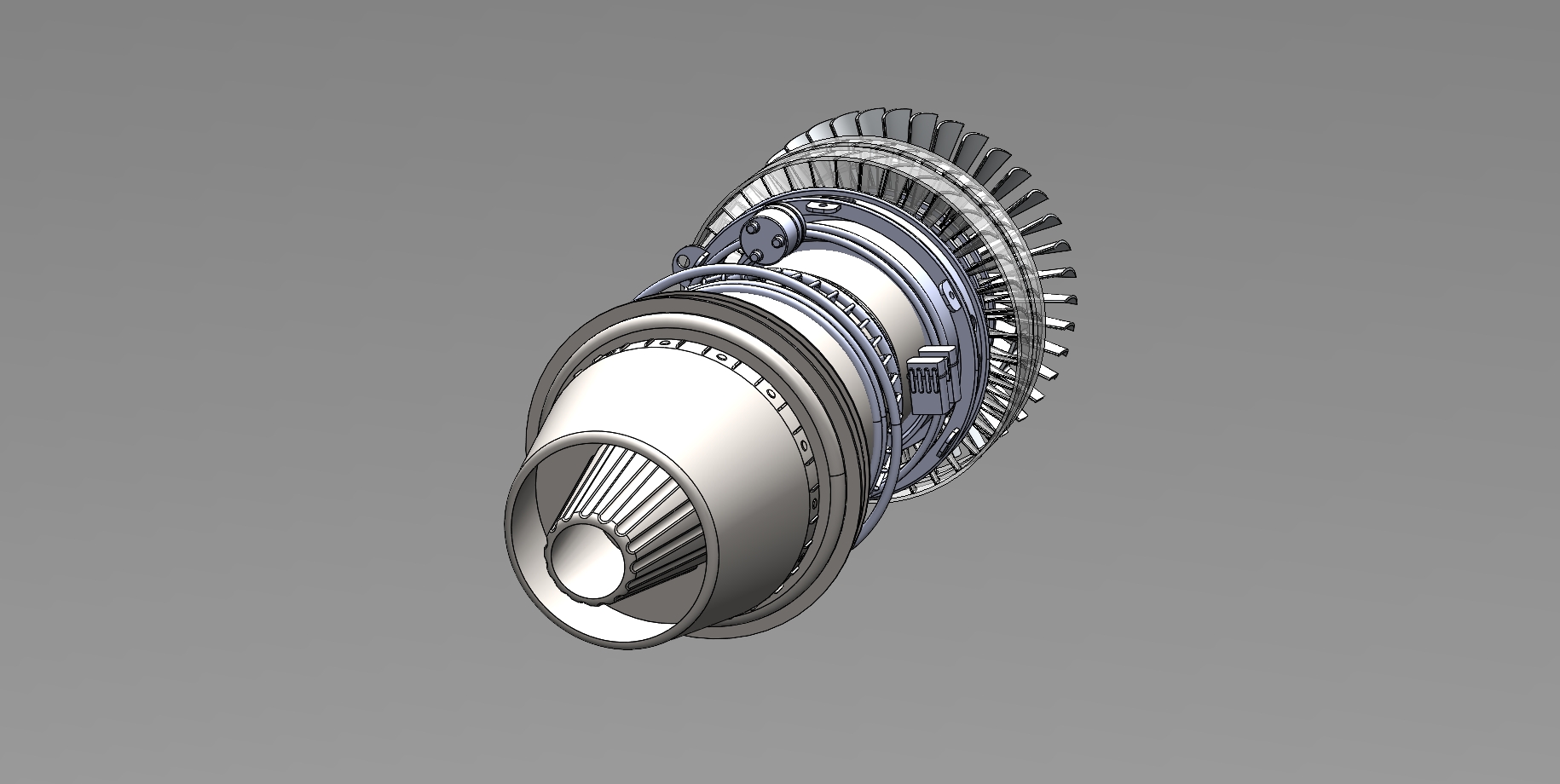

| ShadedWithEdges |  main | 0.88 | 1 |
| ShadedWithEdges |  menjac sklop | 0.94 | 1 |

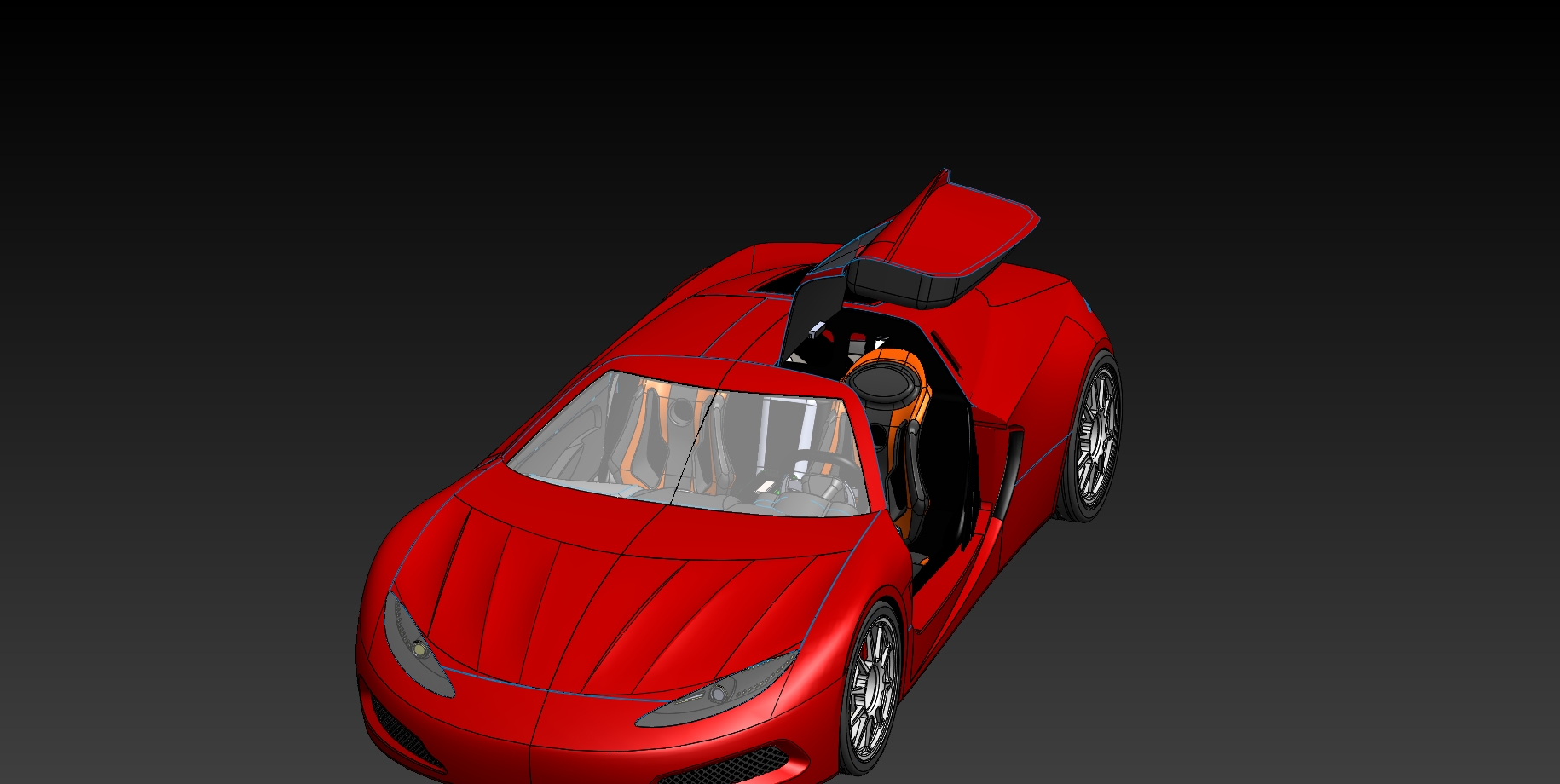

| ShadedWithEdges |  Supercar | 1.06 | 1 |
| ShadedWithEdges |  CT_TA | 1.01 | 1 |
| Shaded_RealView_Shadow_AO |  Voiture assomblee | 1.12 | 1 |
| Shaded_RealView_Shadow_AO |  Audi R8 S | 1.08 | 1 |

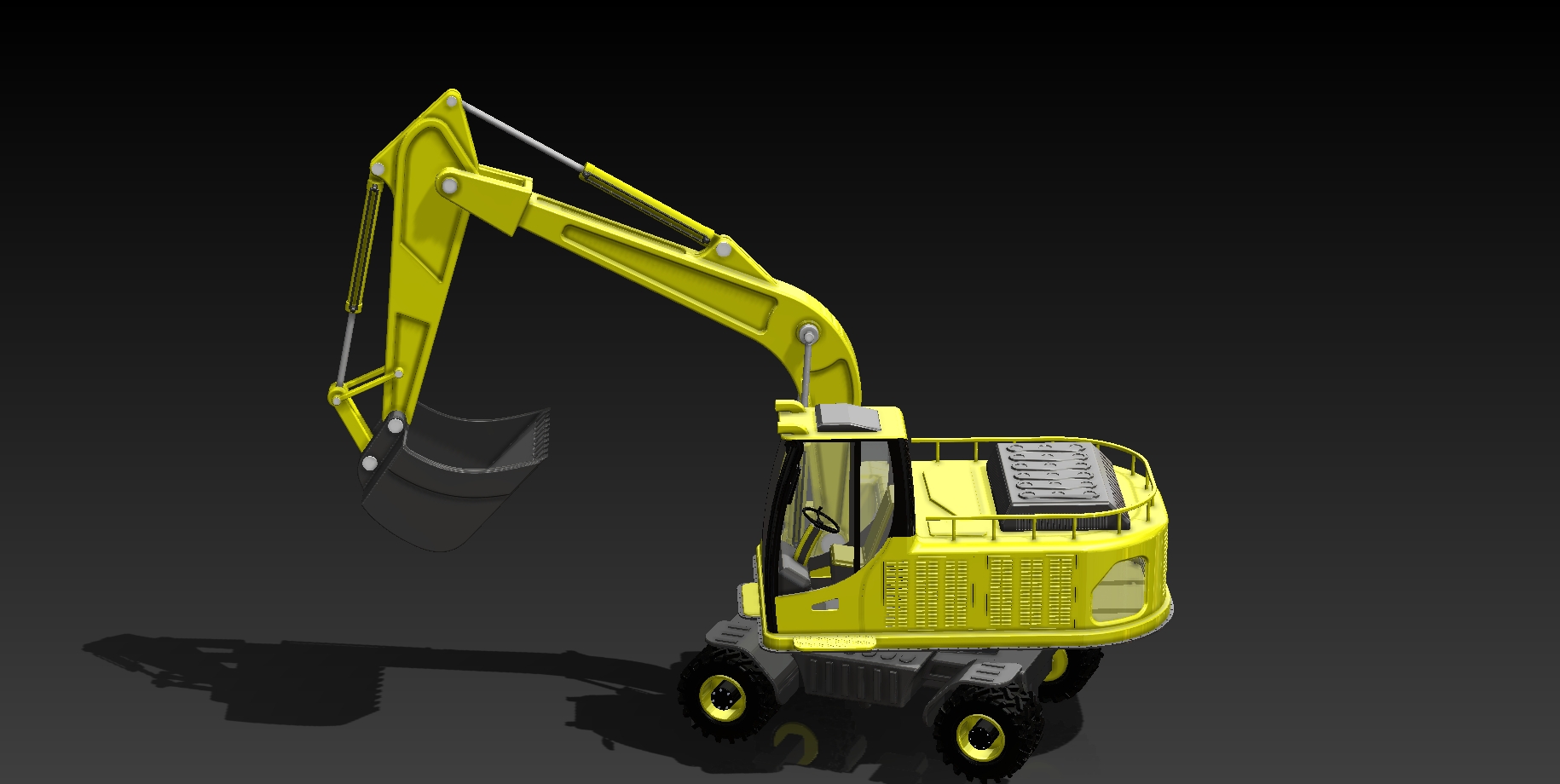

| Shaded_RealView_Shadow_AO |  Digger | 0.97 | 1 |
| Shaded_RealView_Shadow_AO |  Montagem1 | 0.95 | 1 |
| Shaded_RealView_Shadow_AO |  tower Assembly 02 | 0.95 | 1 |

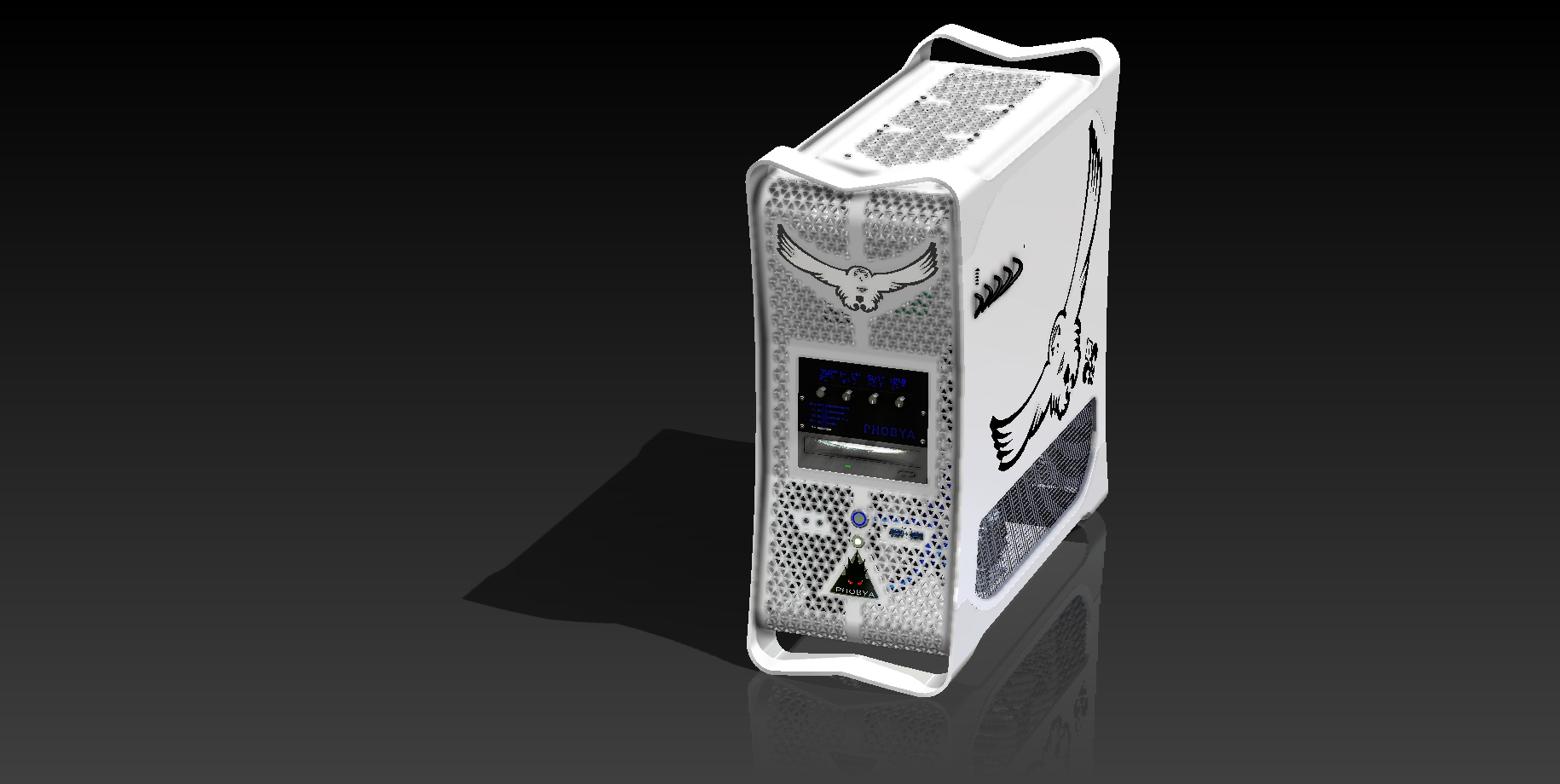

| Shaded_RealView_Shadow_AO |  GrCadBlack_Owl_S2 | 1.19 | 1 |
| Shaded_RealView_Shadow_AO |  main | 0.94 | 1 |
| Shaded_RealView_Shadow_AO |  menjac sklop | 0.97 | 1 |
| Shaded_RealView_Shadow_AO |  Supercar | 1.05 | 1 |

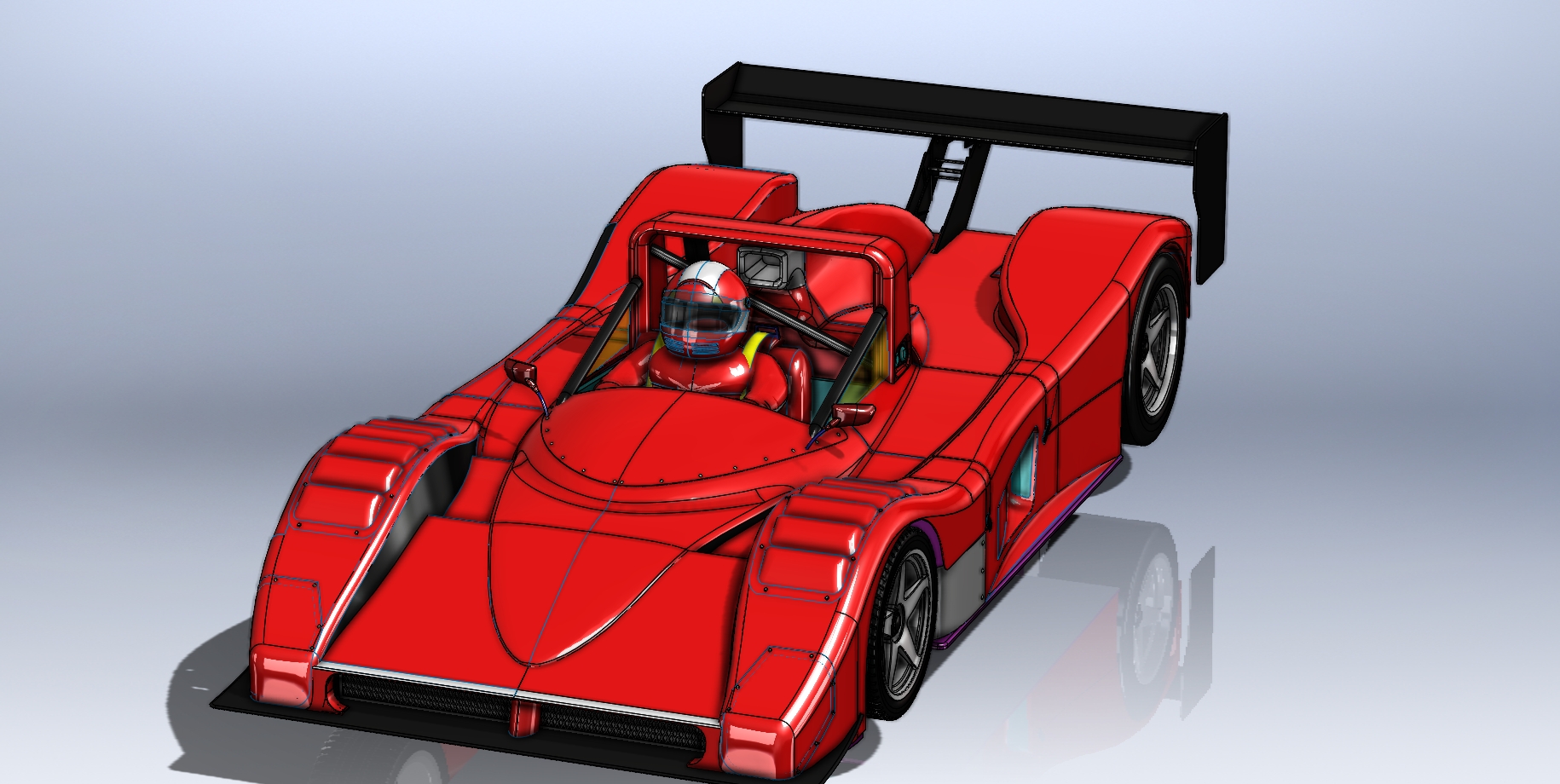

| ShadedWithEdges_RealView_Shadow_AO |  Voiture assomblee | 1.14 | 1 |

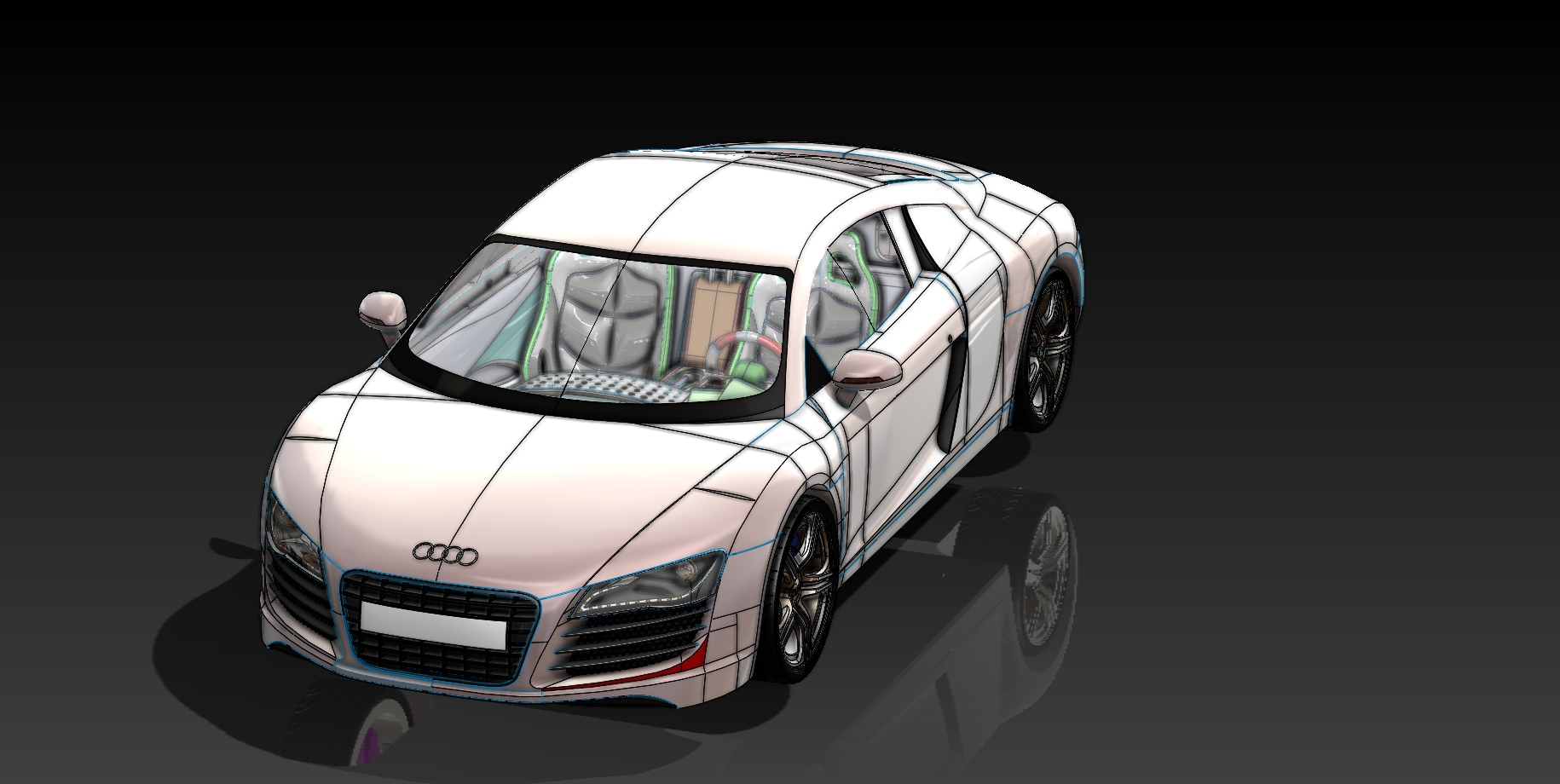

| ShadedWithEdges_RealView_Shadow_AO |  Audi R8 S | 1.08 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  Digger | 0.96 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  Montagem1 | 0.95 | 1 |

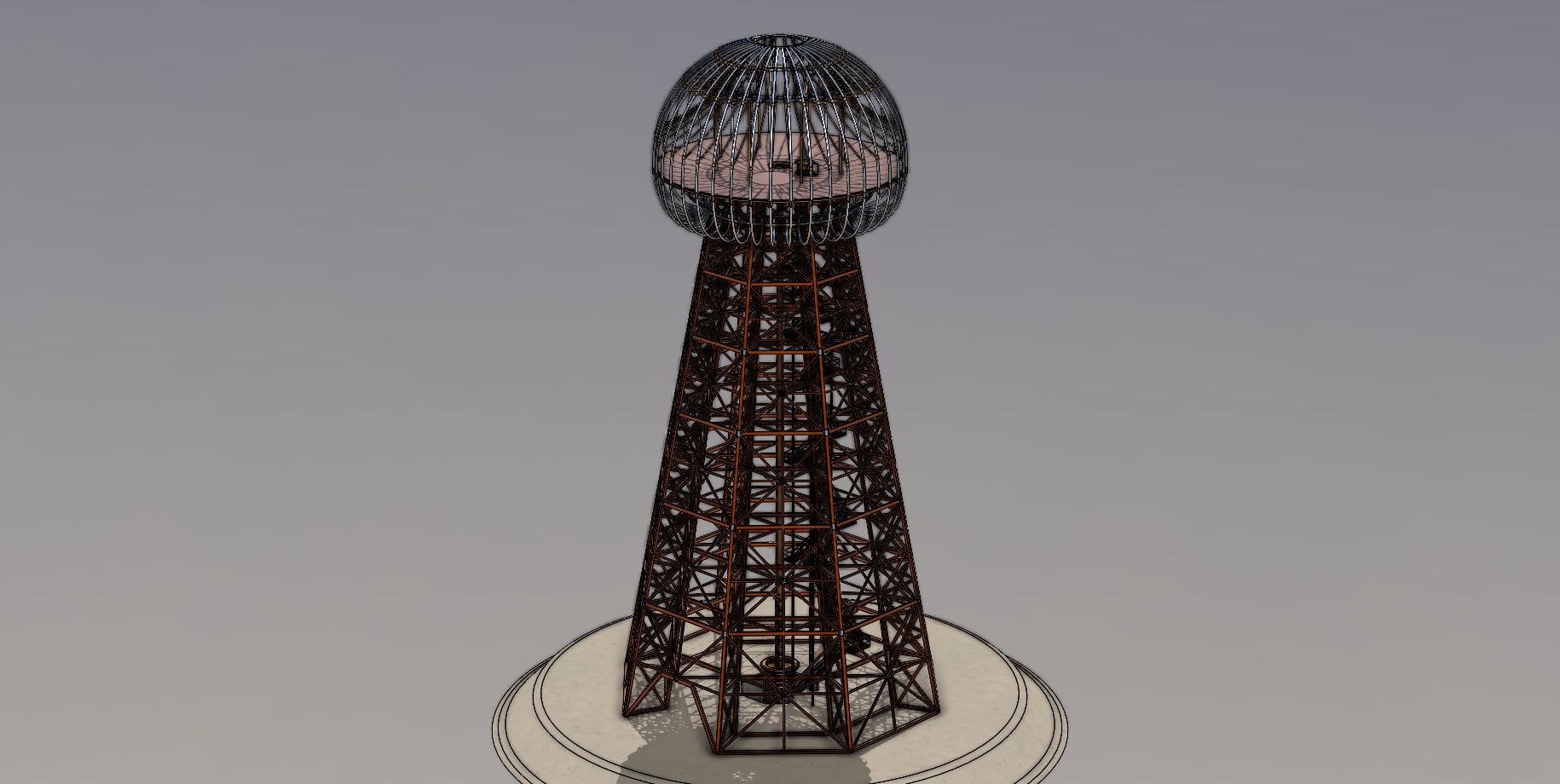

| ShadedWithEdges_RealView_Shadow_AO |  tower Assembly 02 | 0.95 | 1 |

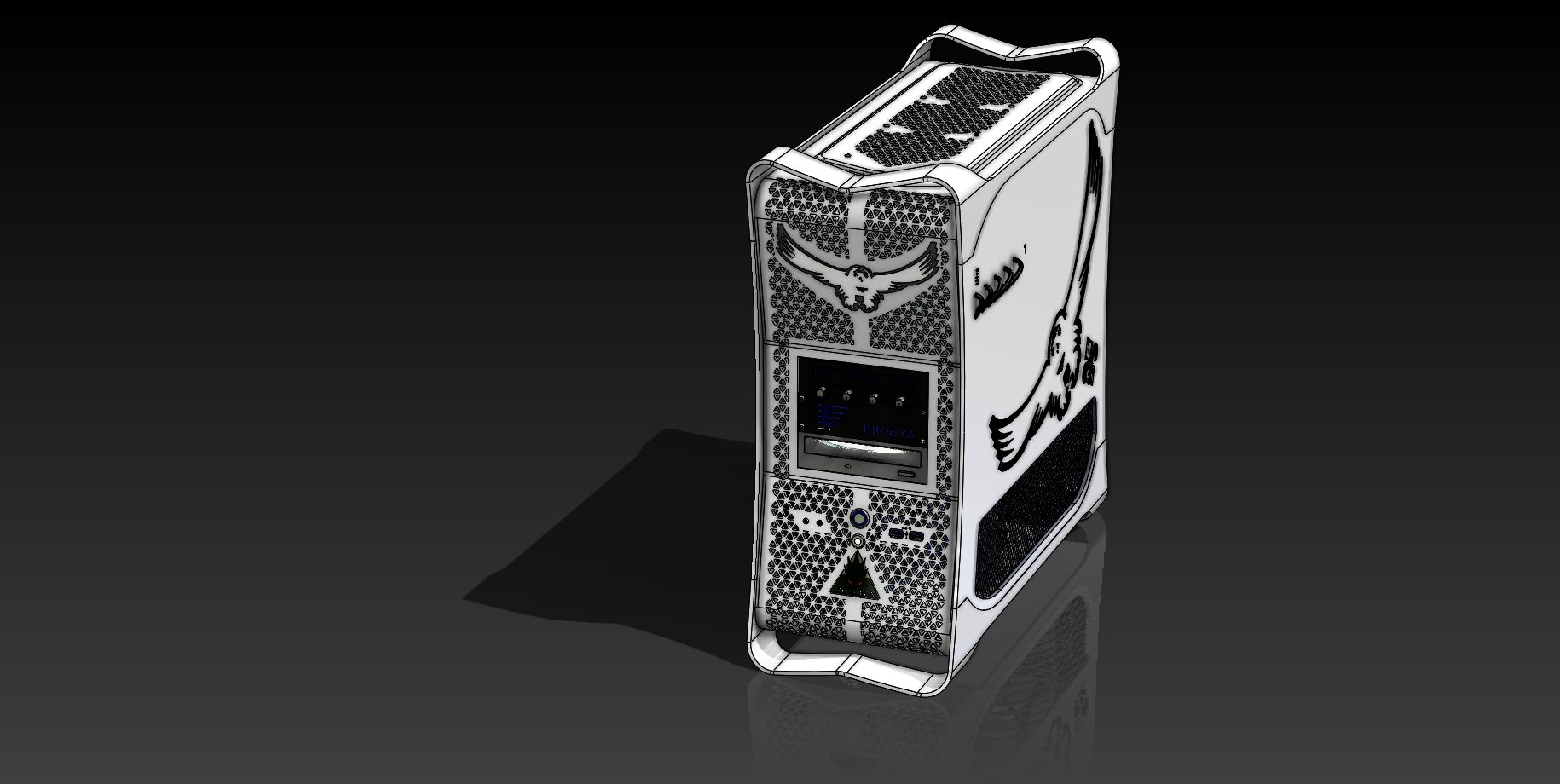

| ShadedWithEdges_RealView_Shadow_AO |  GrCadBlack_Owl_S2 | 1.18 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  main | 0.91 | 1 |

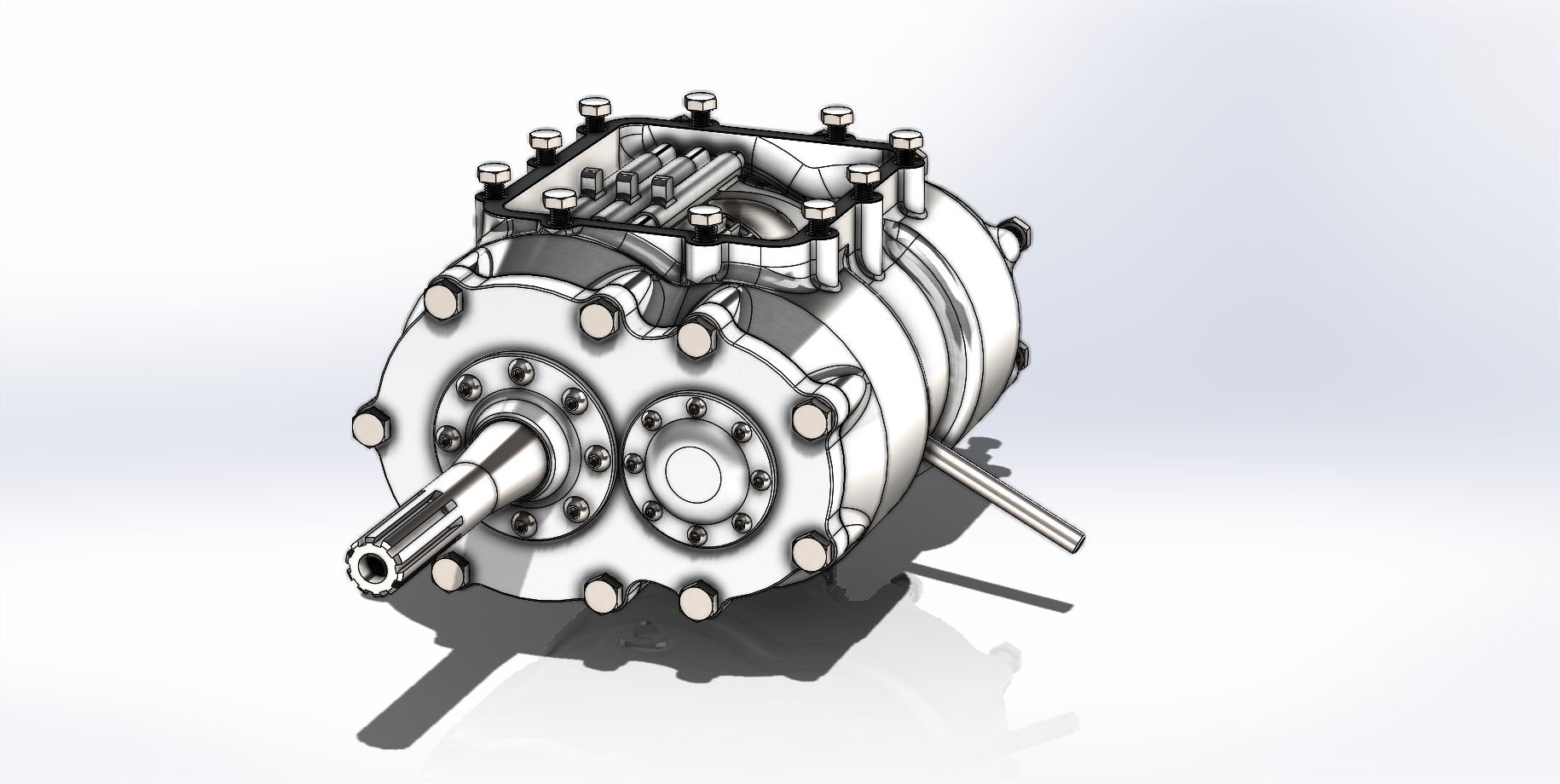

| ShadedWithEdges_RealView_Shadow_AO |  menjac sklop | 0.97 | 1 |
| ShadedWithEdges_RealView_Shadow_AO |  Supercar | 1.05 | 1 |

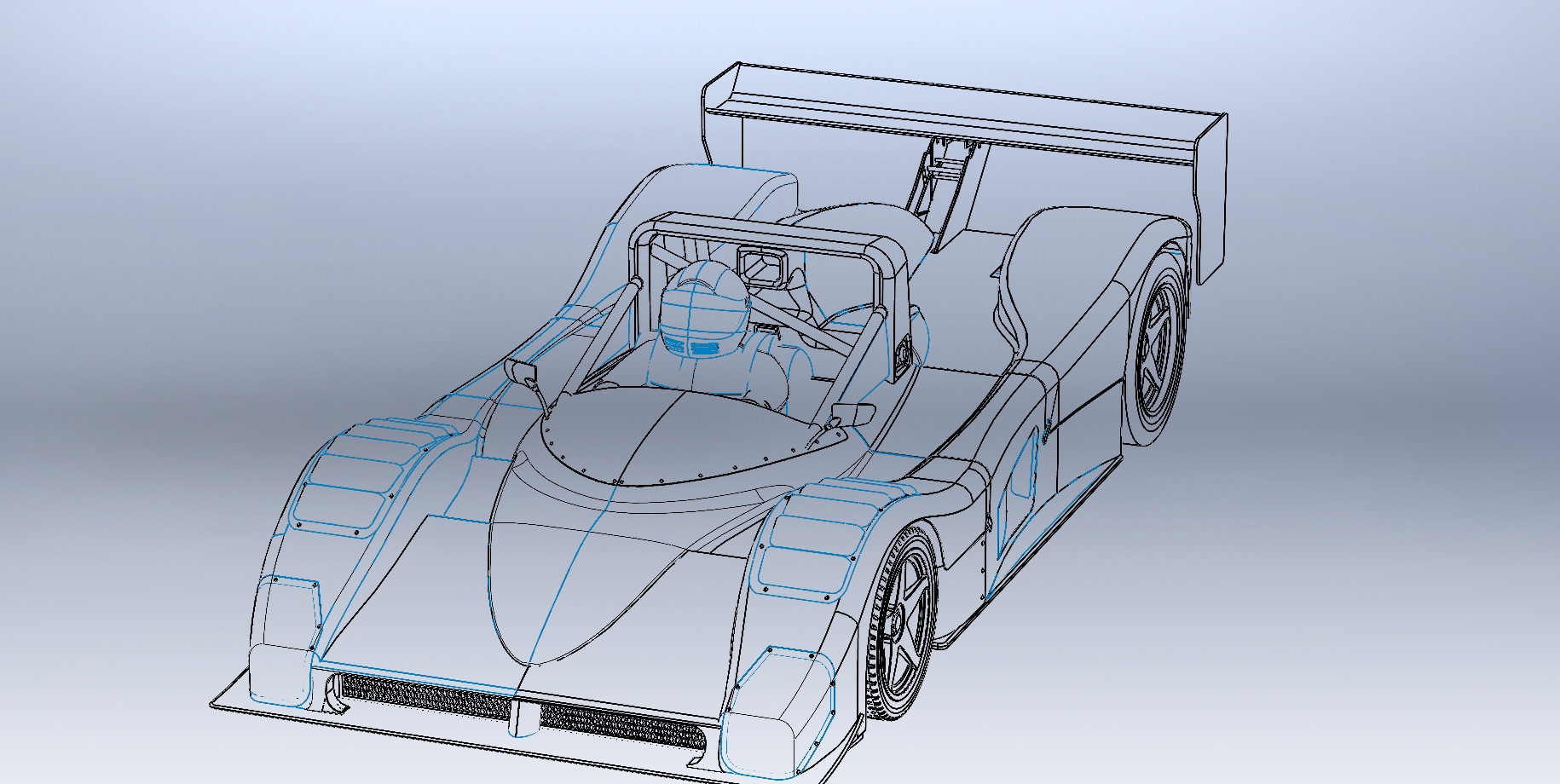

| HiddenLinesRemoved |  Voiture assomblee | 1.09 | 1 |
| HiddenLinesRemoved |  Audi R8 S | 1 | 1 |

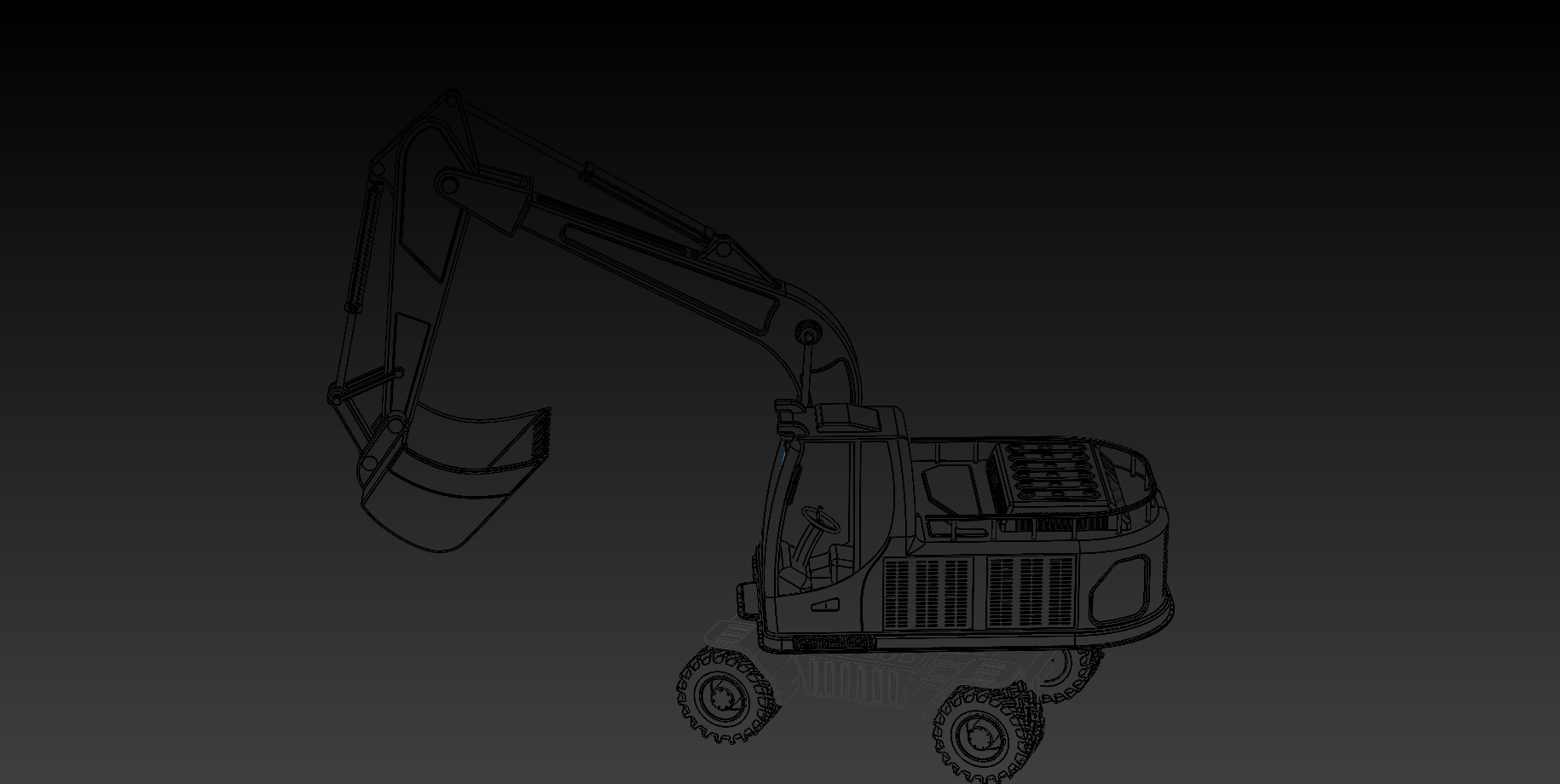

| HiddenLinesRemoved |  Digger | 0.87 | 1 |

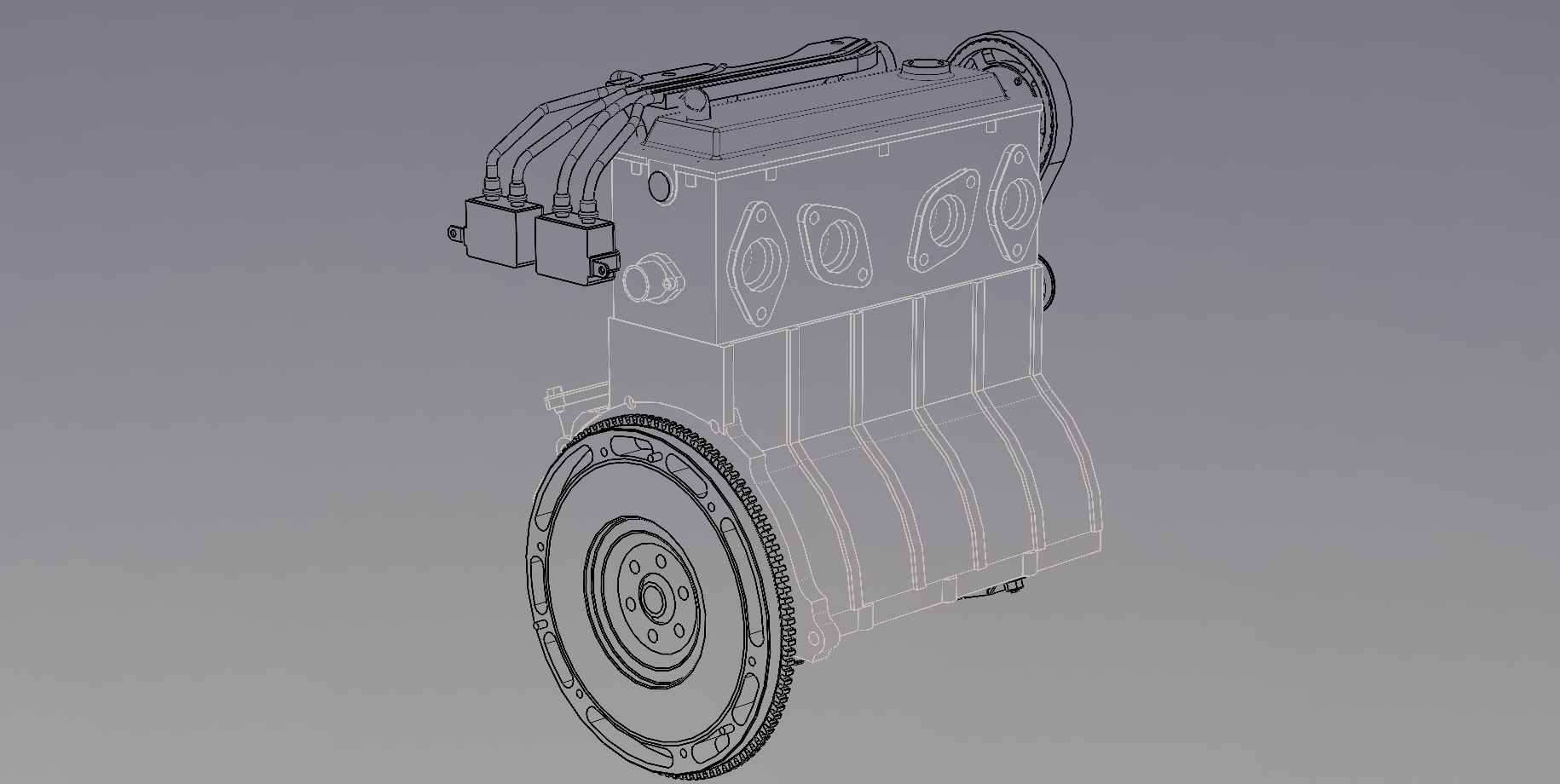

| HiddenLinesRemoved |  Montagem1 | 0.92 | 1 |
| HiddenLinesRemoved |  tower Assembly 02 | 0.9 | 1 |
| HiddenLinesRemoved |  GrCadBlack_Owl_S2 | 1.15 | 1 |

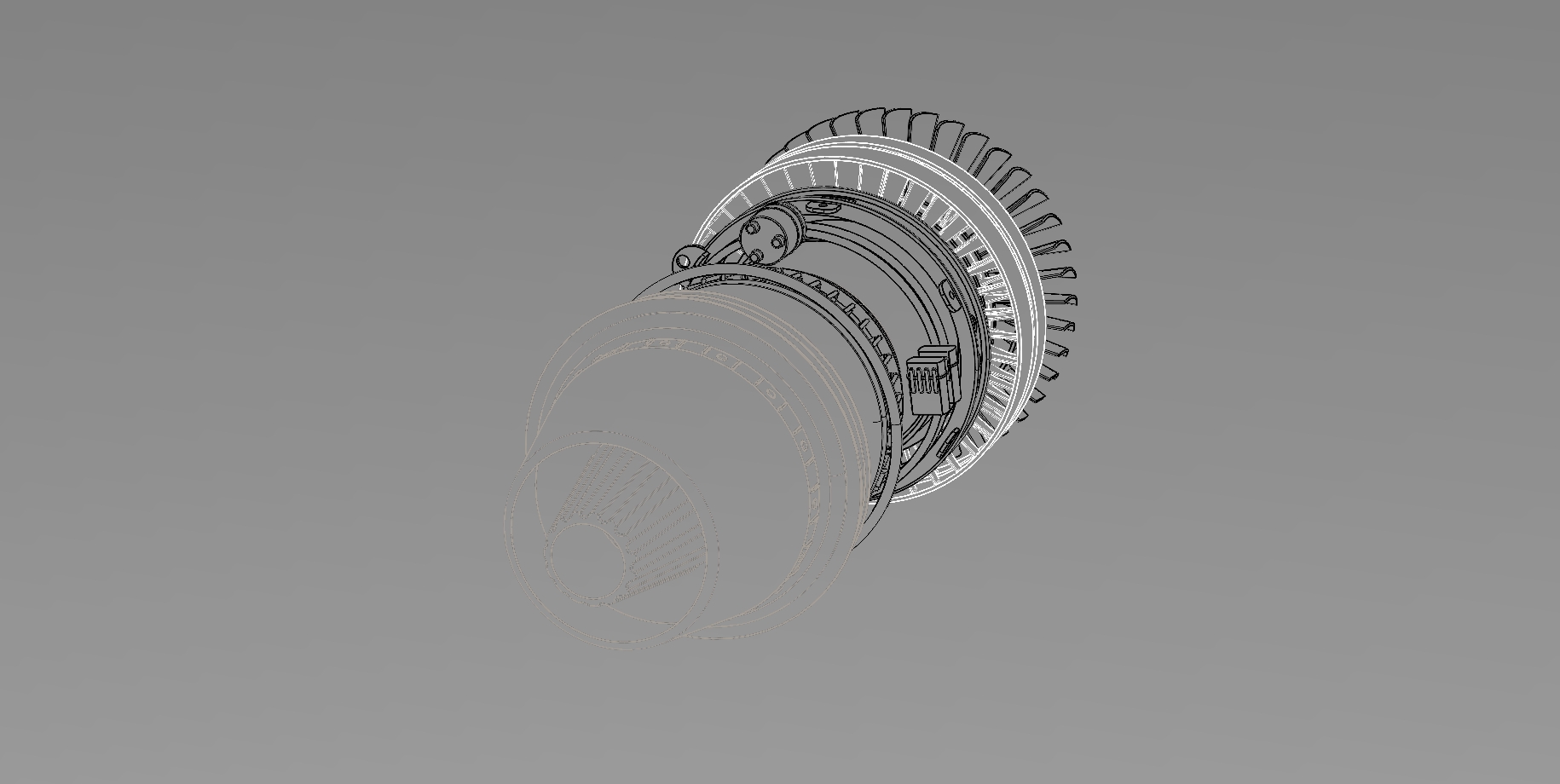

| HiddenLinesRemoved |  main | 1.56 | 1 |

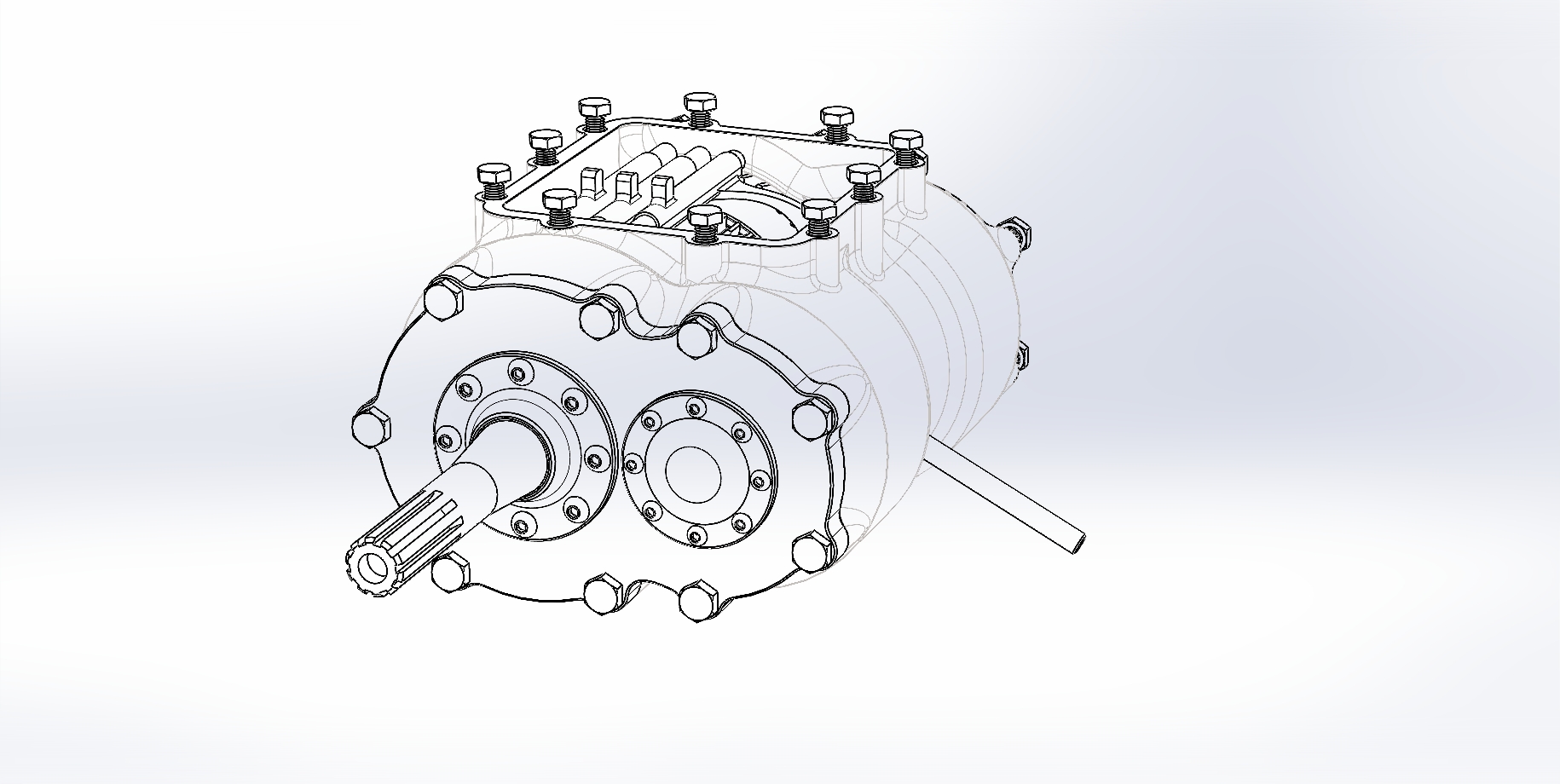

| HiddenLinesRemoved |  menjac sklop | 0.91 | 1 |
| HiddenLinesRemoved |  Supercar | 1.01 | 1 |

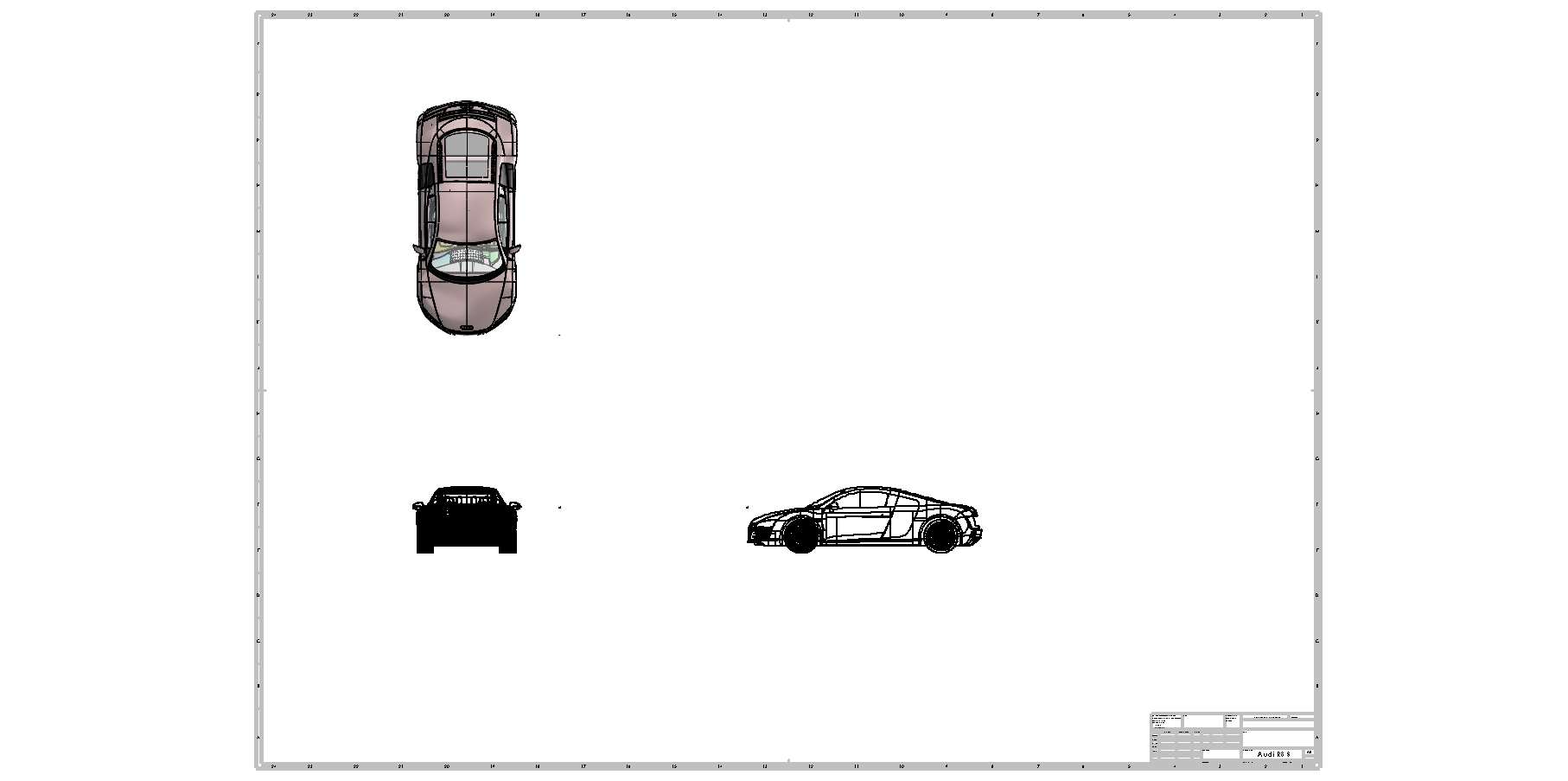

| Drawing |  Audi R8 S | 1.02 | 1 |
| Drawing |  GrCadBlack_Owl_S2 | 3.17 | 1 |
| Drawing |  main | 0.92 | 1 |
| CPU Raytrace |  Voiture assomblee | 42.21 | 1 |
| CPU Raytrace |  Audi R8 S | 60.14 | 1 |
| CPU Raytrace |  Digger | 60.79 | 1 |
| CPU Rebuild |  Voiture assomblee | 18.62 | 1 |

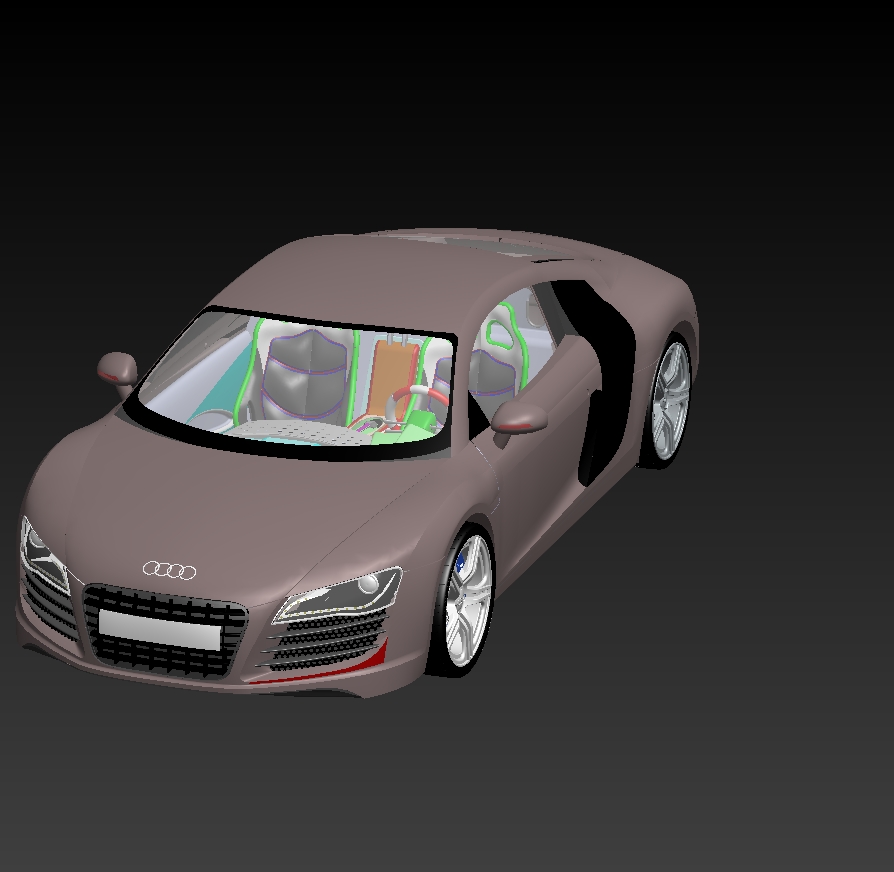

| CPU Rebuild |  Audi R8 S | 71.7 | 1 |

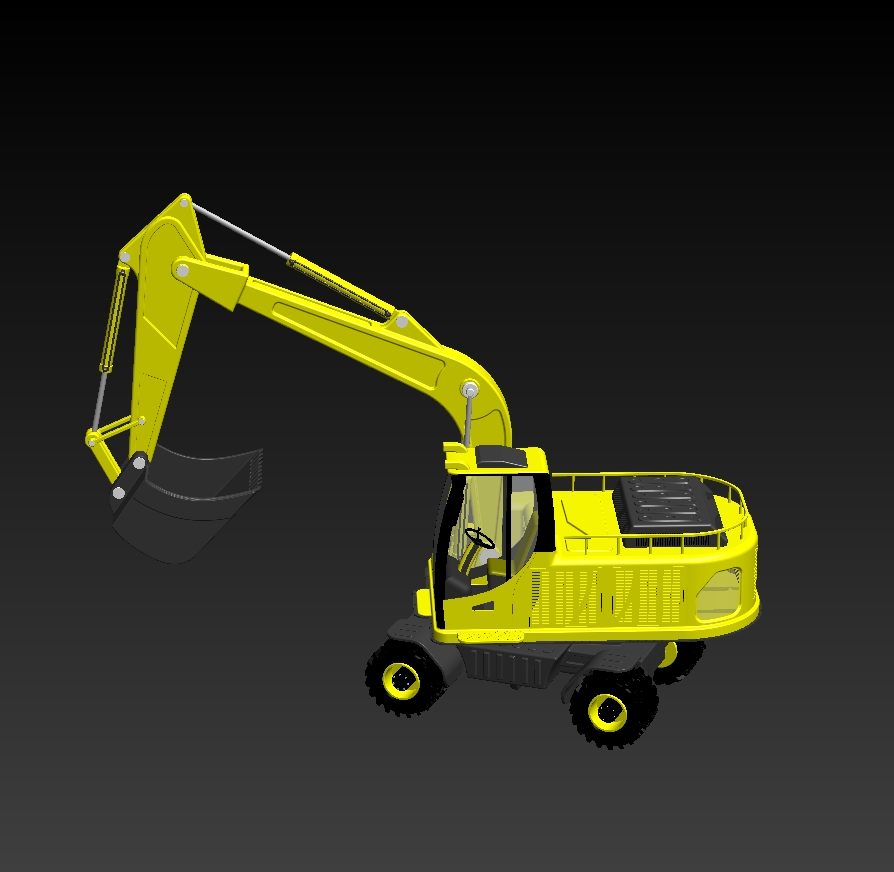

| CPU Rebuild |  Digger | 6.25 | 1 |

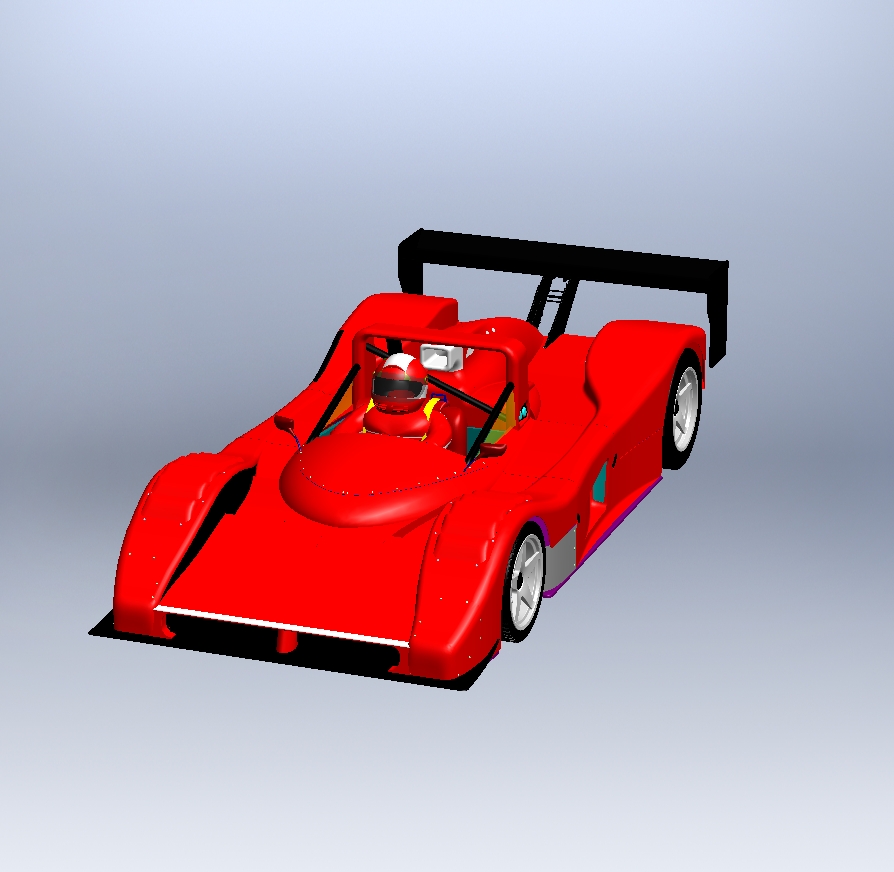

| CPU Convert |  Voiture assomblee | 43.43 | 1 |
| CPU Convert |  Audi R8 S | 59.6 | 1 |

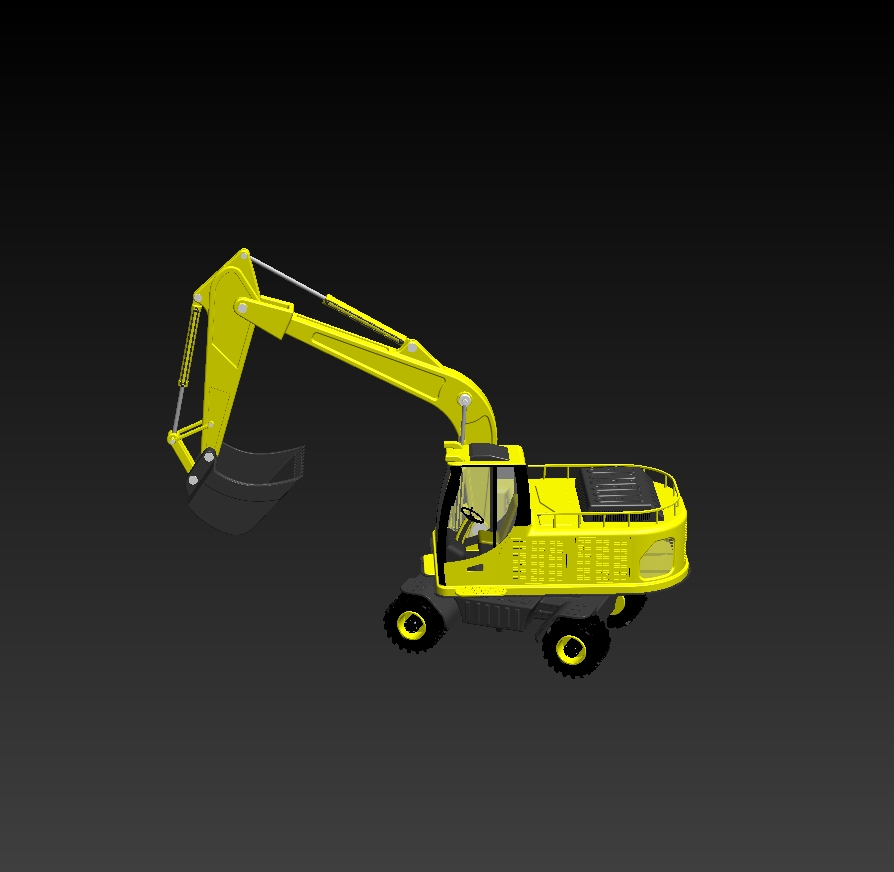

| CPU Convert |  Digger | 19.96 | 1 |

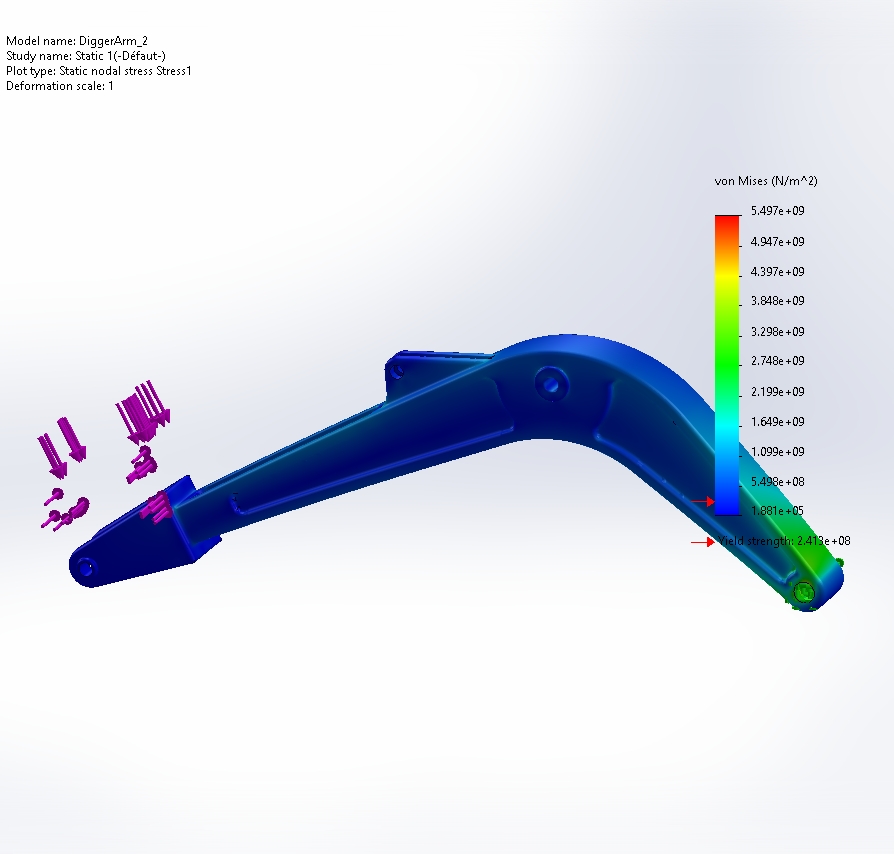

| CPU Simulate |  DiggerArm_2.sldprt | 247.17 | 1 |
| CPU Mass Properties |  Digger | 0.24 | 1 |
| CPU Boolean Addition |  Boolean.sldprt | 8.65 | 1 |
| ModelLoad | Voiture assomblee | 3.98 | 1 |
| ModelLoad | Audi R8 S | 8.04 | 1 |
| ModelLoad | Digger | 2.65 | 1 |
| ModelLoad | DiggerArm_2.sldprt | 1.2 | 1 |
| ModelLoad | Montagem1 | 2.41 | 1 |
| ModelLoad | tower Assembly 02 | 3.4 | 1 |
| ModelLoad | GrCadBlack_Owl_S2 | 8.21 | 1 |
| ModelLoad | main | 8.3 | 1 |
| ModelLoad | menjac sklop | 5.42 | 1 |
| ModelLoad | Supercar | 5.45 | 1 |
| ModelLoad | CT_TA | 11.76 | 1 |
| ModelLoad | Boolean.sldprt | 2.01 | 1 |
| AvgModeTransition | Voiture assomblee | 0.62 | 1 |
| AvgModeTransition | Audi R8 S | 0.57 | 1 |
| AvgModeTransition | Digger | 0.6 | 1 |
| AvgModeTransition | Montagem1 | 0.61 | 1 |
| AvgModeTransition | tower Assembly 02 | 0.65 | 1 |
| AvgModeTransition | GrCadBlack_Owl_S2 | 1.13 | 1 |
| AvgModeTransition | main | 0.85 | 1 |
| AvgModeTransition | menjac sklop | 0.59 | 1 |
| AvgModeTransition | Supercar | 0.7 | 1 |
| AvgModeTransition | CT_TA | 6.89 | 1 |
