SPEC CPU®2017 Frequently Asked Questions

$Id: faq.html 6646 2021-09-14 21:15:06Z JohnHenning $ Latest: www.spec.org/cpu2017/Docs/

This document has frequently asked technical questions and answers about SPEC CPU®2017, a product of the SPEC® non-profit corporation (about SPEC).

Do you have a problem with SPEC CPU 2017?
Try these, in this order:

  1. Update your copy with runcpu --update.
  2. Check the latest version of Frequently Asked Questions.
  3. Check the latest version of Known Problems.
  4. Check the src.alt list.    [What is a src.alt?]
  5. Contact SPEC.

Contents

Installation

Install.01 ./install.sh: /bin/sh: bad interpreter: Permission denied

Install.02 The system manager won't let me use the mount command. What do I do?

Install.03 How do I uninstall?

Install.04 Why does installation fail on Redhat Enterprise Linux 8.0.0 and similar systems?

Install.05 Why does installation fail on macOS with messages claiming that the software "cannot be opened because the developer cannot be verified"?

runcpu

runcpu.01 Why does runcpu exit instantly, with a pile of messages about compilation failed?

runcpu.02 Why does Windows reject my runcpu command, claiming it is not recognized, or the syntax is incorrect, or the path unexpected?

runcpu.03 Why am I getting errors about libnsl.so.1?

Building benchmarks

Build.01 zsh: command not found

Build.02 Why is it rebuilding the benchmarks?

Build.03 Is there a config file for Visual C++?

Build.04 Why does 510.parest fail with a message such as "error: ISO C++ forbids comparison between pointer and integer"?

Build.05 I'm using a GCC Example config. Why can't it find my copy of GCC? I set 'gcc_dir'.

Build.06 Why does 502.gcc_r / 602.gcc_s fail to build, complaining about "multiple definitions" when I build it using GCC?

Build.07 I have GCC 10. Why are 525.x264_r and 625.x264_s failing to build, complaining about "multiple definitions"?

Build.08 I have GCC 10. Why are several Fortran benchmarks failing to build, complaining about "type mismatches"?

Setting up

Setup.01 Target file doesn't match after copy

Setup.02 Copying executable failed

Running benchmarks

Run.01 What's this specrand thing?

Run.02 How long will the runcpu command take?

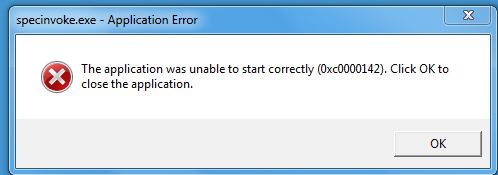

Run.03 Why was there this cryptic message from the operating system?

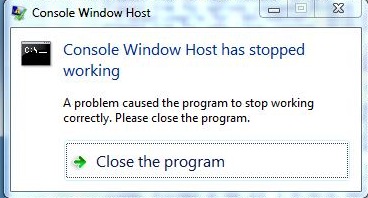

Run.04 Console Window Host has stopped working; specinvoke unable to start 0xc0000142

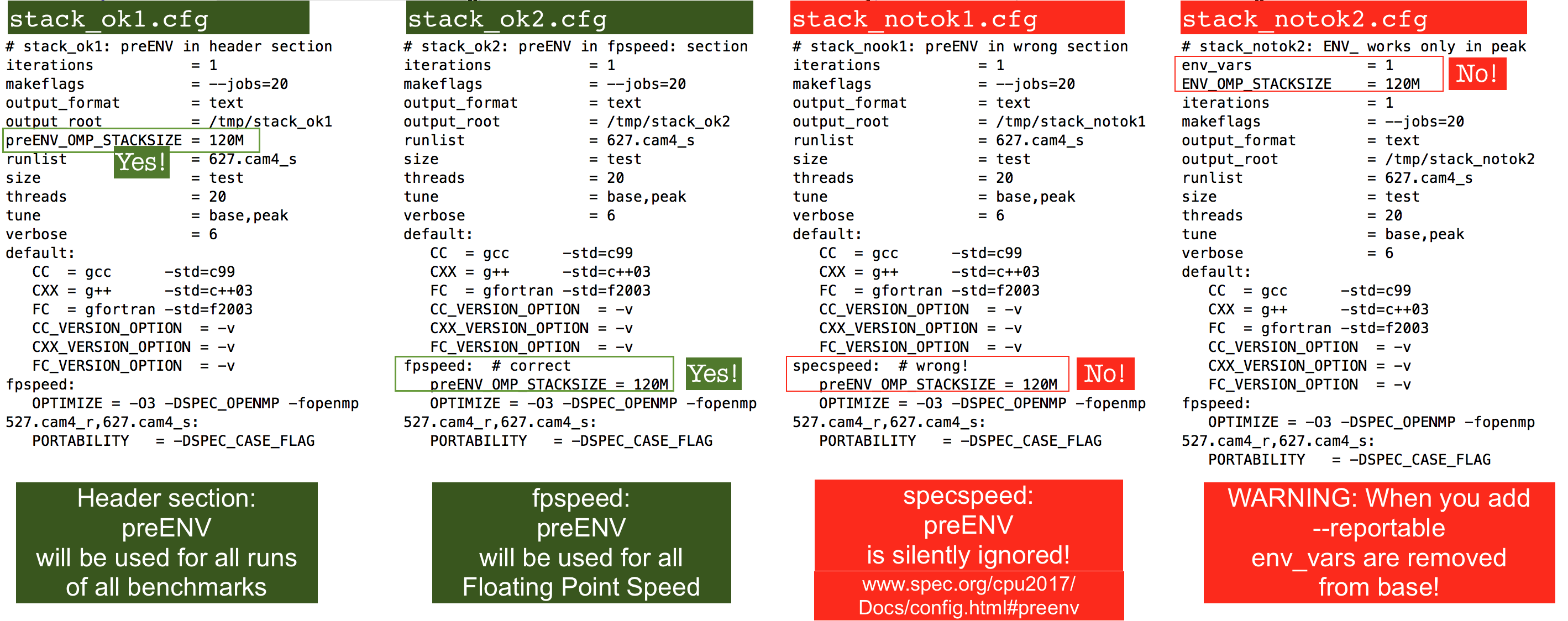

Run.05 Why did 621.wrf_s abort / hang / get a run time error? I'm using GCC 7.

Run.06 Why did 500.perlbench_r (or 600.perlbench_s) get a runtime error?

Miscompares

Miscompare.01 I got a message about a miscompare

Miscompare.02 The benchmark took less than 1 second

Miscompare.03 The .mis file says "short"

Miscompare.04 My compiler is generating bad code!

Miscompare.05 The code is bad even with low optimization!

Miscompare.06 The .mis file is just a bunch of numbers.

Miscompare.07 Why is 627.cam4_s failing?

Miscompare.08 Why is 505.mcf_r miscomparing?

Miscompare.09 When using GCC -Ofast, why are there miscompares for the test workload of perlbench?

Miscompare.10 Why are there miscompares for 549.fotonik3d_r?

Results reporting

Results.01 It's hard to cut/paste into my spreadsheet

Results.02 What is a "flags file"? What does Unknown Flags mean?

Results.03 Submission Check -> FAILED

Power

Power.01 How do I measure power?

Power.02 What settings are required for the power analyzer?

Power.03 The runcpu command reported uncertainty errors, what can I do?

Power.04 Is it possible to retrieve all of the sample data collected from the power analyzer?

Temperature

Temperature.01 I got an error about it being too cold, what can I do?

Cross compiles

Cross.01 How do I do a cross-compile? My systems are highly similar.

Cross.02 Can I do a cross-compile if my systems are mostly similar, but the compiler is present on only one of them?

Cross.03 Can I do a cross-compile if my systems are entirely different?

Installation

Install.01  q. Why am I getting a message such as ./install.sh: /bin/sh: bad interpreter: Permission denied"?

a. If you are installing from the SPEC CPU 2017 ISO image, check to be sure that your operating system allows programs to be executed from it. For example, some Linux systems may need the exec property on the mount command -- as shown in Installing SPEC CPU 2017 on Unix Systems.

Or, perhaps install.sh lacks correct permissions because of problems as you copied directory trees from one place to another. Please don't do that - there's an easier way. See the next question.

Install.02  q. The system manager won't let me use the mount command.

a. As a fallback, you can install from a tarfile. See Installing SPEC CPU 2017 on Unix Systems Appendix 2.

Install.03  q. How do I uninstall? This script uninstall.sh doesn't seem to be it.

a. You are correct that uninstall.sh does not remove the whole product; it only removes the SPEC CPU 2017 tool set, and does not affect the benchmarks (which consume the bulk of the disk space). At this time, SPEC does not provide an uninstall utility for the suite as a whole. But it's easy to do: on Unix systems, use rm -Rf on the directory where you installed the suite, for example:

  rm -Rf /home/cs3000/saturos/spec/cpu2017

On Windows systems, select the top directory in Windows Explorer and delete it.

If you have been using the output_root feature, you will have to track those down separately. See the suggested commands in the appendix about uninstalling, in the install guides.

Note: instead of deleting the entire directory tree, some users find it useful to keep the config and result subdirectories, while deleting everything else.

Install.04  q. Why does installation fail on Redhat Enterprise Linux 8.0.0 and similar systems?

The system prints several lines of complaints, including lines similar to these:

Error running runcpu tests.  See /cpu2017/runcpu-test.linux-x86_64.out for details.
Installation of linux-x86_64 aborted.

and the file runcpu-test.linux-x86_64.out contains

specperl: error while loading shared libraries: libnsl.so.1: cannot open shared object file: No such file or directory

a. Your system is missing a library that is no longer installed by default starting with Redhat Enterprise Linux 8. If you install the libnsl package, the correct library will be available and the SPEC CPU 2017 installation will succeed. For example:

  yum install libnsl

(See also question runcpu.03 below.)

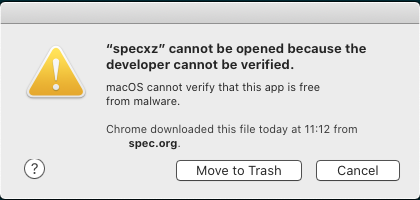

Install.05  q. Why does installation fail on macOS with messages claiming that the software "cannot be opened because the developer cannot be verified"?

The dialog box below was first observed with macOS "Catalina".
Similar errors occur with all installation methods.
catalina malware warning

a. To work around the problem, it is necessary to remove the extended attributes on the install ISO image. This must be done with the volume unmounted; therefore, if you have already mounted it, please unmount it first, either via Finder or via the first command shown below. Then, remove the attributes with the second command. Note that you may need to adjust the exact name of the volume, depending on your version of SPEC CPU 2017.

diskutil eject CPU2017v1.1.5
xattr -c cpu2017-1.1.5.iso

Then, you can re-mount the image and retry, using commands similar to these:

open -a DiskImageMounter.app cpu2017-1.1.5.iso
cd /Volumes/CPU2017v1.1.5
./install.sh

runcpu

runcpu.01  q. Why does runcpu exit instantly, with a pile of messages about compilation failed?

The system prints several lines of complaints, typically including one or more of the following:
runcpu: Perl lib version (n.nn.n) doesn't match executable
Compilation failed in require at /path/.../Time/HiRes.pm line 7.
Compilation failed in require at /path/.../DynaLoader.pm line 22.
BEGIN failed--compilation aborted at /path/.../DynaLoader.pm line 22.
BEGIN failed--compilation aborted at /path/.../bin/harness/runcpu line 84.
Can't continue after import errors at /path/.../bin/harness/runcpu line 84.
"all" is not exported by the List::Util module

a. Your environment variables are not correctly set. Use one of the path-setting scripts to fix them.

Maybe you did something like the following? (Don't do this.)

cd /cpu2017
source shrc
cd /cpu2006
source shrc
runcpu

For SPEC CPU 2006, use the CPU 2006 path scripts and use the runspec command.
For SPEC CPU 2017, use the CPU 2017 path scripts and the runcpu command. (Why did the name change?).

runcpu.02 Why does Windows reject my runcpu command, claiming it is not recognized, or the syntax is incorrect, or the path unexpected?

I am seeing messages such as:
The syntax of the command is incorrect
runcpu is not recognized
mumble\path was unexpected at this time

a. A variety of odd error messages on Microsoft Windows have been traced to paths in shrc.bat that use semicolons within quoted strings, such as:

set PATH="%PATH%;d:\My Compiler Path\bin"  <--- wrong
set PATH="%PATH%;d:\mycompiler\bin"        <--- wrong


The correct way to do it is:

    set PATH=%PATH%;"d:\My Compiler Path\bin"
or
    set PATH=%PATH%;d:\mycompiler\bin


Notice that in both cases, there are no semicolons inside of quotes.

runcpu.03  q. Why am I getting errors about libnsl.so.1?

Why are all my runcpu commands failing with this message?

specperl: error while loading shared libraries:
libnsl.so.1: cannot open shared object file: No such file or directory

a. Your system is missing the libnsl.so.1 library, which is needed by specperl. To fix the problem, install the library.

For example, on Red Hat Enterprise Linux release 8.0 (and similar) systems, notice that there are two software packages available:

libnsl  Legacy support library for NIS
libnsl2 Public client interface library for NIS(YP) and NIS+

By default, only the new version is installed, but you can easily add the older version.

# yum install libnsl

(See also question Install.04 above.)

Building benchmarks

Build.01  q. I'm using Windows and I can't build any benchmarks. What is make.out? Why does it say zsh: command not found: ifort?

During a build, it told me to look at make.out:

Compiling Binaries
  Building 548.exchange2_r base none: (build_base_none.0000) [2017-05-08 09:16:57]
Error with make 'specmake --output-sync -j8 build':
  ----------------------------------------------------------------------------
  Please review this file:
    "C:\cpu2017\rc5\benchspec\CPU\548.exchange2_r\build\build_base_none.0000\make.out"
  ----------------------------------------------------------------------------
  Command returned exit code 2
  Error with make!
*** Error building 548.exchange2_r base


I looked, but it is pretty complicated. What does all this mean?

C:\cpu2017\rc5>type "C:\cpu2017\rc5\benchspec\CPU\548.exchange2_r\build\build_ba
se_none.0000\make.out"
C:/cpu2017/rc5/bin/specperl C:/cpu2017/rc5/bin/harness/specpp -DSPEC -DSPEC_CPU
-DNDEBUG -DSPEC_WINDOWS -DSPEC_CPU_WINDOWS -DSPEC_AUTO_SUPPRESS_OPENMP -DSPEC_P6
4 -I"C:/Program Files (x86)/IntelSWTools/compilers_and_libraries_2017/windows/co
mpiler/include/intel64" -I"C:/Program Files (x86)/IntelSWTools/compilers_and_lib
raries_2017/windows/compiler/include" -I"C:/Program Files (x86)/Windows Kits/10/
Include/10.0.14393.0"/ucrt -I"C:/Program Files (x86)/Windows Kits/10/Include/10.
0.14393.0"/um exchange2.F90 -o exchange2.fppized.f90
ifort -Qvc14 -Qm64 -c -Foexchange2.fppized.obj -QxHost -Qipo -O3 -Qprec-div- -Qo
pt-prefetch -I"C:/Program Files (x86)/IntelSWTools/compilers_and_libraries_2017/
windows/compiler/include/intel64" -I"C:/Program Files (x86)/IntelSWTools/compile
rs_and_libraries_2017/windows/compiler/include" -I"C:/Program Files (x86)/Window
s Kits/10/Include/10.0.14393.0"/ucrt -I"C:/Program Files (x86)/Windows Kits/10/I
nclude/10.0.14393.0"/um -nostandard-realloc-lhs exchange2.fppized.f90
zsh: command not found: ifort
specmake: *** [C:/cpu2017/rc5/benchspec/Makefile.defaults:386: exchange2.fppized
.obj] Error 1

C:\cpu2017\rc5>



a. Thank you for actually looking at make.out when runcpu suggested you do so. That file contains the output from specmake, which drives the build process, calling compilers, linkers, and other build tools. To understand the above make.out, the key thing to notice is the line
zsh: command not found: ifort.
What this means is that your compiler is not on your %PATH%.

SPEC CPU 2017 benchmarks are supplied in source code form, and they must be compiled. But, the compiler could not be found, probably because:

  1. You have used a config file that references a compiler that does not exist, or
  2. You have not edited shrc.bat to correctly reference your compiler.

To fix your problem, investigate and address both items.

  1. You must use a config file that is appropriate for your compiler. Microsoft Visual Studio users: see below.

  2. In shrc.bat, you need to call a compiler-vendor-supplied file that sets the path. It might be similar to one of these:

    call "C:\Program Files (x86)\IntelSWTools\compilers_and_libraries_2017\windows\bin\compilervars.bat" intel64 vs2015
    call "C:\Program Files (x86)\Microsoft Visual Studio 14.0\VC\vcvarsall.bat" amd64
    call "c:\Program Files\PGI\win64\16.5\pgi_env.bat"

    If you want to use this option but you can't find the right file, check your compiler documentation, or you might try searching your hard drive for *vars*bat. The file names change frequently; check your compiler docs. The call statement will vary by compiler, by version, and sometimes, by desired features. Check your compiler's documentation, to find the right call.

Build.02  q. Why is runcpu rebuilding the benchmarks?

a. You changed something, and the tools thought that it might affect the generated binaries. More info

Build.03  q. Is there a config file for Visual Studio?

a. Yes, but:

See: %SPEC%\config\Example-VisualStudio.cfg. Please read the comments carefully inside the file.

Build.04  q. Why does 510.parest fail with a message such as "error: ISO C++ forbids comparison between pointer and integer"?

a. Users of C++11 (and later) compilers may see messages such as the above. For GCC V7, the full message is:

In file included from include/base/parameter_handler.h:18:0,
                 from source/base/parameter_handler.cc:14:
source/base/parameter_handler.cc: In member function 'double dealii::ParameterHandler::get_double(const string&) const':
source/base/parameter_handler.cc:752:28: error: ISO C++ forbids comparison between pointer and integer [-fpermissive]
   AssertThrow ((s.c_str()!='\0') || (*endptr == '\0'),

Solution: There are three solutions.

  1. Use runcpu --update to update your copy of SPEC CPU 2017 to v1.1; or
  2. Tell your compiler to be less picky (for example, with g++ -fpermissive); or
  3. Try explicitly asking for the 2003 version of the standard (for example, with g++ -std=c++03).

Note: neither solution 2 nor solution 3 would qualify for use as a portability flag. In a base compilation, it would need to be part of the set of flags that are applied consistently to a set of benchmarks.

Build.05  q. I'm using a GCC Example config. Why can't it find my copy of GCC? I set 'gcc_dir'.

a. It's probably better to use quotes. Instead of saying something like:

%define gcc_dir /compilers/misc-7.3.0-20180630

Try this instead:

%define gcc_dir "/compilers/misc-7.3.0-20180630"

The reason that the first one does unexpected things is because /x/misc is treated as the perl match operator (with 'm', 'i', 's', and 'c' as match modifiers). Presumably it returns a null string. Perl then tries to convert "7.3.0" into a number, getting 0. Lastly, it subtracted 20180630. Unfortunately, the gcc compiler is not installed in a directory named -20180630.

See the documentation of %define and the documentation of preprocessor expressions.

build.06  q. Why does 502.gcc_r / 602.gcc_s fail to build, complaining about "multiple definitions" when I build it using GCC?

a. You need -fgnu89-inline, as described in the section on 502.gcc_r portability.

Note that in accordance with the same-for-all rule www.spec.org/cpu2017/Docs/runrules.html#BaseFlags it is not allowed to set -fgnu89-inline as a PORTABILITY option. Instead, it must be applied to all of Base. The Example GCC config files obey this rule.

Build.07 I have GCC 10. Why are 525.x264_r and 625.x264_s failing to build, complaining about "multiple definitions"?

a. You need -fcommon. See the discussion of 525.x264_r portability.

Note that -fcommon would not qualify as a PORTABILITY flag, per www.spec.org/cpu2017/Docs/runrules.html#portability. Therefore it must be used in accordance with the same-for-all rule www.spec.org/cpu2017/Docs/runrules.html#BaseFlags. The Example GCC config files as updated for SPEC CPU 2017 v1.1.5 demonstrate how to set it correctly.

Build.08  q. I have GCC 10. Why are several Fortran benchmarks failing to build, complaining about "type mismatches"?

a. If you compile using GCC 10 (and presumably later) you must include -fallow-argument-mismatch. If you do not include this flag, compiling 527.cam4_r, 627.cam4_s, 521.wrf_r, 621.wrf_s, and 628.pop2_s will fail with message:

Error: Type mismatch between actual argument at (1) and actual argument at (2)

For more information, see https://gcc.gnu.org/gcc-10/porting_to.html.

Note that in accordance with the same-for-all rule www.spec.org/cpu2017/Docs/runrules.html#BaseFlags it is not allowed to set -fallow-argument-mismatch as a PORTABILITY option. Instead, it must be applied to all of Base. The Example GCC config files as updated for SPEC CPU 2017 v1.1.5 obey this rule.

Setting up

Setup.01  q. Why does it claim that a "Target file doesn't match after copy"?

My system printed a strange, difficult to reproduce message:

Target file (mumble) doesn't match after copy ... in copy_file (1 try total)!
Sleeping 2 seconds...

followed by several more tries and sleeps. Why?

a. During benchmark setup, certain files are checked. If they don't match what they are expected to, you might see this message. Check:

If the condition persists, try turning up the verbosity level. Look at the files with other tools; do they exist? Can you see differences? Try a different disk and controller. And, check for the specific instance of this message described in the next question.

Setup.02  q. Why does it say ERROR: Copying executable failed?

My system printed a strange, difficult to reproduce message:

ERROR: Copying executable to run directory FAILED

or

ERROR: Copying executable from build dir to exe dir FAILED!

along with the bit about files not matching from the previous question. Why?

a. Perhaps you have attempted to build the same benchmark twice in two simultaneous jobs.

On most operating systems, the SPEC tools don't mind concurrent jobs. They use your operating system's locking facilities to write the correct outputs to the correct files, even if you fire off many runcpu commands at the same time. But there's one case of simultaneous building that is difficult for the tools to defend against: please don't try to build the very same executable from two different jobs at the same time. Notice that if you say something like this:

$ tail myconfig.cfg
500.perlbench_r:
basepeak=yes
$ runcpu --config myconfig --size test --tune base 500.perlbench_r &
$ runcpu --config myconfig --size test --tune peak 500.perlbench_r &


then you are trying to build the same benchmark twice in two different jobs, because of the presence of basepeak=yes. Please don't try to do that.

Running benchmarks

Run.01  q. What's this specrand thing?

When I ran a suite of benchmarks, one of these was unexpectedly added. Why?

996.specrand_fs
997.specrand_fr
998.specrand_is
999.specrand_ir

a. Several of the benchmarks use a common random number generator. During development of CPU 2017, it was often useful to have the random number generator as a separate pseudo-benchmark, to help with problem diagnosis. ("You miscompared on benchmark mumble? Hmmm. Do you also miscompare on specrand?")

For the released version of the suite, SPEC decided to retain specrand, in case it comes in useful for later problem diagnosis. It is run with all four suites, but its time is not reported, and its performance does not contribute to the bottom line metrics. [More information]

Run.02 q. How long will the runcpu command take?

a. About 5 minutes per benchmark; your time will vary.

q. What do you mean 5 minutes? It took me 5 hours!

a. That's because you ran a whole suite, in a reportable configuration (3 repetitions).
I was talking about just a single benchmark.
More info: [run times]   [suites and benchmarks]   [3 repetitions]

q. Can it take 103 hours? (Points at a pair of published results.)

a. Sure, if you want to do a big throuphput test like that one, running up to 256 copies of the 23 benchmarks in 2 suites, with both base and peak tuning. The referenced tests did 21,248 individual benchmark runs within two large throughput tests.

Two more example are discussed in the Overview.

Run.03  q. Why did I get a strange, hard-to-understand error message?

a. If you are getting strange, hard-to-understand error messages from your system, one possible reason may be that the benchmarks consume substantial resources, of several types. If an OS runs out of some resource - for example, pagefile space, or process heap space - it might not give you a very clear message. Instead, you might see only a very brief message, or a dialog box with a hex error code in it. Try your system resource monitors, starting with whatever tool lets you watch memory usage.

Run.04  q. Console Window Host has stopped working; specinvoke unable to start 0xc0000142

[This item is from CPU 2006; it is included here in case similar problems occur with CPU 2017].
Windows users occasionally saw odd failures with this dialog box:
console window host has
      stopped working
which, after pressing the button, was followed by:
specinvoke 0xc0000142

The problem was difficult to diagnose, because the symptoms varied. Eventually, it was noticed that the problem system was using Windows 7 with an older (pre-Windows 7) version of cygwin in the %PATH%; removing cygwin from the %PATH% removed the failures.

Because the version of cygwin was obsolete, it would be unfair to "blame" it for the failures! Nevertheless, it may be fair to point out that providing a Unix-like environment on Windows poses difficult problems. Historically there have been various approaches, with differing assumptions about how to mask or bridge differences between Windows and Unix. The SPEC CPU 2017 toolset's approach might not match the approach used by your Windows/Unix compatibility product. Therefore, SPEC recommends that you should remove such items from the %PATH% prior to invoking runcpu, especially if you are encountering hard-to-understand errors.

More info: Windows PATH.

Run.05  q. Why did 621.wrf_s abort / hang / get a run time error? I'm using GCC 7.

A gcc bugzilla report says I'm seeing many different kinds of failures when running a wrf_s binary compiled with gcc mainline. Double free aborts. Segfaults. Fortran runtime error: End of file. Etc..

Similar problems were seen by a SPEC CPU developer, along with hangs (runs that never ended).

a. The problem was fixed in GCC 7.3 by libgfortran patch request PR78387. Note that you need a libgfortran built from the 7.3 sources; it is not sufficient to merely upgrade gfortran.

Problem signature: If you see odd symptoms with wrf_s and can generate a stack trace (e.g. with gdb or gstack), check for mentions of stash_internal_unit. If it is present, then it is likely that you are missing the fix from PR78387. For example:

#9  0x00007f7651ca586f in _gfortrani_stash_internal_unit () from /lib64/libgfortran.so.4

The above was seen Jun-2018 on a system using CentOS Linux release 7.5 with /opt/rh/devtoolset-7/root/usr/bin/gfortran; however, as of that time, the libgfortran was from GCC 7.2.

Workaround: Install a copy of libgfortran based on GCC 7.3 or later.

Run.06  q. Why did 500.perlbench_r (or 600.perlbench_s) get a runtime error?

When running 500.perlbench_r or 600.perlbench)s, a run time error was reported. In file test.err there are messages similar to these:

Attempt to free unreferenced scalar: SV 0x9961710 at t/TEST line 517.
Attempt to free unreferenced scalar: SV 0x9976238 at t/TEST line 638.
free(): invalid pointer

a. You cannot assume ANSI aliasing when compiling perlbench. See the discussion of 500.perlbench_r portability.

Miscompares

Miscompare.01  q. I got a message about a miscompare. The tools said something like:

Running Benchmarks
  Running 999.specrand_ir ref base oct09a default
Error with '/spec/cpu2017/bin/specinvoke -E -d /spec/cp
u2017/benchspec/CPU/999.specrand_ir/run/run_base_refrat
e_oct09a.0000 -c 1 -e compare.err -o compare.stdout -f
compare.cmd': check file '/spec/cpu2017/benchspec/CPU/9
99.specrand_ir/run/run_base_refrate_oct09a.0000/.err'
*** Miscompare of rand.234923.out, see /spec/cpu2017/be
nchspec/CPU2017/999.specrand_ir/run/run_base_refrate_oc
t09a.0000/rand.234923.out.mis
Error: 1x999.specrand_ir
Producing Reports


Why did it say that? What's the problem?

a. We don't know. Many things can cause a benchmark to miscompare, so we really can't tell you exactly what's wrong based only on the fact that a miscompare occurred. But don't panic. Please notice, if you read the message carefully, that there's a suggestion of a very specific file to look in. It may be a little hard to read if you have a narrow terminal window, as in the example above, but if you look carefully you'll see that it says:

*** Miscompare of rand.234923.out, see
/spec/cpu2017/benchspec/CPU/999.specrand_ir/run/run_base_refrate_oct09a.0000/rand.234923.out.mis


Now's the time to look inside that file. Simply doing so may provide a clue as to the nature of your problem. On Unix systems, change your current directory to the run directory using the path mentioned in the message; on Microsoft Windows systems, remember to turn the slashes backwards in your cd command. Then, have a look at the file that was mentioned, using your favorite text editor. If the file does not exist, then check to see whether you have run out of disk space.

Miscompare.02  q. The benchmark ran, but it took less than 1 second and there was a miscompare. Help!

a. If the benchmark took less than 1 second to execute, it didn't execute properly. There should be one or more .err files in the run directory which will contain some clues about why the benchmark failed to run. Common causes include libraries that were used for compilation but not available during the run, executables that crash with access violations or other exceptions, and permissions problems. See also the suggestions in the next question.

Miscompare.03  q. I looked in the .mis file and it said something like:

'rand.234923.out' short


What does "short" mean?

a. If a line like the above is the only line in the .mis file, it means that the benchmark failed to produce any output. In this case, the corresponding error file (look for files with .err extensions in the run directory) may have a clue, such as Segmentation Fault - core dumped

For problems like this, the first things to examine are the portability flags used to build the benchmark. Have a look at the sample config files in $SPEC/config or, on Windows, %SPEC%\config. If you built your own config file based on one of those, maybe you picked a starting point that was not really appropriate. Have a look at other Examples in that directory. Check at www.spec.org/cpu2017 to see if there have been any result submissions using the platform that you are trying to test. If so, compare your portability flags to the ones in the config files for those results.

If the portability flags are okay, your compiler may be generating bad code.

Miscompare.04  q. My compiler is generating bad code! Help!

a. Try reducing the optimization that the compiler is doing. Instructions for doing this will vary from compiler to compiler, so it's best to ask your compiler vendor for advice if you can't figure out how to do it for yourself.

Miscompare.05  q. My compiler is generating bad code with low or no optimization! Help!

a. If you're using a beta compiler, try dropping down to the last released version, or get a newer copy of the beta. If you're using a version of GCC that shipped with your OS, you may want to try getting a more recent version and building it yourself.

Miscompare.06  q. I looked in the .mis file and it was just full of a bunch of numbers.

a. In this case, the benchmark is probably running, but it's not generating answers that are within the tolerances set. See the suggestions for how to deal with compilers that generate bad code in the previous two questions. In particular, you might see if there is a way to encourage your compiler to be careful about optimization of floating point expressions.

Miscompare.07  q. Why is 627.cam4_s failing?

When I run it, I see something like this:

Running 627.cam4_s refspeed (ref) base mumble threads:4 [2017-09-25 03:59:50]
627.cam4_s: copy 0 non-zero return code (exit code=139, signal=0)

Investigating the run directory shows that the output file h0.nc does not exist.

$ go cam4_s run
/export/home/cpu2017/v1.0/benchspec/CPU/627.cam4_s/run
$ cd run_base_refspeed_*
$ ls -l h0.nc
ls: cannot access h0.nc: No such file or directory

The text output file ends after 1830 lines.

$ cat cam4_s_base*txt | wc -l
1830

a. Likely cause: either the process stack or the OpenMP stack is too small.

For the process stack, before using runcpu, try setting the process stack size to at least 120 MB. On Unix systems (including Linux, Mac OS X, and so forth), this command

ulimit -s

should return either

unlimited

or a number greater than or equal to

122880

If your process stack is large enough, then the likely cause is that the OpenMP stack was not set properly using preenv. The illustration shows two correct ways to set it and two incorrect ways. Note: the exact size will vary depending on your operating system and your compiler; see also the examples in your installed SPEC CPU 2017 tree, in the config directory.

correct location for OMP_STACKSIZE

Miscompare.08  q. Why is 505.mcf_r (or 605.mcf_s) miscomparing?

When using GCC v6 or later with -flto, why does 505.mcf_r (or 605.mcf_s) get the wrong answer?

a. You need to add -fno-strict-aliasing to your flags. See the detailed discussion in the documentation for 505.mcf_r.

Miscompare.09  q. When using GCC -Ofast, why are there miscompares for the test workload of perlbench?

When using -Ofast with GCC, you may see that 500.perlbench_r or 600.perlbench_s reports Validation Errors (VE), along with messages such as:

$ head -2 test.out.mis
0185:  t/op/sprintf2 ............................... ok
       t/op/sprintf2 ............................... FAILED at test 1459

or:

0155:  t/op/pack ................................... ok
       t/op/pack ................................... FAILED at test 237

a. Adding -fno-unsafe-math-optimizations and -fno-finite-math-only fixes the problem. Both flags are needed in order to resolve both of the above symptoms.

Note that in accordance with the same-for-all rule www.spec.org/cpu2017/Docs/runrules.html#BaseFlags, it is not allowed to set the above flags as PORTABILITY options. Instead, they must be applied to all of Base. The Example GCC config files as updated for SPEC CPU 2017 v1.1.5 obey this rule.

Miscompare.10  q. Why are there miscompares for 549.fotonik3d_r?

You may encounter errors similar to the following, depending on your compiler, system, and optimization options

****************************************
*** Miscompare of pscyee.out; for details see
    /data2/johnh/out.v1.1.5/benchspec/CPU/549.fotonik3d_r/run/run_base_refrate_Ofastnative.0000/pscyee.out.mis
0646:   -1.91273086037953E-17, -1.46491401919706E-15,
        -1.91273086057460E-17, -1.46491401919687E-15,
                            ^
0668:   -1.91251317582607E-17, -1.42348205527085E-15,
        -1.91251317602571E-17, -1.42348205527068E-15,
                            ^

For example, the problem was reported with GCC using -Ofast -march=native.

a. The problem arises when a compiler chooses to vectorize a particular loop from power.F90 line number 369

369   do ifreq = 1, tmppower%nofreq
370     frequency(ifreq,ipower) = freq
371     freq = freq + freqstep
372   end do

Unfortunately, the vectorized loop produces slightly different values than are allowed by the SPEC-defined tolerances.

Workaround: You will need to specify optimization options that do not cause this loop to be vectorized. For example, on a particular platform studied in mid-2020 using GCC 10.2, these results were seen:

failed -Ofast -march=native
OK     -Ofast
OK     -O3    -march=native
OK     -Ofast -march=native -fno-tree-loop-vectorize
OK     -Ofast -march=native -fno-unsafe-math-optimization

If you apply one of the above workarounds in base, be sure to obey the same-for-all rule which requires that all benchmarks in a suite of a given language must use the same flags. For example, the sections below turn off unsafe math optimizations for all Fortran modules in the floating point rate and floating point speed benchmark suites:

default=base:
      OPTIMIZE       = -Ofast -flto -march=native
fprate,fpspeed=base:
      FOPTIMIZE      = -fno-unsafe-math-optimizations

Results reporting

Results.01  q. It's hard to cut/paste into my spreadsheet

a. Please don't do that. Instead, have a look at --output_format=csv. For CPU 2017 results posted at www.spec.org/cpu2017/results, the .csv outputs are posted right next to the other result formats.

Results.02  q. What is a "flags file"? What does the message Unknown Flags mean in a report?

a. SPEC CPU 2017 provides benchmarks in source code form, which are compiled under control of SPEC's toolset. Compilation flags (such as -O5 or -unroll) are detected and reported by the tools with the help of flag description files. Therefore, to do a complete run, you need to (1) point to an existing flags file (easy) or (2) modify an existing flags file (slightly harder) or (3) write one from scratch (definitely harder).

  1. Find an existing flags file by noticing the address of the .xml file at the bottom of any result published at www.spec.org/cpu2017. You can use the --flagsurl switch to point your own runcpu command at that file, or you can reference it from your config file with the flagsurl option. For example:
       runcpu --config=myconfig --flagsurl=http://www.spec.org/cpu2017/flags/oracle-studio.xml int
  2. You can download the .xml flags file referenced at the bottom of any published result at www.spec.org/cpu2017. Warning: clicking on the .xml link may just confuse your web browser; it's probably better to use whatever methods your browser provides to download a file without viewing it - for example, control-click, right click, or whatever. Then, look at it with a text editor.
  3. You can write your own flags file by following the instructions in flag-description.html.

Notice that you do not need to re-run your tests if the only problem was Unknown flags. You can just use runcpu --rawformat --flagsurl

Results.03  q. What's all this about Submission Check -> FAILED littering my log file and my screen?

At the end of my run, why did it print something like this?

format: Submission Check -> FAILED.  Found the following errors:
        - The "hw_memory" field is invalid.
            It must contain leading digits, followed by a space,
            and a standard unit abbreviation.  Acceptable
            abbreviations are KB, MB, GB, and TB.
           The current value is "20480 Megabytes".


a. A complete, reportable result has various information filled in for readers. These fields are listed in the table of contents for config.html. If you wish to submit a result to SPEC for publication at www.spec.org/cpu2017, these fields not only have to be filled in; they also have to follow certain formats. Although you are not required to submit your result to SPEC, for convenience the tools try to tell you as much as they can about how the result should be improved if you were to submit it. In the above example, the tools would stop complaining if the field hw_memory said something like "20 GB" instead of "20480 Megabytes".

Notice that you can repair minor formatting problems such as these without doing a re-run of your tests. You are allowed to edit the rawfile, as described in utility.html.



Power

Power.01  q. How do I measure power?

a. You can optionally measure power consumption by following the config file documentation on Power Measurement. Notice that you will need additional hardware, including an accepted power analyzer, temperature meter, and controller system.

Power.02  q. What settings are required for the power analyzer?

a. To set up your power analyzer and to run the SPEC PTDaemon please consult the Power and Temperature Measurement Setup Guide. A copy is also in the PTDaemon tree of your installed copy of SPEC CPU 2017.

Power.03  q. The runcpu command reported uncertainty errors, what can I do?

a. There could be many reasons. Are the values within the measurement capabilities that have been set for your power analyzer? Maybe you need to set the current ranges individually by benchmark.

Is PTDaemon reporting any errors? Try restarting it with the logfile and debug options:

ptd -l logfile -d debugfile ...

Power.04  q. Is it possible to retrieve all of the sample data collected from the power analyzer?

a. Power data is sampled at 1 second intervals. This data is stored in the raw file (.rsf) that is created after a run finishes, and can be extracted using extract_misc. As an example, to extract the power data from the period when the system is idle, you could run:

specperl $SPEC/bin/scripts.misc/extract_misc spec.cpu2017.idle_powersamples <raw file>

The output will go to the screen.

The general format of the command is

Usage: /spec/cpu2017/bin/scripts.misc/extract_misc <section> <file>

Where the section will look something like

spec.cpu2017.results.<benchmark>.<base|peak>.<iter>.powersamples

where <benchmark> is the full benchmark name, <iter> is the iteration number (3 digits).

Temperature

Temperature.01  q. I enabled power and temperature measurement, and I got an error about it being too cold, what can I do?

ERROR: Minimum temperature during the run (19.5 degC) is less than the minimum
allowed (20 degC)


a. If you use the optional power metrics, the minimum inflow temperature must be 20 degC or higher. This value was chosen to prevent an artificially good result by running in unusually cold conditions. You will need to find a warmer spot to do your runs.

Cross-compiles

Cross.01  q. How do I do a cross-compile? My systems are highly similar.

a. If you are building on one system — for example, bldsys — and running on another — for example, runsys — and if both of them are highly similar to each other (hardware, operating system, other software), then follow these steps:

  1. Install SPEC CPU 2017 on both systems
  2. In your config file — for example, pintu.cfg — pick a useful and unique label for your binaries — for example 20210913.
  3. Build the benchmarks on bldsys.
  4. Test them on bldsys.
  5. Create a compressed tar file with the binaries, along with the config file, which must be included (because it contains binary hashes). For example:
    bldsys> cd $SPEC
    bldsys> spectar cvf - config/pintu.cfg benchspec/CPU/*/exe/*20210913 | specxz -T 0 > Cross1.tar.xz

    Note that on Windows, you would cd %SPEC%, and the specxz compression may need to be done as a separate command rather than as part of a pipeline.

  6. Transfer the compressed tar file to the run time system. Your methods for doing so will vary with your operating system and the security policies of your environment. Perhaps it might look something like this:
    bldsys> scp Cross1.tar.xz runsys:/data1/cpu2017

  7. On the system where you plan to run the benchmarks, unpack the binaries. For example:
    runsys> cd $SPEC
    runsys> specxz -dc Cross1.tar.xz | spectar -cf -

    Note that on Windows, you would cd %SPEC%, and the specxz compression may need to be done as a separate command rather than as part of a pipeline.

  8. Do a quick sanity test of the binaries on the run-time system, for example: runsys> runcpu --config=pintu --size=test --iterations=1 intrate
  9. Review the rule about cross compiles and adjust the system notes as needed.

Cross.02  q. Can I do a cross-compile if my systems are mostly similar, but the compiler is present on only one of them?

a. Probably, with slight variations to the steps just above:

Cross.03  q. Can I do a cross-compile if my systems are entirely different?

a. Maybe. When you build the binaries, you might not be able to use Feedback Directed Optimization unless your build system has an emulator for the run-time system. It may be easier to build without FDO.

It is possible that you might find that the first step above fails, because SPEC CPU 2017 cannot be installed on one of the systems. In that case, you may need to consider avoiding runcpu altogether.



SPEC CPU®2017 Frequently Asked Questions: Copyright © 2017-2021 Standard Performance Evaluation Corporation (SPEC®)
