SPEC® CFP2006 Result

Copyright 2006-2018 Standard Performance Evaluation Corporation

Hewlett Packard Enterprise (Test Sponsor: HPE)

Superdome Flex
(3.00 GHz, Intel Xeon Gold 6154)

SPECfp®_rate2006 = Not Run

CPU2006 license: 3 Test date: Dec-2017
Test sponsor: HPE Hardware Availability: Mar-2018
Tested by: HPE Software Availability: Mar-2018

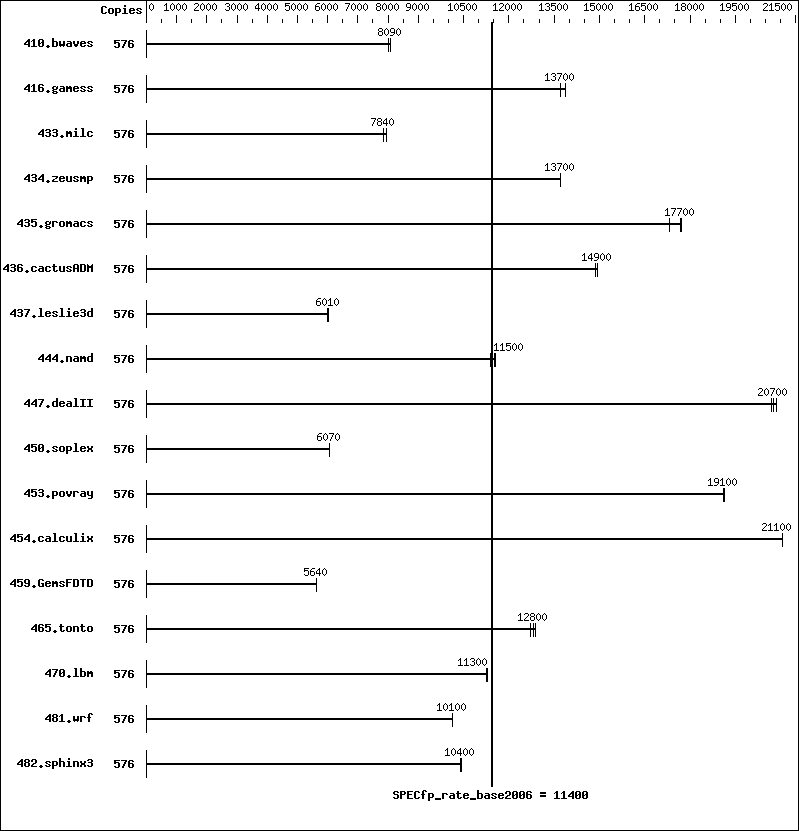

Benchmark results graph
Hardware
CPU Name: Intel Xeon Gold 6154
CPU Characteristics: Intel Turbo Boost Technology up to 3.70 GHz
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 288 cores, 16 chips, 18 cores/chip, 2 threads/core
CPU(s) orderable: 4 to 32 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 24.75 MB I+D on chip per chip
Other Cache: None
Memory: 6 TB (192 x 32 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: 6 TB tmpfs
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 (x86_64) SP2,
Kernel 4.4.74-92.38-default
Compiler: C/C++: Version 17.0.3.191 of Intel C/C++
Compiler for Linux;
Fortran: Version 17.0.3.191 of Intel Fortran
Compiler for Linux
Auto Parallel: No
File System: tmpfs
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: Not Applicable
Other Software: HPE Foundation Software 1.0,
Build 717a270.sles12sp2-1709012000

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 576 977 8010 967 8090 968 8090
416.gamess 576 813 13900 822 13700 822 13700
433.milc 576 675 7840 665 7960 674 7840
434.zeusmp 576 382 13700 383 13700 382 13700
435.gromacs 576 237 17300 232 17700 233 17700
436.cactusADM 576 461 14900 463 14900 461 14900
437.leslie3d 576 898 6030 905 5980 900 6010
444.namd 576 400 11500 399 11600 406 11400
447.dealII 576 318 20700 318 20700 316 20900
450.soplex 576 794 6050 792 6070 792 6070
453.povray 576 160 19100 160 19100 160 19100
454.calculix 576 226 21100 226 21100 226 21100
459.GemsFDTD 576 1084 5640 1084 5640 1084 5640
465.tonto 576 440 12900 445 12700 442 12800
470.lbm 576 701 11300 703 11300 704 11200
481.wrf 576 635 10100 635 10100 634 10100
482.sphinx3 576 1079 10400 1079 10400 1077 10400

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
 shell invocation of 'sync; echo 3 > /proc/sys/vm/drop_caches' prior to run
 The tmpfs filesystem was set up with:
    mkdir -p /dev/shm/cpu2006-16S
    mount -t tmpfs -o size=6144G,rw tmpfs /dev/shm/cpu2006-16S

Platform Notes

 Rack Management Controller setting:
    modify npar pnum=0 ras=hpc

 Sysinfo program /dev/shm/cpu2006-16S/config/sysinfo.rev6993
 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1)
 running on uv4test35-sys Fri Dec  8 15:34:05 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Gold 6154 CPU @ 3.00GHz
       16 "physical id"s (chips)
       576 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 18
       siblings  : 36
       physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 2: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 3: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 4: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 5: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 6: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 7: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 8: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 9: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 10: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 11: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 12: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 13: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 14: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 15: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
    cache size : 25344 KB

 From /proc/meminfo
    MemTotal:       6145746556 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 12 SP2

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    hpe-foundation-release: HPE Foundation Software 1.0, Build
    717a270.sles12sp2-1709012000
    hpe-mpi-release: HPE MPI 1.2, Build 718a13.sles12sp2-1710021900
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"
    sgi-release: SGI Performance Suite 1.16

 uname -a:
    Linux uv4test35-sys 4.4.74-92.38-default #1 SMP Tue Sep 12 19:43:46 UTC 2017
    (545c055) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Dec 7 12:57

 SPEC is set to: /dev/shm/cpu2006-16S
    Filesystem     Type   Size  Used Avail Use% Mounted on
    tmpfs          tmpfs  6.0T  244G  5.8T   4% /dev/shm/cpu2006-16S
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/dev/shm/cpu2006-16S/lib/ia32:/dev/shm/cpu2006-16S/lib/intel64:/dev/shm/cpu2006-16S/sh10.2"

 Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM
 memory using Redhat Enterprise Linux 7.2

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -qopt-prefetch   -auto-p32   -qopt-mem-layout-trans=3

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -qopt-prefetch   -auto-p32   -qopt-mem-layout-trans=3

Fortran benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -qopt-prefetch

Benchmarks using both Fortran and C:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -qopt-prefetch   -auto-p32   -qopt-mem-layout-trans=3

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revF.html,
http://www.spec.org/cpu2006/flags/HPE-Superdome_Flex-RevA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revF.xml,
http://www.spec.org/cpu2006/flags/HPE-Superdome_Flex-RevA.xml.
