SPEC® CINT2006 Result

Copyright 2006-2018 Standard Performance Evaluation Corporation

Hewlett Packard Enterprise (Test Sponsor: HPE)

ProLiant DL385 Gen10
(2.00 GHz, AMD EPYC 7401)

SPECint®_rate2006 = Not Run

CPU2006 license: 3 Test date: Nov-2017
Test sponsor: HPE Hardware Availability: Nov-2017
Tested by: HPE Software Availability: Sep-2017

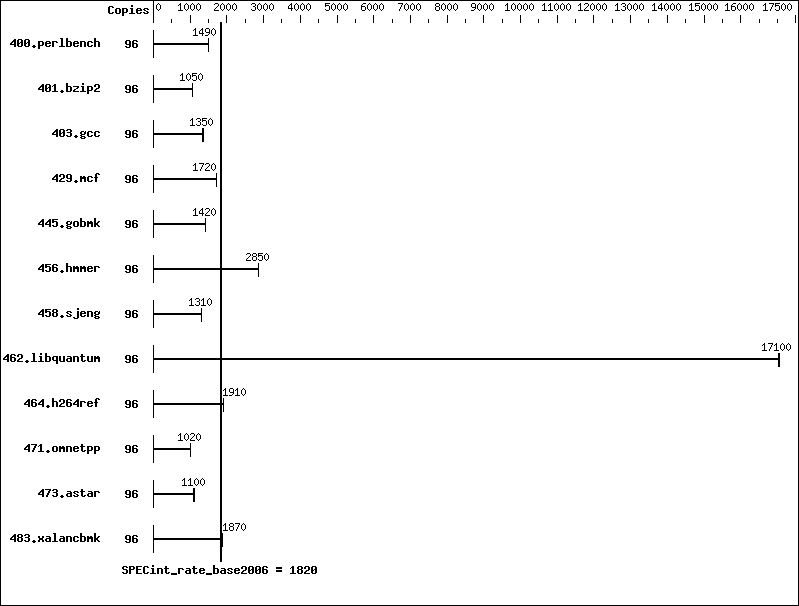

Benchmark results graph
Hardware
CPU Name: AMD EPYC 7401
CPU Characteristics: AMD Turbo CORE technology up to 3.00 GHz
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 48 cores, 2 chips, 24 cores/chip, 2 threads/core
CPU(s) orderable: 1, 2 chip(s)
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 64 MB I+D on chip per chip, 8 MB shared / 3 cores
Other Cache: None
Memory: 1 TB (16 x 64 GB 4Rx4 PC4-2666V-L)
Disk Subsystem: 1 x 400 GB SAS SSD, RAID 0
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 (x86_64) SP3
Kernel 4.4.73-5-default
Compiler: C/C++: Version 4.5.2.1 of x86 Open64 Compiler
Suite (from AMD)
Auto Parallel: No
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: Not Applicable
Other Software: MicroQuill SmartHeap 10.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 96 631 1490 631 1490 631 1490
401.bzip2 96 878 1060 881 1050 880 1050
403.gcc 96 570 1360 573 1350 573 1350
429.mcf 96 510 1720 511 1710 510 1720
445.gobmk 96 710 1420 708 1420 711 1420
456.hmmer 96 313 2860 314 2850 314 2850
458.sjeng 96 884 1310 883 1320 885 1310
462.libquantum 96 117 17000 117 17100 117 17100
464.h264ref 96 1109 1920 1111 1910 1113 1910
471.omnetpp 96 589 1020 591 1020 591 1020
473.astar 96 611 1100 610 1100 612 1100
483.xalancbmk 96 354 1870 354 1870 354 1870

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes


Set vm/nr_hugepages=86016 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

Platform Notes

 BIOS Configuration:
  Thermal Configuration set to Maximum Cooling
  Performance Determinism set to Power Deterministic
  Memory Patrol Scrubbing set to Disabled
  Workload Profile set to General Throughput Compute
  Minimum Processor Idle Power Core C-State set to C6 State
  Processor Power and Utilization Monitoring set to Disabled

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/home/cpu2006/amd1603-rate-libs-revB/32:/home/cpu2006/amd1603-rate-libs-revB/64"

The binaries were built with the x86 Open64 Compiler Suite,
which is only available from (and supported by) AMD at
http://developer.amd.com/tools-and-sdks/cpu-development/x86-open64-compiler-suite/

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast   -CG:local_sched_alg=1   -INLINE:aggressive=ON   -IPA:plimit=8000   -IPA:small_pu=100   -HP:bd=2m:heap=2m   -mso   -LNO:prefetch=2   -march=bdver1   -mno-fma4   -mno-xop   -mno-tbm

C++ benchmarks:

 -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -D__OPEN64_FAST_SET   -march=bdver1   -mno-fma4   -mno-xop   -mno-tbm   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-openflags-rate-revA-I.html,
http://www.spec.org/cpu2006/flags/HPE-Platform-Flags-AMD-V1.2-EPYC-revD.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-openflags-rate-revA-I.xml,
http://www.spec.org/cpu2006/flags/HPE-Platform-Flags-AMD-V1.2-EPYC-revD.xml.
