SPEC® CINT2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Lenovo Global Technology

ThinkSystem SD530
(2.00 GHz, Intel Xeon Gold 6138)

CPU2006 license: 9017 Test date: Jul-2017
Test sponsor: Lenovo Global Technology Hardware Availability: Aug-2017
Tested by: Lenovo Global Technology Software Availability: Nov-2016

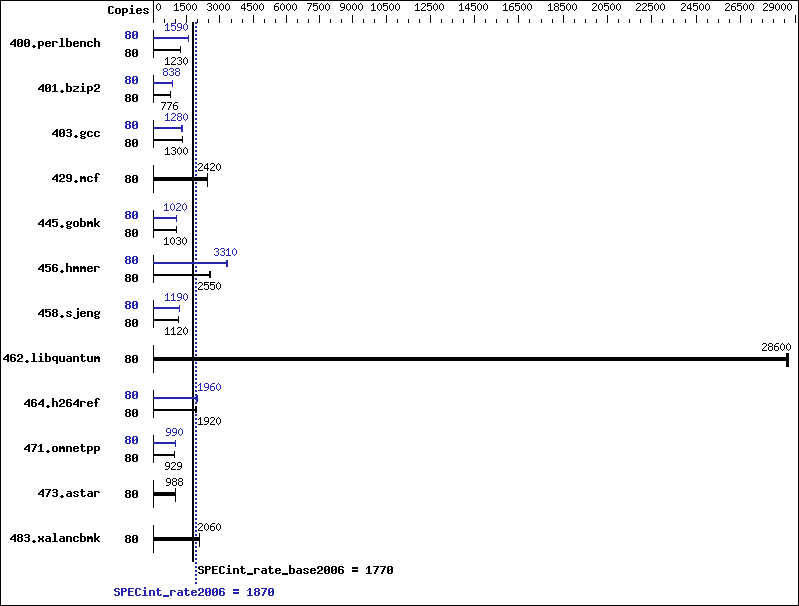

Benchmark results graph
Hardware
CPU Name: Intel Xeon Gold 6138
CPU Characteristics: Intel Turbo Boost Technology up to 3.70 GHz
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 40 cores, 2 chips, 20 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 27.5 MB I+D on chip per chip
Other Cache: None
Memory: 384 GB (12 x 32 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: 1 x 800 GB SATA SSD
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 SP2 (x86_64)
Kernel 4.4.21-69-default
Compiler: C/C++: Version 17.0.1.132 of Intel C/C++
Compiler for Linux
Auto Parallel: No
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 80 634   1230 635   1230 631   1240 80 492   1590 493   1590 493   1590
401.bzip2 80 991   779 994   776 996   775 80 923   837 920   839 921   838
403.gcc 80 495   1300 496   1300 495   1300 80 502   1280 502   1280 500   1290
429.mcf 80 301   2420 302   2420 302   2420 80 301   2420 302   2420 302   2420
445.gobmk 80 815   1030 815   1030 815   1030 80 819   1020 819   1030 819   1020
456.hmmer 80 292   2560 293   2550 294   2540 80 225   3310 226   3300 224   3330
458.sjeng 80 867   1120 865   1120 865   1120 80 817   1190 816   1190 816   1190
462.libquantum 80 58.0 28600 57.8 28700 57.9 28600 80 58.0 28600 57.8 28700 57.9 28600
464.h264ref 80 922   1920 931   1900 913   1940 80 909   1950 902   1960 891   1990
471.omnetpp 80 538   929 539   928 538   929 80 505   990 505   990 506   989
473.astar 80 569   987 567   990 568   988 80 569   987 567   990 568   988
483.xalancbmk 80 267   2070 267   2060 268   2060 80 267   2070 267   2060 268   2060

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Configuration:
 DCU Streamer Prefetcher set to Disable
 Uncore Frequency Scaling set to Disable
 Stale AtoS set to Enable
 LLC dead line alloc set to Disable
 SNC set to Enable
 Sysinfo program /home/cpu2006-1.2-ic17.0u1/config/sysinfo.rev6993
 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1)
 running on Stark-node-02 Fri Jul  7 02:18:37 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Gold 6138 CPU @ 2.00GHz
       2 "physical id"s (chips)
       80 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 20
       siblings  : 40
       physical 0: cores 0 1 2 3 4 8 9 10 11 12 16 17 18 19 20 24 25 26 27 28
       physical 1: cores 0 1 2 3 4 8 9 10 11 12 16 17 18 19 20 24 25 26 27 28
    cache size : 28160 KB

 From /proc/meminfo
    MemTotal:       395737612 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux Stark-node-02 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016
    (9464f67) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jul 7 02:17

 SPEC is set to: /home/cpu2006-1.2-ic17.0u1
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda4      xfs   688G  160G  529G  24% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Lenovo -[TEE105Z-1.00]- 04/27/2017
   Memory:
    4x NO DIMM NO DIMM
    12x Samsung M393A4K40BB2-CTD 32 GB 2 rank 2666 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/home/cpu2006-1.2-ic17.0u1/lib/ia32:/home/cpu2006-1.2-ic17.0u1/lib/intel64:/home/cpu2006-1.2-ic17.0u1/sh10.2"

 Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM
 memory using Redhat Enterprise Linux 7.2
 Transparent Huge Pages enabled by default
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32

Base Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX_IA32
401.bzip2:  -D_FILE_OFFSET_BITS=64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -D_FILE_OFFSET_BITS=64
458.sjeng:  -D_FILE_OFFSET_BITS=64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xCORE-AVX512   -ipo   -O3   -no-prec-div   -qopt-prefetch   -qopt-mem-layout-trans=3

C++ benchmarks:

 -xCORE-AVX512   -ipo   -O3   -no-prec-div   -qopt-prefetch   -qopt-mem-layout-trans=3   -Wl,-z,muldefs   -L/sh10.2 -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -auto-ilp32   -qopt-mem-layout-trans=3
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-prefetch   -auto-ilp32   -qopt-mem-layout-trans=3
403.gcc:  -xCORE-AVX512   -ipo   -O3   -no-prec-div   -qopt-mem-layout-trans=3
429.mcf:  basepeak = yes
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-mem-layout-trans=3
456.hmmer:  -xCORE-AVX512   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32   -qopt-mem-layout-trans=3
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll4   -auto-ilp32   -qopt-mem-layout-trans=3
462.libquantum:  basepeak = yes
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll2   -qopt-mem-layout-trans=3

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-ra-region-strategy=block    -qopt-mem-layout-trans=3   -Wl,-z,muldefs   -L/sh10.2 -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revD.html,
http://www.spec.org/cpu2006/flags/Lenovo-Platform-Flags-V1.2-SKL-C.20171004.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revD.xml,
http://www.spec.org/cpu2006/flags/Lenovo-Platform-Flags-V1.2-SKL-C.20171004.xml.
