SPEC® CINT2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS C220 M5 (Intel Xeon Gold 6126,
2.60GHz)

CPU2006 license: 9019 Test date: Aug-2017
Test sponsor: Cisco Systems Hardware Availability: Aug-2017
Tested by: Cisco Systems Software Availability: Apr-2017

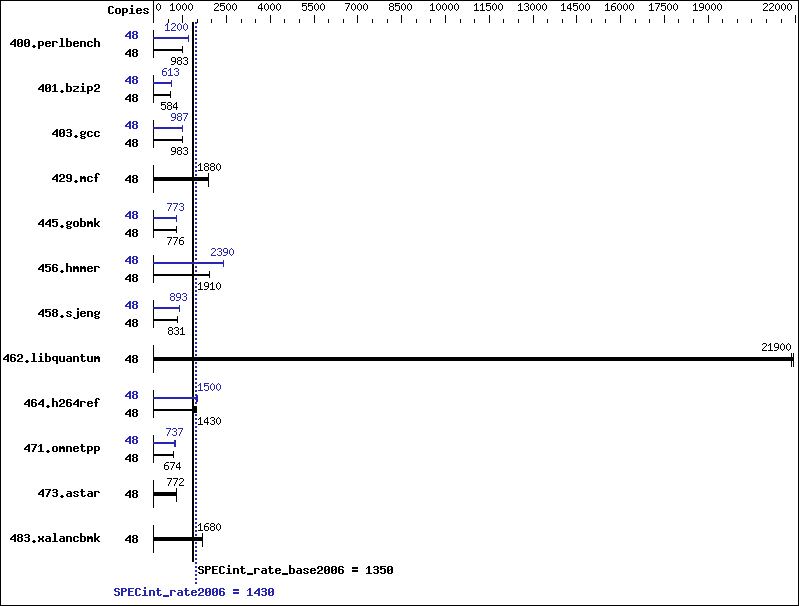

Benchmark results graph
Hardware
CPU Name: Intel Xeon Gold 6126
CPU Characteristics: Intel Turbo Boost Technology up to 3.70 GHz
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 19.25 MB I+D on chip per chip
Other Cache: None
Memory: 384 GB (24 x 16 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: 1 x 480 GB SSD SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 SP2 (x86_64)
4.4.21-69-default
Compiler: C/C++: Version 17.0.3.191 of Intel C/C++
Compiler for Linux
Auto Parallel: Yes
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 48 477   983 477   984 478   981 48 390   1200 392   1200 391   1200
401.bzip2 48 793   584 793   584 794   583 48 755   614 755   613 759   610
403.gcc 48 393   982 393   983 393   984 48 391   987 391   988 392   986
429.mcf 48 234   1870 232   1890 233   1880 48 234   1870 232   1890 233   1880
445.gobmk 48 649   776 648   777 649   776 48 651   774 652   772 651   773
456.hmmer 48 234   1920 234   1910 235   1910 48 187   2390 188   2380 187   2400
458.sjeng 48 702   828 699   831 699   831 48 650   893 650   893 649   894
462.libquantum 48 45.3 21900 45.5 21800 45.3 21900 48 45.3 21900 45.5 21800 45.3 21900
464.h264ref 48 751   1420 730   1460 742   1430 48 706   1510 708   1500 713   1490
471.omnetpp 48 445   674 445   674 444   675 48 407   737 409   734 407   737
473.astar 48 437   772 436   773 437   771 48 437   772 436   773 437   771
483.xalancbmk 48 197   1680 198   1680 198   1670 48 197   1680 198   1680 198   1670

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Settings:
Intel HyperThreading Technology set to Enabled
CPU performance set to Enterprise
Power Performance Tuning set to OS
SNC set to Enabled
IMC Interleaving set to 1-way Interleave
Patrol Scrub set to Disabled
 Sysinfo program /home/cpu2006-1.2/config/sysinfo.rev6993
 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1)
 running on linux-79ix Thu Aug 31 16:59:08 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Gold 6126 CPU @ 2.60GHz
       2 "physical id"s (chips)
       48 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 12
       siblings  : 24
       physical 0: cores 0 1 3 4 5 6 8 9 10 11 12 13
       physical 1: cores 0 1 2 3 4 5 6 8 9 11 12 13
    cache size : 19712 KB

 From /proc/meminfo
    MemTotal:       394653264 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux linux-79ix 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016
    (9464f67) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Aug 31 16:38

 SPEC is set to: /home/cpu2006-1.2
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sdb7      xfs   416G   19G  398G   5% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Cisco Systems, Inc. C220M5.3.1.1d.0.0615170645 06/15/2017
   Memory:
    24x 0xCE00 M393A2G40EB2-CTD 16 GB 2 rank 2666 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/home/cpu2006-1.2/lib/ia32:/home/cpu2006-1.2/lib/intel64:/home/cpu2006-1.2/sh10.2"

 Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM
 memory using Redhat Enterprise Linux 7.2
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
 shell invocation of 'sync; echo 3 > /proc/sys/vm/drop_caches' prior to run
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32

Base Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX_IA32
401.bzip2:  -D_FILE_OFFSET_BITS=64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -D_FILE_OFFSET_BITS=64
458.sjeng:  -D_FILE_OFFSET_BITS=64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xCORE-AVX512   -ipo   -O3   -no-prec-div   -qopt-prefetch   -qopt-mem-layout-trans=3

C++ benchmarks:

 -xCORE-AVX512   -ipo   -O3   -no-prec-div   -qopt-prefetch   -qopt-mem-layout-trans=3   -Wl,-z,muldefs   -L/sh10.2 -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2017/linux/lib/ia32

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -auto-ilp32   -qopt-mem-layout-trans=3
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-prefetch   -auto-ilp32   -qopt-mem-layout-trans=3
403.gcc:  -xCORE-AVX512   -ipo   -O3   -no-prec-div   -qopt-mem-layout-trans=3
429.mcf:  basepeak = yes
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-mem-layout-trans=3
456.hmmer:  -xCORE-AVX512   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32   -qopt-mem-layout-trans=3
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll4   -auto-ilp32   -qopt-mem-layout-trans=3
462.libquantum:  basepeak = yes
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll2   -qopt-mem-layout-trans=3

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX512(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -qopt-ra-region-strategy=block    -qopt-mem-layout-trans=3   -Wl,-z,muldefs   -L/sh10.2 -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revF.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revH.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revF.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revH.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2017 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Wed Sep 20 11:07:00 2017 by SPEC CPU2006 HTML formatter v6932.
Originally published on 19 September 2017.
