SPEC® CFP2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS C220 M5 (Intel Xeon Gold 6148,
2.40 GHz)

SPECfp®2006 = 145

CPU2006 license: 9019 Test date: Aug-2017
Test sponsor: Cisco Systems Hardware Availability: Aug-2017
Tested by: Cisco Systems Software Availability: Apr-2017

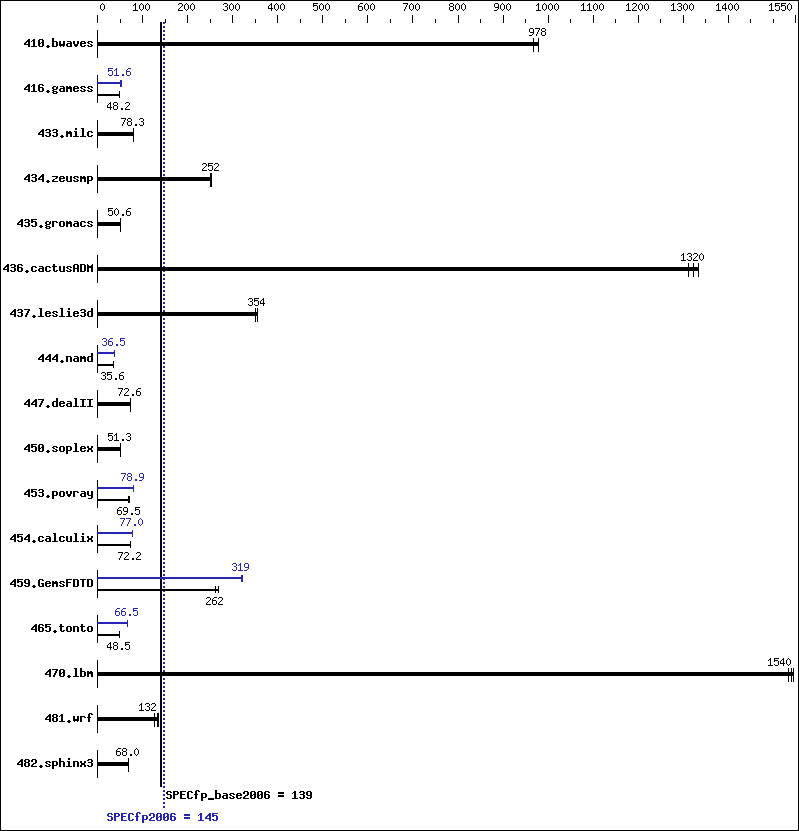

Benchmark results graph
Hardware
CPU Name: Intel Xeon Gold 6148
CPU Characteristics: Intel Turbo Boost Technology up to 3.70 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 40 cores, 2 chips, 20 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 27.5 MB I+D on chip per chip
Other Cache: None
Memory: 384 GB (24 x 16 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: 1 x 480 GB SSD SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 SP2 (x86_64)
4.4.21-69-default
Compiler: C/C++: Version 17.0.3.191 of Intel C/C++
Compiler for Linux;
Fortran: Version 17.0.3.191 of Intel Fortran
Compiler for Linux
Auto Parallel: Yes
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 13.9  979   13.9  978   14.1  967   13.9  979   13.9  978   14.1  967
416.gamess 408    48.0 405    48.3 407    48.2 379    51.7 379    51.6 380    51.5
433.milc 117    78.4 117    78.3 117    78.3 117    78.4 117    78.3 117    78.3
434.zeusmp 35.9  254   36.1  252   36.3  250   35.9  254   36.1  252   36.3  250
435.gromacs 141    50.6 142    50.3 141    50.6 141    50.6 142    50.3 141    50.6
436.cactusADM 9.11 1310   9.03 1320   8.95 1330   9.11 1310   9.03 1320   8.95 1330
437.leslie3d 26.5  354   26.5  355   26.8  350   26.5  354   26.5  355   26.8  350
444.namd 225    35.6 225    35.6 225    35.6 220    36.5 220    36.5 220    36.5
447.dealII 158    72.6 158    72.5 158    72.6 158    72.6 158    72.5 158    72.6
450.soplex 163    51.1 162    51.5 163    51.3 163    51.1 162    51.5 163    51.3
453.povray 77.2  68.9 76.4  69.6 76.5  69.5 67.4  78.9 67.4  78.9 67.7  78.6
454.calculix 114    72.3 114    72.2 114    72.2 107    77.0 107    77.0 107    77.0
459.GemsFDTD 40.4  262   40.6  262   39.7  267   33.3  318   33.0  322   33.2  319
465.tonto 203    48.5 204    48.1 203    48.6 148    66.4 148    66.5 148    66.5
470.lbm 8.90 1540   8.92 1540   8.96 1530   8.90 1540   8.92 1540   8.96 1530
481.wrf 83.0  135   84.6  132   88.9  126   83.0  135   84.6  132   88.9  126
482.sphinx3 287    67.8 287    68.0 286    68.1 287    67.8 287    68.0 286    68.1

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Settings:
Intel HyperThreading Technology set to Disabled
CPU performance set to Enterprise
Power Performance Tuning set to OS
SNC set to Disabled
IMC Interleaving set to Auto
Patrol Scrub set to Disabled
 Sysinfo program /home/cpu2006-1.2/config/sysinfo.rev6993
 Revision 6993 of 2015-11-06 (b5e8d4b4eb51ed28d7f98696cbe290c1)
 running on linux-a0tk Mon Aug 28 15:55:12 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Gold 6148 CPU @ 2.40GHz
       2 "physical id"s (chips)
       40 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 20
       siblings  : 20
       physical 0: cores 0 1 2 3 4 8 9 10 11 12 16 17 18 19 20 24 25 26 27 28
       physical 1: cores 0 1 2 3 4 8 9 10 11 12 16 17 18 19 20 24 25 26 27 28
    cache size : 28160 KB

 From /proc/meminfo
    MemTotal:       394863396 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 12 SP2

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux linux-a0tk 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016
    (9464f67) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Aug 28 15:53

 SPEC is set to: /home/cpu2006-1.2
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda7      xfs   416G   27G  389G   7% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Cisco Systems, Inc. C220M5.3.1.1d.0.0615170645 06/15/2017
   Memory:
    24x 0xCE00 M393A2G40EB2-CTD 16 GB 2 rank 2666 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,compact"
LD_LIBRARY_PATH = "/home/cpu2006-1.2/lib/ia32:/home/cpu2006-1.2/lib/intel64:/home/cpu2006-1.2/sh10.2"
OMP_NUM_THREADS = "40"

 Binaries compiled on a system with 1x Intel Core i7-4790 CPU + 32GB RAM
 memory using Redhat Enterprise Linux 7.2
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -qopt-prefetch

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -qopt-prefetch

Fortran benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -qopt-prefetch

Benchmarks using both Fortran and C:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -qopt-prefetch

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -unroll2   -inline-level=0   -qopt-prefetch   -parallel
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -xCORE-AVX2(pass 2)   -par-num-threads=1(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -inline-calloc   -qopt-malloc-options=3   -auto   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -auto-ilp32
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revF.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revH.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic17.0-official-linux64-revF.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2-revH.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2017 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Wed Sep 20 11:06:57 2017 by SPEC CPU2006 HTML formatter v6932.
Originally published on 19 September 2017.
