SPEC® CINT2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M12-2S

SPECint®_rate2006 = 102

CPU2006 license: 19 Test date: Mar-2017
Test sponsor: Fujitsu Hardware Availability: Apr-2017
Tested by: Fujitsu Software Availability: Jul-2017

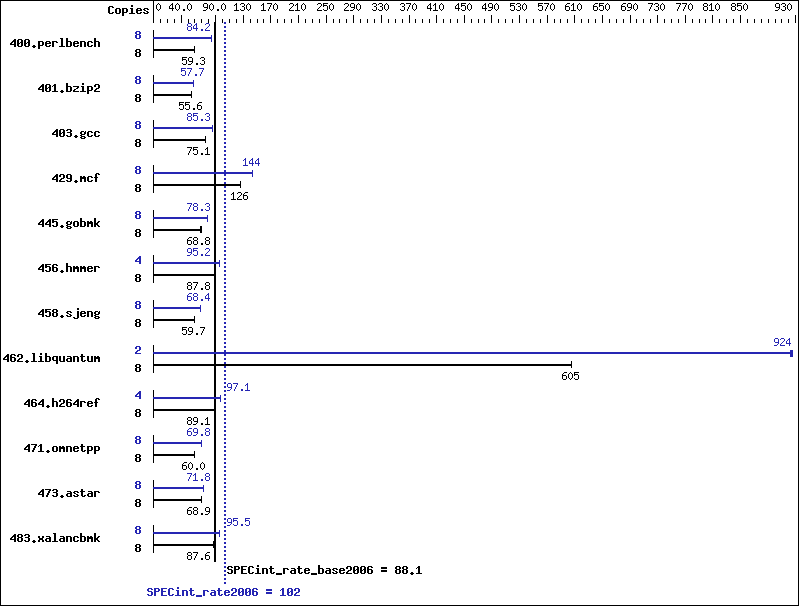

Benchmark results graph
Hardware
CPU Name: SPARC64 XII
CPU Characteristics: High Speed Mode up to 4.35 GHz
CPU MHz: 4250
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 1 core/chip, 8 threads/core
CPU(s) orderable: 1 to 16 BBs; each BB contains 1 or 2 CPU chips;
the number of orderable total cores is 2, 3, 4,
.. 384
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 32 MB I+D on chip per chip
Other Cache: None
Memory: 512 GB (16 x 32 GB 2Rx4 PC4-2400T-R)
Disk Subsystem: 1 x 600 GB 10K RPM SAS (for system disk)
Other Hardware: None
Software
Operating System: Oracle Solaris 11.3 (with June 2017 SRU)
Compiler: C/C++: Version 12.6 of Oracle Developer Studio
Auto Parallel: No
File System: tmpfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 1320 59.2 1314 59.5 1317 59.3 8 929   84.2 927   84.3 928   84.2
401.bzip2 8 1388 55.6 1389 55.6 1388 55.6 8 1339   57.7 1337   57.7 1337   57.8
403.gcc 8 859 74.9 858 75.1 857 75.1 8 758   85.0 755   85.3 755   85.3
429.mcf 8 580 126   581 126   580 126   8 508   144   507   144   507   144
445.gobmk 8 1218 68.9 1221 68.7 1219 68.8 8 1070   78.4 1071   78.3 1071   78.3
456.hmmer 8 851 87.8 851 87.7 850 87.8 4 392   95.3 393   95.1 392   95.2
458.sjeng 8 1621 59.7 1625 59.6 1621 59.7 8 1416   68.4 1417   68.3 1413   68.5
462.libquantum 8 274 605   274 605   274 605   2 44.9 924   44.9 922   44.8 925
464.h264ref 8 1986 89.1 1986 89.1 1987 89.1 4 912   97.1 911   97.2 912   97.0
471.omnetpp 8 833 60.1 833 60.0 833 60.0 8 716   69.8 716   69.8 716   69.8
473.astar 8 815 68.9 814 69.0 815 68.9 8 782   71.8 782   71.8 781   71.9
483.xalancbmk 8 631 87.5 630 87.6 630 87.6 8 578   95.5 578   95.5 578   95.5

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".

 System Tunables:
 (/etc/system parameters)
    autoup = 86400
       Causes pages older than the listed number of seconds to be written by fsflush.
    doiflush = 0
       Controls whether file system metadata syncs will be executed during fsflush invocations.
    dopageflush = 0
       Controls whether memory is examined for modified pages during fsflush invocations.
    zfs:zfs_arc_max=1073741824
       Determines the maximum size of the ZFS Adaptive Replacement Cache (ARC).

Platform Notes

Firmware Settings:
(XSCF operations)
   Set High Speed Mode via XSCF command "sethsmode -s on".

   Set 1 core per chip via "setcod -p 0 -s cpu 1".

 Sysinfo program /export/cpu2006/config/sysinfo
 Revision 6993 of 2015-11-06 (5bc7c140478f0d042f37127effc8c1a9)
 running on H2S-256-D0 Wed Mar  1 18:55:47 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo

    SPARC64-XII (chipid 0, clock 4250 MHz)
    1 chips
    8 threads
    4250 MHz

 From kstat:        1 cores

 From prtconf: 521728 Megabytes

 /etc/release:
      Oracle Solaris 11.3 SPARC
 uname -a:
    SunOS H2S-256-D0 5.11 11.3 sun4v sparc sun4v

 SPEC is set to: /export/cpu2006

 disk: df -h  /export/cpu2006
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G   5.6G       269G     3%    /export

 (End of data from sysinfo program)

General Notes

 The Building Block (BB) is just a Fujitsu SPARC M12-2S that is the basic
 unit to be expanded as if stacking up children's blocks.

 File System:
  tmpfs: output_root was used to put run directories in /tmp/cpu2006
  zfs: operating system

 SPEC CPU2006 benchmark:
  Updated with runspec --update

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -std=c99   -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std

C++ benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -library=stlport4   -lfast

Base Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -xO4   -Wc,-Qiselect-funcalign=4   -xthroughput=no   -lfast
401.bzip2:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xalias_level=strong   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=4   -Wc,-Qicache-chbab=1   -xinline_param=max_inst_hard:1000,max_inst_soft:500,max_growth:60   -lfast
403.gcc:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xO4   -xipo=2   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=64   -xcache=32/128/4/4:256/128/8/4:8192/128/16/24   -xalias_level=layout
429.mcf:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=2   -xalias_level=std   -xprefetch=latx:0.2   -W2,-Asac   -Wc,-Qiselect-funcalign=64
445.gobmk:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xO4   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=64   -Wc,-Qgsched-T=4
456.hmmer:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=1   -xunroll=8   -Wc,-Qms_pipe-pref   -Wc,-Qiselect-funcalign=4   -xcache=32/128/4/4:256/128/8/4:8192/128/16/48
458.sjeng:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xO4   -xipo=2   -xalias_level=std   -xunroll=4   -Wc,-Qiselect-funcalign=4   -W2,-Afully_unroll:always=on   -xprefetch=latx:0.6   -xcheck=%none
462.libquantum:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -m64   -xtarget=sparc64xplus   -xipo=2   -xcache=32/128/4/4:256/128/8/4:8192/128/16/24   -xinline_param=level:1   -Wc,-Qiselect-funcalign=4   -xalias_level=layout   -xprefetch=latx:0.2
464.h264ref:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -Wc,-Qiselect-funcalign=4   -xthroughput=no   -xalias_level=layout   -xprefetch=latx:0.2   -xcheck=%none

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=1   -xalias_level=compatible   -xunroll=2   -xprefetch_level=3   -W2,-Asac   -xthroughput=no   -lfast
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xtarget=sparc64xplus   -xalias_level=compatible   -xipo=2   -xunroll=6   -xrestrict=%source   -Wc,-Qiselect-funcalign=64   -Wc,-Qgsched-T=4   -xprefetch=latx:0.3   -lfast
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=2   -xalias_level=compatible   -xdepend   -xprefetch_level=3   -xprefetch=latx:0.4   -library=stlport4   -W2,-Asac   -Wc,-Qiselect-funcalign=64   -features=no%except   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.html,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.xml,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2017 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Apr 20 09:42:29 2017 by SPEC CPU2006 HTML formatter v6932.
Originally published on 19 April 2017.
