SPEC® CFP2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge C6320p (Intel Xeon Phi 7210 1.30 GHz)

CPU2006 license: 55 Test date: Mar-2017
Test sponsor: Dell Inc. Hardware Availability: Jan-2017
Tested by: Dell Inc. Software Availability: Jan-2017

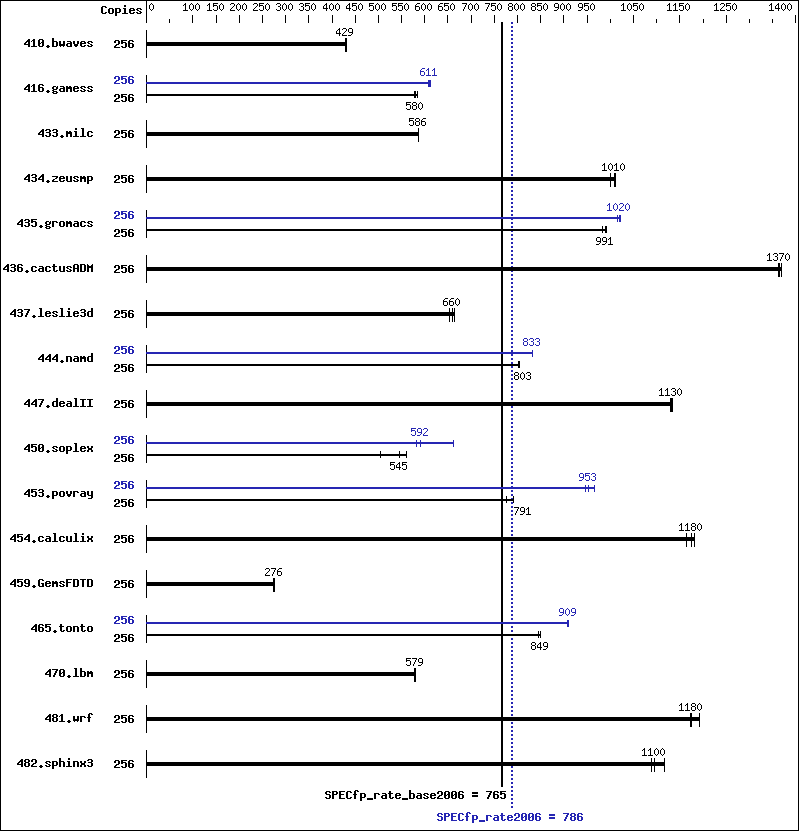

Benchmark results graph
Hardware
CPU Name: Intel Xeon Phi 7210
CPU Characteristics: Intel Turbo Boost Technology up to 1.50 GHz
CPU MHz: 1300
FPU: Integrated
CPU(s) enabled: 64 cores, 1 chip, 64 cores/chip, 4 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per two cores
L3 Cache: None
Other Cache: None
Memory: 400 GB (6 x 64 GB 2Rx8 PC4-2400T-R, running at
2133 MHz + 8 x 2 GB 6400 MHz MCDRAM)
Disk Subsystem: 1 x 1 TB 7.2K SATA
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 12 SP2 (x86_64)
4.4.16-56-default
Compiler: C/C++: Version 16.0.2.181 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.2.181 of Intel Fortran
Studio XE for Linux
Auto Parallel: No
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 256 8115 429 8080 431 8103 429 256 8115 429 8080 431 8103 429
416.gamess 256 8566 585 8640 580 8682 577 256 8206 611 8180 613 8240 608
433.milc 256 4007 586 4008 586 4013 586 256 4007 586 4008 586 4013 586
434.zeusmp 256 2308 1010 2329 1000 2303 1010 256 2308 1010 2329 1000 2303 1010
435.gromacs 256 1845 991 1859 983 1845 991 256 1793 1020 1801 1010 1789 1020
436.cactusADM 256 2243 1360 2235 1370 2241 1370 256 2243 1360 2235 1370 2241 1370
437.leslie3d 256 3625 664 3687 653 3648 660 256 3625 664 3687 653 3648 660
444.namd 256 2559 802 2556 803 2555 804 256 2466 833 2470 831 2466 833
447.dealII 256 2591 1130 2580 1130 2585 1130 256 2591 1130 2580 1130 2585 1130
450.soplex 256 4233 504 3915 545 3801 562 256 3670 582 3608 592 3221 663
453.povray 256 1720 792 1753 777 1722 791 256 1429 953 1411 965 1440 946
454.calculix 256 1786 1180 1796 1180 1813 1170 256 1786 1180 1796 1180 1813 1170
459.GemsFDTD 256 9855 276 9883 275 9849 276 256 9855 276 9883 275 9849 276
465.tonto 256 2964 850 2967 849 2977 846 256 2771 909 2776 907 2767 910
470.lbm 256 6072 579 6078 579 6067 580 256 6072 579 6078 579 6067 580
481.wrf 256 2439 1170 2431 1180 2399 1190 256 2439 1170 2431 1180 2399 1190
482.sphinx3 256 4584 1090 4553 1100 4467 1120 256 4584 1090 4553 1100 4467 1120

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 Sysinfo program /root/cpu2006-1.2/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on linux-z6tq Thu Mar  9 22:03:14 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon Phi(TM) CPU 7210 @ 1.30GHz
       1 "physical id"s (chips)
       256 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 64
       siblings  : 256
       physical 0: cores 0 1 10 11 12 13 14 15 18 19 20 21 22 23 24 25 28 29 30
       31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 48 49 50 51 52 53 54 55 56 57
       58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73
    cache size : 1024 KB

 From /proc/meminfo
    MemTotal:       396136364 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux linux-z6tq 4.4.16-56-default #1 SMP Mon Aug 8 14:24:26 UTC 2016
    (5b281a8) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Mar 6 22:35

 SPEC is set to: /root/cpu2006-1.2
    Filesystem     Type   Size  Used Avail Use% Mounted on
    /dev/sdb2      btrfs  930G  533G  395G  58% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Dell Inc. 1.1.7 003/003/2017
   Memory:
    6x Hynix HMAA8GL7MMR4N-UH 64 GB 4 rank 2400 MHz, configured at 2133 MHz
    8x INTEL N/A 2 GB 6400 MHz

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/cpu2006-1.2/libs/32:/root/cpu2006-1.2/libs/64:/root/cpu2006-1.2/sh"

 Binaries compiled on a system with
 Intel 2nd Generation Xeon Phi CPU
 with 96 GB DDR4 memory using RedHat EL 7.2
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias

C++ benchmarks:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias

Fortran benchmarks:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch

Benchmarks using both Fortran and C:

 -xMIC-AVX512   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks (except as noted below):

 icpc -m64
450.soplex:  icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -D_FILE_OFFSET_BITS=64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -opt-malloc-options=3
453.povray:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:  -xMIC-AVX512   -ipo   -O3   -no-prec-div   -prof-gen(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -opt-prefetch   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64-revB.html,
http://www.spec.org/cpu2006/flags/Default-Platform-Flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64-revB.xml,
http://www.spec.org/cpu2006/flags/Default-Platform-Flags.xml.
