CPU2006 license: | 13 | Test date: | Jun-2016 |
---|---|---|---|
Test sponsor: | Intel Corporation | Hardware Availability: | May-2016 |
Tested by: | Intel Corporation | Software Availability: | Nov-2015 |
Hardware | |
---|---|
CPU Name: | Intel Core i7-6950X |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
CPU MHz: | 3000 |
FPU: | Integrated |
CPU(s) enabled: | 10 cores, 1 chip, 10 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 25 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (4 x 8 GB 2Rx4 PC4-2133R-U) |
Disk Subsystem: | 1 TB Seagate SATA HDD, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Microsoft Windows 10 Pro 10.0.10586 N/A Build 10586 |
Compiler: | C/C++: Version 16.0.0.110 of Intel C++ Studio XE for Windows; Fortran: Version 16.0.0.110 of Intel Fortran Studio XE for Windows; Libraries: Version 18.00.30723 of Microsoft Visual Studio 2013 |
Auto Parallel: | Yes |
File System: | NTFS |
System State: | Default |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap Library Version 11.0 from http://www.microquill.com/ |

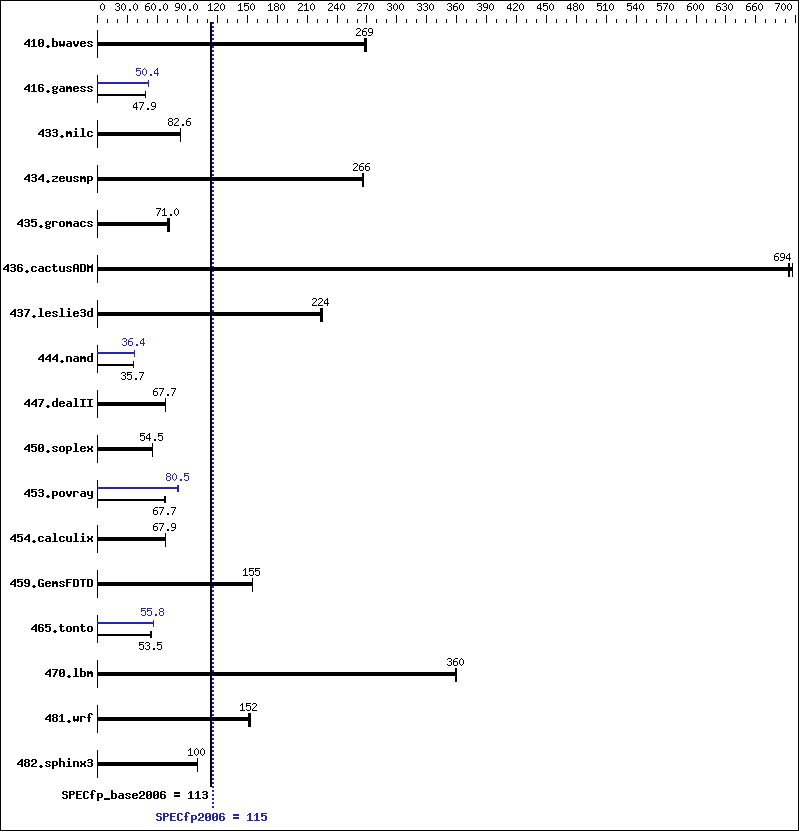

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 50.8 | 267 | 50.5 | 269 | 50.5 | 269 | 50.8 | 267 | 50.5 | 269 | 50.5 | 269 |
416.gamess | 408 | 47.9 | 410 | 47.7 | 409 | 47.9 | 388 | 50.4 | 388 | 50.4 | 388 | 50.5 |
433.milc | 111 | 83.1 | 111 | 82.5 | 111 | 82.6 | 111 | 83.1 | 111 | 82.5 | 111 | 82.6 |
434.zeusmp | 34.2 | 266 | 34.2 | 266 | 34.2 | 266 | 34.2 | 266 | 34.2 | 266 | 34.2 | 266 |
435.gromacs | 102 | 70.2 | 99.3 | 71.9 | 101 | 71.0 | 102 | 70.2 | 99.3 | 71.9 | 101 | 71.0 |
436.cactusADM | 17.2 | 694 | 17.3 | 693 | 17.2 | 696 | 17.2 | 694 | 17.3 | 693 | 17.2 | 696 |
437.leslie3d | 41.9 | 224 | 41.7 | 225 | 42.1 | 223 | 41.9 | 224 | 41.7 | 225 | 42.1 | 223 |
444.namd | 225 | 35.6 | 225 | 35.7 | 225 | 35.7 | 220 | 36.4 | 220 | 36.4 | 220 | 36.4 |
447.dealII | 169 | 67.7 | 169 | 67.7 | 169 | 67.7 | 169 | 67.7 | 169 | 67.7 | 169 | 67.7 |
450.soplex | 153 | 54.7 | 153 | 54.5 | 153 | 54.5 | 153 | 54.7 | 153 | 54.5 | 153 | 54.5 |
453.povray | 79.0 | 67.3 | 78.5 | 67.8 | 78.6 | 67.7 | 66.3 | 80.3 | 66.1 | 80.5 | 65.9 | 80.7 |
454.calculix | 122 | 67.8 | 122 | 67.9 | 121 | 67.9 | 122 | 67.8 | 122 | 67.9 | 121 | 67.9 |
459.GemsFDTD | 68.5 | 155 | 68.3 | 155 | 68.5 | 155 | 68.5 | 155 | 68.3 | 155 | 68.5 | 155 |
465.tonto | 184 | 53.5 | 184 | 53.5 | 184 | 53.4 | 176 | 56.0 | 177 | 55.5 | 176 | 55.8 |
470.lbm | 38.2 | 360 | 38.2 | 360 | 38.3 | 359 | 38.2 | 360 | 38.2 | 360 | 38.3 | 359 |
481.wrf | 73.3 | 152 | 72.8 | 154 | 73.7 | 152 | 73.3 | 152 | 72.8 | 154 | 73.7 | 152 |
482.sphinx3 | 195 | 100 | 195 | 99.8 | 194 | 100 | 195 | 100 | 195 | 99.8 | 194 | 100 |
To compile these binaries, the Intel Compiler 16.0 was set up to generate 64-bit binaries with the command: "psxevars.bat intel64" (shortcut provided in the Intel(r) Parallel Studio XE 2016 program folder)
Sysinfo program C:\SPEC16.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt1C1B0D05C2E5 Sat Jun 18 11:59:34 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 10 Pro OS Version : 10.0.10586 N/A Build 10586 System Manufacturer: Gigabyte Technology Co., Ltd. System Model : Default string Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 79 Stepping 1 GenuineIntel ~3001 Mhz BIOS Version : American Megatrends Inc. F2, 5/22/2016 Total Physical Memory: 32,606 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 2560 L3CacheSize : 25600 MaxClockSpeed : 3001 Name : Intel(R) Core(TM) i7-6950X CPU @ 3.00GHz NumberOfCores : 10 NumberOfLogicalProcessors: 20 (End of data from sysinfo program)
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
450.soplex (base): "getline_test" src.alt was used. 447.dealII (base): "max_prototype" src.alt was used. 447.dealII (base): "cxx11_make_pair" src.alt was used. 450.soplex (base): "getline_test" src.alt was used. 447.dealII (base): "max_prototype" src.alt was used. 447.dealII (base): "cxx11_make_pair" src.alt was used. OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU + 64GB memory using Windows 8.1 Enterprise 64-bit
icl -Qvc12 -Qstd=c99 |
icl -Qvc12 |
ifort |
icl -Qvc12 -Qstd=c99 ifort |
410.bwaves: | -DSPEC_CPU_P64 |
416.gamess: | -DSPEC_CPU_P64 |
433.milc: | -DSPEC_CPU_P64 |
434.zeusmp: | -DSPEC_CPU_P64 |
435.gromacs: | -DSPEC_CPU_P64 |
436.cactusADM: | -DSPEC_CPU_P64 -names:lowercase /assume:underscore |
437.leslie3d: | -DSPEC_CPU_P64 |
444.namd: | -DSPEC_CPU_P64 /TP |
447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DSPEC_CPU_BOOST_CONFIG_MSC_VER -DSPEC_NEED_ALGORITHM |
450.soplex: | -DSPEC_CPU_P64 -DSPEC_GETLINE_TEST |
453.povray: | -DSPEC_CPU_P64 |
454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase |
459.GemsFDTD: | -DSPEC_CPU_P64 |
465.tonto: | -DSPEC_CPU_P64 |
470.lbm: | -DSPEC_CPU_P64 |
481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
482.sphinx3: | -DSPEC_CPU_P64 |
-QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
-QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qcxx-features /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
-QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
-QxCORE-AVX2 -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
icl -Qvc12 -Qstd=c99 |
icl -Qvc12 |
ifort |
icl -Qvc12 -Qstd=c99 ifort |
Same as Base Portability Flags
433.milc: | basepeak = yes |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
410.bwaves: | basepeak = yes |
416.gamess: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000 |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
