CPU2006 license: | 13 | Test date: | May-2016 |
---|---|---|---|
Test sponsor: | Intel Corporation | Hardware Availability: | Jul-2014 |
Tested by: | Intel Corporation | Software Availability: | Aug-2015 |
Hardware | |
---|---|
CPU Name: | AMD A8-7600 |
CPU Characteristics: | AMD Turbo CORE technology up to 3.80 GHz |
CPU MHz: | 3100 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 192 KB I on chip per chip, 96 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600U-11) |
Disk Subsystem: | Seagate Barracuda 250 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Microsoft Windows 7 Ultimate 6.1.7601 Service Pack 1 Build 7601 |
Compiler: | C/C++: Version 16.0.0.110 of Intel C++ Studio XE for Windows; Libraries: Version 18.00.30723 of Microsoft Visual Studio 2013 |
Auto Parallel: | Yes |
File System: | NTFS |
System State: | Default |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap Library Version 11.0 from http://www.microquill.com/ |

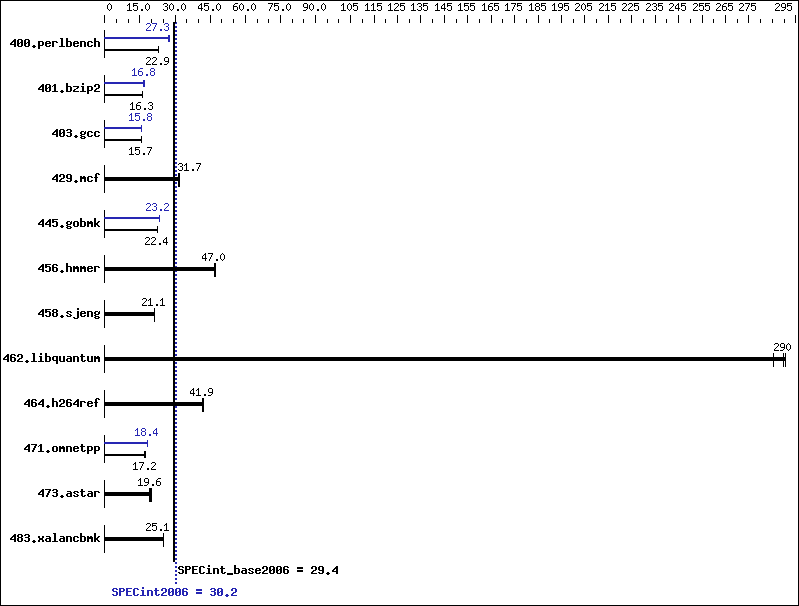

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 427 | 22.9 | 426 | 22.9 | 424 | 23.0 | 358 | 27.3 | 358 | 27.3 | 356 | 27.5 |
401.bzip2 | 593 | 16.3 | 603 | 16.0 | 593 | 16.3 | 586 | 16.5 | 575 | 16.8 | 563 | 17.1 |
403.gcc | 514 | 15.7 | 514 | 15.7 | 514 | 15.7 | 509 | 15.8 | 509 | 15.8 | 510 | 15.8 |
429.mcf | 289 | 31.6 | 287 | 31.8 | 288 | 31.7 | 289 | 31.6 | 287 | 31.8 | 288 | 31.7 |
445.gobmk | 468 | 22.4 | 468 | 22.4 | 468 | 22.4 | 451 | 23.2 | 452 | 23.2 | 452 | 23.2 |
456.hmmer | 197 | 47.4 | 200 | 46.7 | 199 | 47.0 | 197 | 47.4 | 200 | 46.7 | 199 | 47.0 |
458.sjeng | 572 | 21.1 | 572 | 21.1 | 575 | 21.1 | 572 | 21.1 | 572 | 21.1 | 575 | 21.1 |
462.libquantum | 71.3 | 291 | 72.6 | 285 | 71.5 | 290 | 71.3 | 291 | 72.6 | 285 | 71.5 | 290 |
464.h264ref | 527 | 42.0 | 529 | 41.9 | 530 | 41.8 | 527 | 42.0 | 529 | 41.9 | 530 | 41.8 |
471.omnetpp | 362 | 17.3 | 365 | 17.1 | 364 | 17.2 | 340 | 18.4 | 339 | 18.4 | 340 | 18.4 |
473.astar | 365 | 19.3 | 358 | 19.6 | 353 | 19.9 | 365 | 19.3 | 358 | 19.6 | 353 | 19.9 |
483.xalancbmk | 275 | 25.1 | 275 | 25.1 | 275 | 25.1 | 275 | 25.1 | 275 | 25.1 | 275 | 25.1 |
To compile these binaries, the Intel Compiler 16.0 was set up to generate 64-bit binaries with the command: "psxevars.bat intel64" (shortcut provided in the Intel(r) Parallel Studio XE 2016 program folder)
Sysinfo program C:\SPEC16.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt1C872C5C6B24 Fri May 20 04:17:07 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Ultimate OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: AMD64 Family 21 Model 48 Stepping 1 AuthenticAMD ~3100 Mhz BIOS Version : American Megatrends Inc. 2502, 12/11/2015 Total Physical Memory: 7,108 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 25359 L3CacheSize : 0 MaxClockSpeed : 3100 Name : AMD A8-7600 Radeon R7, 10 Compute Cores 4C+6G NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU + 64GB memory using Windows 8.1 Enterprise 64-bit
400.perlbench: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64_X64 |
401.bzip2: | -DSPEC_CPU_P64 |
403.gcc: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
429.mcf: | -DSPEC_CPU_P64 |
445.gobmk: | -DSPEC_CPU_P64 |
456.hmmer: | -DSPEC_CPU_P64 |
458.sjeng: | -DSPEC_CPU_P64 |
462.libquantum: | -DSPEC_CPU_P64 |
464.h264ref: | -DSPEC_CPU_P64 -DWIN32 |
471.omnetpp: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
473.astar: | -DSPEC_CPU_P64 |
483.xalancbmk: | -DSPEC_CPU_P64 -Qoption,cpp,--no_wchar_t_keyword -DWIN64 |
/arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qauto-ilp32 /F64000000 |
/arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F64000000 shlW64M.lib -link /FORCE:MULTIPLE |
Same as Base Portability Flags
400.perlbench: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F64000000 shlW64M.lib /F256000000 -link /FORCE:MULTIPLE |
401.bzip2: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias -Qauto-ilp32 /F64000000 |
403.gcc: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qauto-ilp32 /F64000000 |
429.mcf: | basepeak = yes |
445.gobmk: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias -Qauto-ilp32 /F64000000 |
456.hmmer: | basepeak = yes |
458.sjeng: | basepeak = yes |
462.libquantum: | basepeak = yes |
464.h264ref: | basepeak = yes |
471.omnetpp: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block -Qauto-ilp32 /F64000000 shlW64M.lib -link /FORCE:MULTIPLE |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
