| CPU2006 license: | 9006 | Test date: | Mar-2016 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jun-2016 |
| Tested by: | NEC Corporation | Software Availability: | Jan-2016 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2698 v4 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 2200 |
| FPU: | Integrated |
| CPU(s) enabled: | 40 cores, 2 chips, 20 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 50 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (8 x 16 GB 2Rx4 PC4-2400T-R) |
| Disk Subsystem: | 1 x 400 GB SATA, SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.2 (Maipo) Kernel 3.10.0-327.4.5.el7.x86_64 |
| Compiler: | C/C++: Version 16.0.0.101 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.2 |

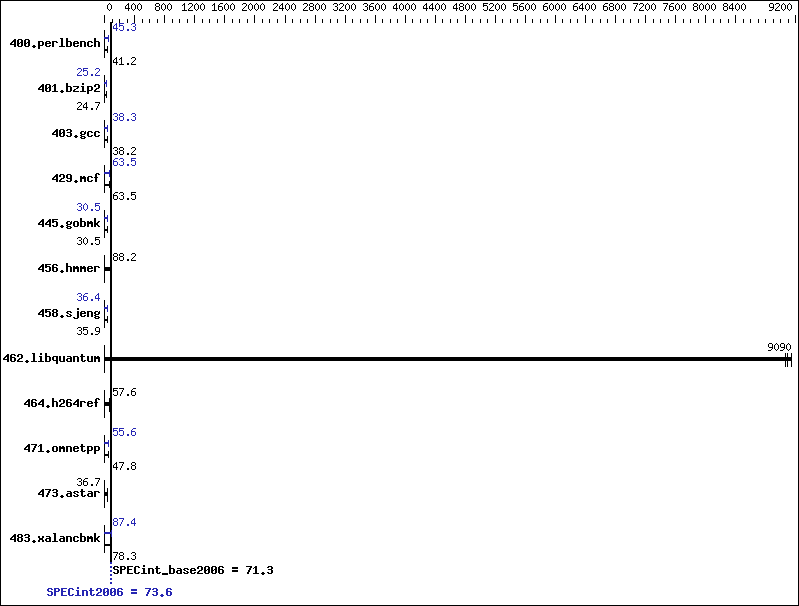

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 235 | 41.6 | 237 | 41.1 | 237 | 41.2 | 216 | 45.3 | 216 | 45.3 | 216 | 45.3 |
| 401.bzip2 | 391 | 24.7 | 391 | 24.7 | 392 | 24.6 | 382 | 25.2 | 382 | 25.2 | 382 | 25.2 |
| 403.gcc | 210 | 38.3 | 211 | 38.2 | 211 | 38.2 | 210 | 38.3 | 210 | 38.3 | 211 | 38.2 |
| 429.mcf | 144 | 63.5 | 146 | 62.5 | 143 | 63.6 | 145 | 63.0 | 144 | 63.5 | 143 | 64.0 |
| 445.gobmk | 343 | 30.6 | 344 | 30.5 | 344 | 30.5 | 344 | 30.5 | 344 | 30.5 | 344 | 30.5 |
| 456.hmmer | 106 | 88.2 | 106 | 87.7 | 106 | 88.2 | 106 | 88.2 | 106 | 87.7 | 106 | 88.2 |
| 458.sjeng | 337 | 35.9 | 337 | 35.9 | 337 | 35.9 | 332 | 36.4 | 332 | 36.4 | 333 | 36.4 |
| 462.libquantum | 2.29 | 9060 | 2.28 | 9090 | 2.26 | 9150 | 2.29 | 9060 | 2.28 | 9090 | 2.26 | 9150 |
| 464.h264ref | 384 | 57.7 | 384 | 57.6 | 384 | 57.6 | 384 | 57.7 | 384 | 57.6 | 384 | 57.6 |
| 471.omnetpp | 129 | 48.3 | 131 | 47.7 | 131 | 47.8 | 112 | 55.6 | 112 | 55.8 | 113 | 55.2 |
| 473.astar | 193 | 36.4 | 191 | 36.7 | 191 | 36.7 | 193 | 36.4 | 191 | 36.7 | 191 | 36.7 |
| 483.xalancbmk | 88.2 | 78.3 | 88.1 | 78.3 | 88.2 | 78.3 | 79.5 | 86.8 | 78.7 | 87.7 | 79.0 | 87.4 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Settings: Energy Performance: Performance Patrol Scrub: Disabled Snoop Mode: Home Snoop with Directory Hyper-Threading: Disabled
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact" LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" OMP_NUM_THREADS = "40" Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB memory using RedHat EL 7.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
| 445.gobmk: | icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin |
C++ benchmarks (except as noted below):
| icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -D_FILE_OFFSET_BITS=64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -D_FILE_OFFSET_BITS=64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -D_FILE_OFFSET_BITS=64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -par-num-threads=1(pass 1) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -prof-use(pass 2) -par-num-threads=1(pass 1) -ansi-alias |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen:threadsafe(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -par-num-threads=1(pass 1) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
