SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUS Q170M-C motherboard (Intel Pentium G4520)

SPECfp®2006 = 72.1

CPU2006 license: 13 Test date: Mar-2016
Test sponsor: Intel Corporation Hardware Availability: Sep-2015
Tested by: Intel Corporation Software Availability: Aug-2015

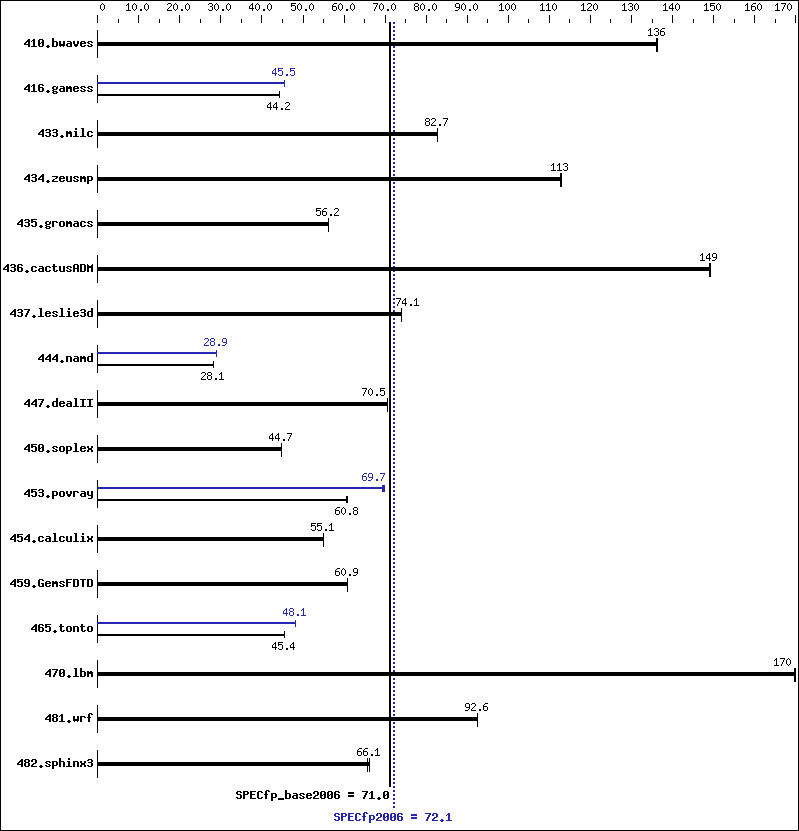

Benchmark results graph
Hardware
CPU Name: Intel Pentium G4520
CPU Characteristics:
CPU MHz: 3600
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 3 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx4 PC4-2133P-U)
Disk Subsystem: 1 TB Seagate Barracuda HDD, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 7 Professional
6.1.7601 Service Pack 1 Build 7601
Compiler: C/C++: Version 16.0.0.110 of Intel C++ Studio XE
for Windows;
Fortran: Version 16.0.0.110 of Intel Fortran
Studio XE for Windows;
Libraries: Version 18.00.30723 of Microsoft
Visual Studio 2013
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 11.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 99.9 136   99.6 136   99.6 136   99.9 136   99.6 136   99.6 136
416.gamess 443   44.2 443   44.2 443   44.2 431   45.5 430   45.5 431   45.5
433.milc 111   82.7 111   82.7 111   82.8 111   82.7 111   82.7 111   82.8
434.zeusmp 80.7 113   80.8 113   80.6 113   80.7 113   80.8 113   80.6 113
435.gromacs 127   56.2 127   56.2 127   56.3 127   56.2 127   56.2 127   56.3
436.cactusADM 80.2 149   80.1 149   80.2 149   80.2 149   80.1 149   80.2 149
437.leslie3d 127   74.1 127   74.1 127   74.1 127   74.1 127   74.1 127   74.1
444.namd 285   28.1 285   28.1 285   28.1 278   28.9 278   28.9 278   28.9
447.dealII 162   70.5 162   70.5 162   70.5 162   70.5 162   70.5 162   70.5
450.soplex 186   44.8 187   44.7 186   44.7 186   44.8 187   44.7 186   44.7
453.povray 87.8 60.6 87.5 60.8 87.3 60.9 76.7 69.4 76.1 69.9 76.3 69.7
454.calculix 150   55.0 150   55.1 150   55.1 150   55.0 150   55.1 150   55.1
459.GemsFDTD 174   60.9 174   60.9 174   60.9 174   60.9 174   60.9 174   60.9
465.tonto 217   45.4 217   45.4 217   45.4 205   48.1 204   48.1 205   48.1
470.lbm 80.8 170   80.9 170   80.8 170   80.8 170   80.9 170   80.8 170
481.wrf 121   92.6 121   92.6 121   92.5 121   92.6 121   92.6 121   92.5
482.sphinx3 295   66.1 297   65.6 295   66.1 295   66.1 297   65.6 295   66.1

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 16.0 was set up to
 generate 64-bit binaries with the command:
 "psxevars.bat intel64" (shortcut provided in the Intel(r)
 Parallel Studio XE 2016 program folder)

Platform Notes

 Sysinfo program C:\SPEC16.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on CltF832E48859C5 Tue Mar 15 16:40:40 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Professional
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: System manufacturer
 System Model  : System Product Name
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 94 Stepping 3 GenuineIntel ~3600 Mhz
 BIOS Version  : American Megatrends Inc. 0704, 1/12/2016
 Total Physical Memory: 8,070 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 512
 L3CacheSize   : 3072
 MaxClockSpeed : 3600
 Name          : Intel(R) Pentium(R) CPU G4520 @ 3.60GHz
 NumberOfCores : 2
 NumberOfLogicalProcessors: 2

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

450.soplex (base): "getline_test" src.alt was used.

447.dealII (base): "max_prototype" src.alt was used.
447.dealII (base): "cxx11_make_pair" src.alt was used.

450.soplex (base): "getline_test" src.alt was used.

447.dealII (base): "max_prototype" src.alt was used.
447.dealII (base): "cxx11_make_pair" src.alt was used.

 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU
 + 64GB memory using Windows 8.1 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc12   -Qstd=c99

C++ benchmarks:

 icl -Qvc12

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc12   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DSPEC_CPU_BOOST_CONFIG_MSC_VER   -DSPEC_NEED_ALGORITHM
450.soplex:  -DSPEC_CPU_P64   -DSPEC_GETLINE_TEST
453.povray:  -DSPEC_CPU_P64
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   /F1000000000

C++ benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   -Qcxx-features   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc12   -Qstd=c99

C++ benchmarks:

 icl -Qvc12

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc12   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   -Qinline-calloc   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.xml.
