SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Huawei

KunLun 9032 (Intel Xeon E7-8890 v3)

CPU2006 license: 3175 Test date: Feb-2016
Test sponsor: Huawei Hardware Availability: Jan-2016
Tested by: Huawei Software Availability: Aug-2015

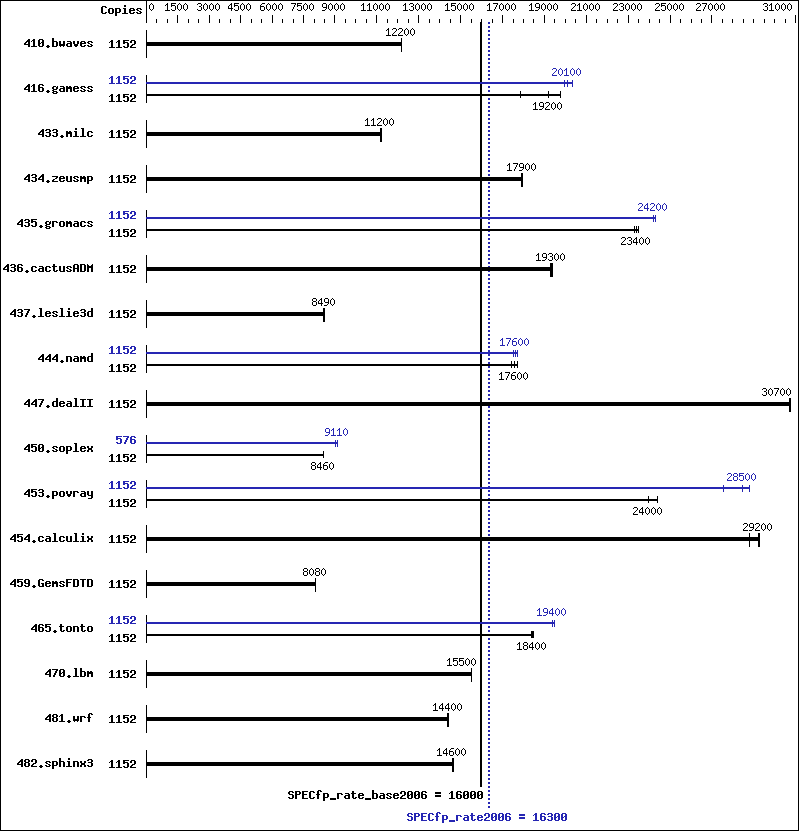

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8890 v3
CPU Characteristics: Intel Turbo Boost Technology up to 3.30 GHz
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 576 cores, 32 chips, 18 cores/chip, 2 threads/core
CPU(s) orderable: 4,8,16,24,32 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory: 8 TB (512 x 16 GB 2Rx4 PC4-2133P-R,
running at 1600Mhz)
Disk Subsystem: 3 x 300 GB SAS, 10K RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 7.1
(Maipo)
3.10.0-229.20.1.el7.x86_64
Compiler: C/C++: Version 16.0.0.101 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.0.101 of Intel Fortran
Studio XE for Linux
Auto Parallel: No
File System: tmpfs
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 1152 1285 12200 1284 12200 1285 12200 1152 1285 12200 1284 12200 1285 12200
416.gamess 1152 1263 17900 1141 19800 1174 19200 1152 1121 20100 1110 20300 1130 20000
433.milc 1152 943 11200 946 11200 945 11200 1152 943 11200 946 11200 945 11200
434.zeusmp 1152 585 17900 584 18000 584 17900 1152 585 17900 584 18000 584 17900
435.gromacs 1152 350 23500 352 23400 353 23300 1152 339 24300 340 24200 340 24200
436.cactusADM 1152 711 19400 712 19300 713 19300 1152 711 19400 712 19300 713 19300
437.leslie3d 1152 1278 8470 1275 8490 1275 8490 1152 1278 8470 1275 8490 1275 8490
444.namd 1152 522 17700 526 17600 531 17400 1152 525 17600 522 17700 528 17500
447.dealII 1152 429 30700 429 30700 429 30700 1152 429 30700 429 30700 429 30700
450.soplex 1152 1134 8470 1136 8460 1138 8440 576 527 9110 525 9140 533 9020
453.povray 1152 251 24400 256 24000 255 24000 1152 213 28800 215 28500 223 27500
454.calculix 1152 330 28800 325 29200 325 29300 1152 330 28800 325 29200 325 29300
459.GemsFDTD 1152 1513 8080 1511 8090 1514 8070 1152 1513 8080 1511 8090 1514 8070
465.tonto 1152 614 18500 615 18400 616 18400 1152 585 19400 585 19400 582 19500
470.lbm 1152 1021 15500 1020 15500 1019 15500 1152 1021 15500 1020 15500 1019 15500
481.wrf 1152 895 14400 893 14400 893 14400 1152 895 14400 893 14400 893 14400
482.sphinx3 1152 1533 14600 1535 14600 1539 14600 1152 1533 14600 1535 14600 1539 14600

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"
Tmpfs filesystem can be set with:
	mkdir -p /home/shm
	mount -t tmpfs -o size=2048g,rw tmpfs /home/shm
Turbo mode set with:
	cpupower -c all frequency-set -g performance

Platform Notes

 BIOS configuration:
 Set Power Efficiency Mode to Performance
 Set Lock_step to disabled
 Baseboard Management Controller used to adjust the fan speed to 100%
 Set C-State to C0/C1
 Sysinfo program /home/shm/speccpu-1.2-ic16/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on 9016 Fri Feb 19 06:21:30 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7-8890 v3 @ 2.50GHz
       32 "physical id"s (chips)
       1152 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 18
       siblings  : 36
       physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 2: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 3: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 4: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 5: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 6: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 7: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 8: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 9: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 10: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 11: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 12: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 13: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 14: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 15: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 16: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 17: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 18: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 19: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 20: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 21: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 22: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 23: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 24: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 25: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 26: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 27: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 28: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 29: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 30: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 31: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
    cache size : 46080 KB

 From /proc/meminfo
    MemTotal:       8454947816 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.1 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="7.1"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.1 (Maipo)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:redhat:enterprise_linux:7.1:GA:server"
    redhat-release: Red Hat Enterprise Linux Server release 7.1 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.1 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.1:ga:server

 uname -a:
    Linux 9016 3.10.0-229.20.1.el7.x86_64 #1 SMP Thu Sep 24 12:23:56 EDT 2015
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Feb 19 06:05

 SPEC is set to: /home/shm/speccpu-1.2-ic16
    Filesystem     Type   Size  Used Avail Use% Mounted on
    tmpfs          tmpfs  2.0T  7.2G  2.0T   1% /home/shm
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS American Megatrends Inc. BLXSV919 12/24/2015

 (End of data from sysinfo program)
 Because Huawei KunLun 9032 uses System Management BIOS (SMBIOS) v3.0,but the dmidoce of
 RHEL7.1 is based on V2.0,so can not read the memory information.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/home/shm/speccpu-1.2-ic16/libs/32:/home/shm/speccpu-1.2-ic16/libs/64:/home/shm/speccpu-1.2-ic16/sh"

 Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB
 memory using RedHat EL 7.1
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Fortran benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch

Benchmarks using both Fortran and C:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks (except as noted below):

 icpc -m64
450.soplex:  icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -D_FILE_OFFSET_BITS=64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3
453.povray:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html,
http://www.spec.org/cpu2006/flags/Huawei-Platform-Settings-V1.2-HSW-RevG.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml,
http://www.spec.org/cpu2006/flags/Huawei-Platform-Settings-V1.2-HSW-RevG.xml.
