SPEC® CFP2006 Result

Copyright 2006-2015 Standard Performance Evaluation Corporation

ACTION S.A.

ACTINA SOLAR 210 X6 (Intel Xeon E5-2698 v3, 2.30
GHz)

CPU2006 license: 9008 Test date: Nov-2015
Test sponsor: ACTION S.A. Hardware Availability: Sep-2014
Tested by: ACTION S.A. Software Availability: Aug-2015

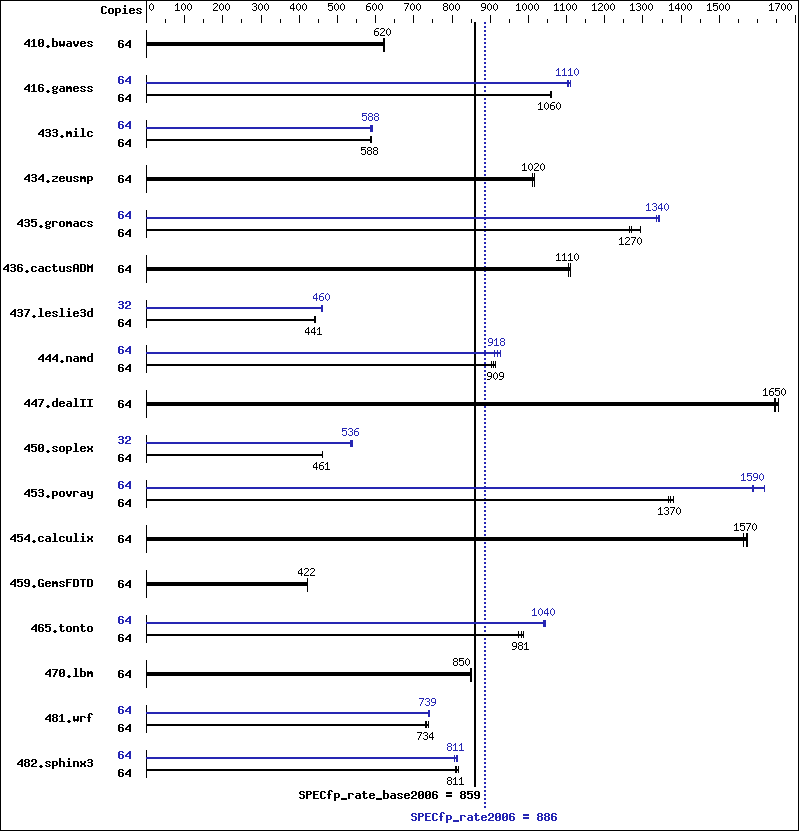

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2698 v3
CPU Characteristics: Intel Turbo Boost Technology up to 3.60 GHz
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 32 cores, 2 chips, 16 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 40 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R)
Disk Subsystem: 1 x 240 GB SATA II SSD
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 7.1
(Maipo)
3.10.0-229.11.1.el7.x86_64
Compiler: C/C++: Version 16.0.0.047 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.0.047 of Intel Fortran
Studio XE for Linux
Auto Parallel: No
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 1398 622 1402 620 1403 620 64 1398 622 1402 620 1403 620
416.gamess 64 1184 1060 1185 1060 1183 1060 64 1137 1100 1129 1110 1133 1110
433.milc 64 997 589 1000 588 1000 588 64 995 591 998 588 1000 588
434.zeusmp 64 574 1020 573 1020 576 1010 64 574 1020 573 1020 576 1010
435.gromacs 64 360 1270 362 1260 353 1290 64 342 1340 341 1340 340 1340
436.cactusADM 64 692 1110 690 1110 691 1110 64 692 1110 690 1110 691 1110
437.leslie3d 64 1368 440 1362 442 1364 441 32 652 461 654 460 655 459
444.namd 64 561 915 565 909 568 903 64 559 918 554 926 564 910
447.dealII 64 442 1660 444 1650 445 1640 64 442 1660 444 1650 445 1640
450.soplex 64 1156 462 1160 460 1159 461 32 495 539 498 536 498 535
453.povray 64 249 1370 248 1370 247 1380 64 210 1620 215 1590 214 1590
454.calculix 64 335 1570 338 1560 336 1570 64 335 1570 338 1560 336 1570
459.GemsFDTD 64 1609 422 1608 422 1611 421 64 1609 422 1608 422 1611 421
465.tonto 64 642 981 647 973 637 988 64 606 1040 604 1040 603 1040
470.lbm 64 1035 850 1035 849 1034 850 64 1035 850 1035 849 1034 850
481.wrf 64 974 734 979 731 969 738 64 966 740 967 739 968 739
482.sphinx3 64 1526 817 1540 810 1538 811 64 1530 815 1538 811 1549 806

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes


 Bios Settings:
 Intel(R) Hyper-Threading Tech = Enabled
 Power & Performance = Performance
 Enforce POR = Disabled
 Memory Operating Speed Selection = 2133
 Cluster-on-Die = Enabled
 Set Fan Profile = Performance
 Fan PWM Offset = 0

 Sysinfo program /cpu2006.1.2/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on SUT Tue Nov 17 22:14:53 2015

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2698 v3 @ 2.30GHz
       2 "physical id"s (chips)
       64 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 16
       siblings  : 32
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
    cache size : 20480 KB

 From /proc/meminfo
    MemTotal:       263872952 kB
    HugePages_Total:       1
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.0 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="7.0"
       PRETTY_NAME="Red Hat Enterprise Linux"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:redhat:enterprise_linux:7.0:GA:server"
    os-release.rpmnew:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.1 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="7.1"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.1 (Maipo)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:redhat:enterprise_linux:7.1:GA:server"
    redhat-release: Red Hat Enterprise Linux Server release 7.1 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.1 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.1:ga:server

 uname -a:
    Linux SUT 3.10.0-229.11.1.el7.x86_64 #5 SMP Mon Sep 14 17:11:19 CEST 2015
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Nov 17 10:07

 SPEC is set to: /cpu2006.1.2
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda1      ext4  212G   37G  165G  19% /

 Additional information from dmidecode:
   BIOS Intel Corporation SE5C610.86B.01.01.0009.060120151350 06/01/2015
   Memory:
    16x   16 GB
    16x Micron 36ASF2G72PZ-2G1A2 16 GB 2134 MHz 2 rank
    8x NO DIMM NO DIMM

 (End of data from sysinfo program)
 dmidecode does not properly detect memory modules
 16 modules of 16 GB were used to run the test (256 GB total)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/cpu2006.1.2/libs/32:/cpu2006.1.2/libs/64:/cpu2006.1.2/sh"

 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>
 Binaries compiled on a system with 2x Xeon E5-2650 v3 chips + 256 GB memory
 using RedHat EL 7.1

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Fortran benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch

Benchmarks using both Fortran and C:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks (except as noted below):

 icpc -m64
450.soplex:  icpc -m32 -L/opt/intel/lib/ia32

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -auto-ilp32
470.lbm:  basepeak = yes
482.sphinx3:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-mem-layout-trans=3   -unroll2

C++ benchmarks:

444.namd:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3
453.povray:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch
459.GemsFDTD:  basepeak = yes
465.tonto:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -auto-ilp32

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html,
http://www.spec.org/cpu2006/flags/ACTION.SA-Platform-Flags-RevB-aug-2015-For-Intel-Platform.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml,
http://www.spec.org/cpu2006/flags/ACTION.SA-Platform-Flags-RevB-aug-2015-For-Intel-Platform.xml.
