SPEC® CFP2006 Result

Copyright 2006-2015 Standard Performance Evaluation Corporation

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUS Z170MPLUS motherboard (Intel Core i7-6700)

CPU2006 license: 13 Test date: Oct-2015
Test sponsor: Intel Corporation Hardware Availability: Sep-2015
Tested by: Intel Corporation Software Availability: Aug-2015

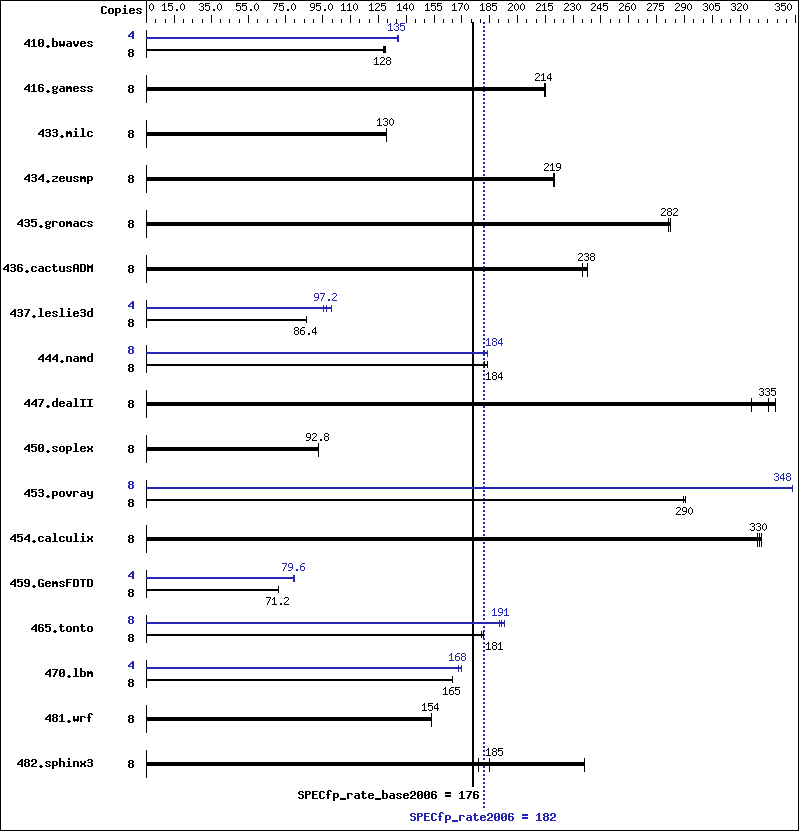

Benchmark results graph
Hardware
CPU Name: Intel Core i7-6700
CPU Characteristics: Intel Turbo Boost Technology up to 4.00 GHz
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx4 PC4-2133P-U)
Disk Subsystem: 1 TB Seagate SATA HDD, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 10 Pro
10.0.10240 N/A Build 10240
Compiler: C/C++: Version 16.0.0.110 of Intel C++ Studio XE
for Windows;
Fortran: Version 16.0.0.110 of Intel Fortran
Studio XE for Windows;
Libraries: Version 18.00.30723 of Microsoft
Visual Studio 2013
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 11.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 847 128   846 129   847 128   4 402 135   401 136   403 135
416.gamess 8 729 215   730 214   730 214   8 729 215   730 214   730 214
433.milc 8 566 130   565 130   566 130   8 566 130   565 130   566 130
434.zeusmp 8 333 219   332 219   332 220   8 333 219   332 219   332 220
435.gromacs 8 202 282   202 282   203 282   8 202 282   202 282   203 282
436.cactusADM 8 402 238   407 235   402 238   8 402 238   407 235   402 238
437.leslie3d 8 869 86.4 869 86.4 869 86.4 4 394 95.6 378 99.6 387 97.2
444.namd 8 349 184   352 182   349 184   8 349 184   349 184   349 184
447.dealII 8 273 335   270 339   280 326   8 273 335   270 339   280 326
450.soplex 8 717 92.8 717 92.8 718 92.8 8 717 92.8 717 92.8 718 92.8
453.povray 8 147 290   147 290   147 290   8 122 348   122 348   122 348
454.calculix 8 200 330   200 330   199 332   8 200 330   200 330   199 332
459.GemsFDTD 8 1189 71.2 1191 71.2 1190 71.2 4 534 79.6 532 79.6 535 79.2
465.tonto 8 436 181   435 181   434 182   8 413 190   409 193   412 191
470.lbm 8 667 165   667 165   667 165   4 327 168   327 168   323 170
481.wrf 8 582 154   583 154   581 154   8 582 154   583 154   581 154
482.sphinx3 8 844 185   868 179   660 236   8 844 185   868 179   660 236

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 16.0 was set up to
 generate 64-bit binaries with the command:
 "psxevars.bat intel64" (shortcut provided in the Intel(r)
 Parallel Studio XE 2016 program folder)

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\SPEC16.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on DESKTOP-C8BQEO8 Fri Oct 16 06:53:34 2015

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 10 Pro
 OS Version    : 10.0.10240 N/A Build 10240
 System Manufacturer: System manufacturer
 System Model  : System Product Name
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 94 Stepping 3 GenuineIntel ~3401 Mhz
 BIOS Version  : American Megatrends Inc. 0408, 8/28/2015
 Total Physical Memory: 8,084 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1024
 L3CacheSize   : 8192
 MaxClockSpeed : 3401
 Name          : Intel(R) Core(TM) i7-6700 CPU @ 3.40GHz
 NumberOfCores : 4
 NumberOfLogicalProcessors: 8

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

450.soplex (base): "getline_test" src.alt was used.

447.dealII (base): "max_prototype" src.alt was used.
447.dealII (base): "cxx11_make_pair" src.alt was used.

450.soplex (base): "getline_test" src.alt was used.

447.dealII (base): "max_prototype" src.alt was used.
447.dealII (base): "cxx11_make_pair" src.alt was used.

 Binaries compiled on a system with 1x Intel Xeon E5-2699 v3 CPU
 + 64GB memory using Windows 8.1 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc12   -Qstd=c99

C++ benchmarks:

 icl -Qvc12

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc12   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   /names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DSPEC_CPU_BOOST_CONFIG_MSC_VER   -DSPEC_NEED_ALGORITHM
450.soplex:  -DSPEC_CPU_P64   -DSPEC_GETLINE_TEST
453.povray:  -DSPEC_CPU_P64
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   /names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -QxCORE-AVX2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl -Qvc12   -Qstd=c99

C++ benchmarks:

 icl -Qvc12

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc12   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -QxCORE-AVX2   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxCORE-AVX2   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  Same as 410.bwaves
459.GemsFDTD:  Same as 410.bwaves
465.tonto:  -QxCORE-AVX2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-windows.xml.
