| CPU2006 license: | 9006 | Test date: | Dec-2014 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jan-2015 |
| Tested by: | NEC Corporation | Software Availability: | Jul-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2690 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
| Disk Subsystem: | 1 x 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) Kernel 2.6.32-431.20.3.el6.x86_64 |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

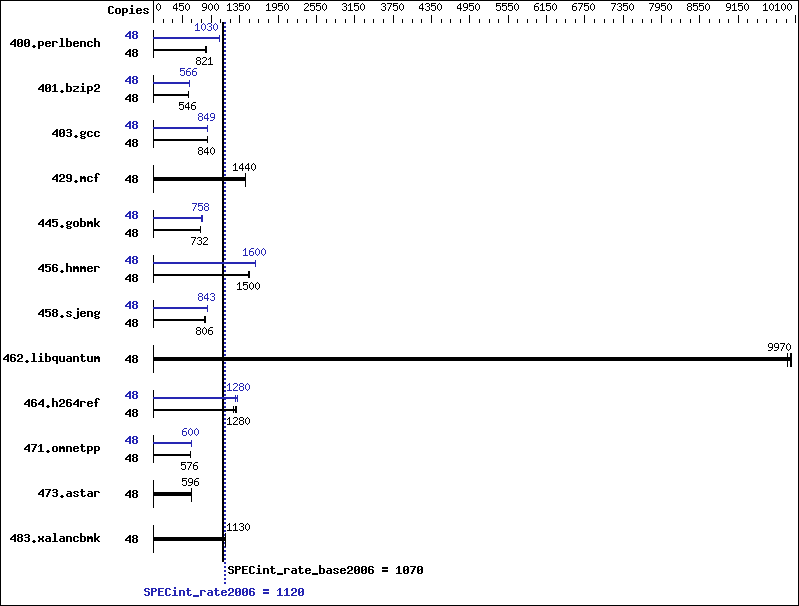

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 48 | 567 | 827 | 571 | 821 | 571 | 821 | 48 | 456 | 1030 | 456 | 1030 | 456 | 1030 |
| 401.bzip2 | 48 | 846 | 548 | 849 | 545 | 848 | 546 | 48 | 819 | 566 | 821 | 564 | 819 | 566 |
| 403.gcc | 48 | 460 | 840 | 460 | 841 | 461 | 839 | 48 | 455 | 849 | 456 | 847 | 455 | 849 |
| 429.mcf | 48 | 305 | 1430 | 305 | 1440 | 303 | 1450 | 48 | 305 | 1430 | 305 | 1440 | 303 | 1450 |
| 445.gobmk | 48 | 688 | 732 | 689 | 731 | 686 | 734 | 48 | 661 | 761 | 664 | 758 | 665 | 758 |
| 456.hmmer | 48 | 298 | 1500 | 299 | 1500 | 302 | 1480 | 48 | 279 | 1600 | 280 | 1600 | 280 | 1600 |
| 458.sjeng | 48 | 720 | 807 | 720 | 806 | 721 | 806 | 48 | 691 | 841 | 689 | 843 | 689 | 843 |
| 462.libquantum | 48 | 99.6 | 9990 | 99.8 | 9970 | 100 | 9910 | 48 | 99.6 | 9990 | 99.8 | 9970 | 100 | 9910 |
| 464.h264ref | 48 | 817 | 1300 | 831 | 1280 | 844 | 1260 | 48 | 829 | 1280 | 804 | 1320 | 830 | 1280 |
| 471.omnetpp | 48 | 523 | 573 | 513 | 585 | 521 | 576 | 48 | 500 | 600 | 500 | 600 | 499 | 601 |
| 473.astar | 48 | 566 | 596 | 561 | 600 | 565 | 596 | 48 | 566 | 596 | 561 | 600 | 565 | 596 |
| 483.xalancbmk | 48 | 293 | 1130 | 294 | 1130 | 293 | 1130 | 48 | 293 | 1130 | 294 | 1130 | 293 | 1130 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Settings: Power Management Policy: Custom Energy Performance: Performance Patrol Scrub: Disabled Cluster on Die: Enabled
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Compiler Invocation
C benchmarks:
| icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
