| CPU2006 license: | 19 | Test date: | Nov-2014 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Sep-2014 |
| Tested by: | Fujitsu | Software Availability: | Sep-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2660 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.30 GHz |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 20 cores, 2 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 25 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
| Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.0 (Maipo) Kernel 3.10.0-123.8.1.el7.x86_64 |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux; Fortran: Version 15.0.0.090 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

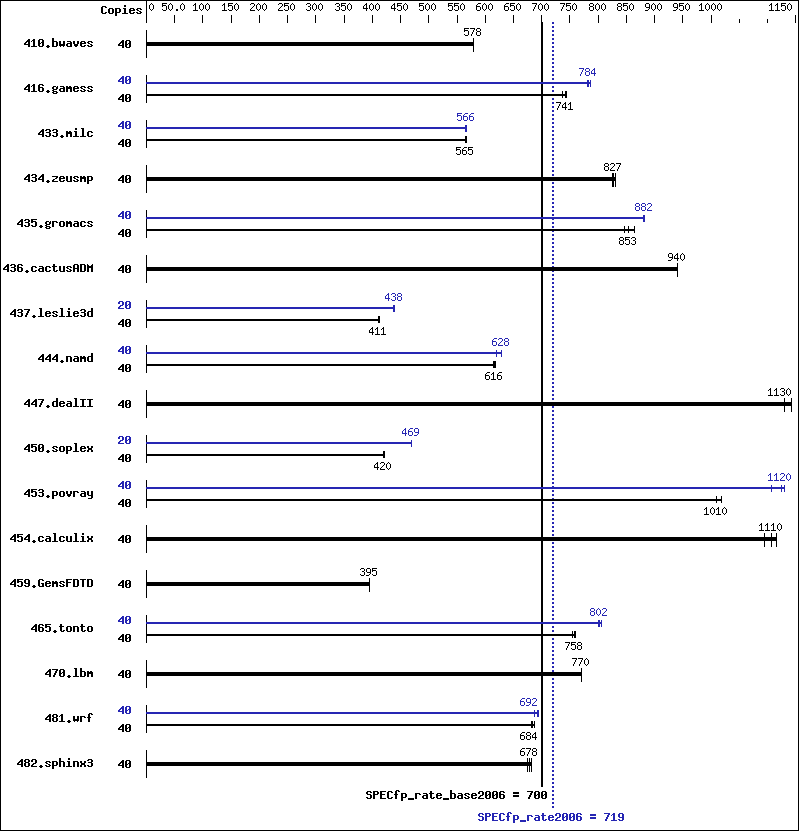

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 40 | 940 | 578 | 940 | 578 | 939 | 579 | 40 | 940 | 578 | 940 | 578 | 939 | 579 |
| 416.gamess | 40 | 1062 | 737 | 1052 | 745 | 1056 | 741 | 40 | 1002 | 782 | 996 | 786 | 999 | 784 |
| 433.milc | 40 | 650 | 565 | 650 | 565 | 648 | 567 | 40 | 647 | 567 | 649 | 566 | 648 | 566 |
| 434.zeusmp | 40 | 440 | 827 | 441 | 825 | 438 | 830 | 40 | 440 | 827 | 441 | 825 | 438 | 830 |
| 435.gromacs | 40 | 337 | 847 | 335 | 853 | 330 | 864 | 40 | 324 | 883 | 324 | 880 | 324 | 882 |
| 436.cactusADM | 40 | 508 | 941 | 508 | 940 | 509 | 940 | 40 | 508 | 941 | 508 | 940 | 509 | 940 |
| 437.leslie3d | 40 | 916 | 410 | 915 | 411 | 912 | 412 | 20 | 429 | 438 | 429 | 439 | 429 | 438 |
| 444.namd | 40 | 520 | 616 | 519 | 618 | 522 | 614 | 40 | 511 | 628 | 510 | 629 | 517 | 620 |
| 447.dealII | 40 | 405 | 1130 | 405 | 1130 | 401 | 1140 | 40 | 405 | 1130 | 405 | 1130 | 401 | 1140 |
| 450.soplex | 40 | 795 | 420 | 795 | 420 | 793 | 421 | 20 | 356 | 469 | 355 | 470 | 355 | 469 |
| 453.povray | 40 | 211 | 1010 | 211 | 1010 | 209 | 1020 | 40 | 188 | 1130 | 192 | 1110 | 189 | 1120 |
| 454.calculix | 40 | 301 | 1090 | 298 | 1110 | 296 | 1120 | 40 | 301 | 1090 | 298 | 1110 | 296 | 1120 |
| 459.GemsFDTD | 40 | 1076 | 394 | 1075 | 395 | 1075 | 395 | 40 | 1076 | 394 | 1075 | 395 | 1075 | 395 |
| 465.tonto | 40 | 519 | 758 | 517 | 761 | 521 | 755 | 40 | 488 | 807 | 491 | 801 | 491 | 802 |
| 470.lbm | 40 | 714 | 770 | 714 | 770 | 713 | 771 | 40 | 714 | 770 | 714 | 770 | 713 | 771 |
| 481.wrf | 40 | 654 | 684 | 650 | 688 | 655 | 682 | 40 | 651 | 687 | 645 | 692 | 643 | 695 |
| 482.sphinx3 | 40 | 1142 | 683 | 1154 | 675 | 1150 | 678 | 40 | 1142 | 683 | 1154 | 675 | 1150 | 678 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration:
Energy Performance = Performance
Utilization Profile = Unbalanced
QPI snoop mode: Cluster on Die
COD Enable = Enabled, Early Snoop = Disabled
CPU C1E Support = Disabled
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/SPECcpu2006/libs/32:/home/SPECcpu2006/libs/64:/home/SPECcpu2006/sh" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> This result was measured on the PRIMERGY CX2550 M1. The PRIMERGY CX2550 M1 and the PRIMERGY CX2570 M1 are electronically equivalent. For information about Fujitsu please visit: http://www.fujitsu.com
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
C++ benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
Fortran benchmarks:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch |
Benchmarks using both Fortran and C:
| -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 450.soplex: | icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
| 453.povray: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -auto-ilp32 |
