| CPU2006 license: | 13 | Test date: | Nov-2014 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jul-2014 |
| Tested by: | Intel Corporation | Software Availability: | Oct-2013 |
| Hardware | |
|---|---|
| CPU Name: | AMD A10 PRO-7850B |
| CPU Characteristics: | AMD Turbo CORE technology up to 4.00 GHz |
| CPU MHz: | 3700 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 192 KB I on chip per chip, 96 KB I shared / 2 cores; 16 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx4 PC3-17000U-14) |
| Disk Subsystem: | 160 GB Western Digital SATA HDD, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600 |
| Compiler: | C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Fortran: Version 14.0.1.139 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

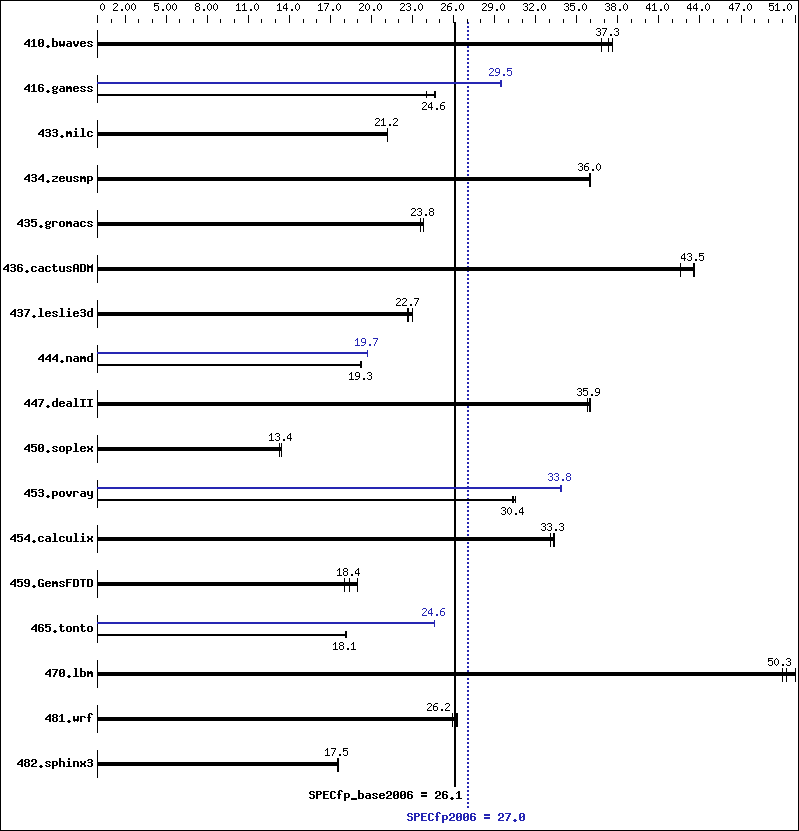

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 362 | 37.6 | 369 | 36.8 | 365 | 37.3 | 362 | 37.6 | 369 | 36.8 | 365 | 37.3 |
| 416.gamess | 816 | 24.0 | 792 | 24.7 | 796 | 24.6 | 663 | 29.5 | 667 | 29.4 | 663 | 29.5 |
| 433.milc | 433 | 21.2 | 433 | 21.2 | 434 | 21.2 | 433 | 21.2 | 433 | 21.2 | 434 | 21.2 |
| 434.zeusmp | 253 | 36.0 | 253 | 36.0 | 253 | 35.9 | 253 | 36.0 | 253 | 36.0 | 253 | 35.9 |
| 435.gromacs | 302 | 23.6 | 300 | 23.8 | 301 | 23.8 | 302 | 23.6 | 300 | 23.8 | 301 | 23.8 |
| 436.cactusADM | 281 | 42.6 | 274 | 43.6 | 275 | 43.5 | 281 | 42.6 | 274 | 43.6 | 275 | 43.5 |
| 437.leslie3d | 414 | 22.7 | 409 | 23.0 | 417 | 22.6 | 414 | 22.7 | 409 | 23.0 | 417 | 22.6 |
| 444.namd | 417 | 19.3 | 416 | 19.3 | 417 | 19.2 | 407 | 19.7 | 407 | 19.7 | 408 | 19.7 |
| 447.dealII | 320 | 35.8 | 319 | 35.9 | 318 | 36.0 | 320 | 35.8 | 319 | 35.9 | 318 | 36.0 |
| 450.soplex | 624 | 13.4 | 626 | 13.3 | 622 | 13.4 | 624 | 13.4 | 626 | 13.3 | 622 | 13.4 |
| 453.povray | 175 | 30.4 | 175 | 30.5 | 175 | 30.3 | 157 | 33.8 | 157 | 33.8 | 157 | 33.9 |
| 454.calculix | 247 | 33.4 | 247 | 33.3 | 250 | 33.1 | 247 | 33.4 | 247 | 33.3 | 250 | 33.1 |
| 459.GemsFDTD | 575 | 18.4 | 590 | 18.0 | 560 | 19.0 | 575 | 18.4 | 590 | 18.0 | 560 | 19.0 |
| 465.tonto | 539 | 18.2 | 543 | 18.1 | 543 | 18.1 | 401 | 24.6 | 401 | 24.6 | 400 | 24.6 |
| 470.lbm | 273 | 50.3 | 275 | 50.0 | 270 | 51.0 | 273 | 50.3 | 275 | 50.0 | 270 | 51.0 |
| 481.wrf | 426 | 26.2 | 431 | 25.9 | 424 | 26.3 | 426 | 26.2 | 431 | 25.9 | 424 | 26.3 |
| 482.sphinx3 | 1108 | 17.6 | 1111 | 17.5 | 1113 | 17.5 | 1108 | 17.6 | 1111 | 17.5 | 1113 | 17.5 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 14.0 was set up to generate 64-bit binaries with the command: "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Platform Notes
Sysinfo program C:\SPEC14.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on CltE03F49B01E0D Thu Nov 6 07:50:50 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 8.1 Pro OS Version : 6.3.9600 N/A Build 9600 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: AMD64 Family 21 Model 48 Stepping 1 AuthenticAMD ~3700 Mhz BIOS Version : American Megatrends Inc. 1301, 6/24/2014 Total Physical Memory: 7,105 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 25359 L3CacheSize : 0 MaxClockSpeed : 3700 Name : AMD A10 PRO-7850B R7, 12 Compute Cores 4C+8G NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 -names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
C++ benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
Benchmarks using both Fortran and C:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
