CPU2006 license: | 55 | Test date: | Oct-2014 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2014 |
Tested by: | Dell Inc. | Software Availability: | Sep-2014 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E3-1241 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.90 GHz |
CPU MHz: | 3500 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (4 x 8 GB 2Rx8 PC3L-12800E-11) |
Disk Subsystem: | 1 x 300 GB 15000 RPM SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) 3.0.76-0.11-default |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext2 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

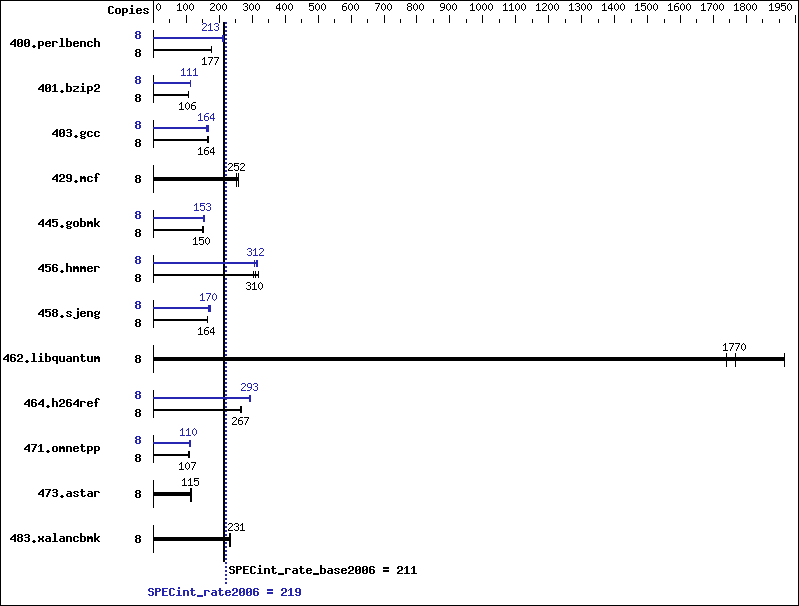

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 441 | 177 | 443 | 176 | 441 | 177 | 8 | 366 | 213 | 372 | 210 | 366 | 214 |
401.bzip2 | 8 | 733 | 105 | 727 | 106 | 719 | 107 | 8 | 690 | 112 | 693 | 111 | 694 | 111 |
403.gcc | 8 | 392 | 164 | 393 | 164 | 387 | 166 | 8 | 387 | 167 | 393 | 164 | 397 | 162 |
429.mcf | 8 | 290 | 251 | 289 | 252 | 284 | 257 | 8 | 290 | 251 | 289 | 252 | 284 | 257 |
445.gobmk | 8 | 561 | 150 | 560 | 150 | 557 | 151 | 8 | 549 | 153 | 542 | 155 | 552 | 152 |
456.hmmer | 8 | 245 | 305 | 234 | 319 | 240 | 310 | 8 | 239 | 312 | 244 | 306 | 237 | 315 |
458.sjeng | 8 | 593 | 163 | 592 | 164 | 591 | 164 | 8 | 577 | 168 | 562 | 172 | 571 | 170 |
462.libquantum | 8 | 95.3 | 1740 | 86.5 | 1920 | 93.7 | 1770 | 8 | 95.3 | 1740 | 86.5 | 1920 | 93.7 | 1770 |
464.h264ref | 8 | 667 | 265 | 663 | 267 | 664 | 267 | 8 | 604 | 293 | 607 | 291 | 604 | 293 |
471.omnetpp | 8 | 458 | 109 | 468 | 107 | 470 | 106 | 8 | 455 | 110 | 445 | 112 | 456 | 110 |
473.astar | 8 | 496 | 113 | 488 | 115 | 482 | 116 | 8 | 496 | 113 | 488 | 115 | 482 | 116 |
483.xalancbmk | 8 | 239 | 231 | 239 | 231 | 238 | 232 | 8 | 239 | 231 | 239 | 231 | 238 | 232 |
The taskset mechanism was used to bind copies to processors. The config file option 'submit' was used to generate taskset commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS Configuration: Virtualization Technology disabled Execute Disable disabled System Profile set to Performance Sysinfo program /root/cpu2006-1.2/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on linux Tue Oct 7 10:08:09 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E3-1241 v3 @ 3.50GHz 1 "physical id"s (chips) 8 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 8 physical 0: cores 0 1 2 3 cache size : 8192 KB From /proc/meminfo MemTotal: 32809896 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux linux 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013 (ccab990) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Oct 7 10:01 last=S SPEC is set to: /root/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext2 267G 12G 255G 5% / Additional information from dmidecode: BIOS Dell Inc. 1.3.2 09/11/2014 Memory: 4x Hynix/Hyundai HMT41GU7AFR8A-PB 8 GB 1600 MHz (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/cpu2006-1.2/libs/32:/root/cpu2006-1.2/libs/64:/root/cpu2006-1.2/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
429.mcf: | basepeak = yes |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
