CPU2006 license: | 55 | Test date: | Jun-2014 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2014 |
Tested by: | Dell Inc. | Software Availability: | Sep-2014 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2667 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
CPU MHz: | 3200 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 20 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R) |
Disk Subsystem: | 1 x 300 GB 15000 RPM SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) 3.0.76-0.11-default |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext2 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

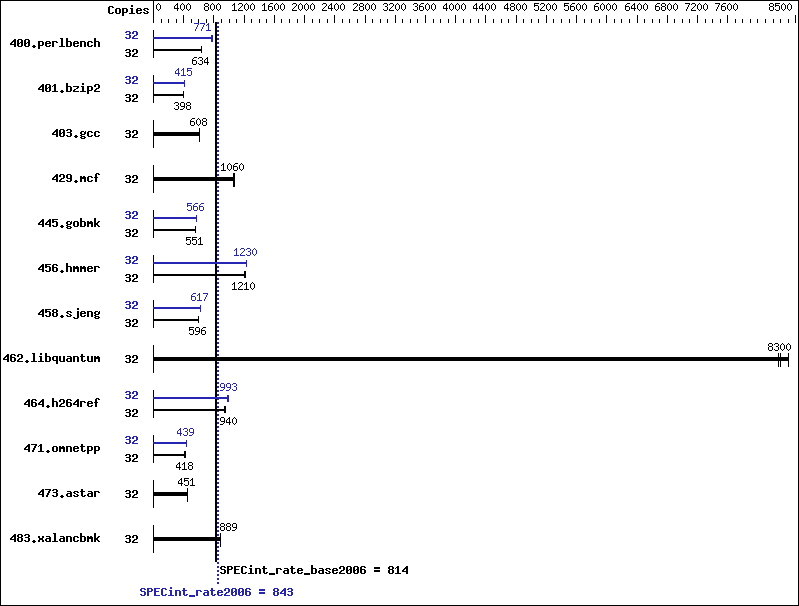

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 32 | 489 | 640 | 493 | 634 | 493 | 634 | 32 | 402 | 777 | 406 | 770 | 406 | 771 |
401.bzip2 | 32 | 775 | 398 | 778 | 397 | 776 | 398 | 32 | 745 | 415 | 747 | 413 | 745 | 415 |
403.gcc | 32 | 423 | 609 | 427 | 603 | 424 | 608 | 32 | 423 | 609 | 427 | 603 | 424 | 608 |
429.mcf | 32 | 274 | 1070 | 274 | 1060 | 275 | 1060 | 32 | 274 | 1070 | 274 | 1060 | 275 | 1060 |
445.gobmk | 32 | 608 | 552 | 610 | 551 | 609 | 551 | 32 | 593 | 566 | 593 | 566 | 593 | 566 |
456.hmmer | 32 | 248 | 1210 | 247 | 1210 | 246 | 1210 | 32 | 243 | 1230 | 243 | 1230 | 244 | 1220 |
458.sjeng | 32 | 651 | 595 | 649 | 596 | 650 | 596 | 32 | 629 | 616 | 628 | 617 | 628 | 617 |
462.libquantum | 32 | 78.9 | 8410 | 80.1 | 8270 | 79.9 | 8300 | 32 | 78.9 | 8410 | 80.1 | 8270 | 79.9 | 8300 |
464.h264ref | 32 | 757 | 935 | 745 | 950 | 753 | 940 | 32 | 712 | 995 | 727 | 974 | 713 | 993 |
471.omnetpp | 32 | 476 | 420 | 481 | 416 | 478 | 418 | 32 | 456 | 438 | 455 | 439 | 453 | 441 |
473.astar | 32 | 498 | 451 | 503 | 447 | 498 | 451 | 32 | 498 | 451 | 503 | 447 | 498 | 451 |
483.xalancbmk | 32 | 248 | 889 | 248 | 890 | 248 | 889 | 32 | 248 | 889 | 248 | 890 | 248 | 889 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS settings: Snoop Mode set to Cluster on Die Virtualization Technology disabled Execute Disable disabled System Profile set to Performance Sysinfo program /root/cpu2006-1.2/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on linux Fri Jun 20 15:11:04 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2667 v3 @ 3.20GHz 2 "physical id"s (chips) 32 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 cache size : 20480 KB From /proc/meminfo MemTotal: 264572220 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux linux 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013 (ccab990) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jun 20 14:44 last=S SPEC is set to: /root/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext2 267G 8.8G 257G 4% / Additional information from dmidecode: BIOS Dell Inc. 0.3.24 06/12/2014 Memory: 1x 00AD00B300AD HMA42GR7MFR4N-TFTD 16 GB 2133 MHz 8x 00AD063200AD HMA42GR7MFR4N-TFT1 16 GB 2133 MHz 7x 00CE00B300CE M393A2G40DB0-CPB 16 GB 2133 MHz 8x Not Specified Not Specified (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/cpu2006-1.2/libs/32:/root/cpu2006-1.2/libs/64:/root/cpu2006-1.2/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
