| CPU2006 license: | 3175 | Test date: | Jul-2014 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | Feb-2014 |
| Tested by: | Huawei | Software Availability: | Nov-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8890 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.40 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 60 cores, 4 chips, 15 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 37.5 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (32 x 16 GB 2Rx4 PC3L-10600R-9, ECC, running at 1333 MHz) |
| Disk Subsystem: | 2 x 600 GB SAS, 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

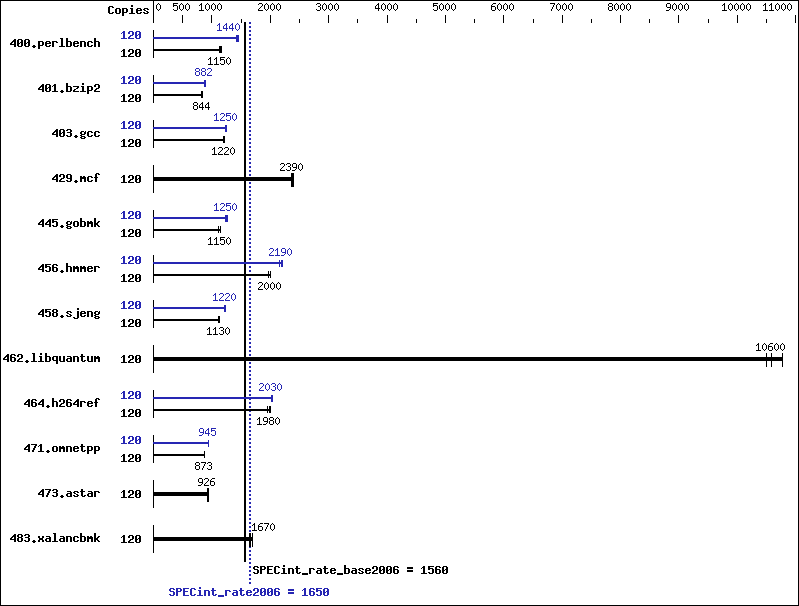

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 120 | 1039 | 1130 | 1017 | 1150 | 1010 | 1160 | 120 | 825 | 1420 | 816 | 1440 | 809 | 1450 |
| 401.bzip2 | 120 | 1404 | 825 | 1373 | 844 | 1368 | 846 | 120 | 1326 | 873 | 1313 | 882 | 1306 | 887 |
| 403.gcc | 120 | 811 | 1190 | 793 | 1220 | 792 | 1220 | 120 | 783 | 1230 | 776 | 1250 | 772 | 1250 |
| 429.mcf | 120 | 463 | 2370 | 459 | 2390 | 456 | 2400 | 120 | 463 | 2370 | 459 | 2390 | 456 | 2400 |
| 445.gobmk | 120 | 1130 | 1110 | 1097 | 1150 | 1097 | 1150 | 120 | 1015 | 1240 | 997 | 1260 | 1008 | 1250 |
| 456.hmmer | 120 | 571 | 1960 | 560 | 2000 | 559 | 2000 | 120 | 518 | 2160 | 512 | 2190 | 508 | 2210 |
| 458.sjeng | 120 | 1301 | 1120 | 1280 | 1130 | 1277 | 1140 | 120 | 1198 | 1210 | 1186 | 1220 | 1171 | 1240 |
| 462.libquantum | 120 | 237 | 10500 | 235 | 10600 | 231 | 10800 | 120 | 237 | 10500 | 235 | 10600 | 231 | 10800 |
| 464.h264ref | 120 | 1354 | 1960 | 1342 | 1980 | 1321 | 2010 | 120 | 1313 | 2020 | 1309 | 2030 | 1298 | 2050 |
| 471.omnetpp | 120 | 863 | 870 | 859 | 873 | 851 | 881 | 120 | 797 | 941 | 794 | 945 | 792 | 946 |
| 473.astar | 120 | 919 | 917 | 909 | 926 | 899 | 937 | 120 | 919 | 917 | 909 | 926 | 899 | 937 |
| 483.xalancbmk | 120 | 502 | 1650 | 496 | 1670 | 488 | 1700 | 120 | 502 | 1650 | 496 | 1670 | 488 | 1700 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Set Power Efficiency Mode to Performance Set Lock_step to disabled Baseboard Management Controller used to adjust the fan speed to 100% Sysinfo program /spec/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on RH5885HV3 Mon Jul 28 08:19:13 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-8890 v2 @ 2.80GHz 4 "physical id"s (chips) 120 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 15 siblings : 30 physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 2: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 3: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 cache size : 38400 KB From /proc/meminfo MemTotal: 529098332 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux RH5885HV3 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jul 28 06:57 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 ext4 357G 15G 325G 5% / Additional information from dmidecode: BIOS American Megatrends Inc. BLISV038 04/24/2014 Memory: 32x 16 GB 32x Hynix HMT42GR7MFR4A-H9 16 GB 1333 MHz 2 rank 64x NO DIMM NO DIMM (End of data from sysinfo program) Regarding the sysinfo display about the memory installed, the correct amount of memory is 512 GB and the dmidecode description should have one line reading as: 32x Hynix HMT42GR7MFR4A-H9 16 GB 1333 MHz 2 rank
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64:/spec/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
