| CPU2006 license: | 13 | Test date: | Jul-2014 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Aug-2013 |
| Tested by: | Intel Corporation | Software Availability: | Oct-2013 |
| Hardware | |
|---|---|
| CPU Name: | AMD A10-6800K |
| CPU Characteristics: | AMD Turbo CORE technology up to 4.40 GHz |
| CPU MHz: | 4100 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 128 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx4 PC3-12800U-11) |
| Disk Subsystem: | 1 TB Seagate SATA HDD, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600 |
| Compiler: | C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Fortran: Version 14.0.1.139 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

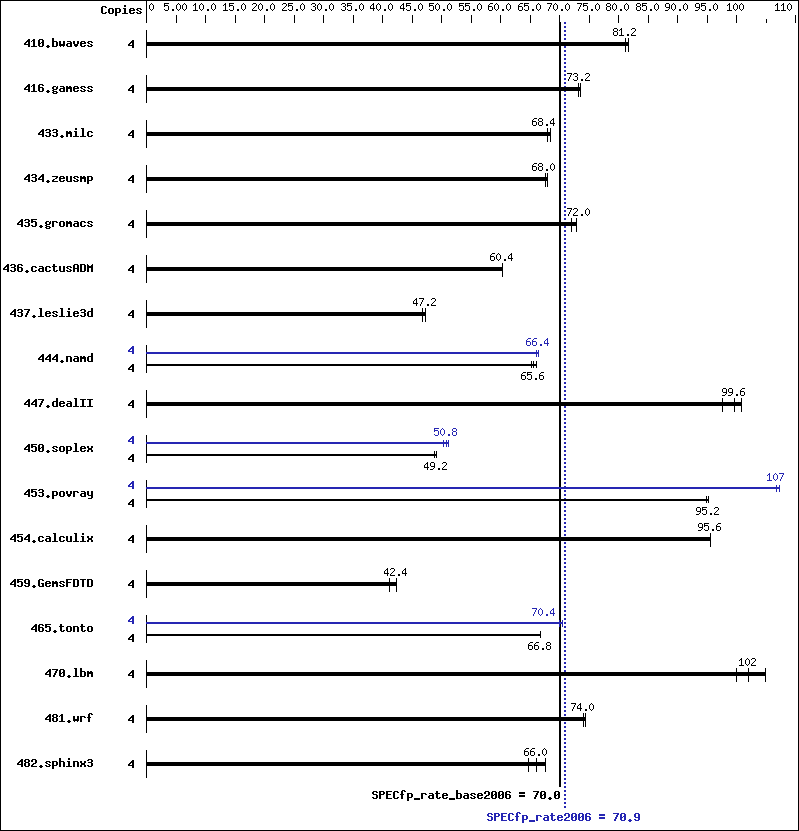

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 671 | 81.2 | 671 | 81.2 | 667 | 81.6 | 4 | 671 | 81.2 | 671 | 81.2 | 667 | 81.6 |
| 416.gamess | 4 | 1068 | 73.2 | 1068 | 73.2 | 1064 | 73.6 | 4 | 1068 | 73.2 | 1068 | 73.2 | 1064 | 73.6 |
| 433.milc | 4 | 538 | 68.4 | 541 | 68.0 | 538 | 68.4 | 4 | 538 | 68.4 | 541 | 68.0 | 538 | 68.4 |
| 434.zeusmp | 4 | 535 | 68.0 | 534 | 68.0 | 539 | 67.6 | 4 | 535 | 68.0 | 534 | 68.0 | 539 | 67.6 |
| 435.gromacs | 4 | 393 | 72.8 | 396 | 72.0 | 396 | 72.0 | 4 | 393 | 72.8 | 396 | 72.0 | 396 | 72.0 |
| 436.cactusADM | 4 | 792 | 60.4 | 793 | 60.4 | 793 | 60.4 | 4 | 792 | 60.4 | 793 | 60.4 | 793 | 60.4 |
| 437.leslie3d | 4 | 794 | 47.2 | 800 | 46.8 | 797 | 47.2 | 4 | 794 | 47.2 | 800 | 46.8 | 797 | 47.2 |
| 444.namd | 4 | 487 | 66.0 | 488 | 65.6 | 491 | 65.2 | 4 | 483 | 66.4 | 483 | 66.4 | 487 | 66.0 |
| 447.dealII | 4 | 455 | 101 | 459 | 99.6 | 468 | 97.6 | 4 | 455 | 101 | 459 | 99.6 | 468 | 97.6 |
| 450.soplex | 4 | 681 | 49.2 | 679 | 49.2 | 682 | 48.8 | 4 | 663 | 50.4 | 654 | 51.2 | 659 | 50.8 |
| 453.povray | 4 | 225 | 94.8 | 224 | 95.2 | 223 | 95.2 | 4 | 198 | 107 | 199 | 107 | 199 | 107 |
| 454.calculix | 4 | 346 | 95.6 | 345 | 95.6 | 345 | 95.6 | 4 | 346 | 95.6 | 345 | 95.6 | 345 | 95.6 |
| 459.GemsFDTD | 4 | 1003 | 42.4 | 999 | 42.4 | 1030 | 41.2 | 4 | 1003 | 42.4 | 999 | 42.4 | 1030 | 41.2 |
| 465.tonto | 4 | 588 | 66.8 | 588 | 66.8 | 589 | 66.8 | 4 | 563 | 70.0 | 560 | 70.4 | 558 | 70.4 |
| 470.lbm | 4 | 524 | 105 | 551 | 100 | 538 | 102 | 4 | 524 | 105 | 551 | 100 | 538 | 102 |
| 481.wrf | 4 | 602 | 74.4 | 603 | 74.0 | 605 | 74.0 | 4 | 602 | 74.4 | 603 | 74.0 | 605 | 74.0 |
| 482.sphinx3 | 4 | 1204 | 64.8 | 1181 | 66.0 | 1153 | 67.6 | 4 | 1204 | 64.8 | 1181 | 66.0 | 1153 | 67.6 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 14.0 was set up to generate 64-bit binaries with the command: "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Submit Notes
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Platform Notes
Sysinfo program C:\SPEC14.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt08606E747CCD Tue Jul 1 21:27:05 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 8.1 Pro OS Version : 6.3.9600 N/A Build 9600 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: AMD64 Family 21 Model 19 Stepping 1 AuthenticAMD ~4100 Mhz BIOS Version : American Megatrends Inc. 6303, 8/13/2013 Total Physical Memory: 7,366 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 4096 L3CacheSize : 0 MaxClockSpeed : 4100 Name : AMD A10-6800K APU with Radeon(tm) HD Graphics NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 /names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER /names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
C++ benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F1000000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 453.povray: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
