| CPU2006 license: | 13 | Test date: | Jul-2014 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jan-2014 |
| Tested by: | Intel Corporation | Software Availability: | Oct-2013 |
| Hardware | |
|---|---|
| CPU Name: | AMD A10-7850K |
| CPU Characteristics: | AMD Turbo CORE technology up to 4.00 GHz |
| CPU MHz: | 3700 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 192 KB I on chip per chip, 96 KB I shared / 2 cores; 16 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx4 PC3-12800U-11) |
| Disk Subsystem: | 1 TB Seagate SATA HDD, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600 |
| Compiler: | C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

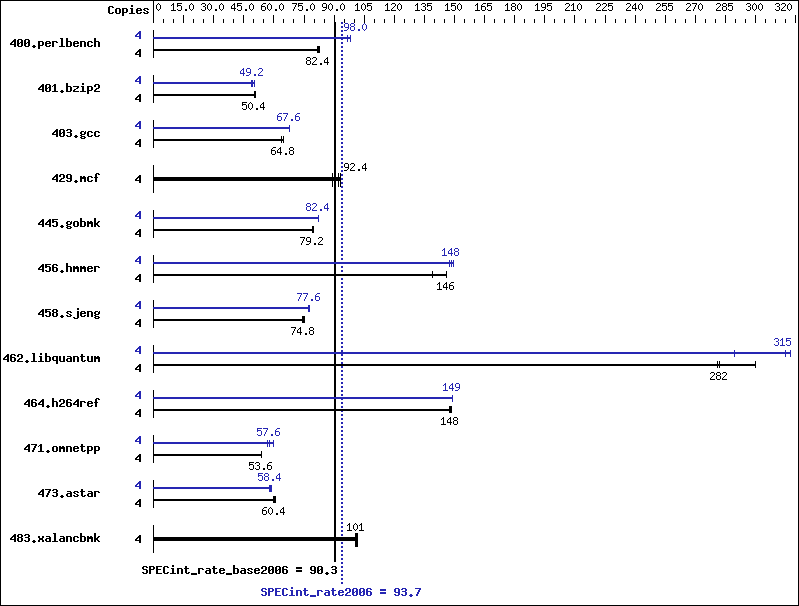

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 473 | 82.8 | 478 | 81.6 | 474 | 82.4 | 4 | 403 | 96.8 | 398 | 98.4 | 399 | 98.0 |
| 401.bzip2 | 4 | 759 | 50.8 | 765 | 50.4 | 766 | 50.4 | 4 | 792 | 48.8 | 763 | 50.4 | 783 | 49.2 |
| 403.gcc | 4 | 497 | 64.8 | 496 | 64.8 | 505 | 63.6 | 4 | 476 | 67.6 | 472 | 68.0 | 476 | 67.6 |
| 429.mcf | 4 | 395 | 92.4 | 391 | 93.2 | 409 | 89.2 | 4 | 395 | 92.4 | 391 | 93.2 | 409 | 89.2 |
| 445.gobmk | 4 | 529 | 79.2 | 530 | 79.2 | 528 | 79.6 | 4 | 510 | 82.4 | 511 | 82.0 | 510 | 82.4 |
| 456.hmmer | 4 | 255 | 146 | 269 | 139 | 256 | 146 | 4 | 252 | 148 | 250 | 150 | 253 | 148 |
| 458.sjeng | 4 | 645 | 75.2 | 646 | 74.8 | 651 | 74.4 | 4 | 625 | 77.6 | 628 | 77.2 | 625 | 77.6 |
| 462.libquantum | 4 | 294 | 282 | 295 | 281 | 276 | 300 | 4 | 261 | 318 | 263 | 315 | 286 | 290 |
| 464.h264ref | 4 | 596 | 148 | 598 | 148 | 599 | 148 | 4 | 594 | 149 | 594 | 149 | 595 | 149 |
| 471.omnetpp | 4 | 466 | 53.6 | 466 | 53.6 | 465 | 53.6 | 4 | 435 | 57.6 | 420 | 59.6 | 441 | 56.8 |
| 473.astar | 4 | 466 | 60.4 | 469 | 60.0 | 463 | 60.8 | 4 | 481 | 58.4 | 477 | 58.8 | 488 | 57.6 |
| 483.xalancbmk | 4 | 273 | 101 | 274 | 101 | 272 | 102 | 4 | 273 | 101 | 274 | 101 | 272 | 102 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 14.0 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Submit Notes
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Platform Notes
Sysinfo program C:\SPEC14.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on CltD850E6BC6E8A Tue Jul 1 11:48:32 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 8.1 Pro OS Version : 6.3.9600 N/A Build 9600 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: AMD64 Family 21 Model 48 Stepping 1 AuthenticAMD ~3700 Mhz BIOS Version : American Megatrends Inc. 0703, 12/30/2013 Total Physical Memory: 7,106 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 4096 L3CacheSize : 0 MaxClockSpeed : 3700 Name : AMD A10-7850K APU with Radeon(TM) R7 Graphics NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| /arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks (except as noted below):
| icl -Qvc10 | |
| 473.astar: | C:\Program Files (x86)\Intel\Composer XE 2013 SP1/bin/intel64/icl.exe |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qauto-ilp32 /arch:AVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
