SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

ACTION S.A.

ACTINA SOLAR 210 Q5 (Intel Xeon E5-2620 v2, 2.10
GHz)

CPU2006 license: 9008 Test date: Jul-2014
Test sponsor: ACTION S.A. Hardware Availability: Oct-2013
Tested by: ACTION S.A. Software Availability: Sep-2013

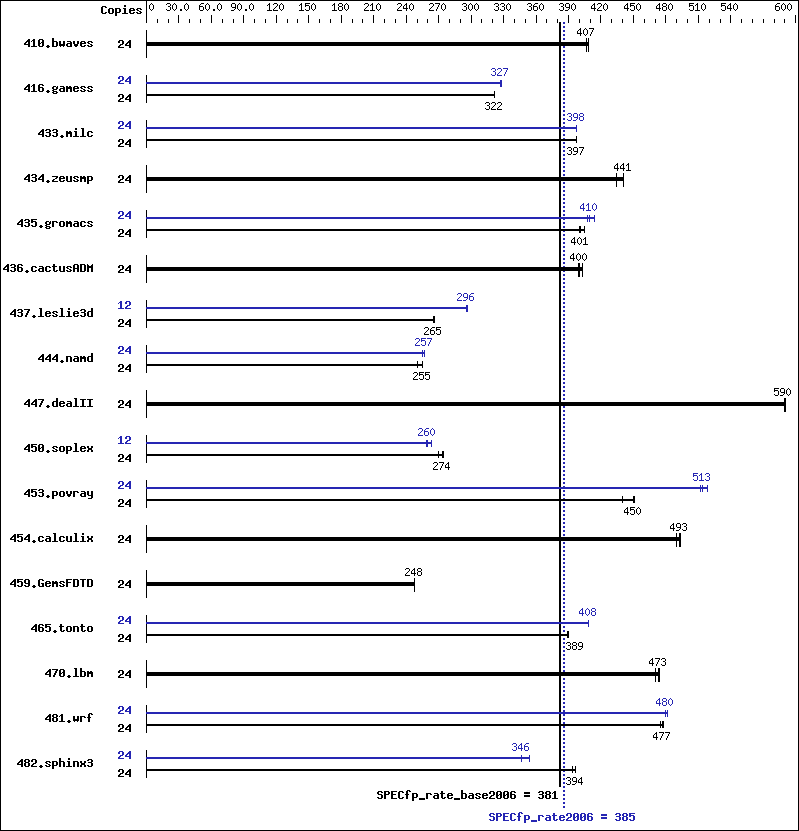

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2620 v2
CPU Characteristics: Intel Turbo Boost Technology up to 2.60 GHz
CPU MHz: 2100
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-14900R-13, ECC,
running at 1600 MHz and CL11)
Disk Subsystem: 1 x 240 GB SATA II SSD
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.4
(Santiago)
2.6.32-358.11.1.el6.x86_64
Compiler: C/C++: Version 14.0.0.080 of Intel C++ Studio XE
for Linux;
Fortran: Version 14.0.0.080 of Intel Fortran
Studio XE for Linux
Auto Parallel: No
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 24 799 408 802 407 802 407 24 799 408 802 407 802 407
416.gamess 24 1461 322 1462 322 1461 322 24 1437 327 1437 327 1431 328
433.milc 24 554 398 555 397 555 397 24 554 398 554 398 554 397
434.zeusmp 24 495 441 496 441 503 434 24 495 441 496 441 503 434
435.gromacs 24 427 401 423 405 428 401 24 414 414 418 410 421 407
436.cactusADM 24 717 400 712 403 718 400 24 717 400 712 403 718 400
437.leslie3d 24 851 265 847 266 850 265 12 381 296 382 296 380 297
444.namd 24 755 255 770 250 755 255 24 749 257 754 255 748 257
447.dealII 24 465 590 466 590 465 590 24 465 590 466 590 465 590
450.soplex 24 732 274 728 275 741 270 12 380 263 387 259 385 260
453.povray 24 284 450 290 440 283 451 24 249 513 246 519 249 512
454.calculix 24 402 493 404 490 402 493 24 402 493 404 490 402 493
459.GemsFDTD 24 1028 248 1028 248 1027 248 24 1028 248 1028 248 1027 248
465.tonto 24 607 389 607 389 606 390 24 579 408 579 408 578 408
470.lbm 24 697 473 701 470 696 474 24 697 473 701 470 696 474
481.wrf 24 562 477 561 478 564 475 24 557 481 559 480 559 479
482.sphinx3 24 1188 394 1181 396 1188 394 24 1320 354 1351 346 1351 346

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes


 Bios Settings
 Power Technology = Custom
 Energy Performance = Performance
 Turbo Mode = Enabled
 C1E Support = Disabled
 CPU C3 Report = Disabled
 CPU C6 Report = Disabled
 Package C State Limit = No Limit

 Sysinfo program /cpu2006.1.2/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on localhost.localdomain Sat Jul 12 15:59:33 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2620 v2 @ 2.10GHz
       2 "physical id"s (chips)
       24 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 6
       siblings  : 12
       physical 0: cores 0 1 2 3 4 5
       physical 1: cores 0 1 2 3 4 5
    cache size : 15360 KB

 From /proc/meminfo
    MemTotal:       132126620 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.4 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux localhost.localdomain 2.6.32-358.11.1.el6.x86_64 #1 SMP Tue Nov 19
    17:43:04 CET 2013 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jul 8 21:39

 SPEC is set to: /cpu2006.1.2
    Filesystem    Type    Size  Used Avail Use% Mounted on
    /dev/sda1     ext4    193G   77G  107G  42% /

 Additional information from dmidecode:
   BIOS American Megatrends Inc. 3.0a 02/11/2014
   Memory:
    16x   8 GB
    14x Hynix Semiconducto HMT31GR7EFR4C 8 GB 1600 MHz 2 rank
    2x Hynix Semiconductor HMT31GR7EFR4C- 8 GB 1600 MHz 2 rank

 (End of data from sysinfo program)
 dmidecode does not properly detect memory modules
 16 modules of 8 GB were used to run the test (128 GB total)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/cpu2006.1.2/libs/32:/cpu2006.1.2/libs/64:/cpu2006.1.2/sh"

 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>
 Binaries compiled on a system with 2x Xeon E5-2650 v2 chips + 256 GB memory
 using RedHat EL 6.4

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

C++ benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Fortran benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch

Benchmarks using both Fortran and C:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
482.sphinx3:  icc -m32

C++ benchmarks (except as noted below):

 icpc -m64
450.soplex:  icpc -m32

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -auto-ilp32
470.lbm:  basepeak = yes
482.sphinx3:  -xAVX   -ipo   -O3   -no-prec-div   -opt-mem-layout-trans=3   -unroll2

C++ benchmarks:

444.namd:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3
453.povray:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch
459.GemsFDTD:  basepeak = yes
465.tonto:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  -xAVX   -ipo   -O3   -no-prec-div   -auto-ilp32

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.html,
http://www.spec.org/cpu2006/flags/ACTION.SA-Platform-Flags-RevB-apr-2014-For-Supermicro-Platform.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.xml,
http://www.spec.org/cpu2006/flags/ACTION.SA-Platform-Flags-RevB-apr-2014-For-Supermicro-Platform.xml.
