SPEC® CFP2006 Result

Intel Corporation

Intel DQ87PG motherboard (Intel Core i5-4430)

SPECfp®_rate2006 = 116

SPECfp_rate_base2006 = 115

CPU2006 license:	13	Test date:	Sep-2013
Test sponsor:	Intel Corporation	Hardware Availability:	Jul-2013
Tested by:	Intel Corporation	Software Availability:	Apr-2013

Hardware
CPU Name:	Intel Core i5-4430
CPU Characteristics:	Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz:	3000
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	4 GB (2 x 2 GB 1Rx8 PC3-12800U-11)
Disk Subsystem:	250 GB Seagate SATA HDD, 7200 RPM
Other Hardware:	None

Software
Operating System:	Microsoft Windows 7 Enterprise 6.1.7601 Service Pack 1 Build 7601
Compiler:	C/C++: Version 13.1.1.171 of Intel C++ Studio XE for Windows; Fortran: Version 13.1.1.171 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 10.0 from http://www.microquill.com/

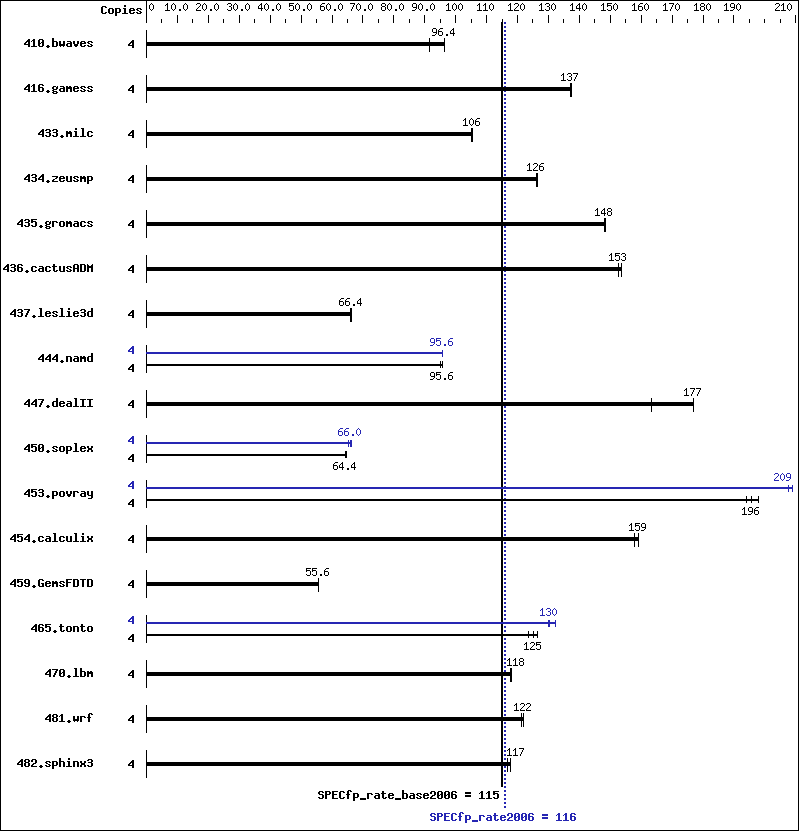

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	4	594	91.6	563	96.4	563	96.4	4	594	91.6	563	96.4	563	96.4
416.gamess	4	571	137	569	138	571	137	4	571	137	569	138	571	137
433.milc	4	349	105	348	106	348	106	4	349	105	348	106	348	106
434.zeusmp	4	288	126	289	126	289	126	4	288	126	289	126	289	126
435.gromacs	4	193	148	193	148	192	148	4	193	148	193	148	192	148
436.cactusADM	4	313	153	311	154	313	153	4	313	153	311	154	313	153
437.leslie3d	4	569	66.0	567	66.4	567	66.4	4	569	66.0	567	66.4	567	66.4
444.namd	4	336	95.2	336	95.6	336	95.6	4	336	95.6	336	95.6	336	95.6
447.dealII	4	259	177	281	163	259	177	4	259	177	281	163	259	177
450.soplex	4	519	64.4	515	64.8	517	64.4	4	505	66.0	504	66.4	512	65.2
453.povray	4	108	198	109	196	110	194	4	102	209	103	208	102	209
454.calculix	4	209	158	207	159	207	159	4	209	158	207	159	207	159
459.GemsFDTD	4	765	55.6	764	55.6	761	55.6	4	765	55.6	764	55.6	761	55.6
465.tonto	4	318	124	315	125	311	126	4	303	130	302	130	297	132
470.lbm	4	467	118	467	118	467	118	4	467	118	467	118	467	118
481.wrf	4	367	122	366	122	368	121	4	367	122	366	122	368	121
482.sphinx3	4	667	117	663	118	667	117	4	667	117	663	118	667	117

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 13.1 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\SPEC13.1/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt00224D4FB715 Thu Sep 19 13:17:06 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Enterprise
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: INTEL_
 System Model  : DQ87PG__
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~3001 Mhz
 BIOS Version  : Intel(R) Corp. PGQ8710H.86A.0036.2013.0702.1908, 7/2/2013
 Total Physical Memory: 3,749 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1024
 L3CacheSize   : 6144
 MaxClockSpeed : 3001
 Name          : Intel(R) Core(TM) i5-4430 CPU @ 3.00GHz
 NumberOfCores : 4
 NumberOfLogicalProcessors: 4

 (End of data from sysinfo program)
BIOS: SATA mode set to RAID
Windows Disk Driver: Intel Rapid Storage Technology 12.5.0.1066
Windows Chipset Driver: Intel Chipset Driver 9.4.0.1027

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 Micron MT8JTF25664AZ-1G6 Series Memory DIMMs

General Notes

 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_P64
416.gamess:	-DSPEC_CPU_P64
433.milc:	-DSPEC_CPU_P64
434.zeusmp:	-DSPEC_CPU_P64
435.gromacs:	-DSPEC_CPU_P64
436.cactusADM:	-DSPEC_CPU_P64 /names:lowercase /assume:underscore
437.leslie3d:	-DSPEC_CPU_P64
444.namd:	-DSPEC_CPU_P64 /TP
447.dealII:	-DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros
450.soplex:	-DSPEC_CPU_P64
453.povray:	-DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP
454.calculix:	-DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER /names:lowercase
459.GemsFDTD:	-DSPEC_CPU_P64
465.tonto:	-DSPEC_CPU_P64
470.lbm:	-DSPEC_CPU_P64
481.wrf:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:	-DSPEC_CPU_P64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
447.dealII:	basepeak = yes
450.soplex:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
453.povray:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.xml.
