SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUS F2A85-M PRO motherboard (AMD A4-4000 APU
with Radeon HD Graphics)

CPU2006 license: 13 Test date: Oct-2013
Test sponsor: Intel Corporation Hardware Availability: May-2013
Tested by: Intel Corporation Software Availability: Apr-2013

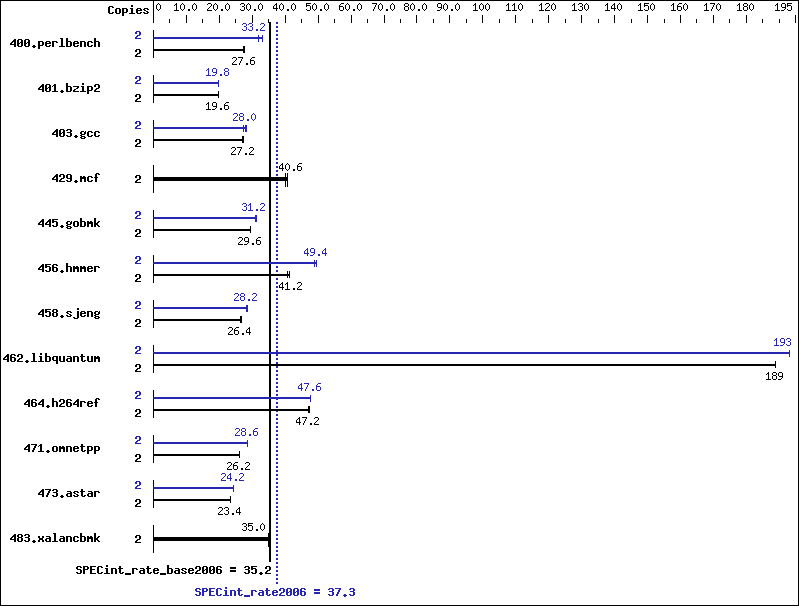

Benchmark results graph
Hardware
CPU Name: AMD A4-4000
CPU Characteristics: AMD Turbo CORE technology up to 3.20 GHz
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I on chip per chip; 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (2 x 2 GB 1Rx8 PC3-12800U-11, running at
1333 MHz and CL9)
Disk Subsystem: 250 GB Seagate SATA HDD, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 7 Ultimate
6.1.7601 Service Pack 1 Build 7601
Compiler: C/C++: Version 13.1.1.171 of Intel C++ Studio XE
for Windows;
Libraries: Version 16.00.30319.01 of Microsoft
Visual Studio 2010 Professional SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 10.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 707 27.6 714 27.4 707 27.6 2 609 32.0 588 33.2 589 33.2
401.bzip2 2 986 19.6 987 19.6 986 19.6 2 973 19.8 972 19.8 975 19.8
403.gcc 2 592 27.2 589 27.4 595 27.0 2 573 28.0 573 28.2 590 27.2
429.mcf 2 449 40.6 449 40.6 454 40.2 2 449 40.6 449 40.6 454 40.2
445.gobmk 2 709 29.6 711 29.6 712 29.4 2 671 31.2 678 31.0 671 31.2
456.hmmer 2 457 40.8 450 41.4 453 41.2 2 378 49.4 381 49.0 378 49.4
458.sjeng 2 919 26.4 913 26.6 920 26.4 2 846 28.6 856 28.2 858 28.2
462.libquantum 2 220 189   219 189   220 189   2 215 193   215 193   214 193
464.h264ref 2 938 47.2 933 47.4 942 47.0 2 930 47.6 929 47.6 928 47.6
471.omnetpp 2 476 26.2 477 26.2 476 26.2 2 438 28.6 438 28.6 438 28.6
473.astar 2 599 23.4 598 23.4 599 23.4 2 580 24.2 580 24.2 581 24.2
483.xalancbmk 2 395 35.0 394 35.0 394 35.0 2 395 35.0 394 35.0 394 35.0

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 13.1 was set up to
 generate 32-bit binaries with the command:
 "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\SPEC13.1/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt3085A9AEE4F6 Fri Oct  4 19:56:32 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Ultimate
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: System manufacturer
 System Model  : System Product Name
 Processor(s)  : 1 Processor(s) Installed.
      [01]: AMD64 Family 21 Model 19 Stepping 1 AuthenticAMD ~3000 Mhz
 BIOS Version  : American Megatrends Inc. 6105, 5/8/2013
 Total Physical Memory: 3,111 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1024
 L3CacheSize   : 0
 MaxClockSpeed : 3000
 Name          : AMD A4-4000 APU with Radeon(tm) HD Graphics
 NumberOfCores : 1
 NumberOfLogicalProcessors: 2

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 Micron MT8JTF25664AZ-1G6 Series Memory DIMMs

General Notes

 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc10   -Qstd=c99

C++ benchmarks:

 icl -Qvc10

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 /arch:AVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 /arch:AVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl -Qvc10   -Qstd=c99
456.hmmer:  C:\Program Files (x86)\Intel\Composer XE 2013.171/bin/intel64/icl.exe
458.sjeng:  C:\Program Files (x86)\Intel\Composer XE 2013.171/bin/intel64/icl.exe
462.libquantum:  C:\Program Files (x86)\Intel\Composer XE 2013.171/bin/intel64/icl.exe   -Qstd=c99

C++ benchmarks (except as noted below):

 icl -Qvc10
473.astar:  C:\Program Files (x86)\Intel\Composer XE 2013.171/bin/intel64/icl.exe

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
458.sjeng:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
473.astar:  -DSPEC_CPU_P64
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
401.bzip2:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   /F512000000
403.gcc:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
429.mcf:  basepeak = yes
445.gobmk:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   /F512000000
456.hmmer:  -Qauto-ilp32   /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
458.sjeng:  -Qauto-ilp32   /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   /F512000000
462.libquantum:  -Qauto-ilp32   /arch:AVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
464.h264ref:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   /F512000000

C++ benchmarks:

471.omnetpp:  /arch:AVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
473.astar:  -Qauto-ilp32   /arch:AVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca
456.hmmer:  -link -LIBPATH:C:\Program Files (x86)\Intel\Composer XE 2013.171/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 10.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 10.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64
458.sjeng:  -link -LIBPATH:C:\Program Files (x86)\Intel\Composer XE 2013.171/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 10.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 10.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64
462.libquantum:  -link -LIBPATH:C:\Program Files (x86)\Intel\Composer XE 2013.171/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 10.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 10.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64

C++ benchmarks:

473.astar:  -link -LIBPATH:C:\Program Files (x86)\Intel\Composer XE 2013.171/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 10.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 10.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.20130924.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.20130924.xml.
