| CPU2006 license: | 3 | Test date: | May-2014 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Feb-2014 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Sep-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4820 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.50 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 16 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (64 x 16 GB 2Rx4 PC3-14900R-13, ECC, running at 1333 MHz and CL9) |
| Disk Subsystem: | 1 x 400 GB SSD SAS, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP3 Kernel 3.0.76-0.11-default |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

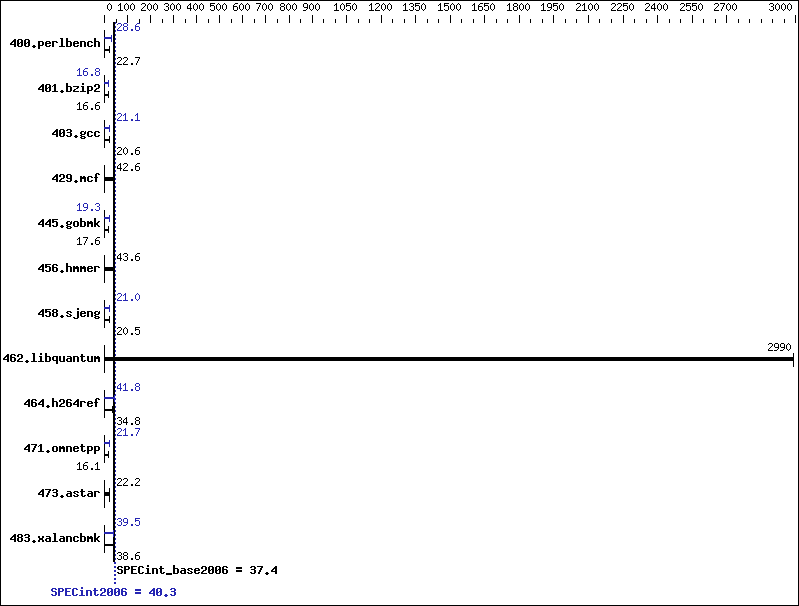

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 430 | 22.7 | 430 | 22.7 | 431 | 22.7 | 342 | 28.6 | 342 | 28.5 | 342 | 28.6 |
| 401.bzip2 | 583 | 16.6 | 582 | 16.6 | 582 | 16.6 | 576 | 16.8 | 575 | 16.8 | 575 | 16.8 |
| 403.gcc | 390 | 20.7 | 390 | 20.6 | 392 | 20.5 | 382 | 21.1 | 382 | 21.1 | 381 | 21.1 |
| 429.mcf | 216 | 42.2 | 214 | 42.6 | 214 | 42.6 | 216 | 42.2 | 214 | 42.6 | 214 | 42.6 |
| 445.gobmk | 597 | 17.6 | 597 | 17.6 | 597 | 17.6 | 542 | 19.4 | 543 | 19.3 | 542 | 19.3 |
| 456.hmmer | 214 | 43.6 | 214 | 43.6 | 214 | 43.5 | 214 | 43.6 | 214 | 43.6 | 214 | 43.5 |
| 458.sjeng | 591 | 20.5 | 591 | 20.5 | 591 | 20.5 | 576 | 21.0 | 577 | 21.0 | 576 | 21.0 |
| 462.libquantum | 6.93 | 2990 | 6.93 | 2990 | 6.93 | 2990 | 6.93 | 2990 | 6.93 | 2990 | 6.93 | 2990 |
| 464.h264ref | 636 | 34.8 | 639 | 34.6 | 637 | 34.8 | 529 | 41.8 | 530 | 41.8 | 529 | 41.8 |
| 471.omnetpp | 386 | 16.2 | 387 | 16.1 | 388 | 16.1 | 289 | 21.7 | 294 | 21.2 | 288 | 21.7 |
| 473.astar | 317 | 22.2 | 317 | 22.1 | 317 | 22.2 | 317 | 22.2 | 317 | 22.1 | 317 | 22.2 |
| 483.xalancbmk | 181 | 38.2 | 179 | 38.6 | 177 | 39.1 | 175 | 39.5 | 174 | 39.6 | 175 | 39.5 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> Disabled unused Linux services through "stop_services.sh" before running.
Platform Notes
Intel Hyperthreading Options set to Disabled HP Power Profile set to Maximum Performance Minimum Processor Idle Power Core State set to C1E State to Enabled Minimum Processor Idle Power Packages State set to Package C6 (non-retention) State Collaborative Power Control set to Disabled Thermal Configuration set to Maximum Cooling Processor Power and Utilization Monitoring set to Disabled Memory Refresh Rate set to Disabled Sysinfo program /cpu2006/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on DL580-Gen8-sr Tue May 13 00:38:17 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-4820 v2 @ 2.00GHz 4 "physical id"s (chips) 32 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 8 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 physical 2: cores 0 1 2 3 4 5 6 7 physical 3: cores 0 1 2 3 4 5 6 7 cache size : 16384 KB From /proc/meminfo MemTotal: 1058855444 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux DL580-Gen8-sr 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013 (ccab990) x86_64 x86_64 x86_64 GNU/Linux run-level 3 May 12 17:36 last=S SPEC is set to: /cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 ext3 365G 15G 333G 5% / Additional information from dmidecode: BIOS HP P79 02/21/2014 Memory: 64x HP 712383-081 16 GB 1333 MHz 32x UNKNOWN NOT AVAILABLE (End of data from sysinfo program) Regarding the sysinfo display about the memory installed, the correct amount of memory is 1 TB and the dmidecode description should have one line reading as: 64x HP 712383-081 16 GB 1333 MHz 2 rank
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/cpu2006/libs/32:/cpu2006/libs/64:/cpu2006/sh" OMP_NUM_THREADS = "32" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Assuming that the memory populations rules found in the DL580 Gen8 QuickSpecs are followed, HP supports memory running at 1333 MHz on the E7-4850 v2, E7-4830 v2, E7-4820 v2, or E7-4809 v2 processors with any BIOS prior to the 1.03_06-27-2014 ROM. Any BIOS that is the 1.03_06-27-2014 ROM or later, does not support the memory running at 1333 MHz due to a change in the Intel MRC (Memory Reference Code).
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
