SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M10-4S

CPU2006 license: 19 Test date: Mar-2014
Test sponsor: Fujitsu Hardware Availability: Apr-2014
Tested by: Fujitsu Software Availability: Feb-2014

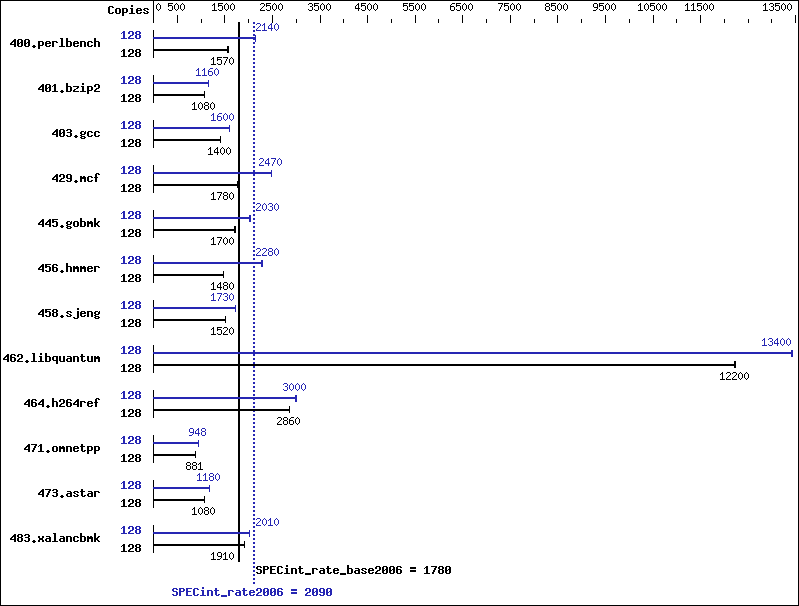

Benchmark results graph
Hardware
CPU Name: SPARC64 X+
CPU Characteristics:
CPU MHz: 3700
FPU: Integrated
CPU(s) enabled: 64 cores, 4 chips, 16 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 16 BBs; each BB contains 2 or 4 CPU chips;
each CPU chip contains 4, 8, 12, 16 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 24 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 512 GB (32 x 16 GB 2Rx4 PC3L-12800R-11, ECC)
Disk Subsystem: tmpfs
600 GB 10,025 RPM Toshiba MBF2600RC SAS (for
system disk)
Other Hardware: None
Software
Operating System: Solaris 11.1 SRU 15.4
Compiler: C/C++: Version 12.3 of Oracle Solaris Studio
10/13 Patch Set
Auto Parallel: No
File System: tmpfs (output_root was used to put run
directories in /tmp/cpu2006)
zfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 128 798 1570 799 1570 798 1570 128 583 2140 585 2140 583 2140
401.bzip2 128 1147 1080 1146 1080 1149 1080 128 1064 1160 1063 1160 1065 1160
403.gcc 128 734 1400 734 1400 734 1400 128 645 1600 646 1600 643 1600
429.mcf 128 658 1770 657 1780 657 1780 128 472 2470 471 2480 472 2470
445.gobmk 128 780 1720 789 1700 789 1700 128 658 2040 662 2030 663 2030
456.hmmer 128 807 1480 809 1480 806 1480 128 524 2280 524 2280 523 2280
458.sjeng 128 1018 1520 1018 1520 1019 1520 128 896 1730 896 1730 894 1730
462.libquantum 128 217 12200 217 12200 217 12200 128 198 13400 197 13400 198 13400
464.h264ref 128 990 2860 990 2860 991 2860 128 946 3000 945 3000 947 2990
471.omnetpp 128 908 881 908 881 908 881 128 844 948 844 948 844 948
473.astar 128 832 1080 832 1080 832 1080 128 760 1180 760 1180 759 1180
483.xalancbmk 128 462 1910 462 1910 462 1910 128 439 2010 439 2010 439 2010

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".

 System Tunables:
 (/etc/system parameters)
    autoup = 1555200
       Causes pages older than the listed number of seconds to be written by fsflush.
    tune_t_fsflushr = 259200
       Controls how many seconds elapse between runs of the page flush daemon, fsflush.

Platform Notes

 Sysinfo program /export/cpu2006-v1.2/config/sysinfo
 $Rev: 6874 $ $Date:: 2013-11-20 #$ 654bd3fcf53b06faef0efe54ed011998
 running on spec-bb02 Sun Mar  2 17:44:46 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-X+ (chipid 0, clock 3700 MHz)
    SPARC64-X+ (chipid 1, clock 3700 MHz)
    SPARC64-X+ (chipid 2, clock 3700 MHz)
    SPARC64-X+ (chipid 3, clock 3700 MHz)
    4 chips
    128 threads
    3700 MHz

 From kstat:       64 cores

 From prtconf: 522240 Megabytes

 /etc/release:
      Oracle Solaris 11.1 SPARC
 uname -a:
    SunOS spec-bb02 5.11 11.1 sun4v sparc sun4v

 disk: df -h  $SPEC
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G    18G       450G     4%    /export

 (End of data from sysinfo program)

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -M map.bssalign

C++ benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -M map.bssalign   -lfast

Base Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -xO4   -M map.256M.align   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xalias_level=strong   -xprefetch=no%auto   -W2,-Ainline:rs=1000   -W2,-Ainline:cs=500   -W2,-Ainline:inc=60   -M map.256M.align   -lfast
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xO4   -xipo=2   -xprefetch=no%auto   -M map.256M.align
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=1   -xprefetch=latx:0.2   -W2,-Asac   -M map.256M.align
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xO4   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=64   -M map.256M.align
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=std   -xunroll=6   -xprefetch=latx:3.0   -Wc,-Qpeep-Ex:minmax_use_cmov=2   -Wc,-Qms_pipe+ulmscc=1   -M map.256M.align
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xO4   -xipo=2   -xalias_level=std   -xprefetch=no%auto   -Wc,-Qlu-en=1-t=4   -M map.256M.align
462.libquantum:  -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xunroll=8   -xprefetch=no%auto   -Wc,-Qlu-en=1-t=4   -M map.256M.align   -lbsdmalloc
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xalias_level=strong   -xipo=1   -Wc,-Qiselect-funcalign=64   -M map.256M.align

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=compatible   -xunroll=2   -xprefetch_level=3   -W2,-Asac   -library=stlport4   -M map.256M.align   -lfast
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -xprefetch=no%auto   -library=stlport4   -M map.256M.align   -lfast
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=compatible   -xdepend   -xprefetch_level=3   -xprefetch=latx:0.4   -library=stlport4   -Wc,-Qpeep-Ex:minmax_use_cmov=2   -Wc,-Qms_pipe+ulmscc=1   -W2,-Asac   -M map.256M.align   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC64X.20140423.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC64X.20140423.xml.
