| CPU2006 license: | 9017 | Test date: | Mar-2014 |
|---|---|---|---|
| Test sponsor: | Lenovo Group Limited | Hardware Availability: | Feb-2014 |
| Tested by: | Lenovo Group Limited | Software Availability: | Sep-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2430 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.00 GHz |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx8 PC3L-12800R-11, ECC) |
| Disk Subsystem: | 1 x 400 GB SATA SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (Full multiuser with network) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

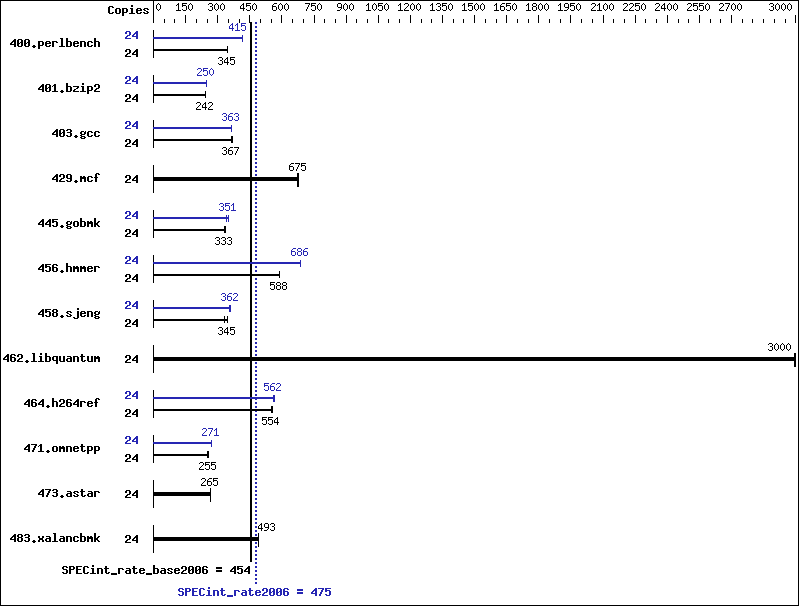

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 680 | 345 | 680 | 345 | 677 | 346 | 24 | 567 | 414 | 566 | 415 | 566 | 415 |
| 401.bzip2 | 24 | 958 | 242 | 957 | 242 | 953 | 243 | 24 | 927 | 250 | 928 | 250 | 927 | 250 |
| 403.gcc | 24 | 527 | 367 | 526 | 367 | 529 | 366 | 24 | 530 | 364 | 532 | 363 | 533 | 363 |
| 429.mcf | 24 | 324 | 675 | 324 | 677 | 326 | 672 | 24 | 324 | 675 | 324 | 677 | 326 | 672 |
| 445.gobmk | 24 | 756 | 333 | 756 | 333 | 750 | 336 | 24 | 716 | 351 | 734 | 343 | 716 | 352 |
| 456.hmmer | 24 | 382 | 587 | 381 | 588 | 381 | 588 | 24 | 326 | 687 | 327 | 686 | 327 | 685 |
| 458.sjeng | 24 | 872 | 333 | 842 | 345 | 843 | 345 | 24 | 803 | 362 | 803 | 362 | 821 | 354 |
| 462.libquantum | 24 | 166 | 3000 | 166 | 2990 | 166 | 3000 | 24 | 166 | 3000 | 166 | 2990 | 166 | 3000 |
| 464.h264ref | 24 | 962 | 552 | 960 | 554 | 959 | 554 | 24 | 945 | 562 | 945 | 562 | 943 | 563 |
| 471.omnetpp | 24 | 587 | 256 | 589 | 255 | 591 | 254 | 24 | 556 | 270 | 554 | 271 | 554 | 271 |
| 473.astar | 24 | 638 | 264 | 634 | 266 | 635 | 265 | 24 | 638 | 264 | 634 | 266 | 635 | 265 |
| 483.xalancbmk | 24 | 336 | 492 | 336 | 493 | 336 | 493 | 24 | 336 | 492 | 336 | 493 | 336 | 493 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Sysinfo program /root/cpu2006/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on TD340 Sat Mar 8 07:25:39 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2430 v2 @ 2.50GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 99031464 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.4 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux TD340 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Mar 7 13:00 SPEC is set to: /root/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext4 363G 13G 332G 4% / Additional information from dmidecode: BIOS LENOVO A3TS0FA 12/05/2013 Memory: 12x 8 GB 12x Samsung M393B1G73QH0-YK0 8 GB 1600 MHz 2 rank (End of data from sysinfo program) TD340 support 3 channels and 6 DIMMS per CPU, total 6 channels and 12 DIMMS. All 12 DIMM slots installed with 8 GB DIMM for this run.
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/cpu2006/libs/32:/root/cpu2006/libs/64:/root/cpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
