SPEC® CINT2006 Result

Supermicro

Supermicro A+ Server 2022G-URF
(H8DGU-F, AMD Opteron 6370P)

SPECint®_rate2006 = 469

SPECint_rate_base2006 = 410

CPU2006 license:	001176	Test date:	Oct-2013
Test sponsor:	Supermicro	Hardware Availability:	Jan-2014
Tested by:	Supermicro	Software Availability:	Aug-2012

Hardware
CPU Name:	AMD Opteron 6370P
CPU Characteristics:	AMD Turbo CORE technology up to 2.50 GHz
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	32 cores, 2 chips, 16 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	512 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core
Secondary Cache:	16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache:	16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache:	None
Memory:	256 GB (16 x 16 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem:	1 x 500 GB SATAIII, 7200 RPM
Other Hardware:	None

Software
Operating System:	CentOS 6.4, Kernel 2.6.32-358.el6.x86_64
Compiler:	C/C++: Version 4.5.2 of x86 Open64 Compiler Suite (from AMD)
Auto Parallel:	No
File System:	ext4
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap 10.0 32-bit Library for Linux

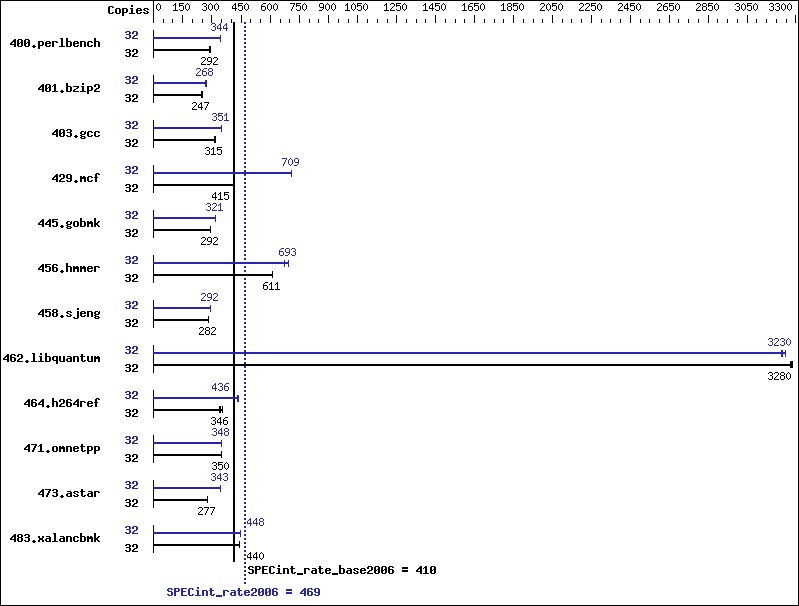

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	32	1071	292	1072	292	1079	290	32	908	344	911	343	907	345
401.bzip2	32	1249	247	1235	250	1251	247	32	1156	267	1152	268	1144	270
403.gcc	32	807	319	818	315	825	312	32	735	350	732	352	733	351
429.mcf	32	704	415	706	413	702	416	32	411	710	412	708	412	709
445.gobmk	32	1149	292	1149	292	1151	292	32	1046	321	1046	321	1046	321
456.hmmer	32	488	612	489	611	489	611	32	431	693	429	695	444	672
458.sjeng	32	1375	282	1376	281	1375	282	32	1325	292	1324	292	1330	291
462.libquantum	32	203	3270	202	3280	202	3280	32	204	3250	205	3230	205	3230
464.h264ref	32	2047	346	2007	353	2091	339	32	1634	433	1624	436	1621	437
471.omnetpp	32	574	349	572	350	572	350	32	574	348	573	349	575	348
473.astar	32	811	277	810	277	814	276	32	656	343	656	342	655	343
483.xalancbmk	32	500	442	502	440	502	440	32	493	448	493	448	493	448

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst

Set vm/nr_hugepages=28672 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/home/cpu2006/amd1206-rate-libs-revA/32:/home/cpu2006/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-Ofast -CG:local_sched_alg=1 -INLINE:aggressive=ON -IPA:plimit=8000 -IPA:small_pu=100 -HP:bd=2m:heap=2m -mso -LNO:prefetch=2 -march=bdver1

C++ benchmarks:

-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -D__OPEN64_FAST_SET -march=bdver1 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
473.astar:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=2 -LNO:opt=0 -IPA:plimit=20000 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -WOPT:if_conv=0 -WOPT:sib=on -CG:local_sched_alg=1 -CG:unroll_fb_req=on -CG:movext_icmp=off -HP:bd=2m:heap=2m -march=bdver1 -GRA:aggr_loop_splitting=off -GRA:loop_splitting=off
401.bzip2:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=2 -LNO:pf2=0 -OPT:alias=disjoint -OPT:goto=off -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m -march=bdver2
403.gcc:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:trip_count=256 -CG:cmp_peep=on -CG:pre_minreg_level=2 -m32 -HP:bdt=2m:heap=2m -GRA:unspill=on -IPA:small_pu=200 -WOPT:sib=on -march=bdver2 -mno-fma4
429.mcf:	-O3 -OPT:unroll_times_max=5 -ipa -INLINE:aggressive=on -CG:gcm=off -CG:dsched=on -GRA:prioritize_by_density=on -m32 -HP:bdt=2m:heap=2m -mso -march=bdver1
445.gobmk:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:unroll_size=256 -OPT:unroll_times_max=8 -OPT:keep_ext=on -IPA:plimit=750 -IPA:min_hotness=300 -IPA:pu_reorder=1 -LNO:ignore_feedback=off -WOPT:if_conv=2 -HP:bd=2m:heap=2m -march=bdver1
456.hmmer:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=2 -OPT:alias=disjoint -OPT:unroll_times_max=16 -OPT:unroll_size=512 -OPT:unroll_level=2 -OPT:keep_ext=on -CG:cflow=0 -CG:cmp_peep=on -CG:pre_local_sched=off -HP:bdt=2m:heap=2m -CG:p2align=0 -CG:load_exe=3 -CG:dsched=on -march=bdver1
458.sjeng:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:ptr_load_use=0 -CG:divrem_opt=on -CG:movext_icmp=off -CG:locs_best=on -LNO:full_unroll=10 -IPA:pu_reorder=2 -HP:heap=2m:bd=2m -WOPT:sib=on -march=bdver1
462.libquantum:	-Ofast -mso -OPT:unroll_size=512 -OPT:unroll_times_max=16 -LNO:prefetch=2 -LNO:prefetch_ahead=4 -LNO:pf2=0 -CG:local_sched_alg=1 -CG:p2align=0 -INLINE:aggressive=ON -IPA:plimit=15000 -IPA:small_pu=100 -HP:bdt=2m:heap=2m,limit=300 -march=bdver2
464.h264ref:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:unroll_size=256 -OPT:unroll_times_max=2 -IPA:plimit=20000 -OPT:alias=disjoint -CG:ptr_load_use=0 -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m -march=bdver1

C++ benchmarks:

471.omnetpp:	-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -WOPT:sib=on -D__OPEN64_FAST_SET -march=bdver2 -mno-fma4 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap
473.astar:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -WOPT:if_conv=0 -WOPT:sib=on -CG:divrem_opt=on -CG:p2align=1 -CG:dsched=on -GRA:optimize_boundary=on -OPT:alias=disjoint -INLINE:aggressive=on -IPA:small_pu=3000 -IPA:plimit=3000 -HP:bdt=2m:heap=2m -march=bdver1
483.xalancbmk:	-Ofast -LNO:prefetch=2 -OPT:unroll_size=512 -OPT:unroll_times_max=8 -D__OPEN64_FAST_SET -INLINE:aggressive=on -m32 -CG:cmp_peep=on -CG:local_sched=off -CG:p2align=1 -GRA:unspill=on -TENV:frame_pointer=off -fno-emit-exceptions -march=bdver2 -mno-fma4 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd-Supermicro-platform-rate-revC-I.html,
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-III.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/amd-Supermicro-platform-rate-revC-I.xml,
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-III.xml.
