SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL360e Gen8
(2.40 GHz, Intel Xeon E5-2470 v2)

CPU2006 license: 3 Test date: Jan-2014
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2014
Tested by: Hewlett-Packard Company Software Availability: Nov-2013

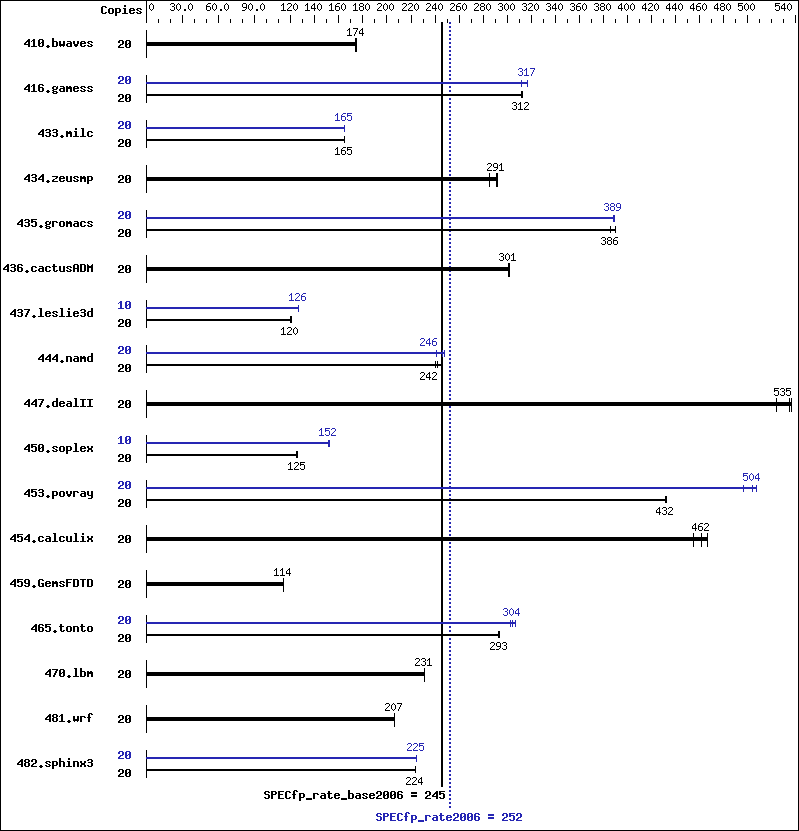

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2470 v2
CPU Characteristics: Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 10 cores, 1 chip, 10 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory: 48 GB (6 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 300 GB 15 K SAS, RAID 1
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64) SP3
Kernel 3.0.76-0.11-default
Compiler: C/C++: Version 14.0.0.080 of Intel C++ Studio XE
for Linux;
Fortran: Version 14.0.0.080 of Intel Fortran
Studio XE for Linux
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 20 1559 174 1560 174 1559 174 20 1559 174 1560 174 1559 174
416.gamess 20 1253 312 1254 312 1254 312 20 1236 317 1236 317 1257 312
433.milc 20 1113 165 1113 165 1114 165 20 1113 165 1113 165 1113 165
434.zeusmp 20 625 291 639 285 623 292 20 625 291 639 285 623 292
435.gromacs 20 370 386 370 386 366 390 20 367 389 367 389 367 389
436.cactusADM 20 794 301 793 301 792 302 20 794 301 793 301 792 302
437.leslie3d 20 1563 120 1564 120 1565 120 10 745 126 744 126 745 126
444.namd 20 662 242 652 246 667 240 20 648 248 665 241 652 246
447.dealII 20 437 524 427 536 428 535 20 437 524 427 536 428 535
450.soplex 20 1332 125 1334 125 1332 125 10 549 152 552 151 550 152
453.povray 20 246 432 246 433 246 432 20 210 507 214 497 211 504
454.calculix 20 354 466 363 455 357 462 20 354 466 363 455 357 462
459.GemsFDTD 20 1859 114 1861 114 1860 114 20 1859 114 1861 114 1860 114
465.tonto 20 670 294 671 293 671 293 20 647 304 650 303 641 307
470.lbm 20 1190 231 1190 231 1190 231 20 1190 231 1190 231 1190 231
481.wrf 20 1082 207 1081 207 1082 206 20 1082 207 1081 207 1082 206
482.sphinx3 20 1741 224 1742 224 1740 224 20 1736 225 1734 225 1736 225

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1 > /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Platform Notes

 BIOS Configuration:
  HP Power Regulator was set to HP Static High Performance Mode
  HP Power Profile was set to Maximum Performance
  Memory Refresh Rate was set to 1x Refresh
 Sysinfo program /home/cpu2006/config/sysinfo.rev6874.hp
 $Rev: 6874 $ $Date:: 2013-11-20 #$ e05b96ddac6c3d74bfe176502a0a2391
 running on dl360egen8rwen Mon Jan 20 10:33:23 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2470 v2 @ 2.40GHz
       1 "physical id"s (chips)
       20 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 10
       siblings  : 20
       physical 0: cores 0 1 2 3 4 8 9 10 11 12
    cache size : 25600 KB

 From /proc/meminfo
    MemTotal:       49260212 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 11 (x86_64)

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 11 (x86_64)
       VERSION = 11
       PATCHLEVEL = 3

 uname -a:
    Linux dl360egen8rwen 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013
    (ccab990) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jan 19 22:08 last=S

 SPEC is set to: /home/cpu2006
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda2      ext3  549G   27G  521G   5% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS HP P73 11/12/2013
   Memory:
    6x HP 689911-071 8 GB 1600 MHz
    6x UNKNOWN NOT AVAILABLE

 (End of data from sysinfo program)
 Regarding the sysinfo display about the memory installed, the correct amount of
 memory is 48 GB and the dmidecode description should have one line reading as:
    6x HP 689911-071 8 GB 1600 MHz

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RedHat EL 6.4

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

C++ benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Fortran benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch

Benchmarks using both Fortran and C:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
482.sphinx3:  icc -m32

C++ benchmarks (except as noted below):

 icpc -m64
450.soplex:  icpc -m32

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -auto-ilp32
470.lbm:  basepeak = yes
482.sphinx3:  -xAVX   -ipo   -O3   -no-prec-div   -opt-mem-layout-trans=3   -unroll2

C++ benchmarks:

444.namd:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3
453.povray:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch
459.GemsFDTD:  basepeak = yes
465.tonto:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.html,
http://www.spec.org/cpu2006/flags/HP-Platform-Flags-Intel-V1.2-revB.20131009.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.xml,
http://www.spec.org/cpu2006/flags/HP-Platform-Flags-Intel-V1.2-revB.20131009.xml.
