CPU2006 license: | 19 | Test date: | Dec-2013 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Jan-2014 |
Tested by: | Fujitsu | Software Availability: | Sep-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2430 v2 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.00 GHz |
CPU MHz: | 2500 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 15 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 192 GB (12 x 16 GB 2Rx4 PC3L-12800R-11, ECC) |
Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.11.1.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 5 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

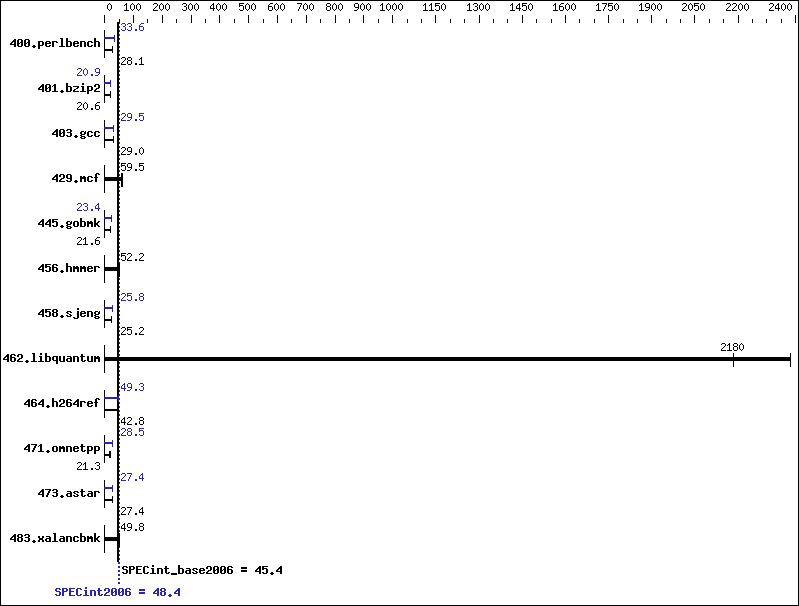

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 347 | 28.1 | 346 | 28.2 | 348 | 28.1 | 290 | 33.6 | 291 | 33.6 | 291 | 33.6 |
401.bzip2 | 468 | 20.6 | 468 | 20.6 | 468 | 20.6 | 461 | 21.0 | 461 | 20.9 | 461 | 20.9 |
403.gcc | 278 | 29.0 | 277 | 29.0 | 278 | 29.0 | 272 | 29.6 | 273 | 29.5 | 276 | 29.2 |
429.mcf | 151 | 60.3 | 153 | 59.5 | 153 | 59.5 | 151 | 60.3 | 153 | 59.5 | 153 | 59.5 |
445.gobmk | 486 | 21.6 | 485 | 21.6 | 485 | 21.6 | 448 | 23.4 | 448 | 23.4 | 448 | 23.4 |
456.hmmer | 180 | 51.9 | 179 | 52.2 | 179 | 52.2 | 180 | 51.9 | 179 | 52.2 | 179 | 52.2 |
458.sjeng | 482 | 25.1 | 481 | 25.2 | 481 | 25.2 | 468 | 25.8 | 468 | 25.8 | 468 | 25.8 |
462.libquantum | 8.69 | 2380 | 9.49 | 2180 | 9.49 | 2180 | 8.69 | 2380 | 9.49 | 2180 | 9.49 | 2180 |
464.h264ref | 517 | 42.8 | 518 | 42.7 | 517 | 42.8 | 449 | 49.3 | 449 | 49.3 | 449 | 49.3 |
471.omnetpp | 293 | 21.4 | 391 | 16.0 | 293 | 21.3 | 219 | 28.5 | 219 | 28.6 | 219 | 28.5 |
473.astar | 256 | 27.5 | 257 | 27.3 | 257 | 27.4 | 256 | 27.4 | 258 | 27.2 | 256 | 27.4 |
483.xalancbmk | 139 | 49.6 | 139 | 49.8 | 139 | 49.8 | 139 | 49.6 | 139 | 49.8 | 139 | 49.8 |
The config file option 'submit' was used.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS configuration: Energy Performance = Performance Utilization Profile = Unbalanced
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,1,0" LD_LIBRARY_PATH = "/SPECcpu2006/libs/32:/SPECcpu2006/libs/64:/SPECcpu2006/sh" OMP_NUM_THREADS = "12" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled For information about Fujitsu please visit: http://www.fujitsu.com
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
445.gobmk: | icc -m32 |
464.h264ref: | icc -m32 |
icpc -m64 | |
471.omnetpp: | icpc -m32 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xAVX -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | basepeak = yes |
445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
456.hmmer: | basepeak = yes |
458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
